Visaton W 200 8Ω
£33.22
28%Impact Audio · In stock · All 8 offers
- Fs
- 46Hz
- Xmax
- 2mm
- SPL
- 90dB
- Pe
- 50W
- BL
- 5.9T·m
- Vd
- 41cm³
- Qts
- 0.63
- Vas
- 51L

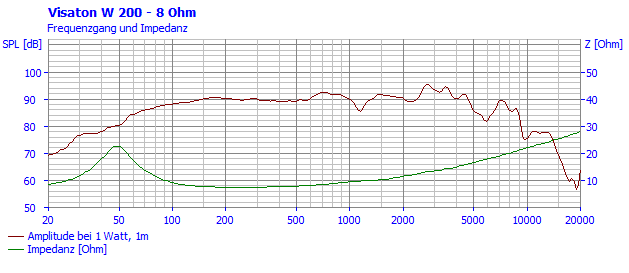

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,403 selected pixels of 1,526
Published graphs
Visaton W 200 is an 8-inch 8 ohm LF driver rated at 50 W RMS. The validated T/S data includes Fs 46 Hz, Qts 0.63, Vas 51 L, Xmax 2 mm, sensitivity 90 dB, plus 41 cm³ Vd and 58 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £27.59.
The published T/S values agree with each other
Thiele/Small
- Fs
- 46Hz
- Qts
- 0.63
- Qes
- 0.79
- Qms
- 3.2
- Vas
- 51L
- Re
- 6.8Ω
- Le
- 0.90mH
Motor and cone
- BL
- 5.9T·m
- Sd
- 207cm²
- Mms
- 14g
- Xmax Derived
- 2mm
- Vd †
- 41cm³
- Voice coil
- 25mm
- Flux density
- 1T
Power and response
- Sensitivity †
- 90dB
- Manufacturer sensitivity
- 88dB
- Power
- 50W
- Impedance
- 8Ω
- High limit
- 8000Hz
- EBP †
- 58 · Sealed or vented
Size and mounting
- Diameter
- 200mm
- Cutout
- 185mm
- Weight
- 1.0kg
Other published values
- Xmech
- 10
- Power Peak
- 80
Sensitivity shows 90.0 dB, calculated from the T/S values. Visaton publishes 88.0 dB, 2.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Visaton lists
LF · Primary · 8″
- BL
- 5.9T·m
- Fs
- 46Hz
- Le
- 0.90mH
- Re
- 6.8Ω
- Sd
- 207cm²
- Mms
- 14g
- Qes
- 0.79
- Qms
- 3.2
- Qts
- 0.63
- SPL
- 90dB
- Vas
- 51L
- Xmax
- 2mm
- Xmech
- 10
- Power
- 50W
- Impedance
- 8Ω
- Power Peak
- 80
- Flux density
- 1T
- Sensitivity
- 88dB
- Calculated sensitivity †
- 90dB
- High limit
- 8000Hz
- Manufacturer sensitivity
- 88dB
- Voice coil
- 25mm
- Weight
- 1.0kg
- Diameter
- 200mm
- Cutout
- 185mm
