LF DriverSPX series
Monacor
Monacor SPX-200WP
Monacor SPX-200WP is a 8" 8 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 36Hz, Qts 0.59, Vas 60.5L, Xmax 2mm, sensitivity 88.1dB, plus 43cm³ Vd and 52 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
50W
Sensitivity
88.1dB
EBP
52
Either alignment
Vd
43cm³
T/S Parameters
Valid
Fs36Hz
Qts0.59
Qes0.69
Qms4.2
Vas60.5L
Re7.6Ω
Le0.35mH
BL6.8Tm
Sd213cm²
Mms20g
Xmax2.0mm
SPL88dB
Power50W
Impedance8Ω
F Low3Hz
F High18000Hz
Voice Coil25mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

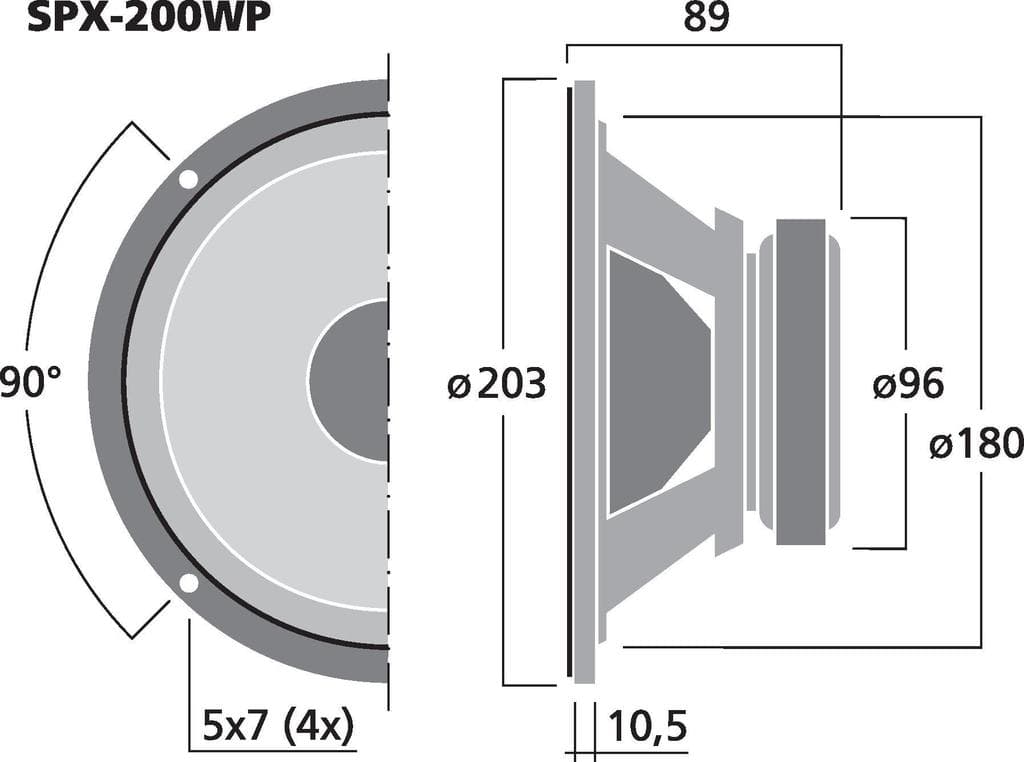

Dimensions & Physical
Weight1.3kg
Diameter203.0mm
Overall Depth99.0mm
Cutout Diameter180.0mm
