Monacor SPM-205/4 4Ω
4 Ω · 3–5000 Hz
No current price
- Fs
- 37Hz
- Xmax
- 3mm
- SPL
- 89dB
- Pe
- 70W
- BL
- 4.8T·m
- Vd
- 63cm³
- Qts
- 0.55
- Vas
- 72L
Monacor SPM-205/4 is an 8-inch 4 ohm LF driver rated at 70 W RMS. The validated T/S data includes Fs 37 Hz, Qts 0.55, Vas 72 L, Xmax 3 mm, sensitivity 89.3 dB, plus 63 cm³ Vd and 54 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 37Hz
- Qts
- 0.55
- Qes
- 0.68
- Qms
- 2.7
- Vas
- 72L
- Re
- 3.6Ω
- Le
- 0.65mH
Motor and cone
- BL
- 4.8T·m
- Sd
- 210cm²
- Mms
- 18g
- Xmax
- 3mm
- Vd †
- 63cm³
- Voice coil
- 26mm
Power and response
- Sensitivity †
- 89.3dB
- Manufacturer sensitivity
- 89dB
- Power
- 70W
- Impedance
- 4Ω
- Range
- 3–5000Hz
- EBP †
- 54 · Sealed or vented

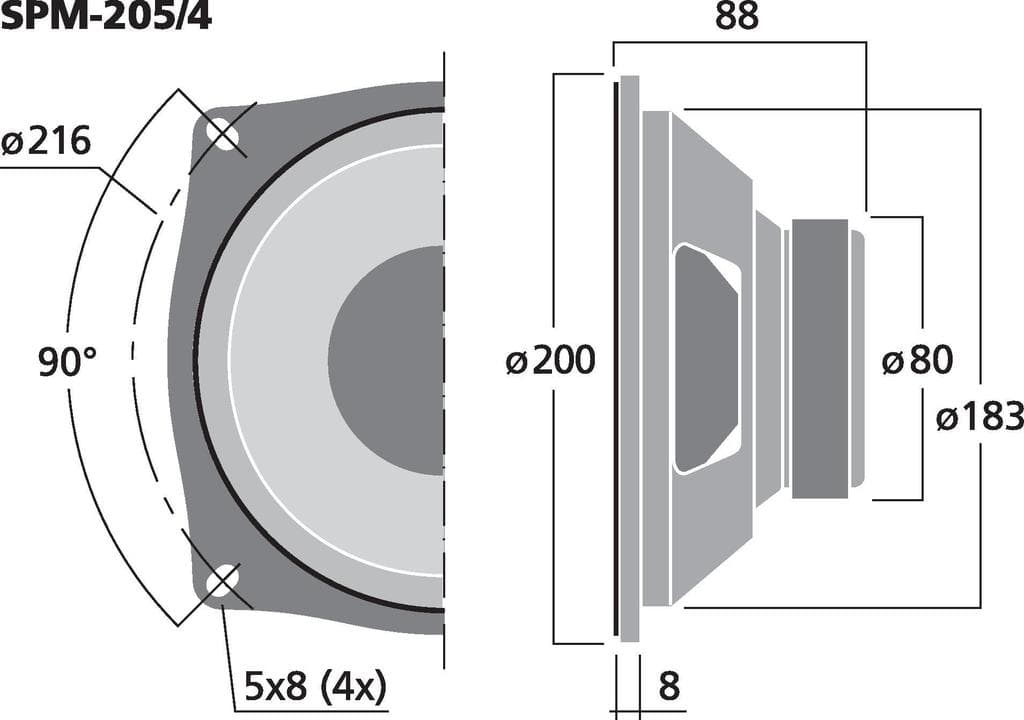

Size and mounting
- Diameter
- 200mm
- Cutout
- 183mm
- Depth
- 88mm
- Weight
- 1.1kg
Other published values
- Cms
- 0.98mm/N
- Power Peak
- 150
Other dimensions
- Mounting Depth
- 80
† Calculated by bits from the published values
What this validation status means
Everything else Monacor lists
MF · Primary · 8″
- BL
- 4.8T·m
- Fs
- 37Hz
- Le
- 0.65mH
- Re
- 3.6Ω
- Sd
- 210cm²
- Cms
- 0.98mm/N
- Mms
- 18g
- Qes
- 0.68
- Qms
- 2.7
- Qts
- 0.55
- SPL
- 89.3dB
- Vas
- 72L
- Xmax
- 3mm
- Power
- 70W
- Impedance
- 4Ω
- Power Peak
- 150
- Sensitivity
- 89dB
- Low limit
- 3Hz
- Calculated sensitivity †
- 89.3dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 89dB
- Voice coil
- 26mm
- Weight
- 1.1kg
- Diameter
- 200mm
- Depth
- 88mm
- Mounting Depth
- 80
- Cutout
- 183mm
