Overview
LF Driver
Tang Band

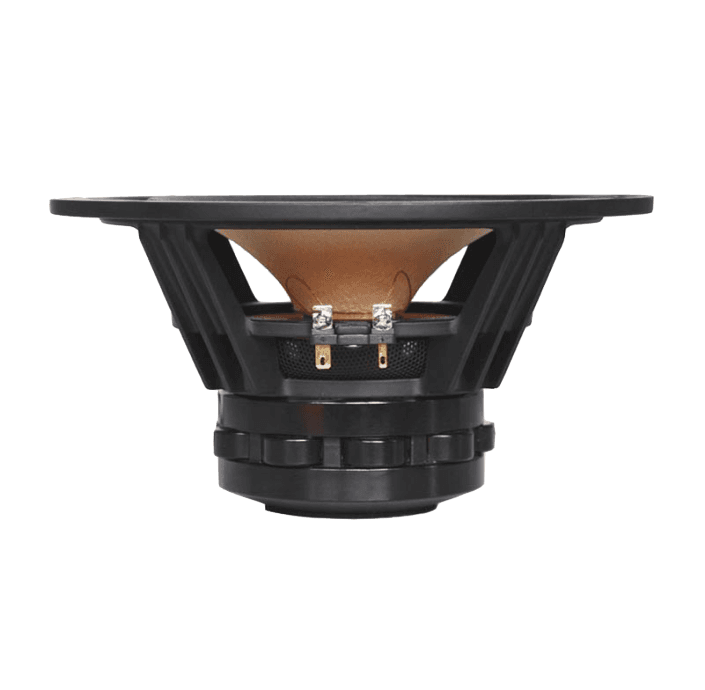

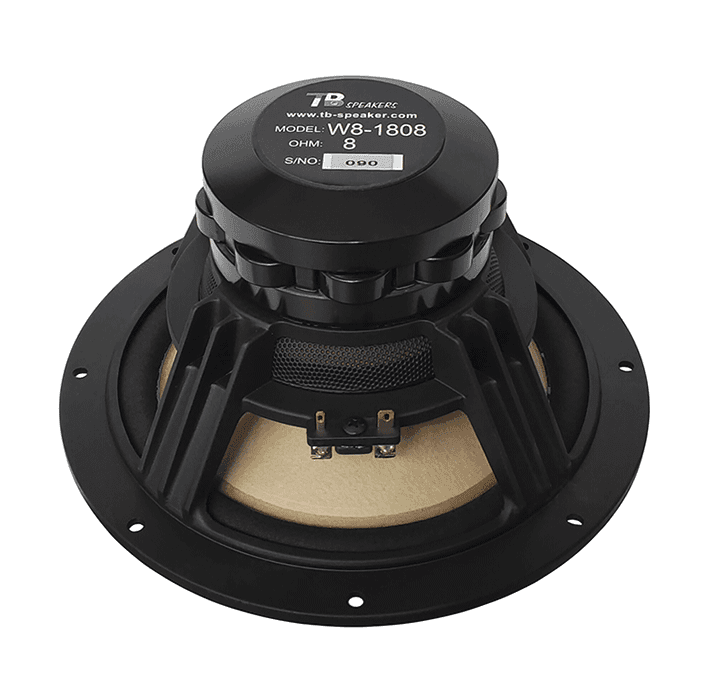

Tang Band W8-1808
Tang Band W8-1808 is a 8" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 45Hz, Qts 0.44, Vas 88.1L, Xmax 5mm, sensitivity 92.9dB, plus 110cm³ Vd and 68 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
30W
Sensitivity
92.9dB
EBP
68
Either alignment
Vd
110cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence683 selected pixels of 1,827 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,098 selected pixels of 2,098
T/S Parameters
Valid
Fs45Hz
Qts0.44
Qes0.66
Qms1.3
Vas88.1L
Re6.8Ω
Le0.05mH
BL5.3Tm
Sd220cm²
Mms9g
Xmax5.0mm
SPL93dB
Power30W
Impedance8Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Tang Band
W8-1808
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
9 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
65%
Similarity
Visaton
BG 20 - 8 OHM
8"
Xmax6mm+20%
Qts0.440%
BL6.1Tm+16%
Vas110L+25%
Qes0.51-23%
63%
Similarity
Dayton Audio
PS220-8
8"
Xmax4.8mm-4%
Qts0.38-14%
BL6.2Tm+16%
Vas90.2L+2%
Qes0.4-39%
59%
Similarity
£83.70
CIARE
HW202
8"
Xmax6.5mm+30%
Qts0.440%
BL6.7Tm+28%
Vas83L-6%
Qes0.52-21%
59%
Similarity
Tang Band
W8-2314
8"
Xmax6mm+20%
Qts0.46+5%
BL6.1Tm+15%
Vas49.5L-44%
Qes0.54-18%
55%
Similarity
CIARE
CW200Z
8"
Xmax4mm-20%
Qts0.53+20%
BL5.2Tm-2%
Vas38.3L-57%
Qes0.71+8%
52%
Similarity
Dayton Audio
RS225-4
8"
Xmax6mm+20%
Qts0.41-7%
BL6.4Tm+21%
Vas46.4L-47%
Qes0.52-21%
50%
Similarity
£171.95
Scanspeak
18W/8535-01
7"
Xmax5mm0%
Qts0.38-14%
BL5.9Tm+12%
Vas68.9L-22%
Qes0.46-30%
45%
Similarity
Dayton Audio
RS225P-4A
8"
Xmax6mm+20%
Qts0.38-14%
BL6.4Tm+21%
Vas45.8L-48%
Qes0.48-27%
43%
Similarity
CIARE
CW202
8"
Xmax6.5mm+30%
Qts0.41-7%
BL6.5Tm+24%
Vas48L-46%
Qes0.48-27%
