ETON 8-512/C8/32 HEX 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverSymphony II series
ETON
ETON 8-512/C8/32 HEX

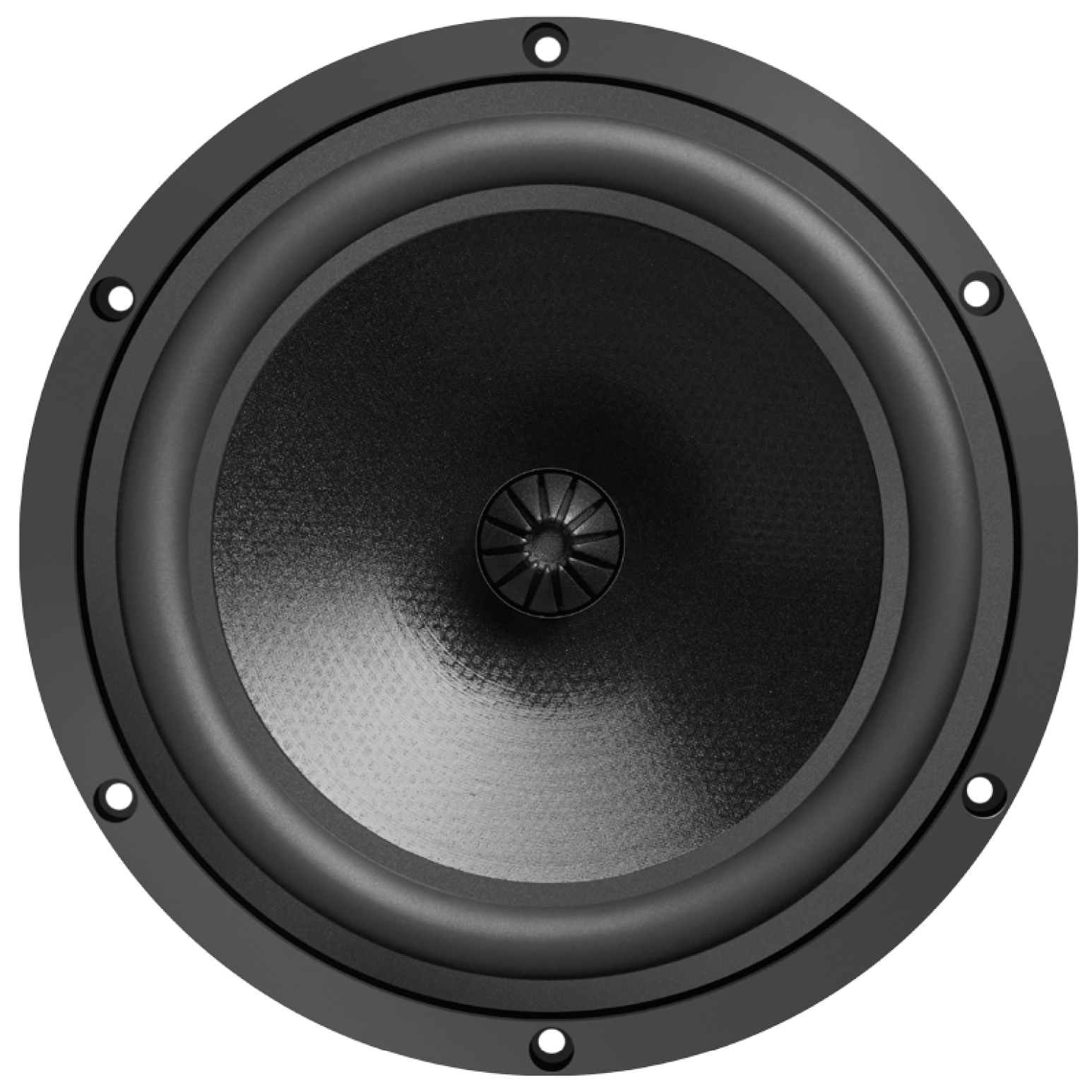

ETON 8-512/C8/32 HEX is a 8" 8 ohm LF driver. The validated T/S data includes Fs 27Hz, Qts 0.40, Vas 102L, Xmax 5.5mm, sensitivity 88.7dB, plus 122cm³ Vd and 63 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
Sensitivity
88.7dB
EBP
63
Either alignment
Vd
122cm³
T/S Parameters
Valid
Fs27Hz
Qts0.40
Qes0.43
Qms6.0
Vas102.0L
Re7.0Ω
Le0.72mH
BL7.8Tm
Sd222cm²
Mms25g
Xmax5.5mm
SPL89dB
Impedance8Ω
F Low40Hz
F High2000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.2kg
Diameter223.0mm
Overall Depth108.3mm
Cutout Diameter190.0mm
