LF DriverSandwich series
Accuton

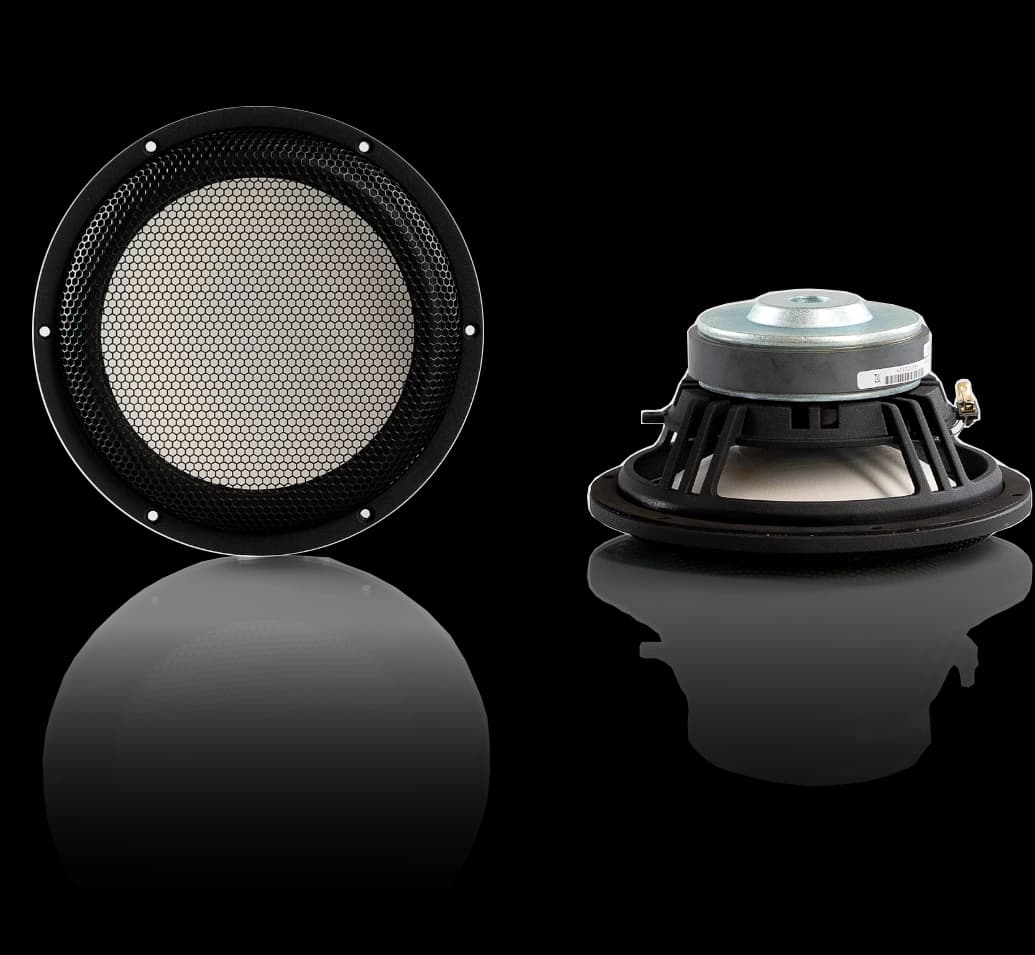

Accuton S220-6-221
Accuton S220-6-221 is a 8" 6 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 22Hz, Qts 0.37, Vas 112.9L, Xmax 5mm, sensitivity 87dB, plus 112cm³ Vd and 57 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £475.95.
Size
8"
Impedance
6Ω
RMS Power
150W
Sensitivity
87.0dB
88.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
57
Either alignment
Vd
112cm³
T/S Parameters
Valid
Fs22Hz
Qts0.37
Qes0.39
Qms5.7
Vas112.9L
Re5.9Ω
Le0.81mH
BL8.3Tm
Sd224cm²
Mms33g
Xmax5.0mm
SPL87dB
Power150W
Impedance6Ω
F Low31Hz
F High1000Hz
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Best current price
£475.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

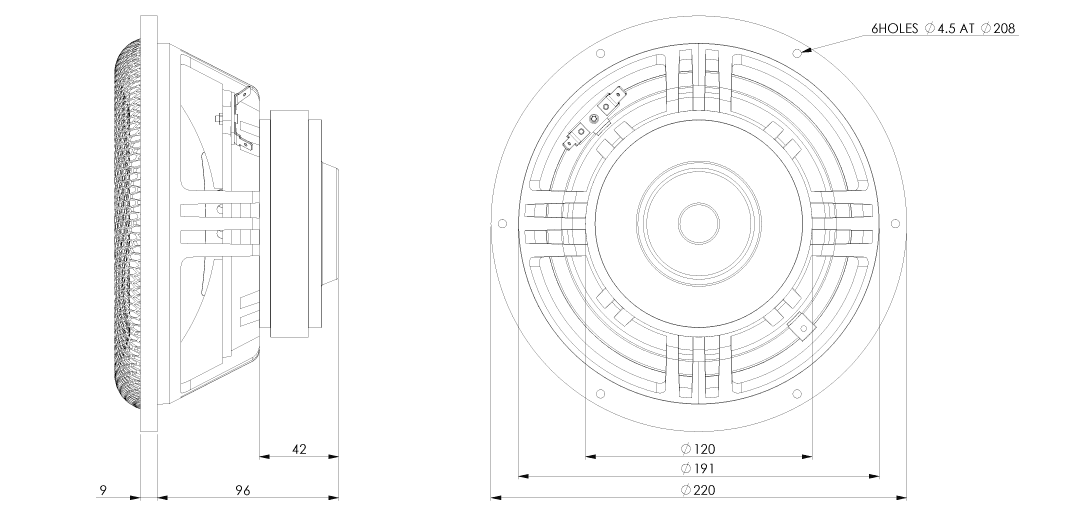

Dimensions & Physical
Diameter220.0mm
Overall Depth105.0mm
Cutout Diameter191.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Accuton
S220-6-221
8"
Best current price
£475.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
51%
Similarity
94% cheaper£27.70
Dayton Audio
DC200-8
8"
Lower price
Xmax4.5mm-10%
Qts0.42+14%
BL9.5Tm+15%
Vas45.7L-60%
Qes0.49+26%
41%
Similarity
82% cheaper£83.70

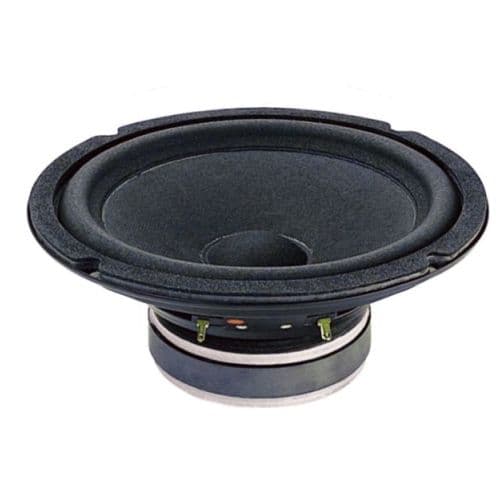

CIARE
HW202
8"
Lower price
Xmax6.5mm+30%
Qts0.44+19%
BL6.7Tm-19%
Vas83L-26%
Qes0.52+33%
76%
Similarity
76% cheaper£111.95

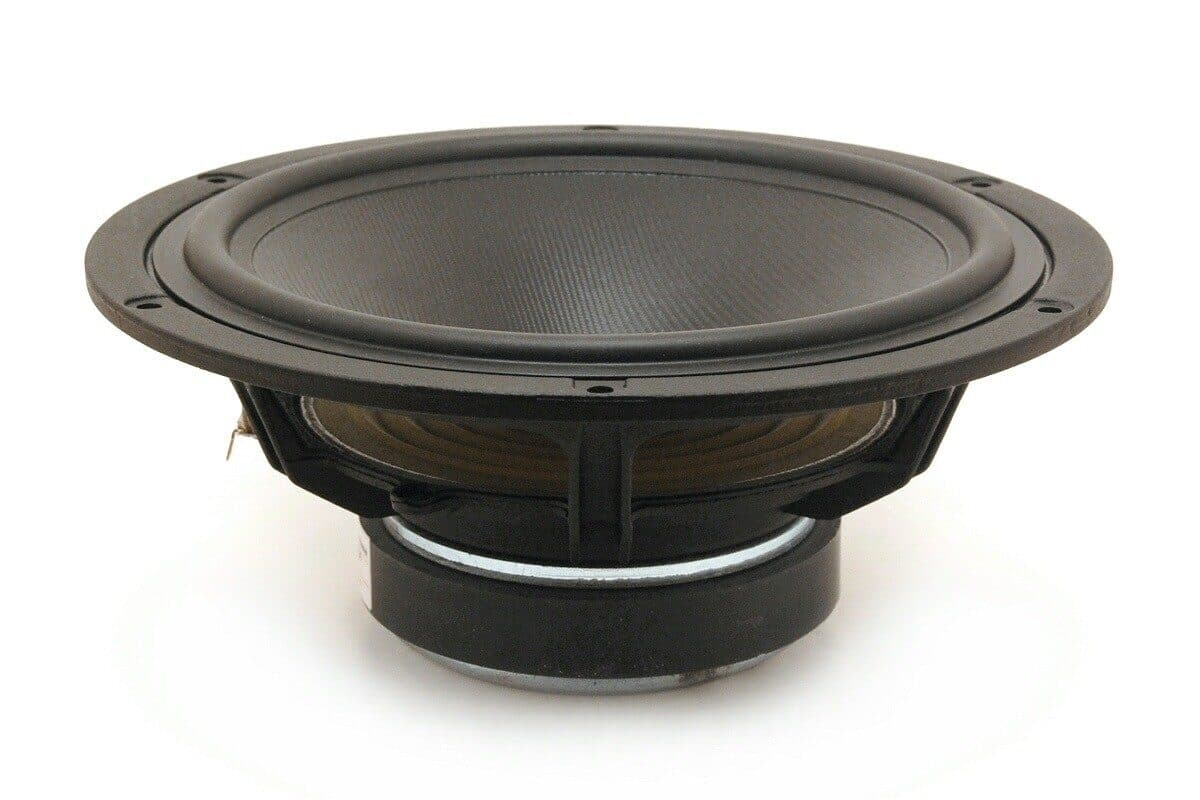

Scanspeak
22W/8534G00
8"
Lower price
Xmax5.8mm+16%
Qts0.39+5%
BL7.8Tm-6%
Vas94.2L-17%
Qes0.43+10%
67%
Similarity
76% cheaper£111.95
Scanspeak
22W/4534G00
8"
Lower price
Xmax5.7mm+14%
Qts0.34-8%
BL6Tm-28%
Vas95L-16%
Qes0.37-5%
50%
Similarity
64% cheaper£171.95

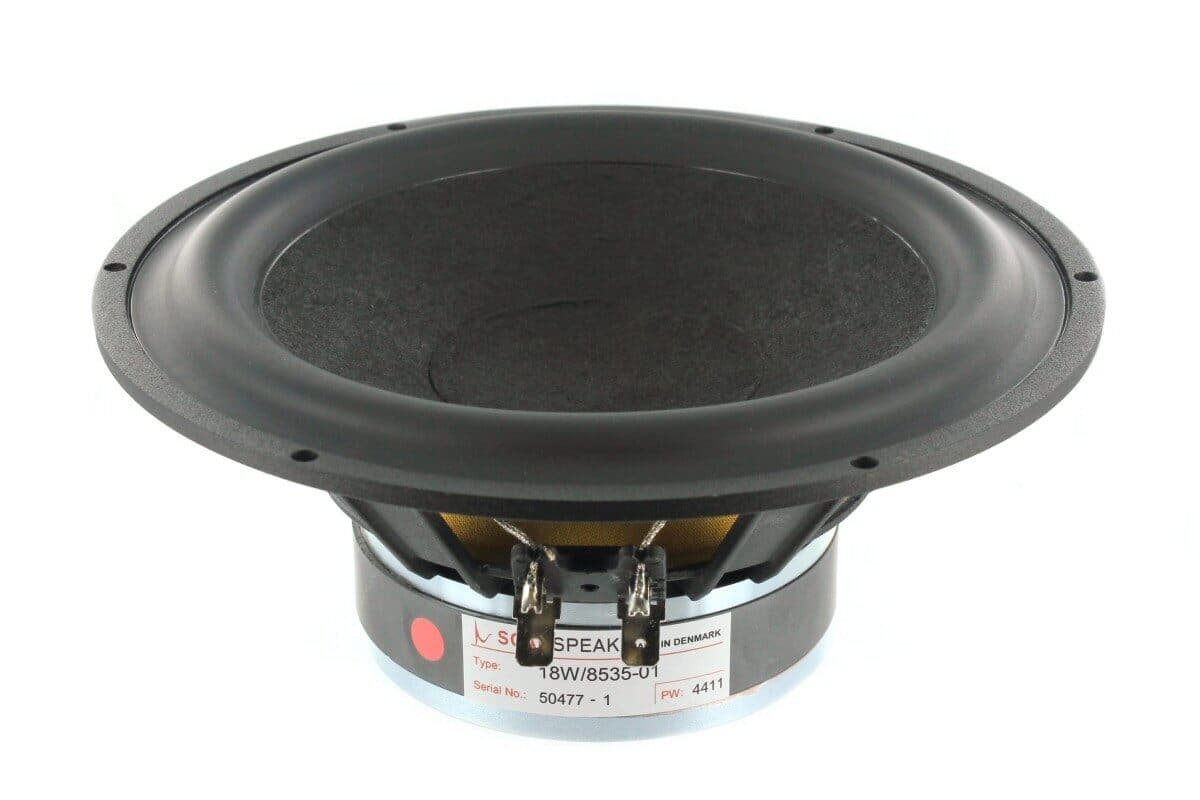

Scanspeak
18W/8535-01
7"
Lower price
Xmax5mm0%
Qts0.38+3%
BL5.9Tm-29%
Vas68.9L-39%
Qes0.46+18%
24%
Similarity
62% cheaper£178.95
Scanspeak
18W/8545K00
7"
Lower price
Xmax6.5mm+30%
Qts0.28-24%
BL8.2Tm-1%
Vas46.4L-59%
Qes0.3-23%
43%
Similarity
57% cheaper£206.95
Scanspeak
18W/8531G00
7"
Lower price
Xmax6.5mm+30%
Qts0.36-3%
BL6.8Tm-18%
Vas58.2L-48%
Qes0.390%
30%
Similarity
56% cheaper£207.95
Scanspeak
18W/4531G01
7"
Lower price
Xmax6.5mm+30%
Qts0.35-5%
BL5.7Tm-31%
Vas45.6L-60%
Qes0.38-3%
60%
Similarity
48% cheaper£246.95

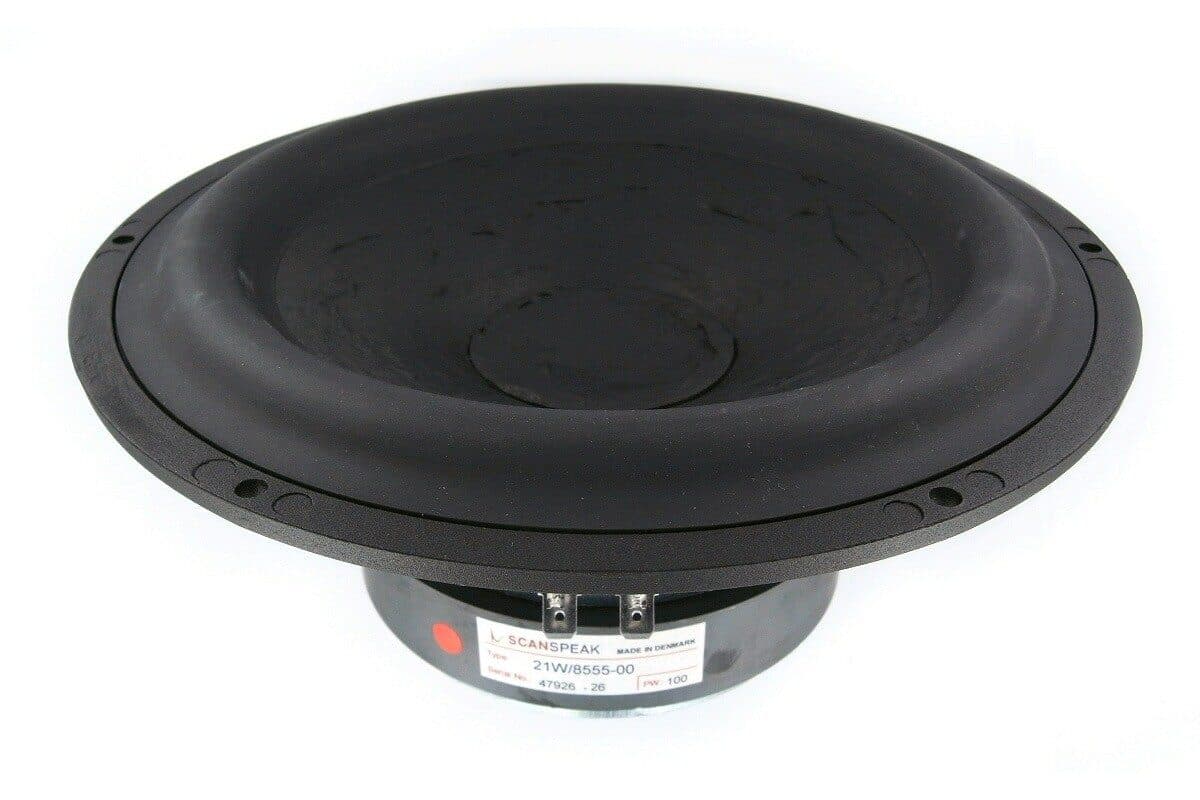

Scanspeak
21W/8555-10
8"
Lower price
Xmax6.5mm+30%
Qts0.31-16%
BL8.2Tm-1%
Vas134L+19%
Qes0.33-15%
82%
Similarity
11% more£528.95

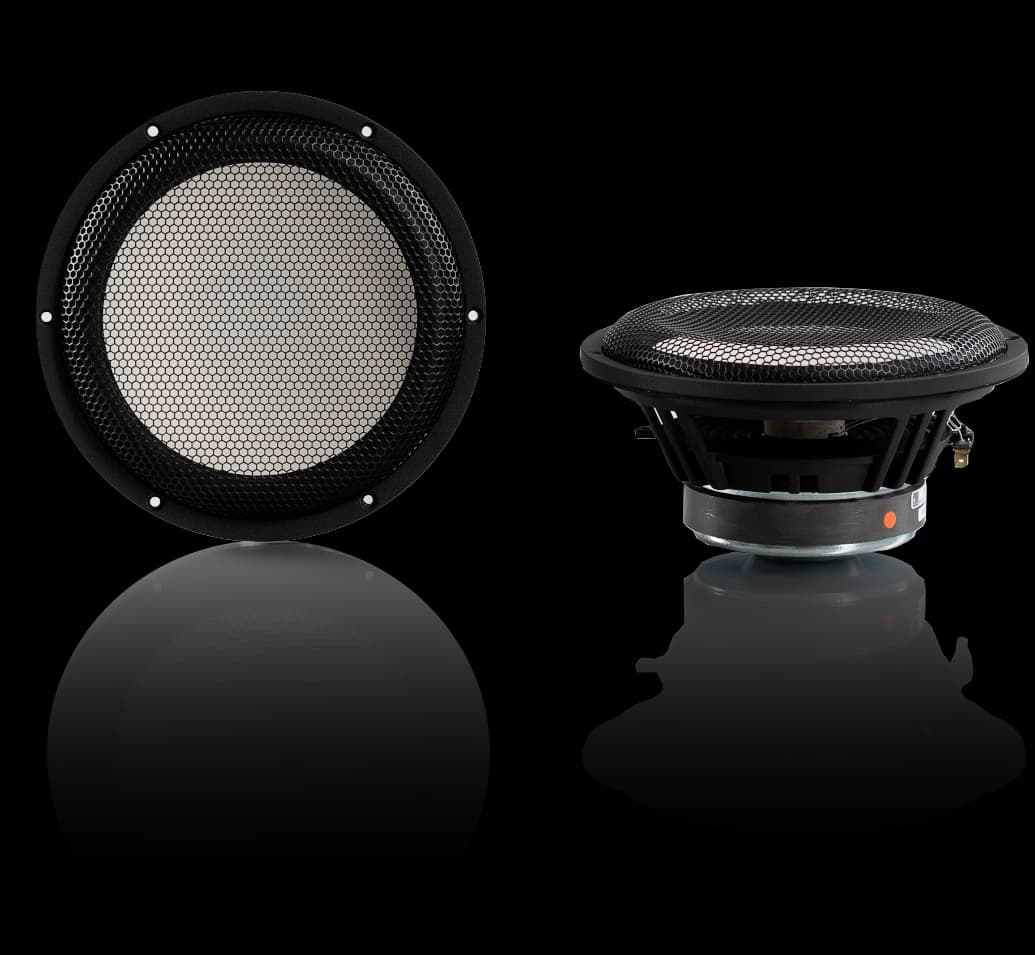

Accuton
C220-6-221
8"
Higher price
Xmax5mm0%
Qts0.4+8%
BL8.7Tm+5%
Vas86.2L-24%
Qes0.42+8%
77%
Similarity
Dayton Audio
PS220-8
8"
Xmax4.8mm-4%
Qts0.38+3%
BL6.2Tm-26%
Vas90.2L-20%
Qes0.4+3%
73%
Similarity
Dayton Audio
PM220-8
8"
Xmax4.6mm-8%
Qts0.38+3%
BL7.2Tm-13%
Vas63L-44%
Qes0.41+5%
