CIARE CMI200ND
CIARE CMI200ND is a 8" 4 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 80Hz, Qts 0.37, Vas 12.5L, Xmax 4.5mm, sensitivity 94.2dB, plus 96cm³ Vd and 205 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
4Ω
RMS Power
450W
Sensitivity
94.2dB
98.5dBmanufacturer; using T/S-derived value (4.3dB delta).
EBP
205
Vented alignment
Vd
96cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence2,606 selected pixels of 2,606 - Trace datasheet-response-trace-poc/v1
free air impedance
Impedance response
240 plotted pointsMedium confidence2,093 selected pixels of 2,093
T/S Parameters
Valid
Fs80Hz
Qts0.37
Qes0.39
Qms7.5
Vas12.5L
Re3.0Ω
Le0.38mH
BL8.8Tm
Sd214cm²
Mms21g
Xmax4.5mm
SPL94dB
Power450W
Power Nominal220W
Impedance4Ω
F Low90Hz
F High5000Hz
Voice Coil50mm
Pricing & availability
Price definitionsVendor offers
1 vendorleanaudio
Updated 11 Sept 2026· 4Ω
Source: inc VAT · 20%
£97.60
inc VAT
Back order
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.0kg
Diameter208.0mm
Overall Depth121.0mm
Cutout Diameter185.0mm
Bolt Circle Diameter194.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CMI200ND
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
86%
Similarity

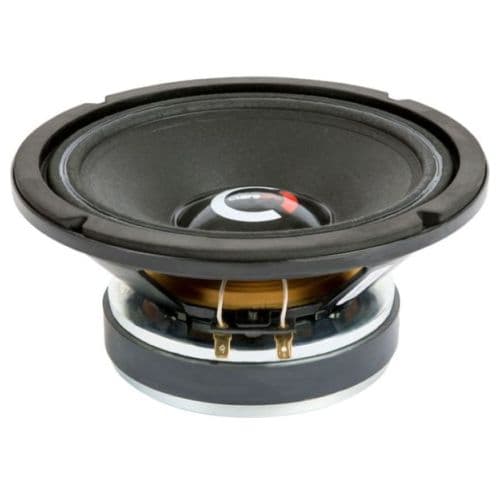

CIARE
CMI200
8"
Xmax4.5mm0%
Qts0.34-8%
BL9.6Tm+9%
Vas12L-4%
Qes0.36-8%
79%
Similarity
PRV Audio
MT8MB600CF-NDY-4
8"
Xmax4.8mm+6%
Qts0.370%
BL9.3Tm+6%
Vas18.8L+50%
Qes0.38-3%
76%
Similarity
£34.02
Lavoce
WSF081.82
8"
Xmax4.6mm+2%
Qts0.38+3%
BL11.3Tm+28%
Vas14.3L+14%
Qes0.43+10%
74%
Similarity

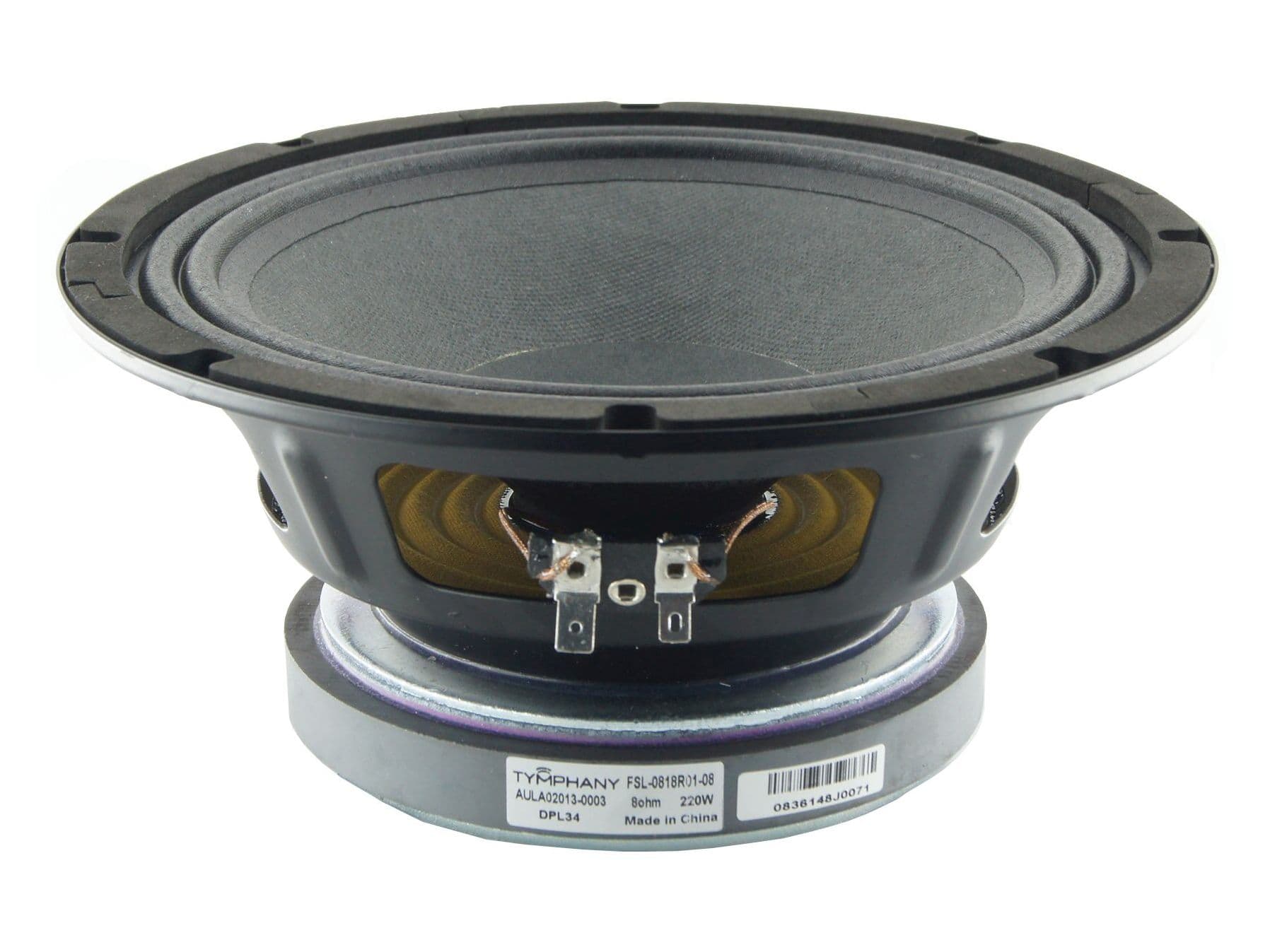

Peerless
FSL-0818R01-08
8"
Xmax4.3mm-3%
Qts0.370%
BL11.3Tm+28%
Vas15.9L+27%
Qes0.42+7%
68%
Similarity
Oberton
8NCX
8"
Xmax5.3mm+17%
Qts0.4+8%
BL10.1Tm+15%
Vas14.9L+19%
Qes0.44+13%
68%
Similarity
£66.52
CIARE
CME200
8"
Xmax3.5mm-22%
Qts0.370%
BL7.3Tm-17%
Vas18L+44%
Qes0.390%
68%
Similarity
£66.50
PRV Audio
8MR600X-4
8"
Xmax5.1mm+13%
Qts0.34-8%
BL8.9Tm+1%
Vas19.6L+57%
Qes0.36-8%
67%
Similarity
Oberton
8CX
8"
Xmax5.3mm+17%
Qts0.4+8%
BL9.4Tm+7%
Vas16.8L+35%
Qes0.44+13%
67%
Similarity
£135.13
FaitalPRO
8HX150
8"
Xmax4.9mm+9%
Qts0.41+11%
BL11.6Tm+32%
Vas13L+4%
Qes0.43+10%
66%
Similarity
£151.61
B&C
8CX21
8"
Xmax5.5mm+22%
Qts0.36-3%
BL11.5Tm+31%
Vas15L+20%
Qes0.390%
65%
Similarity
£139.79

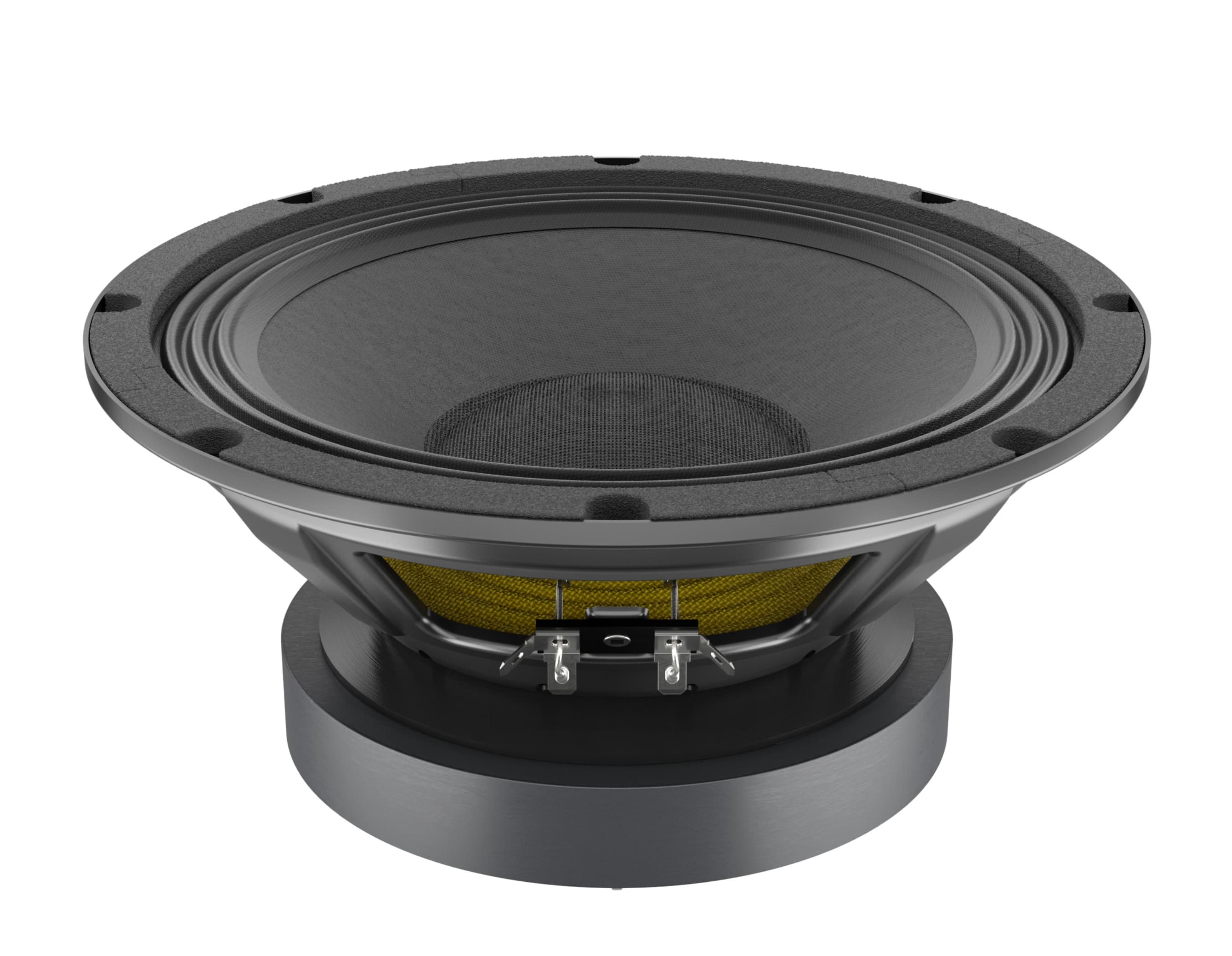

Lavoce
