8-inch LF driver · CXI series · 51 mm voice coil · 220 W

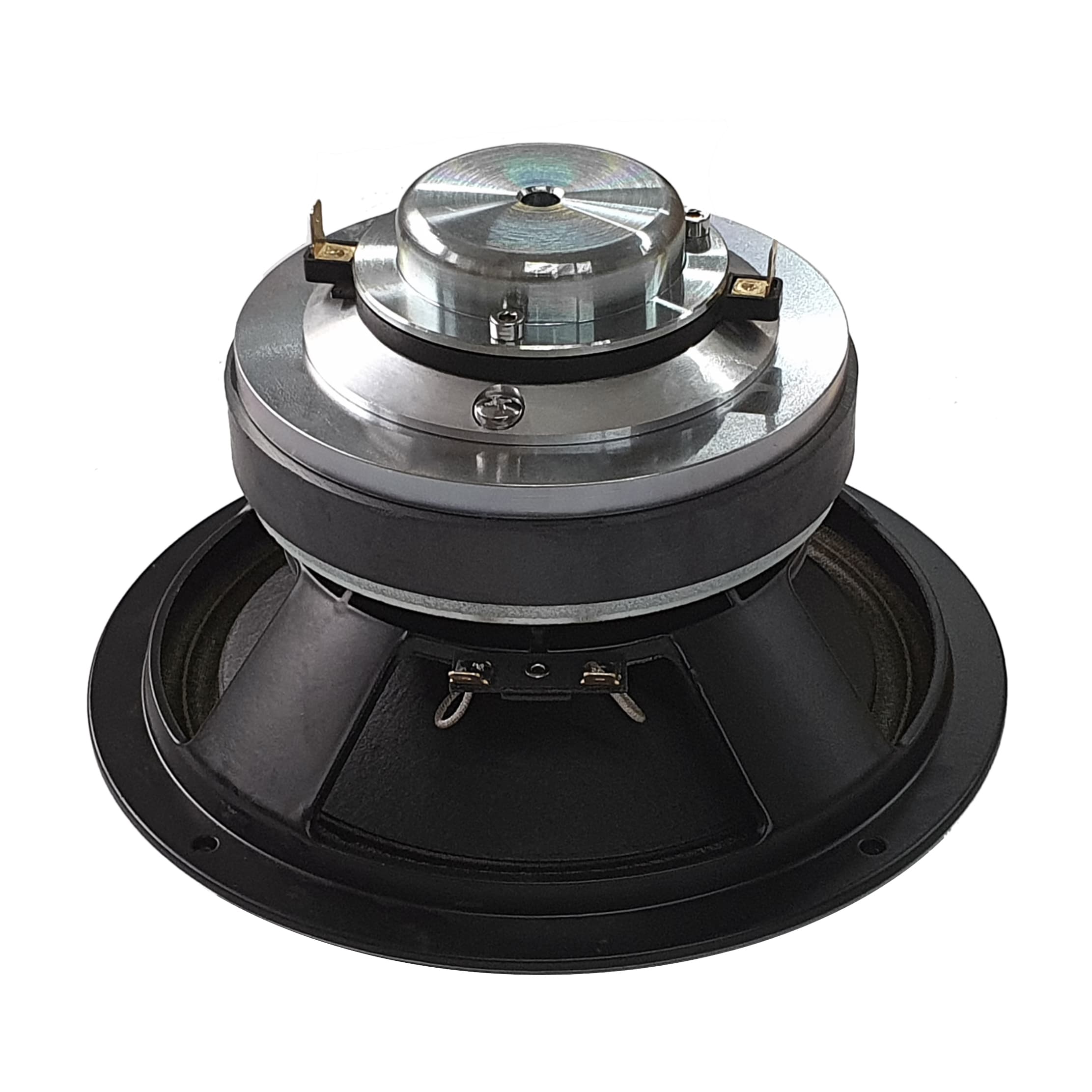

CIARE CXI200 4Ω
4 Ω · 80–2500 Hz
No current price
- Fs
- 88Hz
- Xmax
- 4.5mm
- SPL
- 94dB
- Pe
- 220W
- BL
- 9.3T·m
- Vd
- 96cm³
- Qts
- 0.35
- Vas
- 9L
CIARE CXI200 is an 8-inch 4 ohm LF driver rated at 220 W RMS. The validated T/S data includes Fs 88 Hz, Qts 0.35, Vas 8.8 L, Xmax 4.5 mm, sensitivity 94.2 dB, plus 96 cm³ Vd and 244 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 88Hz
- Qts
- 0.35
- Qes
- 0.36
- Qms
- 10.9
- Vas
- 8.8L
- Re
- 2.8Ω
- Le
- 0.35mH
Motor and cone
- BL
- 9.3T·m
- Sd
- 214cm²
- Mms
- 20g
- Xmax
- 4.5mm
- Vd †
- 96cm³
- Voice coil
- 51mm
Power and response
- Sensitivity †
- 94.2dB
- Manufacturer sensitivity
- 99dB
- Power
- 220W
- Nominal power
- 220W
- Impedance
- 4Ω
- Range
- 80–2500Hz
- EBP †
- 244 · Leans vented
Size and mounting
- Diameter
- 203.2mm
- Cutout
- 145mm
- Bolt circle
- 194.1mm
- Depth
- 115.1mm
- Weight
- 3.8kg
Other published values
- Power Program
- 450
Sensitivity shows 94.2 dB, calculated from the T/S values. CIARE publishes 99.0 dB, 4.8 dB apart.
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Primary · 8″
- BL
- 9.3T·m
- Fs
- 88Hz
- Le
- 0.35mH
- Re
- 2.8Ω
- Sd
- 214cm²
- Mms
- 20g
- Qes
- 0.36
- Qms
- 10.9
- Qts
- 0.35
- SPL
- 94.2dB
- Vas
- 8.8L
- Xmax
- 4.5mm
- Power
- 220W
- Impedance
- 4Ω
- Sensitivity
- 99dB
- Low limit
- 80Hz
- Nominal power
- 220W
- Power Program
- 450
- Calculated sensitivity †
- 94.2dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 99dB
- Voice coil
- 51mm
- Weight
- 3.8kg
- Diameter
- 203.2mm
- Depth
- 115.1mm
- Cutout
- 145mm
- Bolt circle
- 194.1mm
02
