Overview
LF Driver
Sica

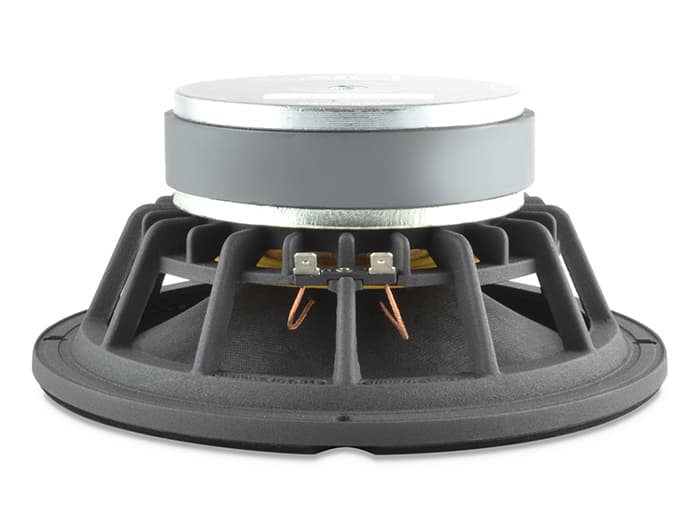

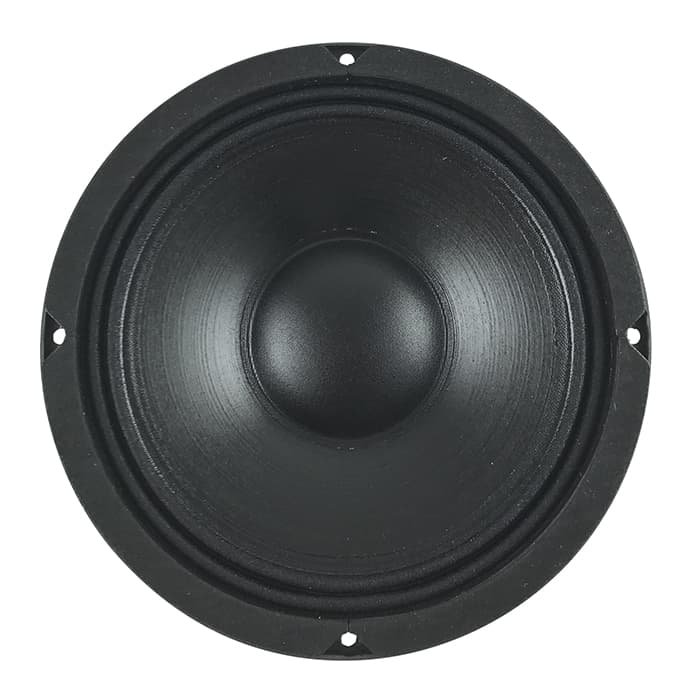

Sica 8 FE 2 CP
Sica 8 FE 2 CP is a 8" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 67Hz, Qts 0.32, Vas 16.9L, Xmax 4.5mm, sensitivity 93.4dB, plus 96cm³ Vd and 181 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
200W
Sensitivity
93.4dB
94.6dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
181
Vented alignment
Vd
96cm³
T/S Parameters
Valid
Fs67Hz
Qts0.32
Qes0.37
Qms2.3
Vas16.9L
Re6.1Ω
Le0.78mH
BL12.3Tm
Sd214cm²
Mms22g
Xmax4.5mm
SPL93dB
Power200W
Impedance8Ω
Voice Coil50mm
Flux Density1.20T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.8kg
Diameter210.0mm
Overall Depth93.0mm
Cutout Diameter184.0mm
Bolt Circle Diameter196.0mm
