BMS 8S215 8Ω
8 Ω · 80–3000 Hz
£137.66
SteadyLean Audio · In stock · All 1 offer
- Fs
- 88Hz
- Xmax
- 4.3mm
- SPL
- 96dB
- Pe
- 200W
- BL
- 13.6T·m
- Vd
- 94cm³
- Qts
- 0.31
- Vas
- 11L
BMS 8S215 is an 8-inch 8 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 88 Hz, Qts 0.31, Vas 11.0 L, Xmax 4.3 mm, sensitivity 95.6 dB, plus 94 cm³ Vd and 266 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £137.66.
The published T/S values agree with each other
Thiele/Small
- Fs
- 88Hz
- Qts
- 0.31
- Qes
- 0.33
- Qms
- 4.4
- Vas
- 11.0L
- Re
- 5.4Ω
- Le
- 0.20mH
Motor and cone
- BL
- 13.6T·m
- Sd
- 222cm²
- Mms
- 21g
- Xmax
- 4.3mm
- Vd †
- 94cm³
- Voice coil
- 51mm
Power and response
- Sensitivity †
- 95.6dB
- Manufacturer sensitivity
- 96dB
- Power
- 200W
- Impedance
- 8Ω
- Range
- 80–3000Hz
- EBP †
- 266 · Leans vented

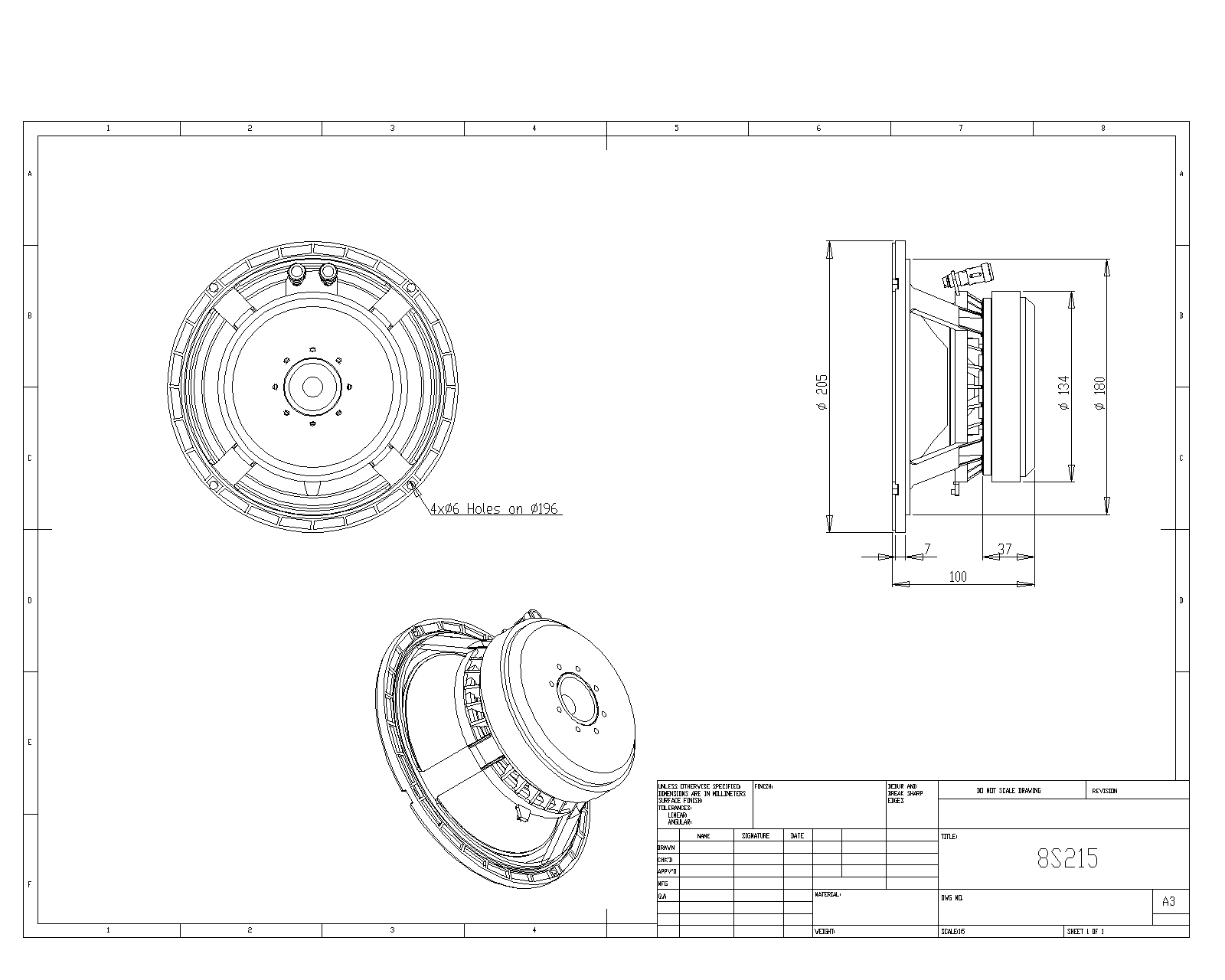

Size and mounting
- Diameter
- 205mm
- Cutout
- 182mm
- Bolt circle
- 196mm
- Depth
- 100mm
- Weight
- 3.3kg
Other published values
- Cms
- 0.16mm/N
† Calculated by bits from the published values
What this validation status means
Everything else BMS lists
LF
- BL
- 13.6T·m
- Fs
- 88Hz
- Le
- 0.20mH
- Re
- 5.4Ω
- Sd
- 222cm²
- Cms
- 0.16mm/N
- Mms
- 21g
- Qes
- 0.33
- Qms
- 4.4
- Qts
- 0.31
- SPL
- 95.6dB
- Vas
- 11.0L
- Xmax
- 4.3mm
- Power
- 200W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 80Hz
- Calculated sensitivity †
- 95.6dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 96dB
- Voice coil
- 51mm
- 10. basket
- Cast Aluminum
- 20. bl factor
- BL 13.6 Tesla m
- 1. application
- Low-middle
- 18. moving mass
- Mms 0.0206 kg
- 13. dc resistance
- Re 5.4 Ohm
- 9. magnet gap depth
- 6.5 mm
- 17. equivalent volume
- Vas 11.04 L
- 2. nominal impendance
- 8 Ohm
- 5. frequency response
- 80 – 3000 Hz
- 6. voice coil diameter
- 51 (2″) mm
- 7. voice coil material
- Cu
- 12. resonance frequency
- Fs 87.7 Hz
- 14. mechanical q factor
- Qms 4.4
- 15. electrical q factor
- Qes 0.33
- 16. total quality factor
- Qts 0.31
- 19. mechanical complience
- Cms 0.16 mm / N
- 21. effective piston area
- Sd 0.0222 m²
- 22. max. linear excursion
- Xmax +/- 4.25 mm
- 23. voice coil inductance
- Le1k 0.2 mH
- 4. sensitivity (1 w / 1 m)
- 96 dB
- 3. power handling aes noise
- 200 W
- 8. voice coil winding depth
- 15 mm
- 11. effect. diaphragm diameter d
- 168 mm
