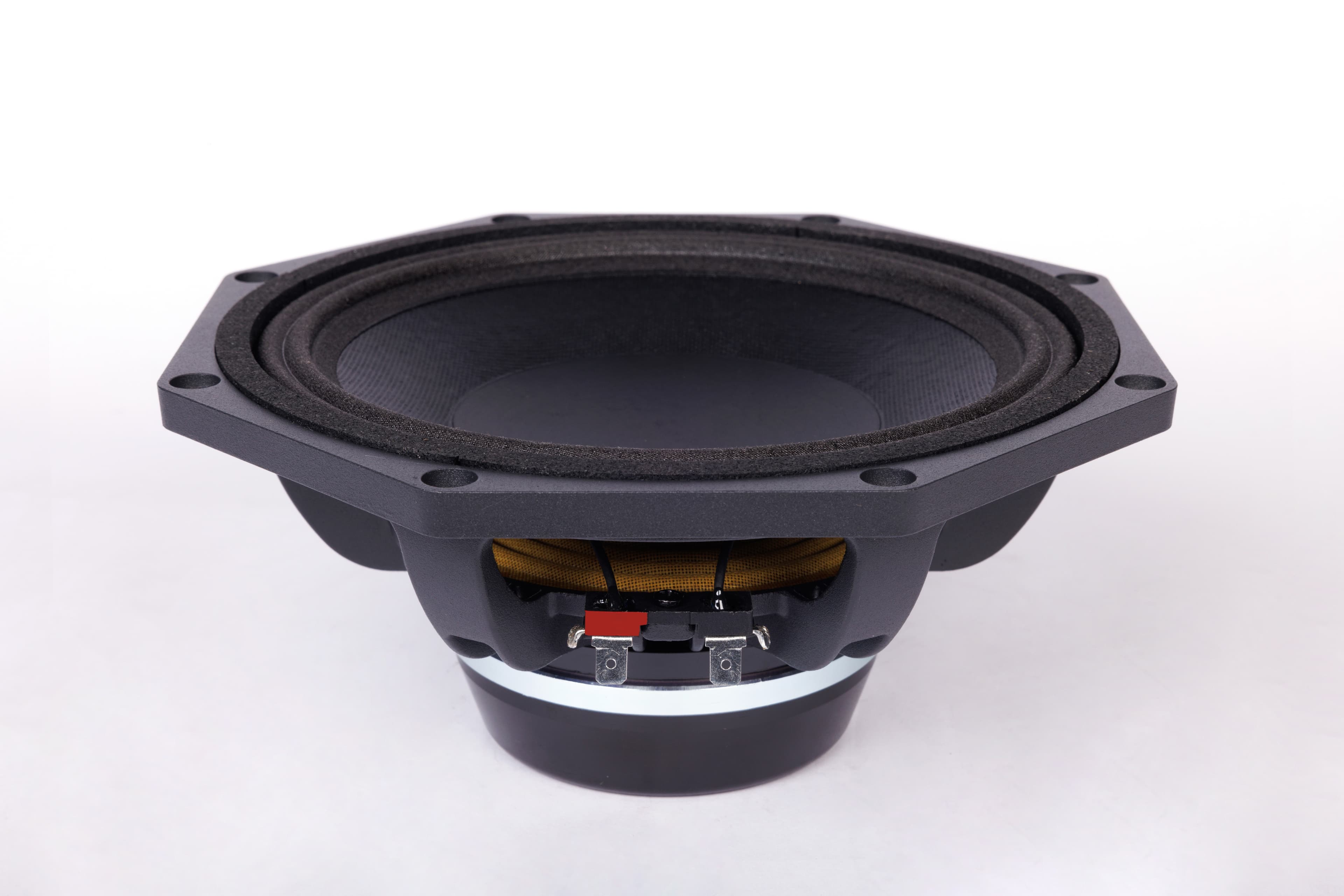

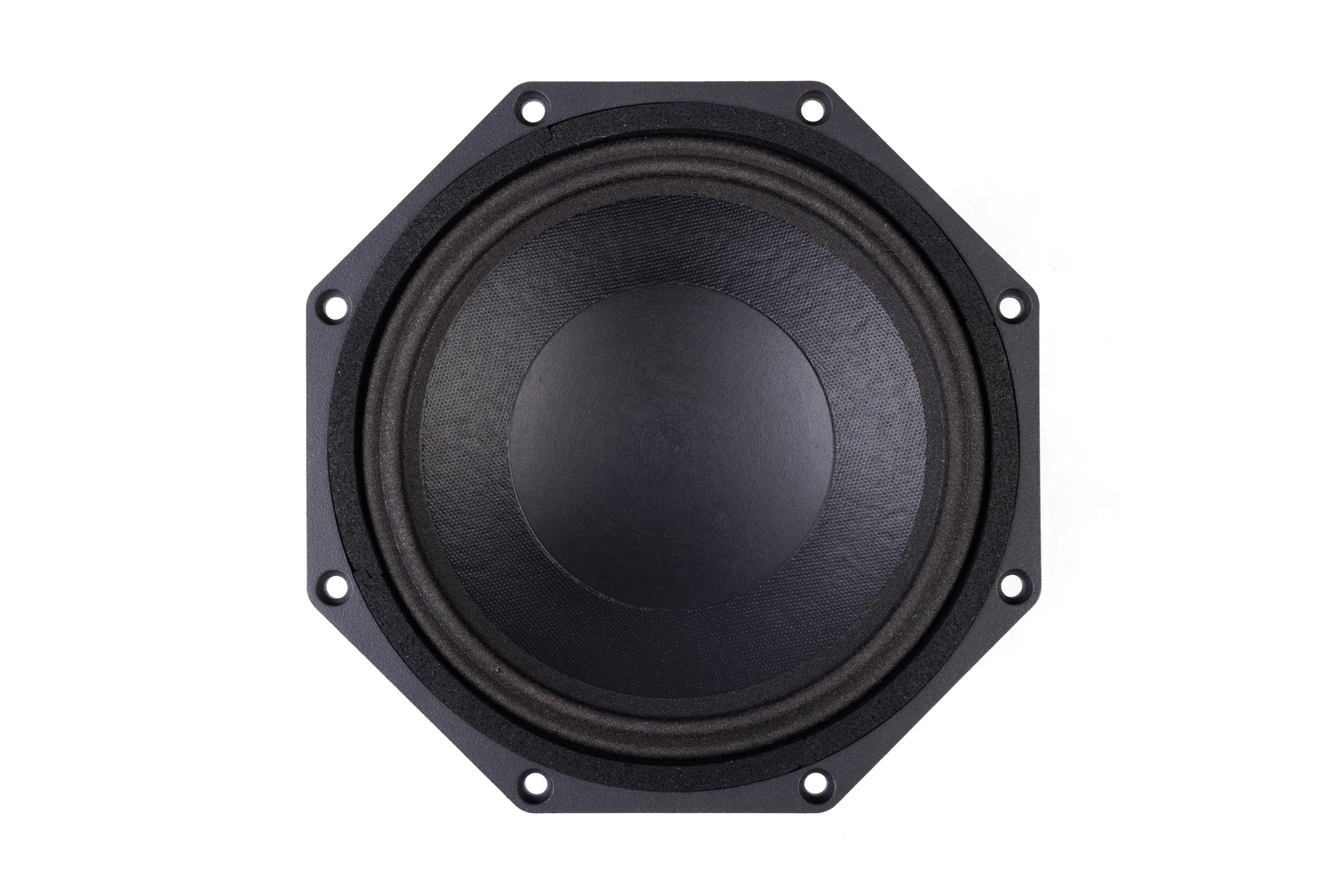

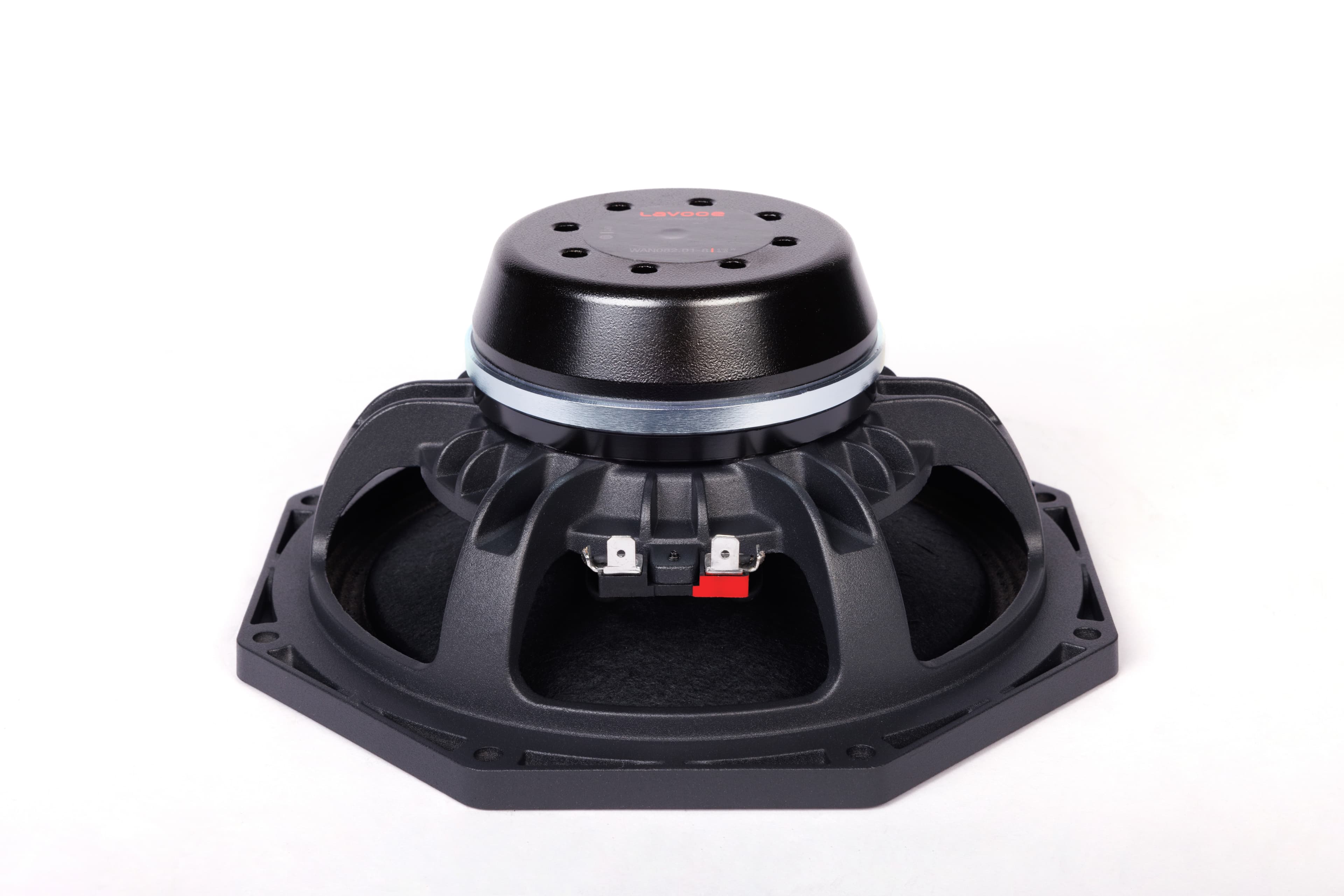

Lavoce WAN082.01 8Ω
8 Ω · 80–5000 Hz
No price for delivery to the UK
- Fs
- 85Hz
- Xmax
- 5.8mm
- SPL
- 94dB
- Pe
- 200W
- BL
- 14.4T·m
- Vd
- 128cm³
- Qts
- 0.32
- Vas
- 9L
Lavoce WAN082.01 is an 8-inch 8 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 85 Hz, Qts 0.32, Vas 9 L, Xmax 5.8 mm, sensitivity 94 dB, plus 128 cm³ Vd and 243 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £127.16.
The published T/S values agree with each other
Thiele/Small
- Fs
- 85Hz
- Qts
- 0.32
- Qes
- 0.35
- Qms
- 4.8
- Vas
- 9L
- Re
- 5.1Ω
- Le
- 0.36mH
Motor and cone
- BL
- 14.4T·m
- Sd
- 220cm²
- Mms
- 27g
- Xmax
- 5.8mm
- Vd †
- 128cm³
- Voice coil
- 51mm
Power and response
- Sensitivity †
- 94dB
- Manufacturer sensitivity
- 96dB
- Power
- 200W
- Impedance
- 8Ω
- Min. impedance
- 6Ω
- Range
- 80–5000Hz
- EBP †
- 243 · Leans vented
Size and mounting
- Weight
- 2.3kg
Other published values
- Cms
- 0.13mm/N
- Xmech
- 9.8
- Power Program
- 400
Sensitivity shows 94.0 dB, calculated from the T/S values. Lavoce publishes 96.0 dB, 2.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Lavoce lists
LF · Primary · 8″
- BL
- 14.4T·m
- Fs
- 85Hz
- Le
- 0.36mH
- Re
- 5.1Ω
- Sd
- 220cm²
- Cms
- 0.13mm/N
- Mms
- 27g
- Qes
- 0.35
- Qms
- 4.8
- Qts
- 0.32
- SPL
- 94dB
- Vas
- 9L
- Xmax
- 5.8mm
- Xmech
- 9.8
- Power
- 200W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 80Hz
- Power Program
- 400
- Calculated sensitivity †
- 94dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 96dB
- Min. impedance
- 6Ω
- Voice coil
- 51mm
- Weight
- 2.3kg
