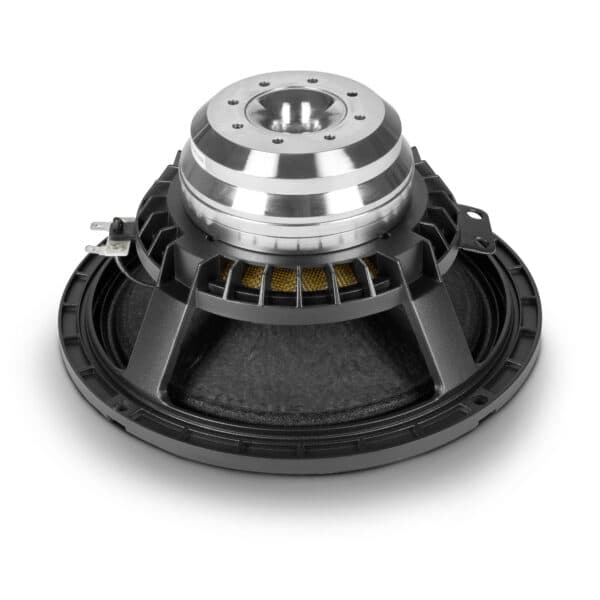

BMS 8N519 8Ω
8 Ω · 80–3000 Hz
No price for delivery to the UK
- Fs
- 75Hz
- Xmax
- 6.3mm
- SPL
- 93dB
- Pe
- 250W
- BL
- 13.8T·m
- Vd
- 140cm³
- Qts
- 0.37
- Vas
- 11L
BMS 8N519 is an 8-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 75 Hz, Qts 0.37, Vas 10.9 L, Xmax 6.3 mm, sensitivity 92.5 dB, plus 140 cm³ Vd and 183 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 75Hz
- Qts
- 0.37
- Qes
- 0.41
- Qms
- 4.2
- Vas
- 10.9L
- Re
- 5.8Ω
- Le
- 0.36mH
Motor and cone
- BL
- 13.8T·m
- Sd
- 222cm²
- Mms
- 29g
- Xmax
- 6.3mm
- Vd †
- 140cm³
- Voice coil
- 52mm
Power and response
- Sensitivity †
- 92.5dB
- Manufacturer sensitivity
- 94dB
- Power
- 250W
- Impedance
- 8Ω
- Range
- 80–3000Hz
- EBP †
- 183 · Leans vented

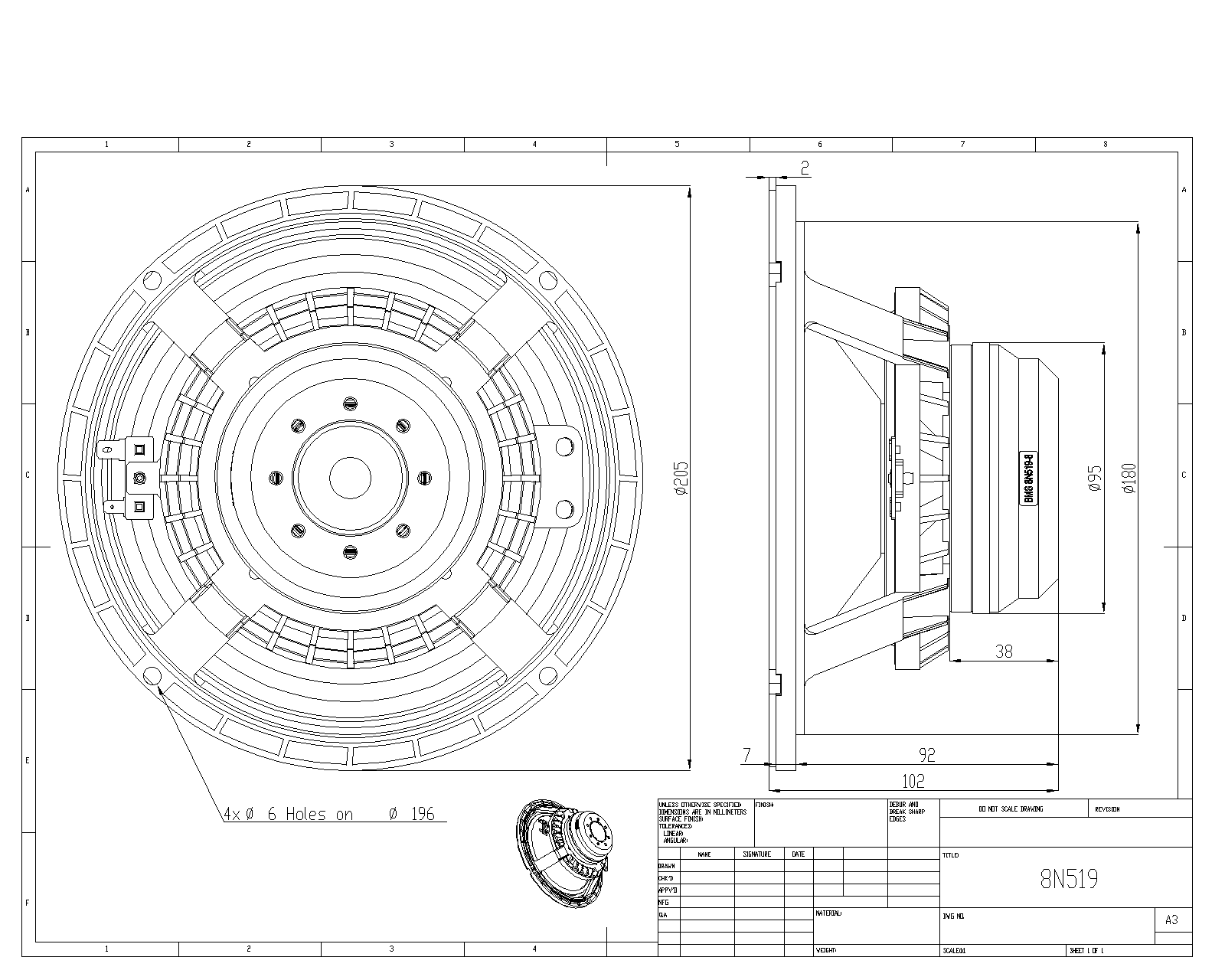

Size and mounting
- Diameter
- 205mm
- Cutout
- 182mm
- Bolt circle
- 196mm
- Depth
- 102mm
- Weight
- 1.9kg
Other published values
- Cms
- 0.16mm/N
Sensitivity shows 92.5 dB, calculated from the T/S values. BMS publishes 94.0 dB, 1.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else BMS lists
LF
- BL
- 13.8T·m
- Fs
- 75Hz
- Le
- 0.36mH
- Re
- 5.8Ω
- Sd
- 222cm²
- Cms
- 0.16mm/N
- Mms
- 29g
- Qes
- 0.41
- Qms
- 4.2
- Qts
- 0.37
- SPL
- 92.5dB
- Vas
- 10.9L
- Xmax
- 6.3mm
- Power
- 250W
- Impedance
- 8Ω
- Sensitivity
- 94dB
- Low limit
- 80Hz
- Calculated sensitivity †
- 92.5dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 94dB
- Voice coil
- 52mm
- 10. basket
- Cast Aluminum
- 20. bl factor
- BL 13.8 Tesla m
- 1. application
- Low-Middle
- 18. moving mass
- Mms 0.0285 kg
- 13. dc resistance
- Re 5.8 Ohm
- 9. magnet gap depth
- 6.5 mm
- 17. equivalent volume
- Vas 10.9 L
- 2. nominal impendance
- 8 Ohm
- 5. frequency response
- 80 – 3000 Hz
- 6. voice coil diameter
- 52 (2″) mm
- 7. voice coil material
- Cu
- 12. resonance frequency
- Fs 74.9 Hz
- 14. mechanical q factor
- Qms 4.2
- 15. electrical q factor
- Qes 0.41
- 16. total quality factor
- Qts 0.37
- 19. mechanical complience
- Cms 0.16 mm / N
- 21. effective piston area
- Sd 0.0222 m²
- 22. max. linear excursion
- Xmax +/- 6.3 mm
- 23. voice coil inductance
- Le1k 0.36 mH
- 4. sensitivity (1 w / 1 m)
- 94 dB
- 3. power handling aes noise
- 250 W
- 8. voice coil winding depth
- 19 mm
- 11. effect. diaphragm diameter d
- 168 mm
