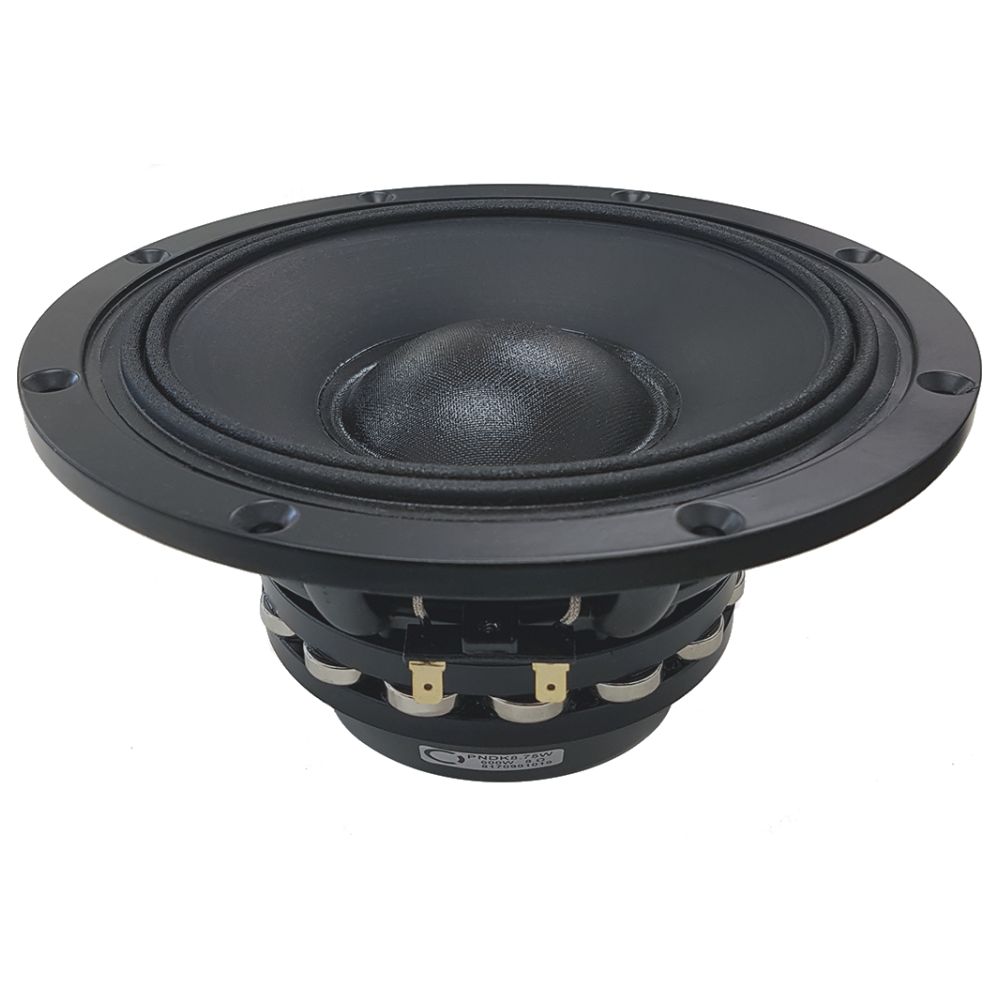

CIARE NDK8
CIARE NDK8 is a 8" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 57Hz, Qts 0.40, Vas 12.9L, Xmax 8.5mm, sensitivity 89.4dB, plus 193cm³ Vd and 130 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
600W
Sensitivity
89.4dB
EBP
130
Vented alignment
Vd
193cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,365 selected pixels of 1,365 - Trace datasheet-response-trace-poc/v1
free air impedance
Impedance response
240 plotted pointsMedium confidence973 selected pixels of 973
T/S Parameters
Valid
Fs57Hz
Qts0.40
Qes0.44
Qms4.0
Vas12.9L
Re6.0Ω
Le0.70mH
BL14.4Tm
Sd227cm²
Mms42g
Xmax8.5mm
SPL89dB
Power600W
Power Nominal300W
Impedance8Ω
F Low45Hz
F High2500Hz
Voice Coil75mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.5kg
Diameter224.0mm
Overall Depth111.0mm
Cutout Diameter184.0mm
Bolt Circle Diameter210.0mm
