Overview
LF DriverSP series
Monacor

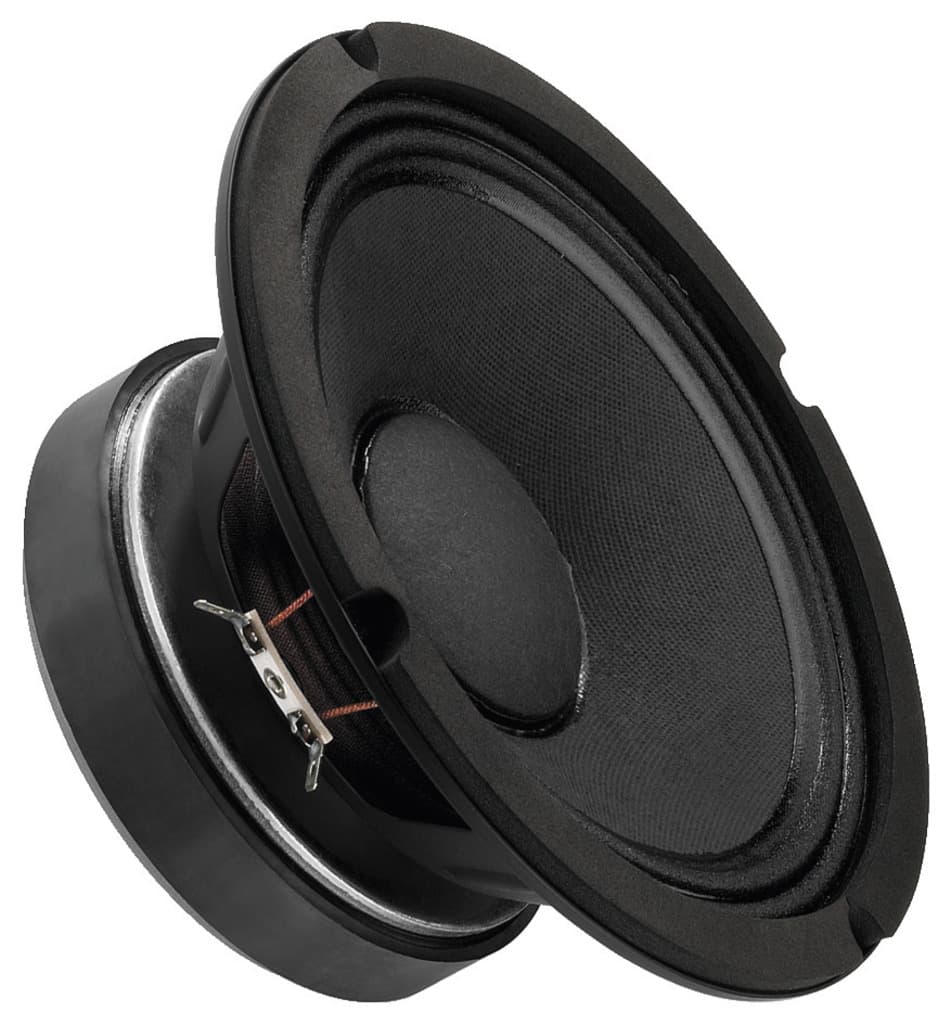

Monacor SP-8/150PA
Monacor SP-8/150PA is a 8" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 88Hz, Qts 0.43, Vas 12L, Xmax 1.3mm, sensitivity 94.3dB, plus 27cm³ Vd and 183 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
150W
Sensitivity
94.3dB
96.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
183
Vented alignment
Vd
27cm³
T/S Parameters
Valid
Fs88Hz
Qts0.43
Qes0.48
Qms4.1
Vas12.0L
Re6.9Ω
Le0.60mH
BL12.6Tm
Sd219cm²
Mms20g
Xmax1.3mm
SPL94dB
Power150W
Impedance8Ω
F Low3Hz
F High8000Hz
Voice Coil50mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

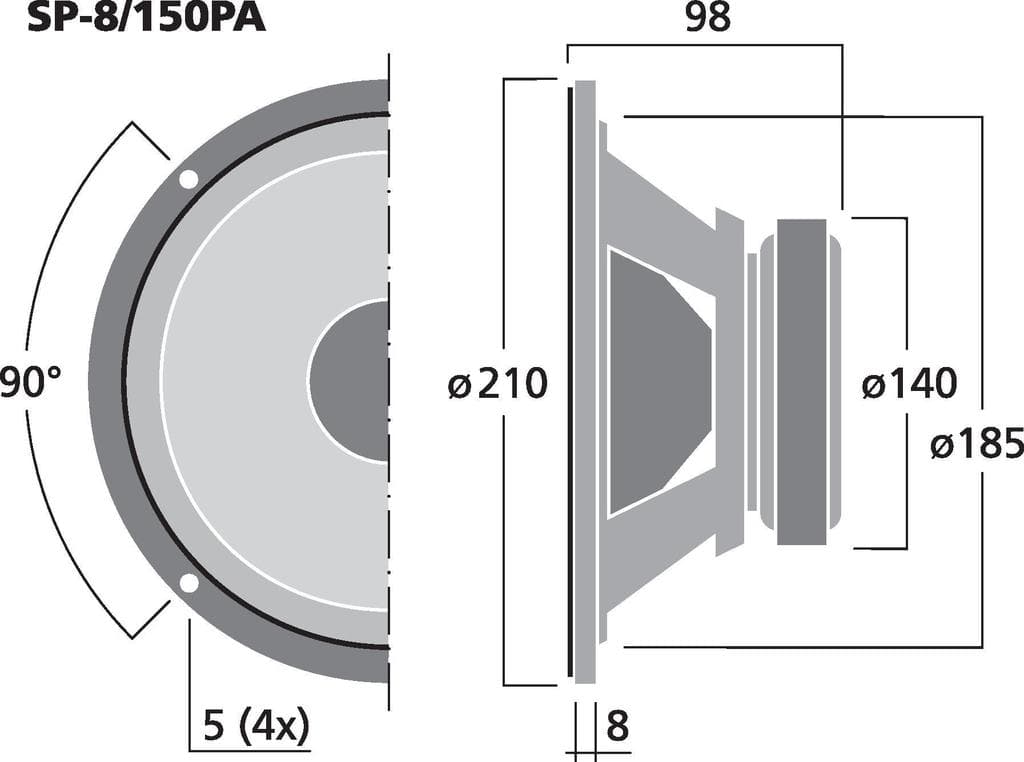

Dimensions & Physical
Weight3.0kg
Diameter210.0mm
Overall Depth98.0mm
Cutout Diameter185.0mm
