8-inch LF driver · SSF082 series · 51 mm voice coil · 350 W
Lavoce SSF082.00L 8Ω
8 Ω · 50–500 Hz
£81.49
SteadyParts Express · 3 in stock · Ships from United States · All 2 offers
- Fs
- 50Hz
- Xmax
- 9.2mm
- SPL
- 86dB
- Pe
- 350W
- BL
- 15.7T·m
- Vd
- 202cm³
- Qts
- 0.44
- Vas
- 10L

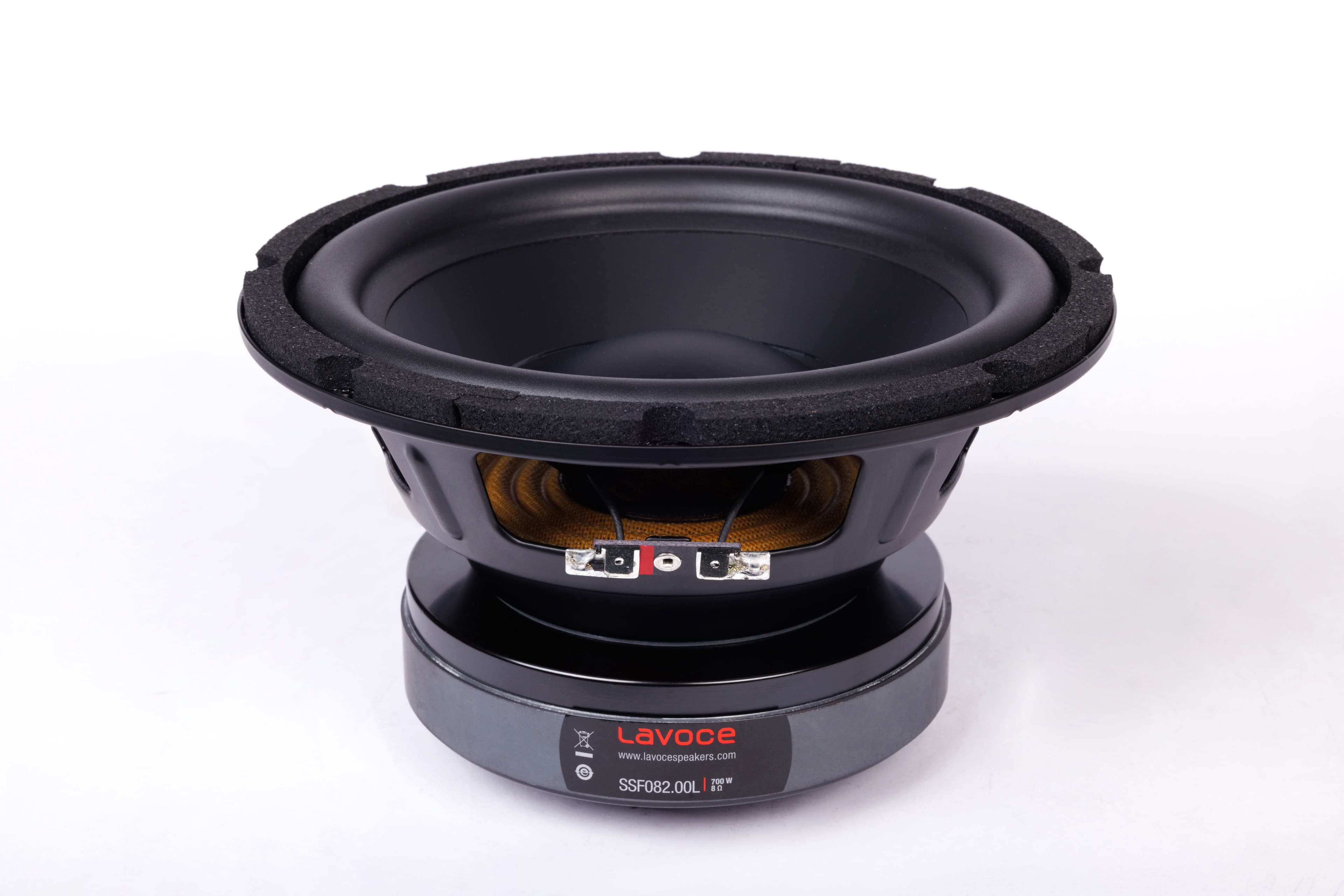

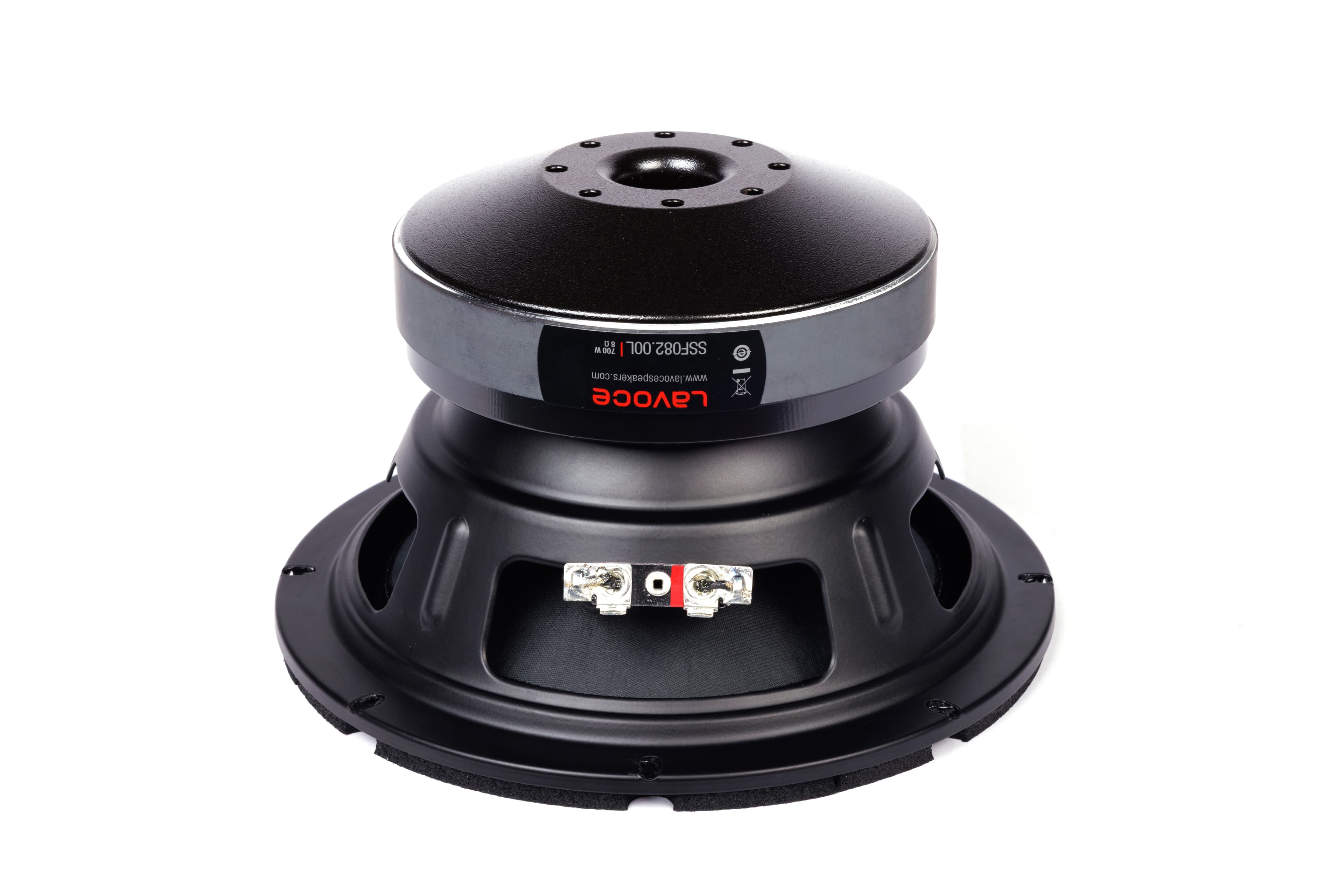

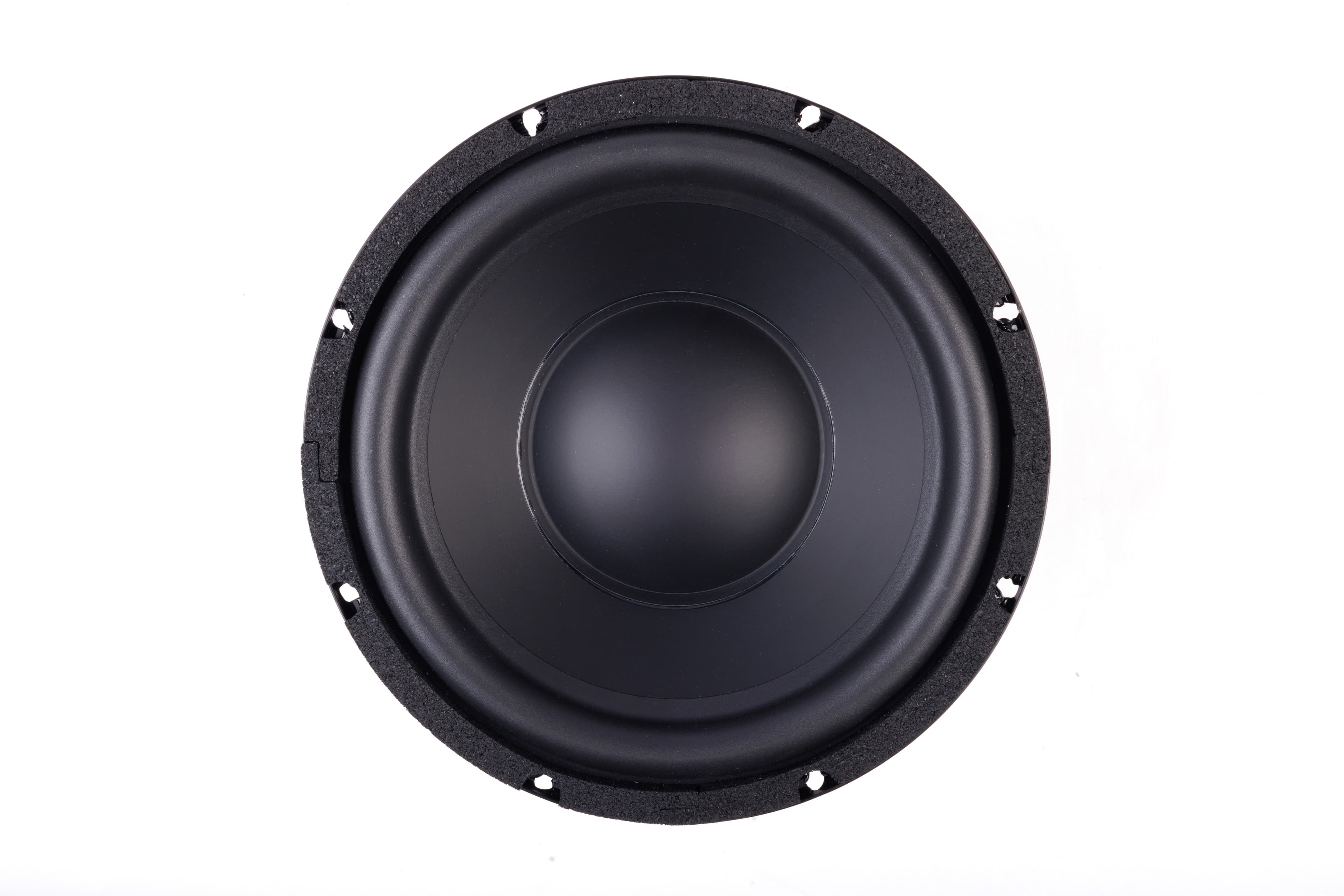

Lavoce SSF082.00L is an 8-inch 8 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 50 Hz, Qts 0.44, Vas 10.1 L, Xmax 9.2 mm, sensitivity 86.4 dB, plus 202 cm³ Vd and 109 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £81.49.
The published T/S values agree with each other
Thiele/Small
- Fs
- 50Hz
- Qts
- 0.44
- Qes
- 0.46
- Qms
- 9.8
- Vas
- 10.1L
- Re
- 5.2Ω
- Le
- 2.50mH
Motor and cone
- BL
- 15.7T·m
- Sd
- 220cm²
- Mms
- 69g
- Xmax
- 9.2mm
- Vd †
- 202cm³
- Voice coil
- 51mm
Power and response
- Sensitivity †
- 86.4dB
- Manufacturer sensitivity
- 88dB
- Power
- 350W
- Impedance
- 8Ω
- Min. impedance
- 6.4Ω
- Range
- 50–500Hz
- EBP †
- 109 · Leans vented
Size and mounting
- Weight
- 4.1kg
Other published values
- Cms
- 0.15mm/N
- Xmech
- 14.7
- Power Program
- 700
Sensitivity shows 86.4 dB, calculated from the T/S values. Lavoce publishes 88.0 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Lavoce lists
LF · Primary · 8″
- BL
- 15.7T·m
- Fs
- 50Hz
- Le
- 2.50mH
- Re
- 5.2Ω
- Sd
- 220cm²
- Cms
- 0.15mm/N
- Mms
- 69g
- Qes
- 0.46
- Qms
- 9.8
- Qts
- 0.44
- SPL
- 86.4dB
- Vas
- 10.1L
- Xmax
- 9.2mm
- Xmech
- 14.7
- Power
- 350W
- Impedance
- 8Ω
- Sensitivity
- 88dB
- Low limit
- 50Hz
- Power Program
- 700
- Calculated sensitivity †
- 86.4dB
- High limit
- 500Hz
- Manufacturer sensitivity
- 88dB
- Min. impedance
- 6.4Ω
- Voice coil
- 51mm
- Weight
- 4.1kg
