Wavecor SW215WA02 8Ω
LF DriverMedia
Wavecor
SW215WA02
Image unavailable
Overview
LF DriverSW215WA series
Wavecor
Wavecor SW215WA02
Wavecor SW215WA02 is a 8" 8 ohm LF driver. The validated T/S data includes Fs 30Hz, Qts 0.44, Vas 32.5L, Xmax 10mm, sensitivity 84.8dB, plus 206cm³ Vd and 65 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
Sensitivity
84.8dB
EBP
65
Either alignment
Vd
206cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
FR040WA01 impedance240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

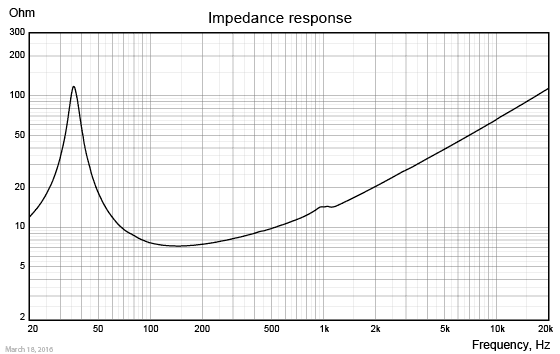

FR040WA01 impedance
Impedance response
240 plotted pointsMedium confidence610 selected pixels of 610
T/S Parameters
Valid
Fs30Hz
Qts0.44
Qes0.46
Qms10.0
Vas32.5L
Re6.3Ω
BL11.4Tm
Sd206cm²
Mms49g
Xmax10.0mm
SPL85dB
Impedance8Ω
Voice Coil39mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter215.9mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Image unavailable
Reference
Wavecor
SW215WA02
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
76%
Similarity
HiVi
D8G
8"
Xmax8.3mm-17%
Qts0.41-7%
BL13Tm+14%
Vas30.3L-7%
Qes0.48+4%
Image unavailable
75%
Similarity
Wavecor
SW223BD02
8"
Xmax11.7mm+17%
Qts0.4-9%
BL11Tm-4%
Vas28L-14%
Qes0.42-9%
Image unavailable
75%
Similarity
Wavecor
SW223BD03
8"
Xmax11.7mm+17%
Qts0.46+5%
BL13.1Tm+15%
Vas28L-14%
Qes0.48+4%
74%
Similarity
Dayton Audio
RSS210HO-4
8"
Xmax11mm+10%
Qts0.4-9%
BL12Tm+5%
Vas18.7L-42%
Qes0.460%
Image unavailable
70%
Similarity
Wavecor
SW215WA01
8"
Xmax10mm0%
Qts0.49+11%
BL8.4Tm-26%
Vas26L-20%
Qes0.51+11%
70%
Similarity
Dayton Audio
DCS205-4
8"
Xmax8.8mm-12%
Qts0.37-16%
BL10.7Tm-6%
Vas27L-17%
Qes0.4-13%
69%
Similarity
£54.66
Peerless
GBS-200F35CP02-04
8"
Xmax7.8mm-22%
Qts0.440%
BL11.7Tm+3%
Vas13.9L-57%
Qes0.48+4%
68%
Similarity

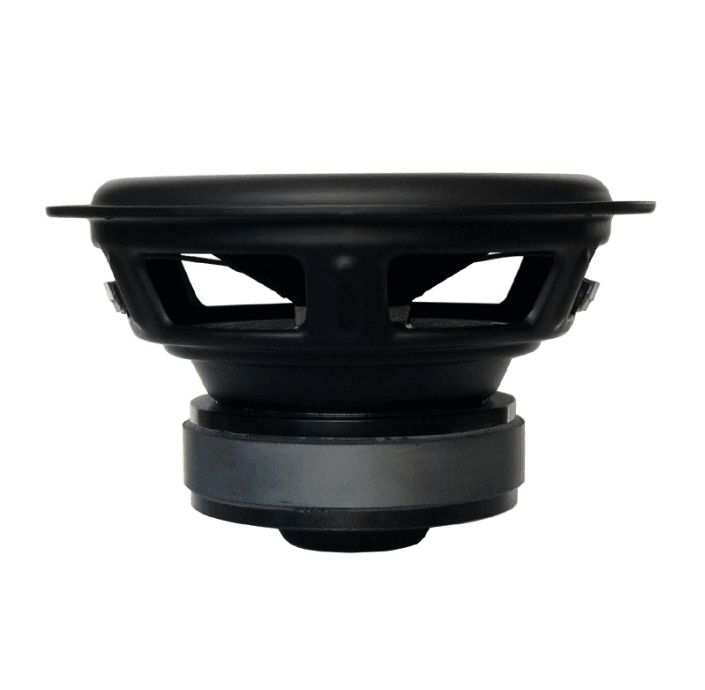

Tang Band
W8-670T
8"
Xmax7.8mm-22%
Qts0.45+2%
BL9.4Tm-17%
Vas23.3L-28%
Qes0.49+7%
67%
Similarity

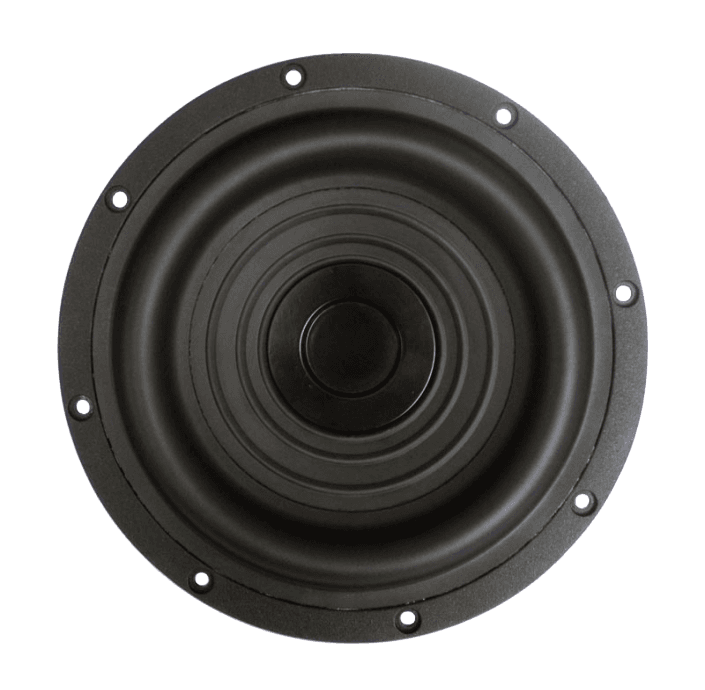

Tang Band
W8-1747A
8"
Xmax8mm-20%
Qts0.41-7%
BL10Tm-13%
Vas23.2L-29%
Qes0.5+9%
66%
Similarity

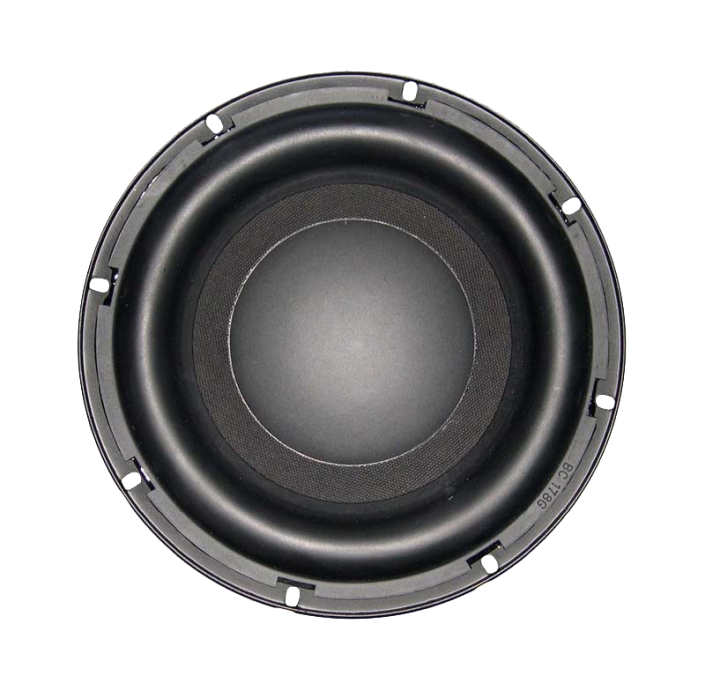

Tang Band
W8-670Q
8"
Xmax7mm-30%
Qts0.46+5%
BL12.3Tm+8%
Vas24.9L-23%
Qes0.51+11%
64%
Similarity
£257.71
Volt
SB220.1
8"
Xmax12mm+20%
Qts0.49+11%
BL9.7Tm-15%
Vas37.4L+15%
Qes0.53+15%
61%
Similarity
£945.06
Accuton
AS190-9-251
7"
Xmax9mm-10%
Qts0.440%
BL13.5Tm+18%
Vas26.7L-18%
Qes0.49+7%
