Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespTang Band W8-670T 4Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Tang Band

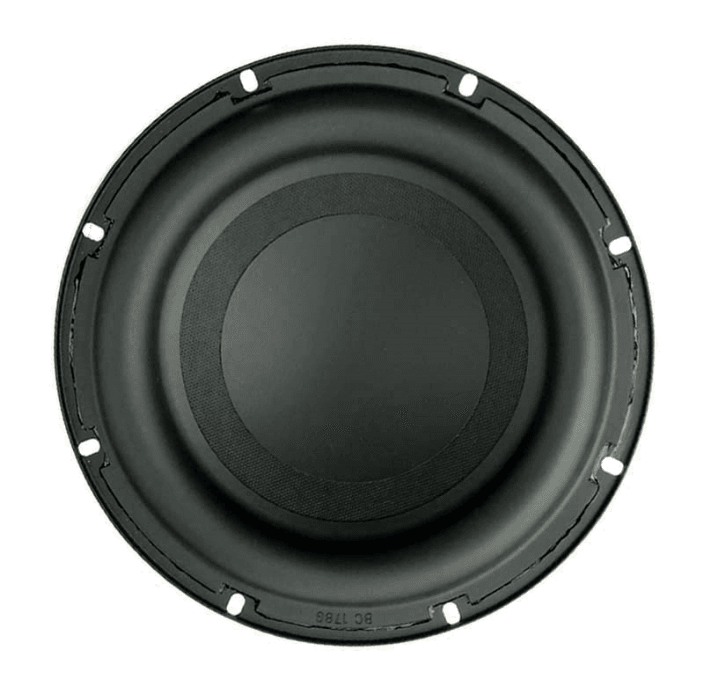

Tang Band W8-670T
Tang Band W8-670T is a 8" 4 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 40Hz, Qts 0.45, Vas 23.3L, Xmax 7.8mm, sensitivity 86.9dB, plus 173cm³ Vd and 82 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
4Ω
RMS Power
80W
Sensitivity
86.9dB
EBP
82
Either alignment
Vd
173cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,633 selected pixels of 2,646 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,109 selected pixels of 3,109
T/S Parameters
Valid
Fs40Hz
Qts0.45
Qes0.49
Qms5.9
Vas23.3L
Re3.6Ω
Le0.72mH
BL9.4Tm
Sd220cm²
Mms50g
Xmax7.8mm
SPL87dB
Power80W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
