LF DriverBETA series
Eminence

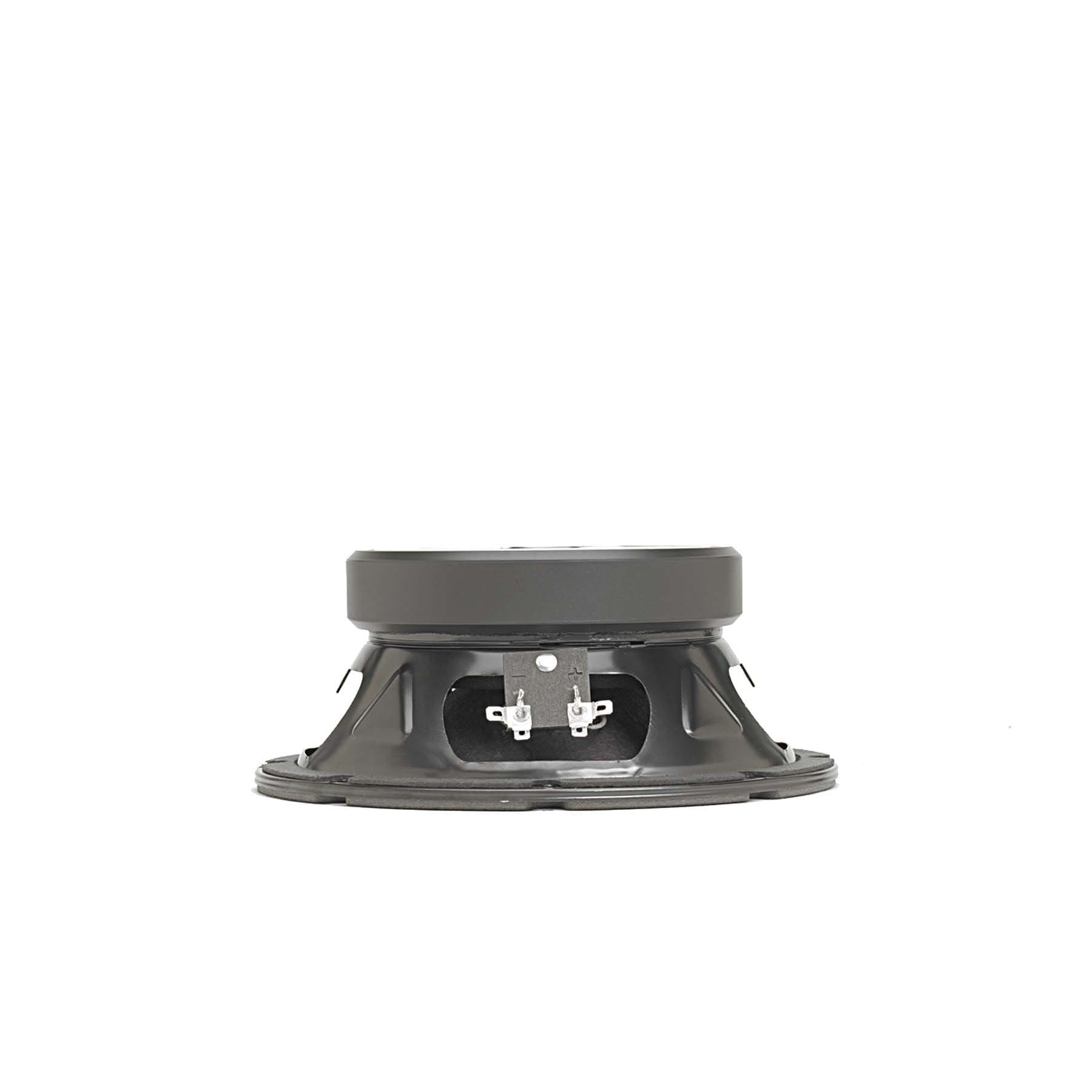

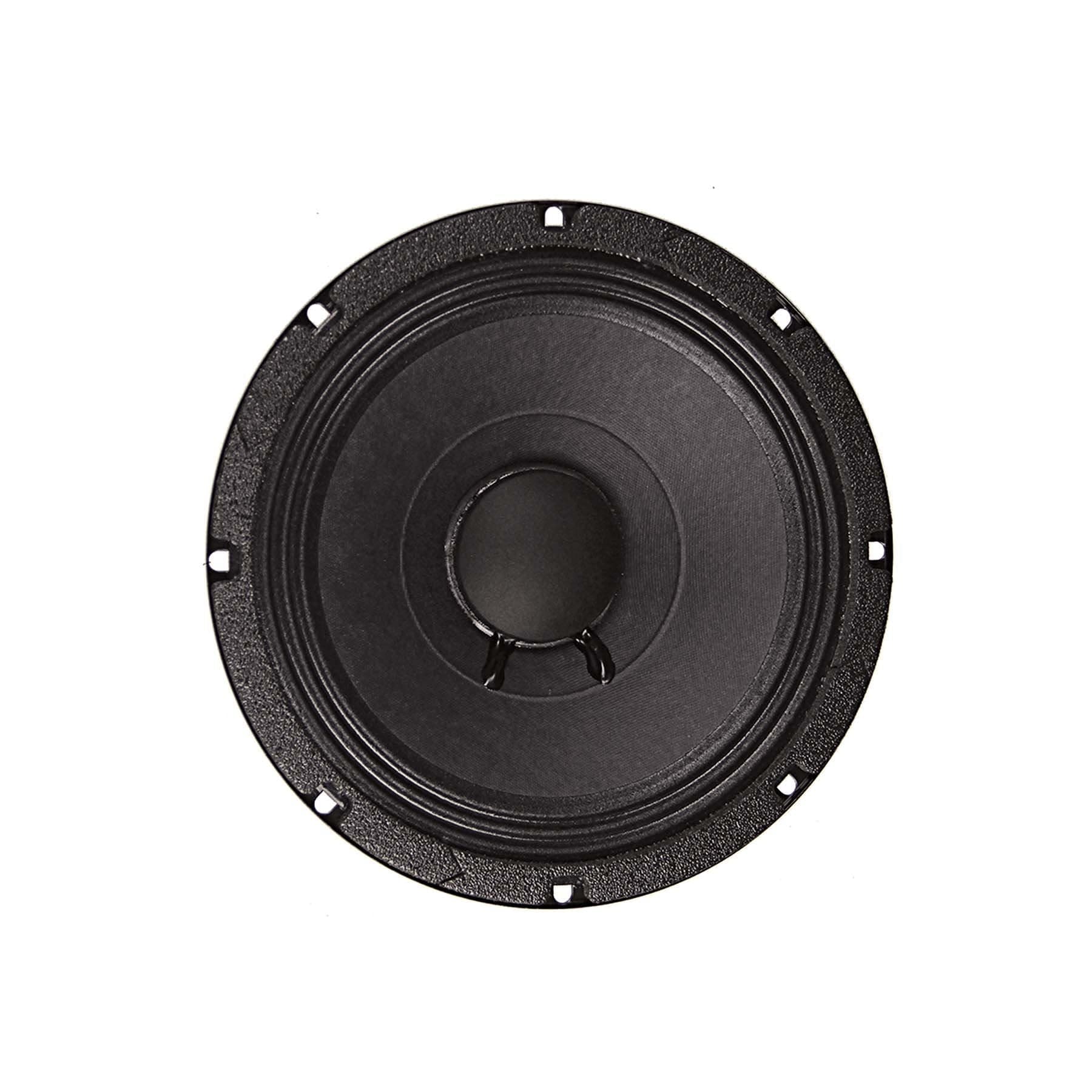

Eminence BETA-8A
Eminence BETA-8A is a 8" 8 ohm LF driver rated at 225W RMS. The validated T/S data includes Fs 65Hz, Qts 0.38, Vas 23.3L, Xmax 3mm, sensitivity 93.9dB, plus 63cm³ Vd and 155 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £71.54.
Size
8"
Impedance
8Ω
RMS Power
225W
Sensitivity
93.9dB
95.1dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
155
Vented alignment
Vd
63cm³
T/S Parameters
Valid
Fs65Hz
Qts0.38
Qes0.42
Qms5.0
Vas23.3L
Re6.0Ω
Le0.49mH
BL9.6Tm
Sd210cm²
Mms16g
Xmax3.0mm
SPL94dB
Power225W
Impedance8Ω
F Low78Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£71.54
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.0kg
Diameter209.3mm
Overall Depth88.9mm
Cutout Diameter181.1mm
Bolt Circle Diameter196.8mm
