Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSB Acoustics WO24P-8 8Ω
LF DriverMedia
Overview
LF DriverWO24 series
SB Acoustics
SB Acoustics WO24P-8
SB Acoustics WO24P-8 is a 9" 8 ohm LF driver rated at 90W RMS. The validated T/S data includes Fs 25Hz, Qts 0.38, Vas 87.5L, Xmax 17mm, sensitivity 87dB, plus 434cm³ Vd and 60 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £185.95.
Size
9"
Impedance
8Ω
RMS Power
90W
Sensitivity
87.0dB
88.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
60
Either alignment
Vd
434cm³

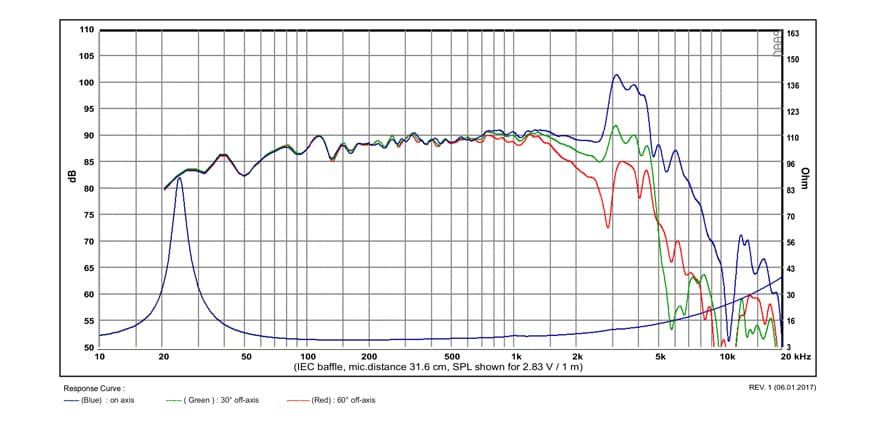

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,740 selected pixels of 10,587
T/S Parameters
Valid
Fs25Hz
Qts0.38
Qes0.41
Qms5.7
Vas87.5L
Re5.8Ω
Le0.56mH
BL9.9Tm
Sd255cm²
Mms45g
Xmax17.0mm
SPL87dB
Power90W
Impedance8Ω
Voice Coil50mm
Flux Density1.10T
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorssoundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£206.16
inc VAT
Out of stock
willyshifi
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£227.95
inc VAT
Best current price
Updated 11 Sept 2026
leanaudio
£185.95
Avg £206.95£21.00 below avg (-10.1%)
inc VAT·In stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.7kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SB Acoustics
WO24P-8
9"
Best current price
£185.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
51%
Similarity
66% cheaper£62.50
SB Acoustics
SB26SFCL38-4
10"
Lower price
Xmax15.8mm-7%
Qts0.43+13%
BL8.2Tm-17%
Vas104L+19%
Qes0.47+15%
57%
Similarity
55% cheaper£84.41
SB Acoustics
SB23NRXS45-8
8"
Lower price
Xmax13mm-24%
Qts0.380%
BL7.5Tm-24%
Vas94L+7%
Qes0.410%
32%
Similarity
55% cheaper£84.41
SB Acoustics
SB23NRXS45-4
8"
Lower price
Xmax13mm-24%
Qts0.3-21%
BL6.9Tm-30%
Vas87.5L0%
Qes0.32-22%
53%
Similarity
47% cheaper£98.70
SB Acoustics
SB23NBACS45-8
8"
Lower price
Xmax13mm-24%
Qts0.4+5%
BL7.9Tm-20%
Vas93.4L+7%
Qes0.43+5%
37%
Similarity
47% cheaper£98.70
SB Acoustics
SB23NBACS45-4
8"
Lower price
Xmax13mm-24%
Qts0.33-13%
BL6.7Tm-32%
Vas95L+9%
Qes0.35-15%
54%
Similarity
39% cheaper£114.02
SB Acoustics
SB23CACS45-8
8"
Lower price
Xmax13mm-24%
Qts0.4+5%
BL7.9Tm-20%
Vas87L-1%
Qes0.44+7%
37%
Similarity
39% cheaper£114.02
SB Acoustics
SB23CACS45-4
8"
Lower price
Xmax13mm-24%
Qts0.33-13%
BL6.7Tm-32%
Vas95L+9%
Qes0.35-15%
33%
Similarity
37% cheaper£117.27
SB Acoustics
SB23MFCL45-8
8"
Lower price
Xmax21mm+24%
Qts0.43+13%
BL11.3Tm+14%
Vas37L-58%
Qes0.46+12%
50%
Similarity
28% cheaper£134.39
SB Acoustics
SB29NRX75-6
10"
Lower price
Xmax22mm+29%
Qts0.35-8%
BL10.7Tm+8%
Vas102L+17%
Qes0.38-7%
51%
Similarity
23% cheaper£142.77
SB Acoustics
SB29NRX75-8
10"
Lower price
Xmax22mm+29%
Qts0.37-3%
BL12.4Tm+25%
Vas85.6L-2%
Qes0.39-5%
79%
Similarity
23% more£227.95
SB Acoustics
WO24P-4
9"
Higher price
Xmax17mm0%
Qts0.4+5%
BL7.6Tm-23%
Vas71L-19%
Qes0.42+2%
36%
Similarity
46% more£271.14
Visaton
TIW 250 XS
10"
Higher price
Xmax14mm-18%
Qts0.33-13%
BL13Tm+31%
Vas66L-25%
Qes0.35-15%
