10-inch LF driver · 300 W
Beyma 10CX300 8Ω
8 Ω · 50–20000 Hz
No current price
- Fs
- 48Hz
- Xmax
- 6.7mm
- SPL
- 94dB
- Pe
- 300W
- BL
- 11.7T·m
- Vd
- 255cm³
- Qts
- 0.38
- Vas
- 63L
Published graphs
Beyma 10CX300 is a 10-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 48 Hz, Qts 0.38, Vas 63 L, Xmax 6.7 mm, sensitivity 94.3 dB, plus 255 cm³ Vd and 117 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 48Hz
- Qts
- 0.38
- Qes
- 0.41
- Qms
- 5.3
- Vas
- 63L
- Re
- 5.2Ω
- Le
- 0.40mH
Motor and cone
- BL
- 11.7T·m
- Sd
- 380cm²
- Mms
- 35g
- Xmax
- 6.7mm
- Vd †
- 255cm³
Power and response
- Sensitivity †
- 94.3dB
- Manufacturer sensitivity
- 96.5dB
- Power
- 300W
- Impedance
- 8Ω
- Range
- 50–20000Hz
- EBP †
- 117 · Leans vented
Size and mounting
- Weight
- 5.1kg
Other published values
- Cms
- 0.31mm/N
- Rms
- 2kg/s
- Power Program
- 600
Sensitivity shows 94.3 dB, calculated from the T/S values. Beyma publishes 96.5 dB, 2.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Beyma lists
LF · Primary · 10″
- BL
- 11.7T·m
- Fs
- 48Hz
- Le
- 0.40mH
- Re
- 5.2Ω
- Sd
- 380cm²
- Cms
- 0.31mm/N
- Mms
- 35g
- Qes
- 0.41
- Qms
- 5.3
- Qts
- 0.38
- Rms
- 2kg/s
- SPL
- 94.3dB
- Vas
- 63L
- Xmax
- 6.7mm
- Power
- 300W
- Impedance
- 8Ω
- Sensitivity
- 96.5dB
- Low limit
- 50Hz
- Power Program
- 600
- Calculated sensitivity †
- 94.3dB
- High limit
- 20000Hz
- Manufacturer sensitivity
- 96.5dB
- Weight
- 5.1kg
02
Compare
Same-size drivers, compared with the 10CX300. Clear differences are green when better and red when worse.
This driver10CX300
Best price
–
Fs
48 Hz
Qts
0.38
Vas
63 L
BL
11.7 T·m
Xmax
6.7 mm
Sensitivity
94.3 dB
Power
300 W
Beyma10CMV2
£52.32Fs52 Hz +8%
Qts0.42 +11%, worse
Vas44 L −30%, better
BL13.4 T·m +15%, better
Xmax6.5 mm –
Sensitivity93.2 dB −1.1
FaitalPRO10FE330
£64.90Fs35 Hz −27%, better
Qts0.40 +5%
Vas72.4 L +15%, worse
BL12.6 T·m +8%
Xmax8.3 mm +24%, better
Sensitivity90.6 dB −3.7, worse
FaitalPRO10FE300
£72.99Fs50 Hz +4%
Qts0.39 –
Vas49 L −22%, better
BL9.7 T·m −17%, worse
Xmax5.5 mm −18%, worse
Sensitivity93.8 dB −0.5
Beyma10WRS300
£75.00Fs52 Hz +8%
Qts0.38 –
Vas42 L −33%, better
BL13.9 T·m +19%, better
Xmax6 mm −10%, worse
Sensitivity93.7 dB −0.6
PRV Audio10W650A-4
£83.14Fs67 Hz +39%, worse
Qts0.39 –
Vas41.2 L −35%, better
BL11.2 T·m −4%
Xmax4 mm −40%, worse
Sensitivity96.9 dB +2.6, better
CIAREPWA10.50
£84.03Fs57 Hz +19%, worse
Qts0.40 +5%
Vas39.9 L −37%, better
BL11.4 T·m –
Xmax5.8 mm −13%, worse
Sensitivity94.2 dB –
B&C10CL51
£85.00Fs58 Hz +21%, worse
Qts0.38 –
Vas36 L −43%, better
BL11.6 T·m –
Xmax5.5 mm −18%, worse
Sensitivity94.3 dB –
Beyma10BR60
£87.42Fs29 Hz −40%, better
Qts0.39 –
Vas142 L +125%, worse
BL10.9 T·m −6%
Xmax6.5 mm –
Sensitivity91 dB −3.3, worse
Dayton AudioDSA270-8
£90.37Fs30 Hz −38%, better
Qts0.39 –
Vas88.1 L +40%, worse
BL11.2 T·m −4%
Xmax5.5 mm −18%, worse
Sensitivity88.9 dB −5.4, worse
Beyma10WR300
£103.53Fs52 Hz +8%
Qts0.35 −8%
Vas42 L −33%, better
BL14.2 T·m +22%, better
Xmax6 mm −10%, worse
Sensitivity93.8 dB −0.5
EminenceBETA 10CX
£106.91Fs49 Hz –
Qts0.38 –
Vas61.1 L −3%
BL10.9 T·m −7%
Xmax5 mm −25%, worse
Sensitivity94.5 dB –
CIAREHW251N
£110.35Fs30 Hz −38%, better
Qts0.35 −8%
Vas88 L +40%, worse
BL13.0 T·m +12%, better
Xmax5.7 mm −15%, worse
Sensitivity90 dB −4.3, worse
FaitalPRO10RS350
£119.58Fs40 Hz −17%, better
Qts0.37 –
Vas44.3 L −30%, better
BL14 T·m +20%, better
Xmax7.4 mm +10%, better
Sensitivity90.5 dB −3.8, worse
CelestionCF1025BMB
£142.36Fs41 Hz −15%, better
Qts0.35 −7%
Vas46.1 L −27%, better
BL15.3 T·m +31%, better
Xmax6.7 mm –
Sensitivity91.3 dB −3, worse
Scanspeak26W/8534G00
£152.75Fs23 Hz −52%, better
Qts0.40 +5%
Vas150 L +138%, worse
BL10.1 T·m −13%, worse
Xmax6 mm −10%, worse
Sensitivity88.4 dB −5.9, worse
Sica10 SR 2.5 CP
£161.23Fs35 Hz −28%, better
Qts0.32 −16%, better
Vas66.7 L +6%
BL13.7 T·m +18%, better
Xmax6 mm −10%, worse
Sensitivity91.1 dB −3.2, worse
FaitalPRO10HX230
£275.87Fs65 Hz +35%, worse
Qts0.39 –
Vas30.5 L −52%, better
BL13.1 T·m +12%, better
Xmax7.4 mm +10%, better
Sensitivity95 dB +0.7
WavecorSW280WA01
£414.57Fs27 Hz −45%, better
Qts0.41 +8%
Vas41.4 L −34%, better
BL13.4 T·m +15%, better
Xmax6 mm −10%, worse
Sensitivity84.5 dB −9.8, worse
LavoceNBASS10-20
No current priceFs52 Hz +8%
Qts0.39 –
Vas43.4 L −31%, better
BL12.5 T·m +7%
Xmax6.6 mm –
Sensitivity93.6 dB −0.7
Sica10 H 2 CS
No current priceFs30 Hz −37%, better
Qts0.37 –
Vas84.3 L +34%, worse
BL12.4 T·m +6%
Xmax6 mm −10%, worse
Sensitivity89.6 dB −4.7, worse
HiViW10
No current priceFs35 Hz −27%, better
Qts0.37 –
Vas81.4 L +29%, worse
BL12.8 T·m +10%
Xmax7 mm +4%
Sensitivity90.9 dB −3.4, worse
PRV Audio10W1000-NDY
No current priceFs62 Hz +29%, worse
Qts0.40 +5%
Vas39 L −38%, better
BL12.7 T·m +9%
Xmax6.5 mm –
Sensitivity95.5 dB +1.2

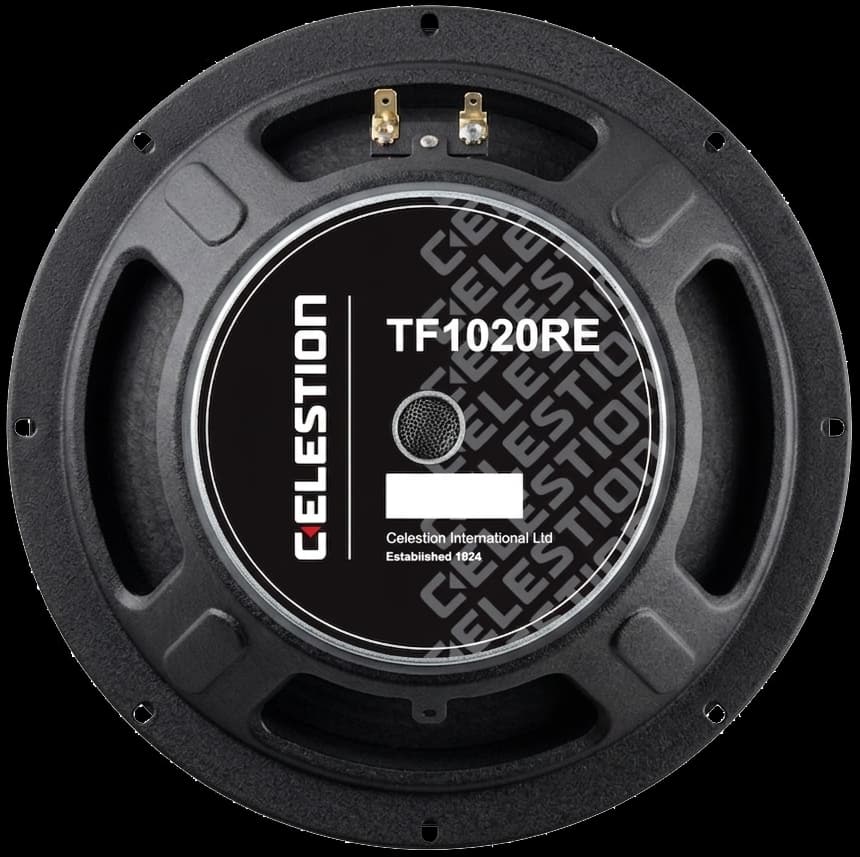

CelestionTF1020RE
