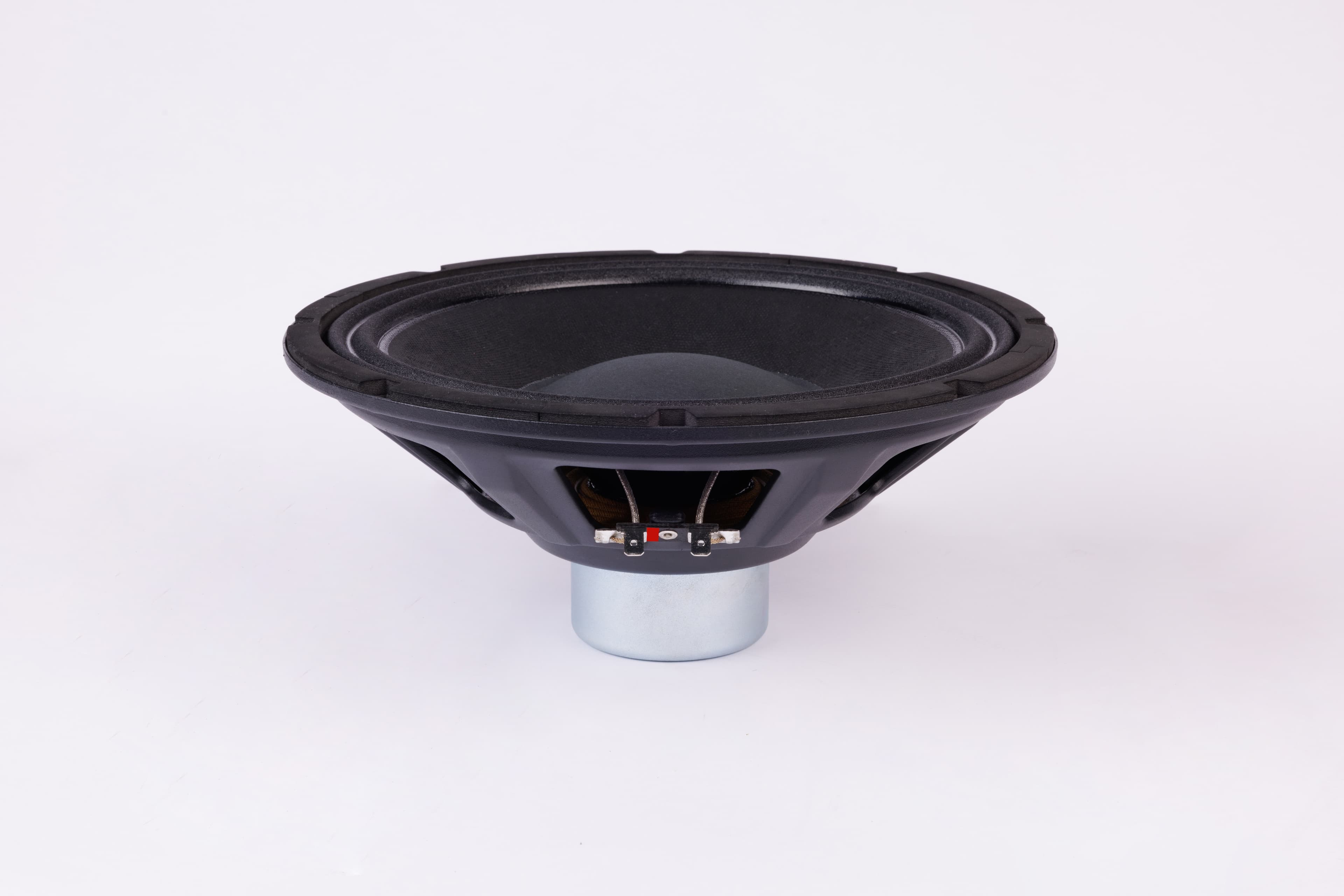

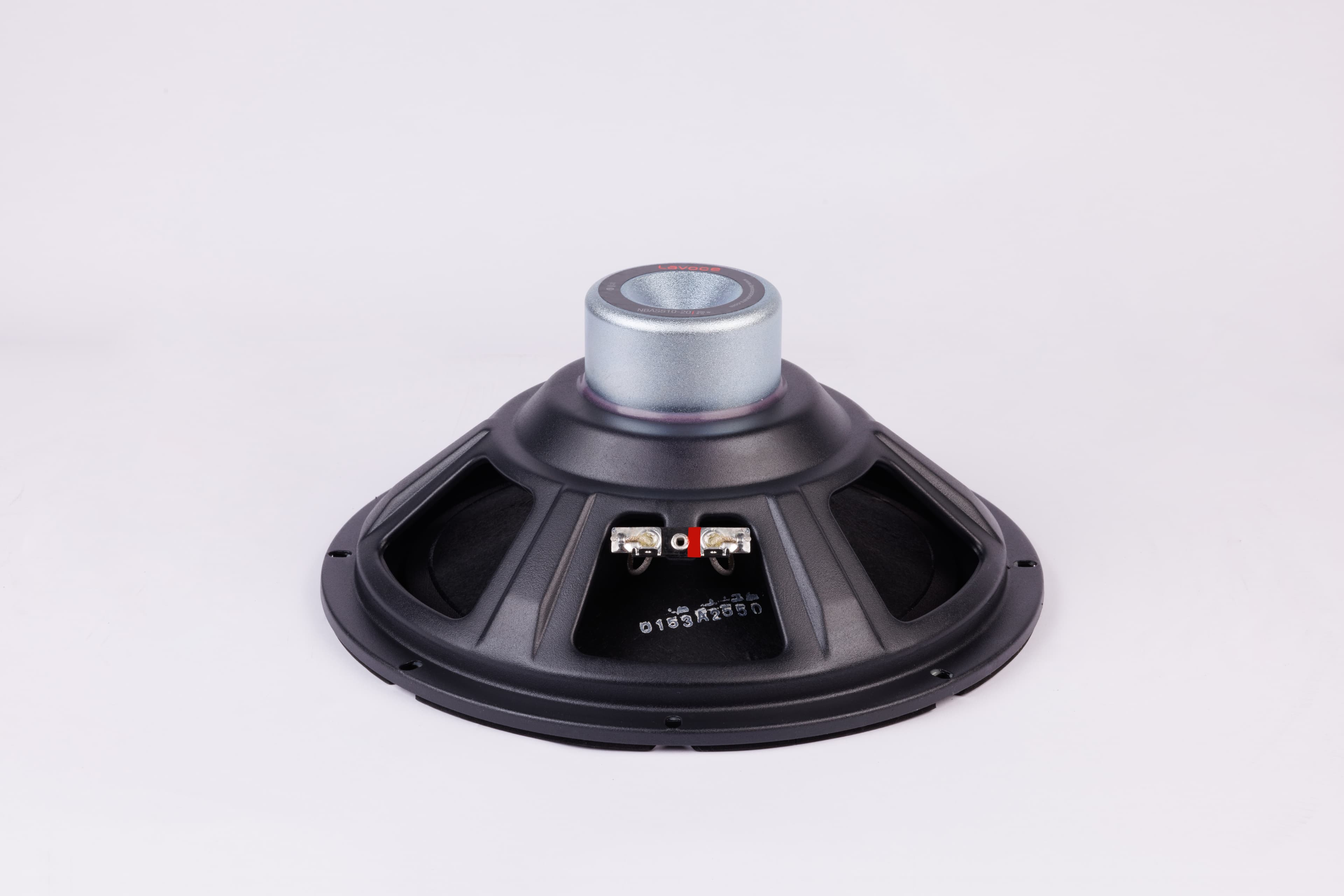

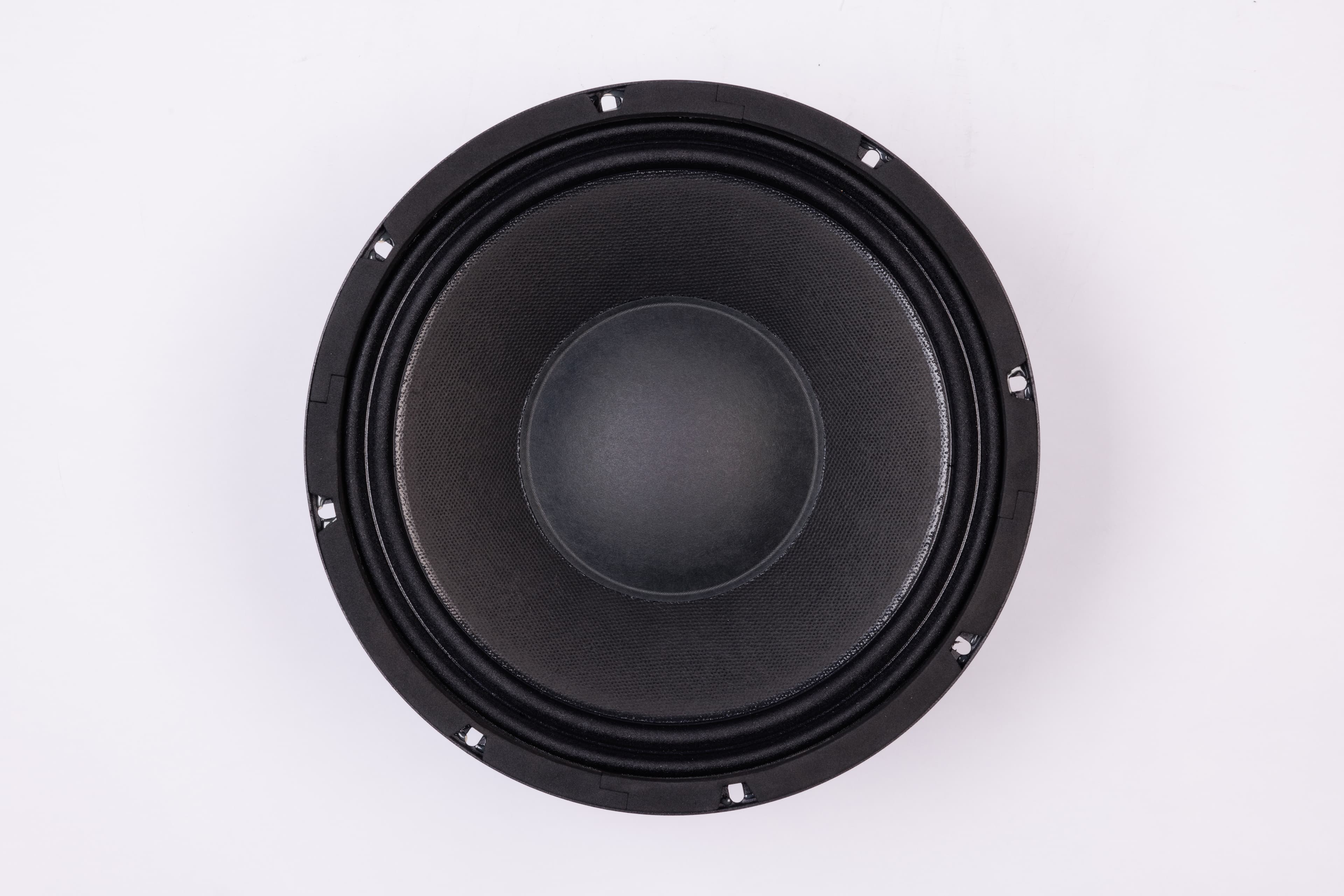

10-inch LF driver · NBASS10 series · 51 mm voice coil · 150 W

Lavoce NBASS10-20 8Ω

Name: Lavoce NBASS10-20 8 Ohm
Brand: Lavoce
SKU: NBASS10-20

8 Ω · 50–3000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 52Hz
Xmax: 6.6mm
SPL: 94dB
Pe: 150W
BL: 12.5T·m
Vd: 233cm³
Qts: 0.39
Vas: 43L

See all 24 specs

Specifications

Published by Lavoce

Manufacturer page

Datasheet PDF

Lavoce NBASS10-20 is a 10-inch 8 ohm LF driver rated at 150 W RMS. The validated T/S data includes Fs 52 Hz, Qts 0.39, Vas 43.4 L, Xmax 6.6 mm, sensitivity 93.6 dB, plus 233 cm³ Vd and 124 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 52Hz
Qts: 0.39
Qes: 0.42
Qms: 5.5
Vas: 43.4L
Re: 5.2Ω
Le: 0.75mH

Motor and cone

BL: 12.5T·m
Sd: 353cm²
Mms: 38g
Xmax: 6.6mm
Vd †: 233cm³
Voice coil: 51mm

Power and response

Sensitivity †: 93.6dB
Manufacturer sensitivity: 95.5dB
Power: 150W
Impedance: 8Ω
Min. impedance: 5.8Ω
Range: 50–3000Hz
EBP †: 124 · Leans vented

Size and mounting

Weight: 1.3kg

Other published values

Cms: 0.25mm/N
Xmech: 10.7
Power Program: 300

Sensitivity shows 93.6 dB, calculated from the T/S values. Lavoce publishes 95.5 dB, 1.9 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Lavoce lists

LF · Primary · 10″

BL: 12.5T·m
Fs: 52Hz
Le: 0.75mH
Re: 5.2Ω
Sd: 353cm²
Cms: 0.25mm/N
Mms: 38g
Qes: 0.42
Qms: 5.5
Qts: 0.39
SPL: 93.6dB
Vas: 43.4L
Xmax: 6.6mm
Xmech: 10.7
Power: 150W
Impedance: 8Ω
Sensitivity: 95.5dB
Low limit: 50Hz
Power Program: 300
Calculated sensitivity †: 93.6dB
High limit: 3000Hz
Manufacturer sensitivity: 95.5dB
Min. impedance: 5.8Ω
Voice coil: 51mm
Weight: 1.3kg
