- Net volume
- 35L
- Tuning
- 70Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
10-inch LF driver · 280 W
Eighteen Sound 10W400 8Ω
8 Ω · 55–4500 Hz
No price for delivery to the UK
- Fs
- 70Hz
- Xmax
- 5.5mm
- SPL
- 96dB
- Pe
- 280W
- BL
- 11.7T·m
- Vd
- 193cm³
- Qts
- 0.40
- Vas
- 31L

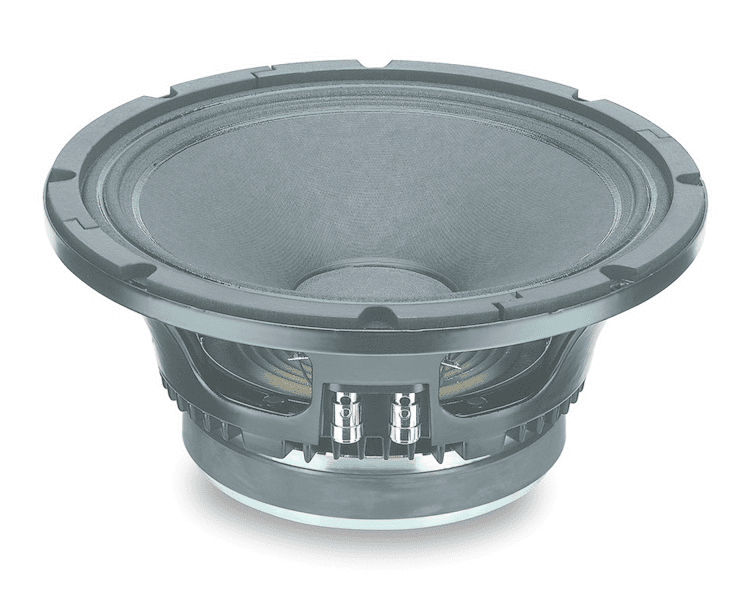

Eighteen Sound 10W400 is a 10-inch 8 ohm LF driver rated at 280 W RMS. The validated T/S data includes Fs 70 Hz, Qts 0.40, Vas 31 L, Xmax 5.5 mm, sensitivity 95.9 dB, plus 193 cm³ Vd and 159 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £100.59.
The published T/S values agree with each other
Thiele/Small
- Fs
- 70Hz
- Qts
- 0.40
- Qes
- 0.44
- Qms
- 4.0
- Vas
- 31L
- Re
- 5.1Ω
- Le
- 1.20mH
Motor and cone
- BL
- 11.7T·m
- Sd
- 350cm²
- Mms
- 27g
- Xmax
- 5.5mm
- Vd †
- 193cm³
Power and response
- Sensitivity †
- 95.9dB
- Manufacturer sensitivity
- 98dB
- Power
- 280W
- Nominal power
- 280W
- Impedance
- 8Ω
- Range
- 55–4500Hz
- EBP †
- 159 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 232mm
- Bolt circle
- 244mm
- Depth
- 121mm
- Weight
- 4.7kg
Other published values
- Power Program
- 400
Sensitivity shows 95.9 dB, calculated from the T/S values. Eighteen Sound publishes 98.0 dB, 2.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 10″
- BL
- 11.7T·m
- Fs
- 70Hz
- Le
- 1.20mH
- Re
- 5.1Ω
- Sd
- 350cm²
- Mms
- 27g
- Qes
- 0.44
- Qms
- 4.0
- Qts
- 0.40
- SPL
- 95.9dB
- Vas
- 31L
- Xmax
- 5.5mm
- Power
- 280W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 55Hz
- Nominal power
- 280W
- Power Program
- 400
- Calculated sensitivity †
- 95.9dB
- High limit
- 4500Hz
- Manufacturer sensitivity
- 98dB
- Weight
- 4.7kg
- Diameter
- 260mm
- Depth
- 121mm
- Cutout
- 232mm
- Bolt circle
- 244mm
02
Designs
What Eighteen Sound suggests for the 10W400. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 10W400 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 10W400. Clear differences are green when better and red when worse.
This driver10W400
Best price
£100.59
Fs
70 Hz
Qts
0.40
Vas
31 L
BL
11.7 T·m
Xmax
5.5 mm
Sensitivity
95.9 dB
Power
280 W
SB AudienceBIANCO-10MW150
£50.73 · 50% less, betterFs65 Hz −7%
Qts0.39 –
Vas25.8 L −17%, better
BL15.1 T·m +29%, better
Xmax5.6 mm –
Sensitivity94.5 dB −1.4
LavoceWSF102.00
£55.54 · 45% less, betterFs65 Hz −7%
Qts0.45 +12%, worse
Vas34.0 L +10%
BL11.6 T·m –
Xmax5.2 mm −5%
Sensitivity94.9 dB −1
PRV Audio10MR650A
£64.16 · 36% less, betterFs65 Hz −8%
Qts0.47 +17%, worse
Vas41.9 L +35%, worse
BL12.3 T·m +5%
Xmax5.7 mm +4%
Sensitivity95.8 dB –
FaitalPRO10FE400
£66.74 · 34% less, betterFs60 Hz −14%, better
Qts0.47 +17%, worse
Vas35.3 L +14%, worse
BL11.5 T·m –
Xmax5.4 mm –
Sensitivity93.7 dB −2.2, worse
FaitalPRO10FE300
£72.65 · 28% less, betterFs50 Hz −29%, better
Qts0.39 –
Vas49 L +58%, worse
BL9.7 T·m −17%, worse
Xmax5.5 mm –
Sensitivity93.8 dB −2.1, worse
CIAREFXI10
£79.75 · 21% less, betterFs58 Hz −17%, better
Qts0.38 −5%
Vas38.5 L +24%, worse
BL13.3 T·m +14%, better
Xmax4.5 mm −18%, worse
Sensitivity94.7 dB −1.2
LavoceWAF102.50
£82.79 · 18% less, betterFs74 Hz +6%
Qts0.38 −5%
Vas23.7 L −24%, better
BL14.6 T·m +25%, better
Xmax5.1 mm −7%
Sensitivity95.6 dB –
CIAREPWA10.50
£83.64 · 17% less, betterFs57 Hz −19%, better
Qts0.40 –
Vas39.9 L +29%, worse
BL11.4 T·m –
Xmax5.8 mm +5%
Sensitivity94.2 dB −1.7
B&C10CL51
£85.00 · 15% less, betterFs58 Hz −17%, better
Qts0.38 −5%
Vas36 L +16%, worse
BL11.6 T·m –
Xmax5.5 mm –
Sensitivity94.3 dB −1.6
Dayton AudioDSA270-8
£90.65 · 10% less, betterFs30 Hz −58%, better
Qts0.39 –
Vas88.1 L +184%, worse
BL11.2 T·m −4%
Xmax5.5 mm –
Sensitivity88.9 dB −7, worse
No photo
EminenceDELTA-10A-2
£105.77 · 5% more, worseFs70 Hz –
Qts0.44 +10%
Vas29.7 L −4%
BL12.2 T·m +4%
Xmax6.4 mm +16%, better
Sensitivity95.2 dB −0.7
LavoceCSF102.50K
£141.89 · 41% more, worseFs65 Hz −7%
Qts0.45 +12%, worse
Vas29.9 L −3%
BL12.9 T·m +10%, better
Xmax6.3 mm +14%, better
Sensitivity94.4 dB −1.5
Eighteen Sound10W650
£144.46 · 44% more, worseFs67 Hz −4%
Qts0.48 +20%, worse
Vas26 L −16%, better
BL12.4 T·m +6%
Xmax5.7 mm +4%
Sensitivity93.9 dB −2, worse
CelestionFTX1025
£165.00 · 64% more, worseFs72 Hz –
Qts0.44 +10%
Vas25.9 L −17%, better
BL12.3 T·m +5%
Xmax5 mm −9%
Sensitivity94.6 dB −1.3
MonacorFTX1025/8
£218.81 · 118% more, worseFs79 Hz +13%, worse
Qts0.44 +10%
Vas25.9 L −16%, better
BL12.3 T·m +5%
Xmax5 mm −9%
Sensitivity95.9 dB –
B&C10FCX64
£237.42 · 136% more, worseFs63 Hz −10%, better
Qts0.42 +5%
Vas25 L −19%, better
BL13.4 T·m +15%, better
Xmax6 mm +9%
Sensitivity93.6 dB −2.3, worse
WavecorSW280WA03
£244.15 · 143% more, worseFs35 Hz −51%, better
Qts0.46 +15%, worse
Vas29.7 L −4%
BL12.5 T·m +7%
Xmax6 mm +9%
Sensitivity86.1 dB −9.8, worse
FaitalPRO10HX230
£274.56 · 173% more, worseFs65 Hz −7%
Qts0.39 –
Vas30.5 L –
BL13.1 T·m +12%, better
Xmax7.4 mm +34%, better
Sensitivity95 dB −0.9
WavecorSW280WA01
£412.60 · 310% more, worseFs27 Hz −62%, better
Qts0.41 –
Vas41.4 L +34%, worse
BL13.4 T·m +15%, better
Xmax6 mm +9%
Sensitivity84.5 dB −11.4, worse
JensenBS10N250A-8
No current priceFs58 Hz −17%, better
Qts0.43 +7%
Vas30.9 L –
BL12.9 T·m +11%, better
Xmax5 mm −9%
Sensitivity93.2 dB −2.7, worse
CelestionTF1020RE
No current priceFs53 Hz −25%, better
Qts0.39 −4%
Vas44.5 L +44%, worse
BL12.0 T·m –
Xmax5.9 mm +7%
Sensitivity93.6 dB −2.3, worse
No photo
PHL Audio3020
No current priceFs60 Hz −14%, better
Qts0.38 −5%
Vas36.8 L +19%, worse
BL12.8 T·m +9%
Xmax5 mm −9%
Sensitivity94.9 dB −1
Oberton10CX
No current priceFs64 Hz −8%
Qts0.38 −5%
Vas32.3 L +4%
BL12.1 T·m –
Xmax4.3 mm −23%, worse
Sensitivity95.4 dB −0.5
LavoceFBASS10-18
No current priceFs65 Hz −7%
Qts0.43 +7%
Vas32.4 L +5%
BL12.5 T·m +7%
Xmax4.5 mm −18%, worse
Sensitivity94.7 dB −1.2
PRV Audio10W1000-NDY
No current priceFs62 Hz −11%, better
Qts0.40 –
Vas39 L +26%, worse
BL12.7 T·m +9%
Xmax6.5 mm +18%, better
Sensitivity95.5 dB –
CelestionTF1018
No current priceFs70 Hz –
Qts0.41 –
Vas33.8 L +9%
BL11.6 T·m –
Xmax2 mm −64%, worse
Sensitivity95.8 dB –
PRV Audio10MR650A-4
No current priceFs62 Hz −11%, better
Qts0.39 –
Vas44 L +42%, worse
BL10.0 T·m −15%, worse
Xmax5.2 mm −5%
Sensitivity96.2 dB –
Oberton10M150
No current priceFs74 Hz +6%
Qts0.43 +7%
Vas25.9 L −16%, better
BL11.6 T·m –
Xmax3.3 mm −41%, worse
Sensitivity95.7 dB –
Oberton10NCX1
No current priceFs68 Hz –
Qts0.41 –
Vas12.0 L −61%, better
BL12.0 T·m –
Xmax4.8 mm −14%, worse
Sensitivity91.5 dB −4.4, worse
LavoceNBASS10-20
No current priceFs52 Hz −26%, better
Qts0.39 –
Vas43.4 L +40%, worse
BL12.5 T·m +7%
Xmax6.6 mm +20%, better
Sensitivity93.6 dB −2.3, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
None of the shops we track lists delivery to the UK at checkout.
