10-inch LF driver · TF1018 series · 44 mm voice coil · 100 W

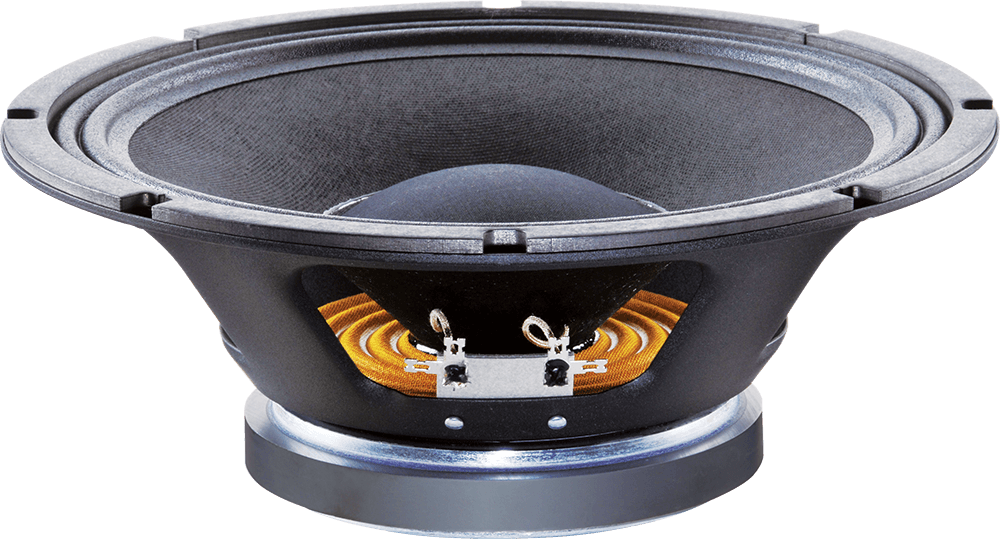

Celestion TF1018 8Ω
8 Ω · 70–6000 Hz
No price for delivery to the UK
- Fs
- 70Hz
- Xmax
- 2mm
- SPL
- 96dB
- Pe
- 100W
- BL
- 11.6T·m
- Vd
- 69cm³
- Qts
- 0.41
- Vas
- 34L

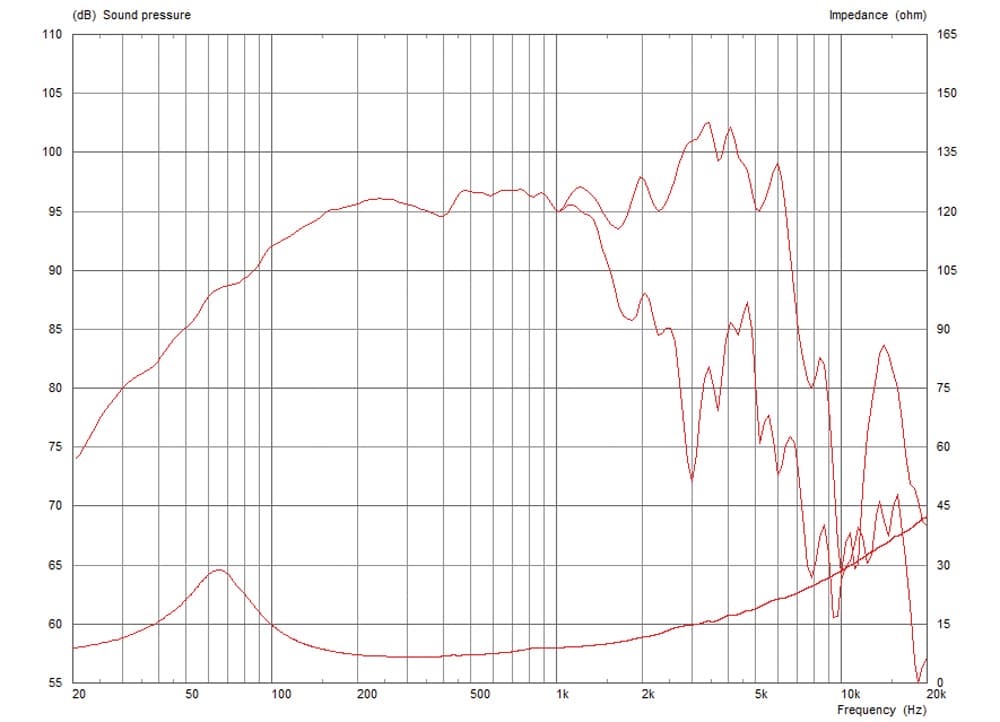

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence164 selected pixels of 326
Published graphs
Celestion TF1018 is a 10-inch 8 ohm LF driver rated at 100 W RMS. The validated T/S data includes Fs 70 Hz, Qts 0.41, Vas 33.8 L, Xmax 2 mm, sensitivity 95.8 dB, plus 69 cm³ Vd and 142 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 70Hz
- Qts
- 0.41
- Qes
- 0.49
- Qms
- 2.4
- Vas
- 33.8L
- Re
- 5.8Ω
- Le
- 0.50mH
Motor and cone
- BL
- 11.6T·m
- Sd
- 346cm²
- Mms
- 26g
- Xmax
- 2mm
- Vd †
- 69cm³
- Voice coil
- 44mm
Power and response
- Sensitivity †
- 95.8dB
- Manufacturer sensitivity
- 96dB
- Power
- 100W
- Impedance
- 8Ω
- Range
- 70–6000Hz
- EBP †
- 142 · Leans vented
Size and mounting
- Diameter
- 256mm
- Cutout
- 229mm
- Bolt circle
- 245mm
- Depth
- 102mm
- Weight
- 2.4kg
Other published values
- Cms
- 0.20mm/N
- Rms
- 4.70kg/s
- Power Program
- 200
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 10″
- BL
- 11.6T·m
- Fs
- 70Hz
- Le
- 0.50mH
- Re
- 5.8Ω
- Sd
- 346cm²
- Cms
- 0.20mm/N
- Mms
- 26g
- Qes
- 0.49
- Qms
- 2.4
- Qts
- 0.41
- Rms
- 4.70kg/s
- SPL
- 95.8dB
- Vas
- 33.8L
- Xmax
- 2mm
- Power
- 100W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 70Hz
- Power Program
- 200
- Calculated sensitivity †
- 95.8dB
- High limit
- 6000Hz
- Manufacturer sensitivity
- 96dB
- Voice coil
- 44mm
- Weight
- 2.4kg
- Diameter
- 256mm
- Depth
- 102mm
- Cutout
- 229mm
- Bolt circle
- 245mm
02
Compare
Same-size drivers, compared with the TF1018. Clear differences are green when better and red when worse.
This driverTF1018
Best price
–
Fs
70 Hz
Qts
0.41
Vas
33.8 L
BL
11.6 T·m
Xmax
2 mm
Sensitivity
95.8 dB
Power
100 W
LavoceWSF102.00
£55.54Fs65 Hz −7%
Qts0.45 +10%, worse
Vas34.0 L –
BL11.6 T·m –
Xmax5.2 mm +160%, better
Sensitivity94.9 dB −0.9
PRV Audio10MR650A
£63.52Fs65 Hz −8%
Qts0.47 +15%, worse
Vas41.9 L +24%, worse
BL12.3 T·m +6%
Xmax5.7 mm +186%, better
Sensitivity95.8 dB –
FaitalPRO10FE400
£66.15Fs60 Hz −14%, better
Qts0.47 +15%, worse
Vas35.3 L +4%
BL11.5 T·m –
Xmax5.4 mm +171%, better
Sensitivity93.7 dB −2.1, worse
PRV Audio10W650A-4
£82.01Fs67 Hz −5%
Qts0.39 −5%
Vas41.2 L +22%, worse
BL11.2 T·m −3%
Xmax4 mm +100%, better
Sensitivity96.9 dB +1.1
CIAREPWA10.50
£82.89Fs57 Hz −19%, better
Qts0.40 –
Vas39.9 L +18%, worse
BL11.4 T·m –
Xmax5.8 mm +190%, better
Sensitivity94.2 dB −1.6
B&C10CL51
£84.00Fs58 Hz −17%, better
Qts0.38 −7%
Vas36 L +6%
BL11.6 T·m –
Xmax5.5 mm +175%, better
Sensitivity94.3 dB −1.5
Dayton AudioDCS255-4
£121.33Fs38 Hz −46%, better
Qts0.46 +12%, worse
Vas32.1 L −5%
BL12.6 T·m +9%
Xmax8.3 mm +315%, better
Sensitivity87.4 dB −8.4, worse
LavoceCSF102.50K
£141.89Fs65 Hz −7%
Qts0.45 +10%, worse
Vas29.9 L −11%, better
BL12.9 T·m +11%, better
Xmax6.3 mm +213%, better
Sensitivity94.4 dB −1.4
CelestionFTX1025
£165.00Fs72 Hz –
Qts0.44 +8%
Vas25.9 L −24%, better
BL12.3 T·m +6%
Xmax5 mm +150%, better
Sensitivity94.6 dB −1.2
SB AudienceROSSO-10CX300
£174.95Fs58 Hz −17%, better
Qts0.45 +10%, worse
Vas40.5 L +20%, worse
BL11.9 T·m –
Xmax8.2 mm +310%, better
Sensitivity94.2 dB −1.6
WavecorSW280WA03
£241.98Fs35 Hz −51%, better
Qts0.46 +12%, worse
Vas29.7 L −12%, better
BL12.5 T·m +8%
Xmax6 mm +200%, better
Sensitivity86.1 dB −9.7, worse
FaitalPRO10HX230
£272.13Fs65 Hz −7%
Qts0.39 −5%
Vas30.5 L −10%
BL13.1 T·m +13%, better
Xmax7.4 mm +269%, better
Sensitivity95 dB −0.8
Dayton AudioRSS265HO-44
£293.02Fs28 Hz −61%, better
Qts0.45 +10%, worse
Vas34.8 L –
BL9.4 T·m −19%, worse
Xmax13.3 mm +563%, better
Sensitivity83.7 dB −12.1, worse
WavecorSW280WA01
£408.94Fs27 Hz −62%, better
Qts0.41 –
Vas41.4 L +22%, worse
BL13.4 T·m +16%, better
Xmax6 mm +200%, better
Sensitivity84.5 dB −11.3, worse
Eighteen Sound10W400
No current priceFs70 Hz –
Qts0.40 –
Vas31 L −8%
BL11.7 T·m –
Xmax5.5 mm +175%, better
Sensitivity95.9 dB –
LavoceFBASS10-18
No current priceFs65 Hz −7%
Qts0.43 +5%
Vas32.4 L −4%
BL12.5 T·m +8%
Xmax4.5 mm +125%, better
Sensitivity94.7 dB −1.1
No photo
PHL Audio3040NDM
No current priceFs91 Hz +30%, worse
Qts0.43 +5%
Vas20.4 L −40%, better
BL14.5 T·m +25%, better
Xmax2 mm –
Sensitivity97 dB +1.2
CIARENDI10
No current priceFs57 Hz −19%, better
Qts0.45 +10%, worse
Vas35 L +4%
BL12.6 T·m +8%
Xmax4.5 mm +125%, better
Sensitivity93.2 dB −2.6, worse
No photo
PHL Audio3040
No current priceFs91 Hz +30%, worse
Qts0.45 +10%, worse
Vas20.4 L −40%, better
BL14.3 T·m +23%, better
Xmax2 mm –
Sensitivity96.8 dB +1
Oberton10M150
No current priceFs74 Hz +6%
Qts0.43 +5%
Vas25.9 L −23%, better
BL11.6 T·m –
Xmax3.3 mm +63%, better
Sensitivity95.7 dB –
JensenBS10N250A-8
No current priceFs58 Hz −17%, better
Qts0.43 +5%
Vas30.9 L −9%
BL12.9 T·m +12%, better
Xmax5 mm +150%, better
Sensitivity93.2 dB −2.6, worse
No photo
PHL Audio3005NDU
No current priceFs53 Hz −24%, better
Qts0.46 +12%, worse
Vas31.8 L −6%
BL12.6 T·m +9%
Xmax9 mm +350%, better
Sensitivity91.8 dB −4, worse
Oberton10CX
No current priceFs64 Hz −8%
Qts0.38 −7%
Vas32.3 L −4%
BL12.1 T·m +4%
Xmax4.3 mm +113%, better
Sensitivity95.4 dB –
PRV Audio10W1000-NDY
No current priceFs62 Hz −11%, better
Qts0.40 –
Vas39 L +15%, worse
BL12.7 T·m +10%
Xmax6.5 mm +225%, better
Sensitivity95.5 dB –
CelestionTN1020
No current priceFs95 Hz +36%, worse
Qts0.40 −3%
Vas16.0 L −53%, better
BL14.9 T·m +29%, better
Xmax2 mm –
Sensitivity96.9 dB +1.1
CelestionTF1020RE
No current priceFs53 Hz −25%, better
Qts0.39 −6%
Vas44.5 L +32%, worse
BL12.0 T·m +4%
Xmax5.9 mm +194%, better
Sensitivity93.6 dB −2.2, worse
No photo
PHL Audio3020
No current priceFs60 Hz −14%, better
Qts0.38 −7%
Vas36.8 L +9%
BL12.8 T·m +10%, better
Xmax5 mm +150%, better
Sensitivity94.9 dB −0.9
PRV Audio10W650A
No current priceFs72 Hz +3%
Qts0.46 +12%, worse
Vas34.0 L –
BL14.1 T·m +22%, better
Xmax4.5 mm +125%, better
Sensitivity96.4 dB +0.6
LavoceNBASS10-20
No current priceFs52 Hz −26%, better
Qts0.39 −5%
Vas43.4 L +28%, worse
BL12.5 T·m +8%
Xmax6.6 mm +230%, better
Sensitivity93.6 dB −2.2, worse
