SB AudienceBIANCO-10MW150
£50.73 · 69% less, betterFs65 Hz −9%
Qts0.39 −11%, better
Vas25.8 L –
BL15.1 T·m +23%, better
Xmax5.6 mm +13%, better
Sensitivity94.5 dB –
10-inch LF driver · FTX1025 series · 34 mm voice coil · 40 W
Celestion FTX1025 8Ω
8 Ω · 1000–20000 Hz
£165.00
SteadyLean Audio · 2 in stock · All 1 offer
- Fs
- 72Hz
- Xmax
- 5mm
- SPL
- 95dB
- Pe
- 40W
- BL
- 12.3T·m
- Vd
- 173cm³
- Qts
- 0.44
- Vas
- 26L

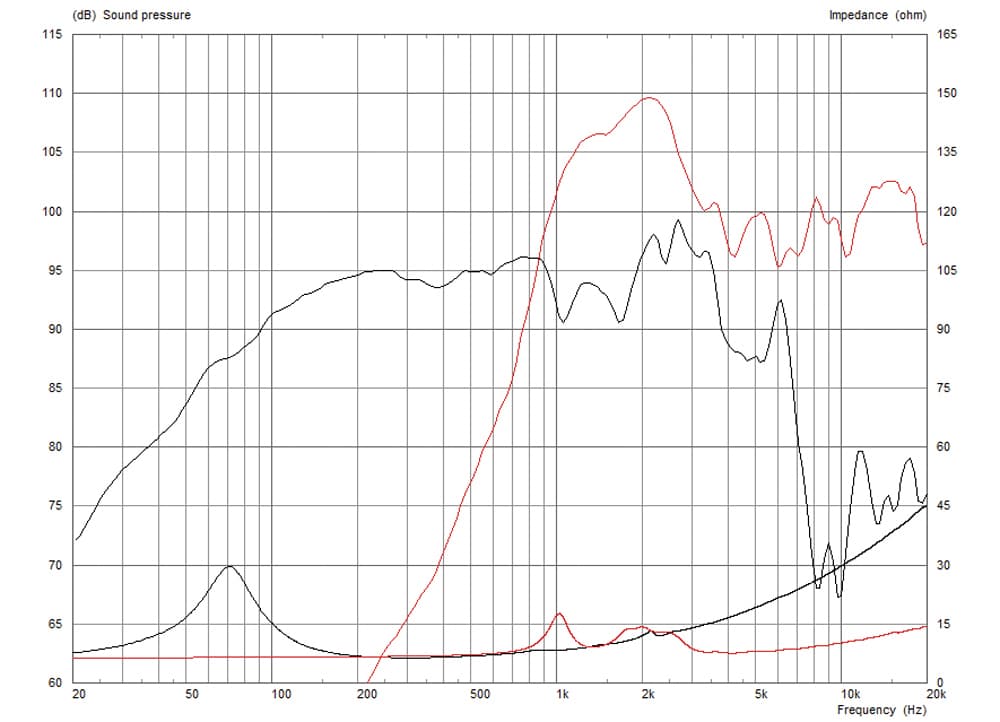

Published graphs
Celestion FTX1025 is a 10-inch 8 ohm LF driver rated at 40 W RMS. The validated T/S data includes Fs 72 Hz, Qts 0.44, Vas 25.9 L, Xmax 5 mm, sensitivity 94.6 dB, plus 173 cm³ Vd and 137 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £165.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 72Hz
- Qts
- 0.44
- Qes
- 0.52
- Qms
- 2.8
- Vas
- 25.9L
- Re
- 5.4Ω
- Le
- 0.48mH
Motor and cone
- BL
- 12.3T·m
- Sd
- 346cm²
- Mms
- 33g
- Xmax
- 5mm
- Vd †
- 173cm³
- Voice coil
- 34mm
Power and response
- Sensitivity †
- 94.6dB
- Manufacturer sensitivity
- 104dB
- Power
- 40W
- Impedance
- 8Ω
- Range
- 1000–20000Hz
- EBP †
- 137 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 235mm
- Bolt circle
- 247mm
- Depth
- 123mm
- Weight
- 4.5kg
Other published values
- Cms
- 0.15mm/N
- Rms
- 5.25kg/s
- Power Program
- 80
Sensitivity shows 94.6 dB, calculated from the T/S values. Celestion publishes 104.0 dB, 9.4 dB apart.
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Primary · 10″
- BL
- 12.3T·m
- Fs
- 72Hz
- Le
- 0.48mH
- Re
- 5.4Ω
- Sd
- 346cm²
- Cms
- 0.15mm/N
- Mms
- 33g
- Qes
- 0.52
- Qms
- 2.8
- Qts
- 0.44
- Rms
- 5.25kg/s
- SPL
- 94.6dB
- Vas
- 25.9L
- Xmax
- 5mm
- Power
- 40W
- Impedance
- 8Ω
- Sensitivity
- 104dB
- Low limit
- 1000Hz
- Power Program
- 80
- Calculated sensitivity †
- 94.6dB
- High limit
- 20000Hz
- Manufacturer sensitivity
- 104dB
- Voice coil
- 34mm
- Weight
- 4.5kg
- Diameter
- 260mm
- Depth
- 123mm
- Cutout
- 235mm
- Bolt circle
- 247mm
02
Compare
Same-size drivers, compared with the FTX1025. Clear differences are green when better and red when worse.
This driverFTX1025
Best price
£165.00
Fs
72 Hz
Qts
0.44
Vas
25.9 L
BL
12.3 T·m
Xmax
5 mm
Sensitivity
94.6 dB
Power
40 W
LavoceWSF102.00
£55.54 · 66% less, betterFs65 Hz −9%
Qts0.45 –
Vas34.0 L +32%, worse
BL11.6 T·m −6%
Xmax5.2 mm +4%
Sensitivity94.9 dB –
PRV Audio10MR650A
£63.52 · 62% less, betterFs65 Hz −10%
Qts0.47 +7%
Vas41.9 L +62%, worse
BL12.3 T·m –
Xmax5.7 mm +14%, better
Sensitivity95.8 dB +1.2
FaitalPRO10FE400
£66.15 · 60% less, betterFs60 Hz −16%, better
Qts0.47 +7%
Vas35.3 L +37%, worse
BL11.5 T·m −7%
Xmax5.4 mm +8%
Sensitivity93.7 dB −0.9
Dayton AudioDS270-8
£71.05 · 57% less, betterFs32 Hz −56%, better
Qts0.44 –
Vas87.7 L +239%, worse
BL10.1 T·m −18%, worse
Xmax5.5 mm +10%, better
Sensitivity89.1 dB −5.5, worse
CIAREPWA10.64
£105.50 · 36% less, betterFs73 Hz –
Qts0.38 −14%, better
Vas23 L −11%, better
BL14.4 T·m +17%, better
Xmax4.5 mm −10%, worse
Sensitivity95.5 dB +0.9
B&C10CLA64
£115.55 · 30% less, betterFs74 Hz +3%
Qts0.42 −5%
Vas18.5 L −28%, better
BL14.5 T·m +18%, better
Xmax5 mm –
Sensitivity94.2 dB –
PeerlessGBS-250F38CP01-04
£117.97 · 29% less, betterFs38 Hz −47%, better
Qts0.51 +16%, worse
Vas22.8 L −12%, better
BL12.9 T·m +5%
Xmax9.2 mm +83%, better
Sensitivity85.6 dB −9, worse
Dayton AudioDCS255-4
£121.33 · 26% less, betterFs38 Hz −47%, better
Qts0.46 +5%
Vas32.1 L +24%, worse
BL12.6 T·m –
Xmax8.3 mm +66%, better
Sensitivity87.4 dB −7.2, worse
LavoceCSF102.50K
£141.89 · 14% less, betterFs65 Hz −9%
Qts0.45 –
Vas29.9 L +16%, worse
BL12.9 T·m +5%
Xmax6.3 mm +25%, better
Sensitivity94.4 dB –
Eighteen Sound10W650
£143.18 · 13% less, betterFs67 Hz −6%
Qts0.48 +9%
Vas26 L –
BL12.4 T·m –
Xmax5.7 mm +14%, better
Sensitivity93.9 dB −0.7
B&C10FCX64
£237.42 · 44% more, worseFs63 Hz −12%, better
Qts0.42 −5%
Vas25 L −3%
BL13.4 T·m +9%
Xmax6 mm +20%, better
Sensitivity93.6 dB −1
WavecorSW280WA03
£241.98 · 47% more, worseFs35 Hz −52%, better
Qts0.46 +5%
Vas29.7 L +15%, worse
BL12.5 T·m –
Xmax6 mm +20%, better
Sensitivity86.1 dB −8.5, worse
WavecorSW280WA04
£241.98 · 47% more, worseFs34 Hz −52%, better
Qts0.45 –
Vas30.5 L +18%, worse
BL15.5 T·m +26%, better
Xmax6 mm +20%, better
Sensitivity86.1 dB −8.5, worse
WavecorSW259WA01
£376.79 · 128% more, worseFs29 Hz −59%, better
Qts0.46 +5%
Vas25 L −3%
BL14.5 T·m +18%, better
Xmax11.5 mm +130%, better
Sensitivity83 dB −11.6, worse
JensenBS10N250A-8
No current priceFs58 Hz −19%, better
Qts0.43 –
Vas30.9 L +20%, worse
BL12.9 T·m +5%
Xmax5 mm –
Sensitivity93.2 dB −1.4
LavoceFBASS10-18
No current priceFs65 Hz −9%
Qts0.43 –
Vas32.4 L +25%, worse
BL12.5 T·m –
Xmax4.5 mm −10%, worse
Sensitivity94.7 dB –
CIARENDI10
No current priceFs57 Hz −20%, better
Qts0.45 –
Vas35 L +35%, worse
BL12.6 T·m –
Xmax4.5 mm −10%, worse
Sensitivity93.2 dB −1.4
Eighteen Sound10W400
No current priceFs70 Hz –
Qts0.40 −9%
Vas31 L +20%, worse
BL11.7 T·m −5%
Xmax5.5 mm +10%, better
Sensitivity95.9 dB +1.3
Oberton10M150
No current priceFs74 Hz +3%
Qts0.43 –
Vas25.9 L –
BL11.6 T·m −6%
Xmax3.3 mm −35%, worse
Sensitivity95.7 dB +1.1
PRV Audio10W650A
No current priceFs72 Hz –
Qts0.46 +5%
Vas34.0 L +32%, worse
BL14.1 T·m +15%, better
Xmax4.5 mm −10%, worse
Sensitivity96.4 dB +1.8
No photo
PHL Audio3005NDU
No current priceFs53 Hz −26%, better
Qts0.46 +5%
Vas31.8 L +23%, worse
BL12.6 T·m –
Xmax9 mm +80%, better
Sensitivity91.8 dB −2.8, worse
Oberton10NCX1
No current priceFs68 Hz −5%
Qts0.41 −7%
Vas12.0 L −54%, better
BL12.0 T·m –
Xmax4.8 mm −5%
Sensitivity91.5 dB −3.1, worse
No photo
PHL Audio3020
No current priceFs60 Hz −16%, better
Qts0.38 −14%, better
Vas36.8 L +42%, worse
BL12.8 T·m +4%
Xmax5 mm –
Sensitivity94.9 dB –
No photo
PHL Audio3040
No current priceFs91 Hz +27%, worse
Qts0.45 –
Vas20.4 L −21%, better
BL14.3 T·m +16%, better
Xmax2 mm −60%, worse
Sensitivity96.8 dB +2.2, better
PeerlessFSL-1025R03-06
No current priceFs66 Hz −8%
Qts0.46 +5%
Vas18.1 L −30%, better
BL14.3 T·m +16%, better
Xmax6.3 mm +25%, better
Sensitivity92.1 dB −2.5, worse
CelestionTF1018
No current priceFs70 Hz –
Qts0.41 −7%
Vas33.8 L +31%, worse
BL11.6 T·m −6%
Xmax2 mm −60%, worse
Sensitivity95.8 dB +1.2
No photo
PHL Audio3040NDM
No current priceFs91 Hz +27%, worse
Qts0.43 –
Vas20.4 L −21%, better
BL14.5 T·m +18%, better
Xmax2 mm −60%, worse
Sensitivity97 dB +2.4, better
Oberton10CX
No current priceFs64 Hz −10%, better
Qts0.38 −14%, better
Vas32.3 L +25%, worse
BL12.1 T·m –
Xmax4.3 mm −15%, worse
Sensitivity95.4 dB +0.8
CIARECMI250
No current priceFs55 Hz −23%, better
Qts0.50 +14%, worse
Vas34 L +32%, worse
BL9 T·m −27%, worse
Xmax4.5 mm −10%, worse
Sensitivity92.4 dB −2.2, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Audio | £165.00, the lowest price | 2 in stock | Visit shop at Lean Audio |
Best price over time
Tracked since 1 Apr
