Wavecor SW259WA01 4Ω
LF DriverMedia
Wavecor
SW259WA01
Image unavailable
Overview
LF DriverSW259WA series
Wavecor
Wavecor SW259WA01
Wavecor SW259WA01 is a 10" 4 ohm LF driver. The validated T/S data includes Fs 29Hz, Qts 0.46, Vas 25L, Xmax 11.5mm, sensitivity 83dB, plus 359cm³ Vd and 59 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
4Ω
Sensitivity
83.0dB
EBP
59
Either alignment
Vd
359cm³
T/S Parameters
Valid
Fs29Hz
Qts0.46
Qes0.49
Qms10.0
Vas25.0L
Re3.3Ω
BL14.5Tm
Sd312cm²
Mms173g
Xmax11.5mm
SPL83dB
Impedance4Ω
Voice Coil51mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter260.4mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Image unavailable
Reference
Wavecor
SW259WA01
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
8 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
70%
Similarity
Dayton Audio
DCS255-4
10"
Xmax8.3mm-28%
Qts0.460%
BL12.6Tm-13%
Vas32.1L+28%
Qes0.5+2%
70%
Similarity

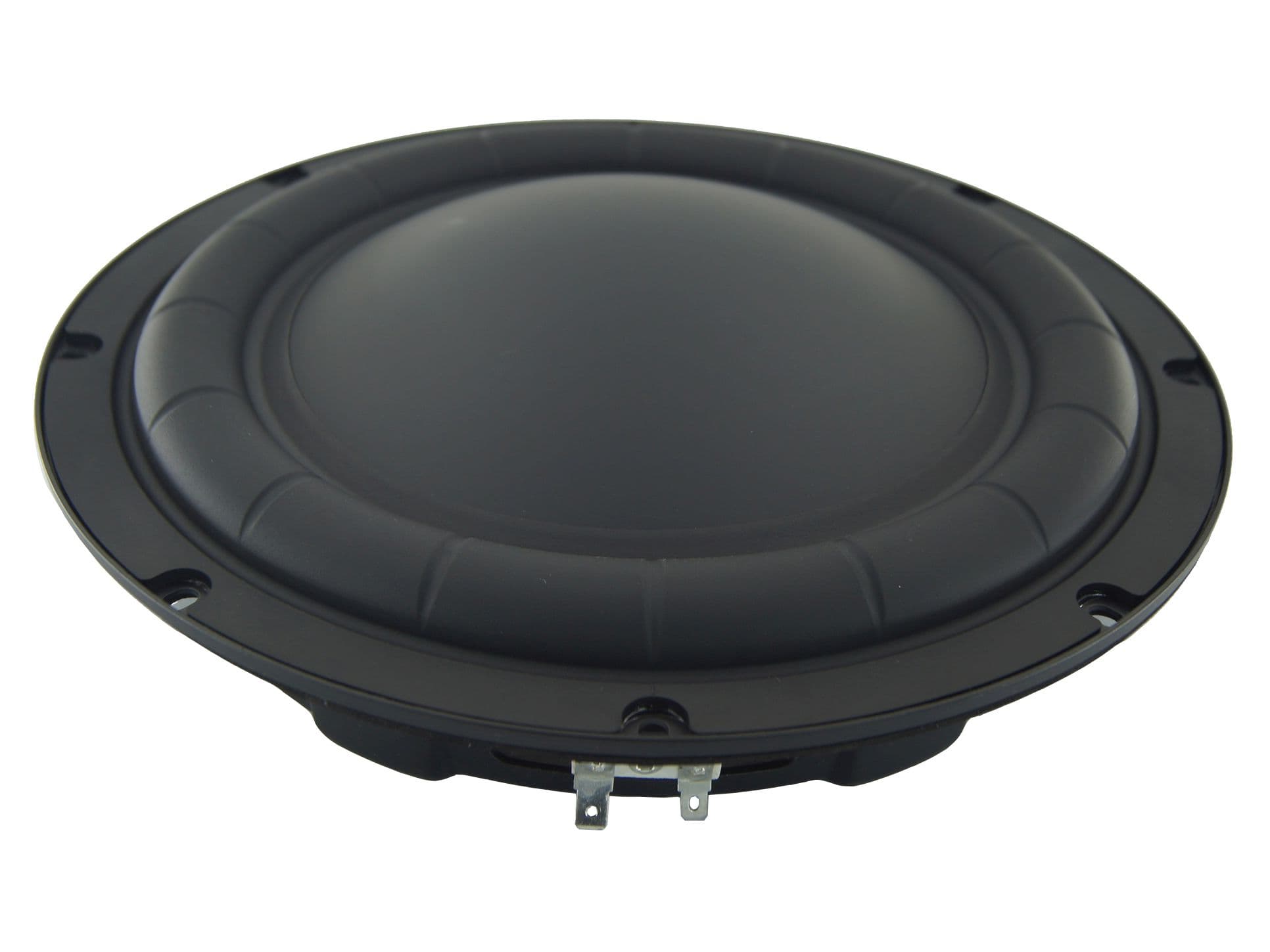

Peerless
GBS-250F38CP01-04
10"
Xmax9.2mm-20%
Qts0.51+11%
BL12.9Tm-11%
Vas22.8L-9%
Qes0.54+11%
64%
Similarity
Oberton
10NMB500
10"
Xmax8.3mm-28%
Qts0.41-11%
BL14.6Tm0%
Vas18.6L-25%
Qes0.42-14%
Image unavailable
61%
Similarity

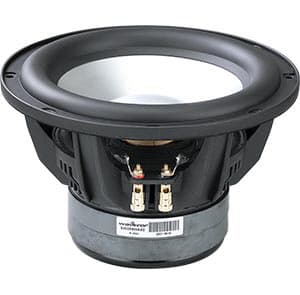

Wavecor
