LF DriverCSF102 series
Lavoce
Lavoce CSF102.50K
Lavoce CSF102.50K is a 10" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 65Hz, Qts 0.45, Vas 29.9L, Xmax 6.3mm, sensitivity 94.4dB, plus 219cm³ Vd and 135 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £141.89.
Size
10"
Impedance
8Ω
RMS Power
300W
Sensitivity
94.4dB
96.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
135
Vented alignment
Vd
219cm³

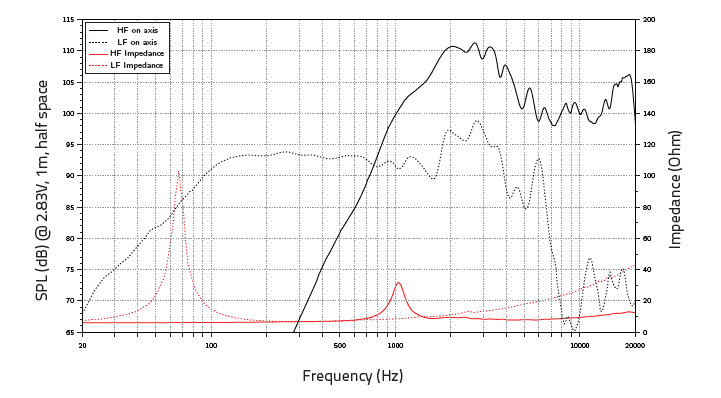

Frequency response
Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs65Hz
Qts0.45
Qes0.48
Qms7.4
Vas29.9L
Re5.8Ω
Le0.46mH
BL12.9Tm
Sd350cm²
Mms34g
Xmax6.3mm
SPL94dB
Power300W
Impedance8Ω
Min Impedance6.6Ω
F Low65Hz
F High20000Hz
Voice Coil65mm
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Best current price
£141.89
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

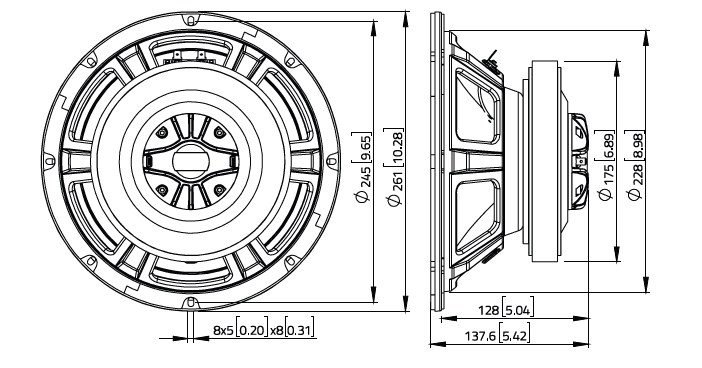

Dimensions & Physical
Weight4.9kg
Driver Components
LF
Fs65 Hz
Qts0.45
Qes0.48
Qms7.4
Vas29.9 L
Re5.8 Ω
Le0.46 mH
BL12.9 Tm
Sd350 cm²
Mms34 g
Xmax6.3 mm
SPL94 dB
Power300 W
Impedance8 Ω
Min Impedance6.6 Ω
F Low65 Hz
F High4000 Hz
Voice Coil65 mm
Cms0.17
Power Program600
Xmech10.25
Section dimensions
Weight4900.0 kg
HF
SPL105 dB
Power60 W
Impedance8 Ω
Min Impedance7.6 Ω
F Low1000 Hz
F High20000 Hz
Xover1600 Hz
Throat25 mm
Voice Coil44 mm
Flux Density1.75 T
Power Program120
