LF DriverHX series
FaitalPRO

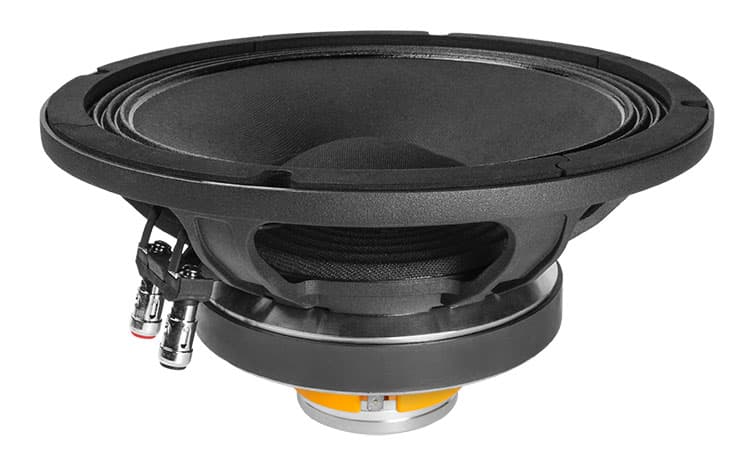

FaitalPRO 10HX230
FaitalPRO 10HX230 is a 10" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 65Hz, Qts 0.39, Vas 30.5L, Xmax 7.4mm, sensitivity 95dB, plus 256cm³ Vd and 155 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £226.56.
Size
10"
Impedance
8Ω
RMS Power
250W
Sensitivity
95.0dB
96.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
155
Vented alignment
Vd
256cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees163 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
163 plotted pointsMedium confidence605 selected pixels of 1,445 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,422 selected pixels of 2,735 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence934 selected pixels of 1,926
T/S Parameters
Valid
Fs65Hz
Qts0.39
Qes0.42
Qms5.8
Vas30.5L
Re5.3Ω
Le0.54mH
BL13.1Tm
Sd347cm²
Mms33g
Xmax7.4mm
SPL95dB
Power250W
Impedance8Ω
F Low65Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£226.56
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.0kg
Diameter261.0mm
Overall Depth136.5mm
Cutout Diameter230.0mm
Bolt Circle Diameter246.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
10HX230
10"
Best current price
£226.56
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
79%
Similarity
78% cheaper£50.47
SB Audience
BIANCO-10MW200
10"
Lower price
Xmax6.7mm-9%
Qts0.36-8%
BL13Tm-1%
Vas41L+34%
Qes0.43+2%
73%
Similarity
78% cheaper£50.73
SB Audience
BIANCO-10MW150
10"
Lower price
Xmax5.6mm-24%
Qts0.390%
BL15.1Tm+15%
Vas25.8L-15%
Qes0.4-5%
52%
Similarity
76% cheaper£55.28
FaitalPRO
10FE400
10"
Lower price
Xmax5.4mm-26%
Qts0.47+21%
BL11.5Tm-12%
Vas35.3L+16%
Qes0.52+24%
59%
Similarity
75% cheaper£55.54
Lavoce
WSF102.00
10"
Lower price
Xmax5.2mm-29%
Qts0.45+15%
BL11.6Tm-11%
Vas34L+12%
Qes0.48+14%
55%
Similarity
72% cheaper£64.34
PRV Audio
10MR650A
10"
Lower price
Xmax5.7mm-22%
Qts0.47+21%
BL12.3Tm-6%
Vas41.9L+37%
Qes0.48+14%
65%
Similarity
63% cheaper£83.47
Lavoce
WAF102.51
10"
Lower price
Xmax6mm-19%
Qts0.42+8%
BL15.6Tm+19%
Vas21.4L-30%
Qes0.44+5%
74%
Similarity
62% cheaper£85.99
B&C
10CL51
10"
Lower price
Xmax5.5mm-25%
Qts0.38-3%
BL11.6Tm-11%
Vas36L+18%
Qes0.420%
Image unavailable
74%
Similarity
54% cheaper£104.85
Eminence
DELTA-10A-2
10"
Lower price
Xmax6.4mm-13%
Qts0.44+13%
BL12.2Tm-7%
Vas29.7L-3%
Qes0.48+14%
78%
Similarity
50% cheaper£112.27
FaitalPRO
10PR330
10"
Lower price
Xmax7.4mm0%
Qts0.33-15%
BL14.3Tm+9%
Vas32.5L+7%
Qes0.36-14%
70%
Similarity
49% cheaper£114.82
RCF
MB10G251
10"
Lower price
Xmax7mm-5%
Qts0.34-13%
BL14.9Tm+14%
Vas24L-21%
Qes0.35-17%
42%
Similarity
49% cheaper£116.06
B&C
10CL64
10"
Lower price
Xmax5.2mm-29%
Qts0.31-21%
BL16.3Tm+24%
Vas22.2L-27%
Qes0.33-21%
79%
Similarity
47% cheaper£119.58
FaitalPRO
10RS350
10"
Lower price
Xmax7.4mm0%
Qts0.37-5%
BL14Tm+7%
Vas44.3L+45%
Qes0.4-5%
