LF Driver
Eighteen Sound
Eighteen Sound 10CX650
Eighteen Sound 10CX650 is a 10" 8 ohm LF driver. The validated T/S data includes Fs 54Hz, Qts 0.35, Vas 36.4L, Xmax 6mm, sensitivity 93.7dB, plus 208cm³ Vd and 138 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £261.58.
Size
10"
Impedance
8Ω
Sensitivity
93.7dB
EBP
138
Vented alignment
Vd
208cm³

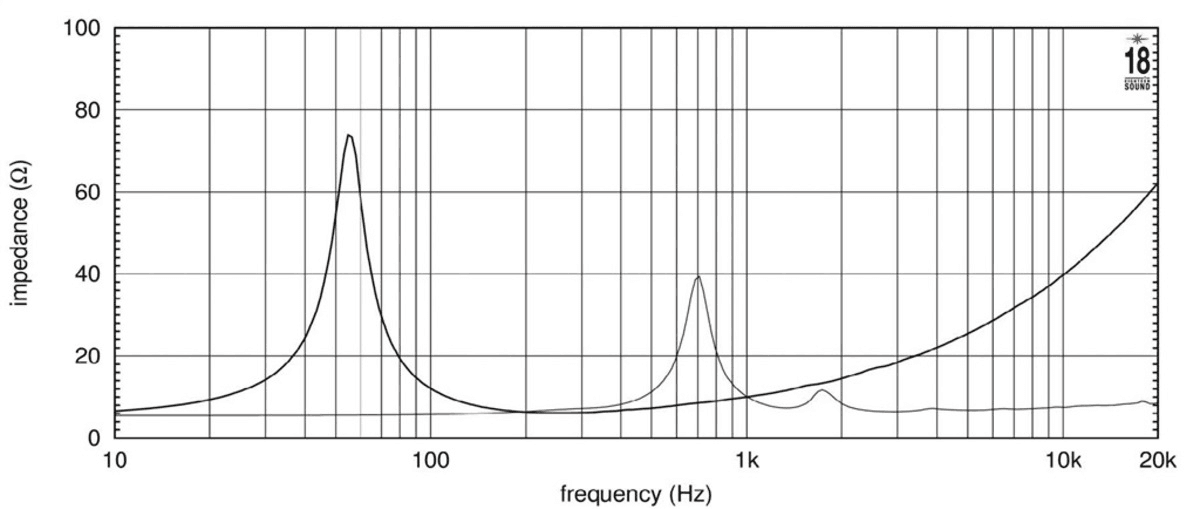

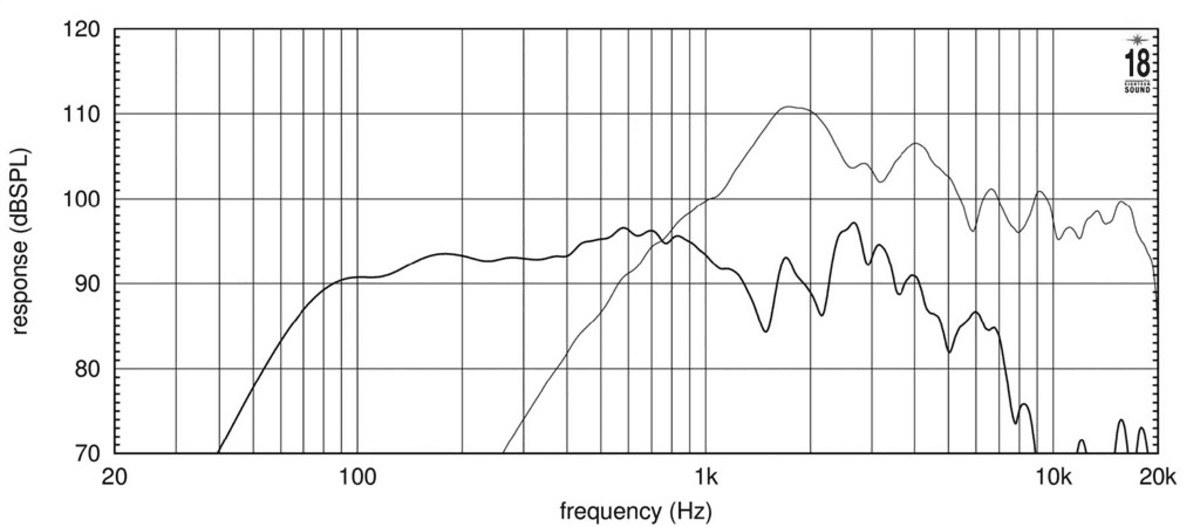

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence11,618 selected pixels of 11,618
T/S Parameters
Valid
Fs54Hz
Qts0.35
Qes0.39
Qms5.9
Vas36.4L
Re5.1Ω
Le0.90mH
BL14.0Tm
Sd346cm²
Mms40g
Xmax6.0mm
SPL94dB
Impedance8Ω
F Low60Hz
F High4800Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£261.58
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.2kg
Diameter260.0mm
Overall Depth155.0mm
Cutout Diameter230.0mm
Bolt Circle Diameter243.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
10CX650
10"
Best current price
£261.58
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
81%
Similarity
81% cheaper£50.47

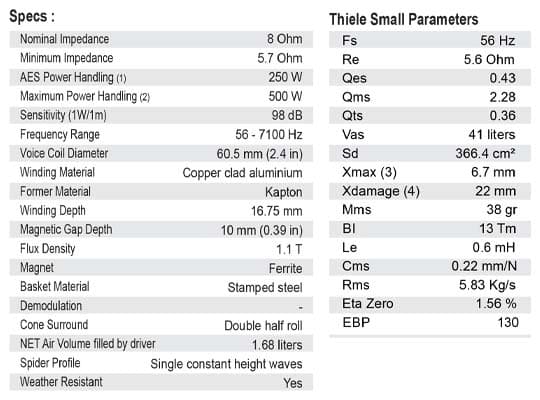

SB Audience
BIANCO-10MW200
10"
Lower price
Xmax6.7mm+12%
Qts0.36+3%
BL13Tm-7%
Vas41L+13%
Qes0.43+10%
76%
Similarity
81% cheaper£50.73

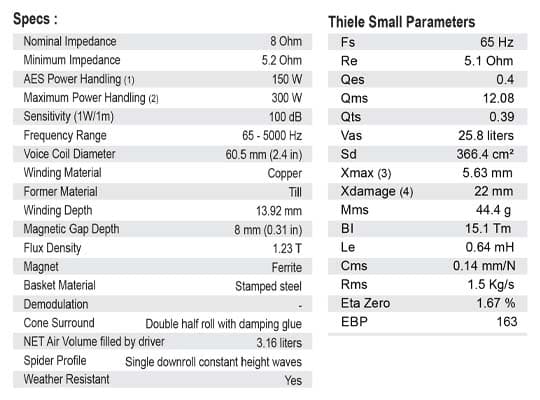

SB Audience
BIANCO-10MW150
10"
Lower price
Xmax5.6mm-6%
Qts0.39+11%
BL15.1Tm+8%
Vas25.8L-29%
Qes0.4+3%
71%
Similarity
75% cheaper£65.00

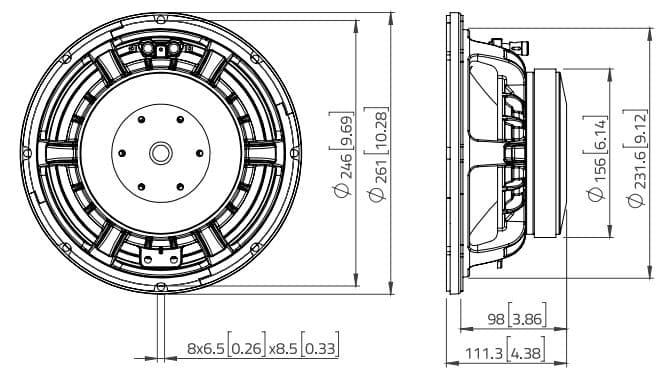

Lavoce
WAF102.50
10"
Lower price
Xmax5.1mm-15%
Qts0.38+9%
BL14.6Tm+4%
Vas23.7L-35%
Qes0.42+8%
74%
Similarity
70% cheaper£79.75

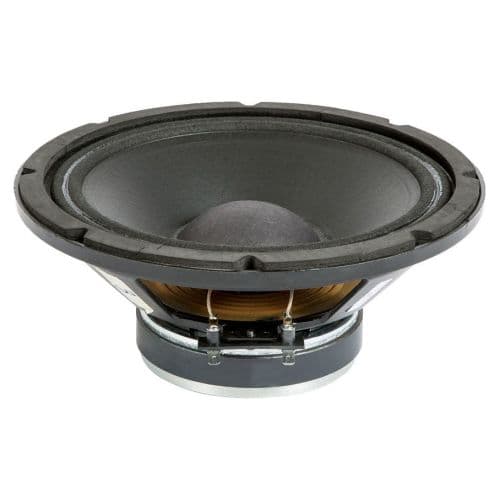

CIARE
FXI10
10"
Lower price
Xmax4.5mm-25%
Qts0.38+9%
BL13.3Tm-5%
Vas38.5L+6%
Qes0.41+5%
75%
Similarity
68% cheaper£82.61

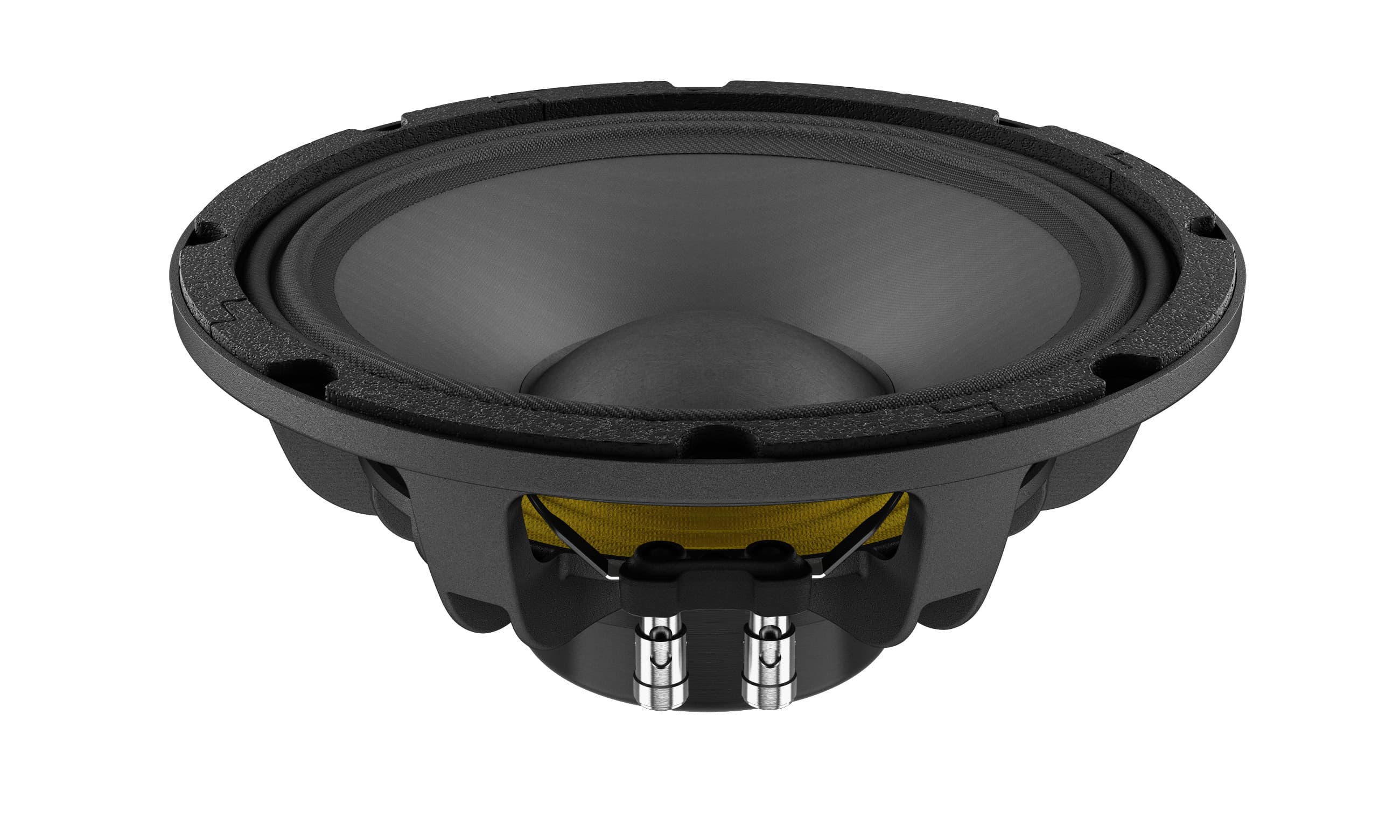

Lavoce
WAN102.50
10"
Lower price
Xmax5.1mm-15%
Qts0.350%
BL15.3Tm+9%
Vas22.4L-38%
Qes0.38-3%
64%
Similarity
68% cheaper£83.47

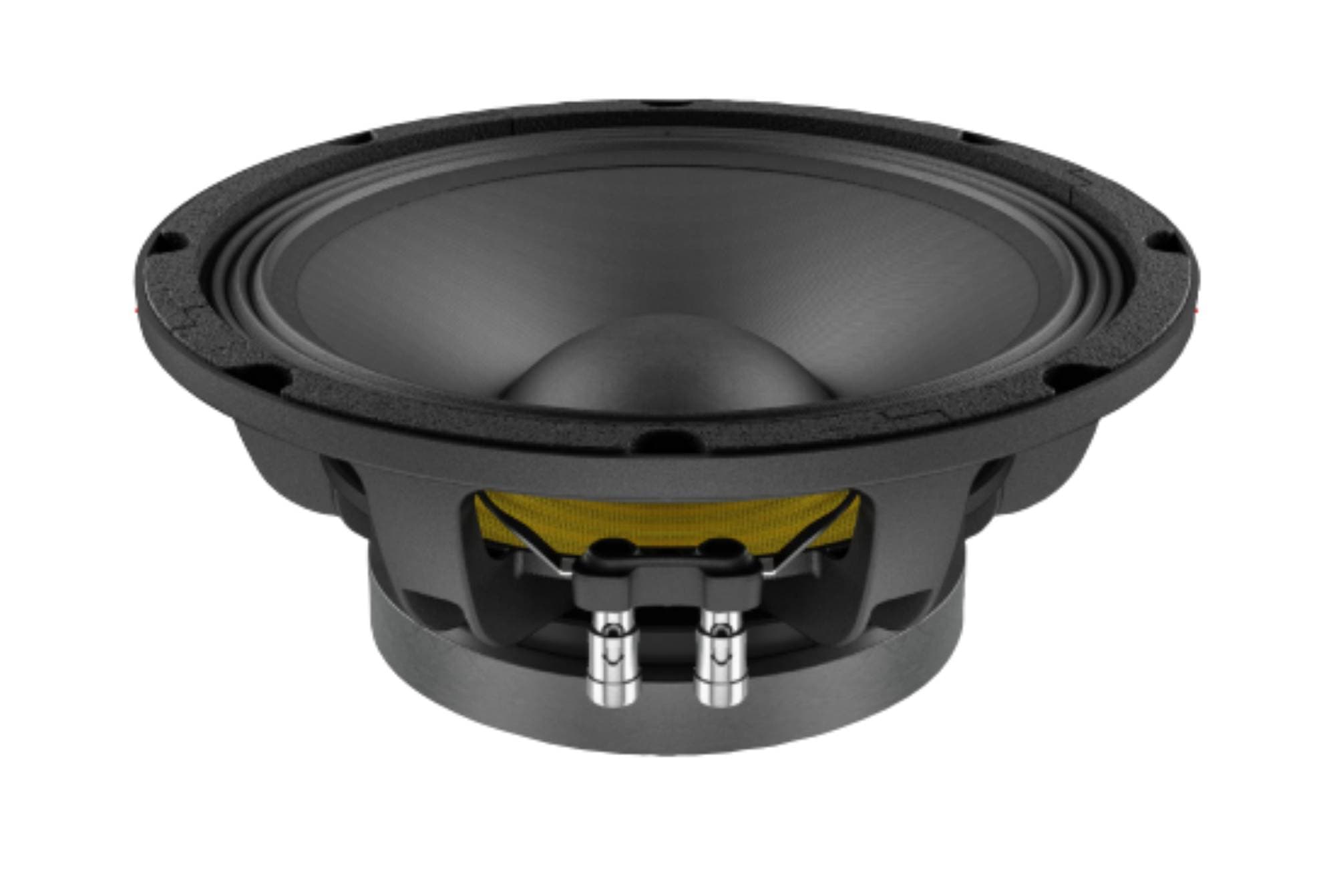

Lavoce
WAF102.51
10"
Lower price
Xmax6mm-1%
Qts0.42+20%
BL15.6Tm+11%
Vas21.4L-41%
Qes0.44+13%
78%
Similarity
67% cheaper£85.99
B&C
10CL51
10"
Lower price
Xmax5.5mm-8%
Qts0.38+9%
BL11.6Tm-17%
Vas36L-1%
Qes0.42+8%
80%
Similarity
58% cheaper£109.82
FaitalPRO
10PR310
10"
Lower price
Xmax4.9mm-18%
Qts0.34-3%
BL14.4Tm+3%
Vas32.2L-12%
Qes0.36-8%
76%
Similarity
57% cheaper£112.27
FaitalPRO
10PR330
10"
Lower price
Xmax7.4mm+23%
Qts0.33-6%
BL14.3Tm+2%
Vas32.5L-11%
Qes0.36-8%
72%
Similarity
56% cheaper£114.82
RCF
MB10G251
10"
Lower price
Xmax7mm+17%
Qts0.34-3%
BL14.9Tm+6%
Vas24L-34%
Qes0.35-10%
60%
Similarity
56% cheaper£116.06
B&C
10CL64
10"
Lower price
Xmax5.2mm-13%
Qts0.31-11%
BL16.3Tm+16%
Vas22.2L-39%
Qes0.33-15%
56%
Similarity
54% cheaper£119.08
B&C
10CLA64
10"
Lower price
Xmax5mm-17%
Qts0.42+20%
BL14.5Tm+4%
Vas18.5L-49%
Qes0.45+15%
