LF Driver10PS series
B&C

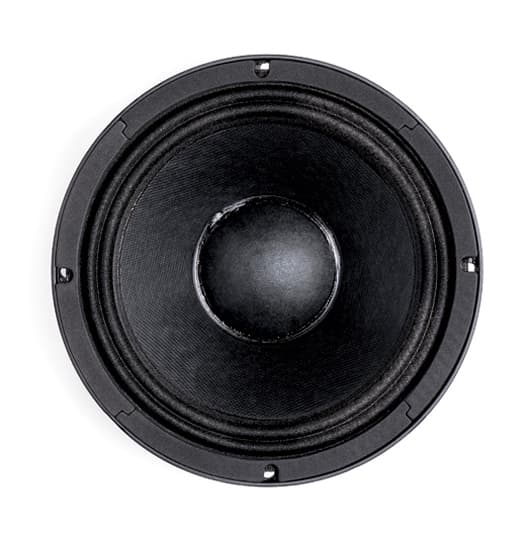

B&C 10PS26
B&C 10PS26 is a 10" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 54Hz, Qts 0.29, Vas 38L, Xmax 5.5mm, sensitivity 94.6dB, plus 176cm³ Vd and 164 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £148.76.
Size
10"
Impedance
8Ω
RMS Power
350W
Sensitivity
94.6dB
96.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
164
Vented alignment
Vd
176cm³

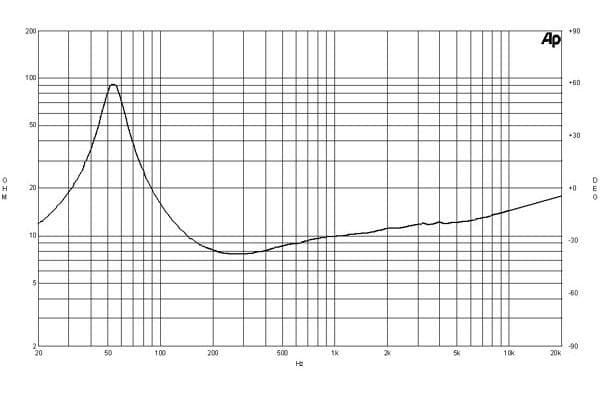

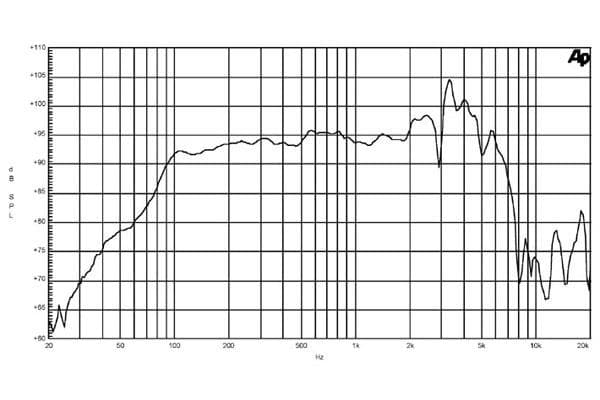

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs54Hz
Qts0.29
Qes0.33
Qms2.9
Vas38.0L
Re6.0Ω
Le1.20mH
BL14.1Tm
Sd320cm²
Mms33g
Xmax5.5mm
SPL95dB
Power350W
Power Nominal350W
Impedance8Ω
Min Impedance7.1Ω
F Low55Hz
F High4000Hz
Voice Coil76mm
Flux Density0.90T
Pricing & availability
Price definitionsPrice movement
Best current price
£148.76
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.0kg
Diameter262.0mm
Overall Depth123.0mm
Cutout Diameter230.0mm
Bolt Circle Diameter245.0mm
Additional Manufacturer Specs
Bl14.1 Tm
Fs54 Hz
Le1.2 mH
Re6 Ω
Sd320 cm² (49.1 in²)
Ebp164 Hz
Mms33 g
Qes0.33
Qms2.9
Qts0.29
Vas38 dm³ (1.3 ft³)
η01.8 %
ConeRCK010PS268
Xmax5.5 mm
Xvar5 mm
SpiderSingle
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth18 mm (0.71 in)
Surround ShapeDouble Roll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter250 mm (10 in)
Winding MaterialAluminium
Magnetic Gap Depth10 mm (0.4 in)
Recommended Tuning65 Hz
Bolt Circle Diameter245 mm (9.6 in)
Recommended Enclosure25 dm³ (0.88 ft³)
Woofer Cone TreatmentNone
Baffle Cutout Diameter230 mm (9.06 in)
Flange And Gasket Thickness14 mm (0.55 in)
