10-inch LF driver · 10B series · 51 mm voice coil · 200 W
Oberton 10B200 8Ω
8 Ω · 60–3000 Hz
No current price
- Fs
- 48Hz
- Xmax
- 5.8mm
- SPL
- 92dB
- Pe
- 200W
- BL
- 14.7T·m
- Vd
- 182cm³
- Qts
- 0.35
- Vas
- 32L
Oberton 10B200 is a 10-inch 8 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 48 Hz, Qts 0.35, Vas 31.9 L, Xmax 5.8 mm, sensitivity 91.9 dB, plus 182 cm³ Vd and 132 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 48Hz
- Qts
- 0.35
- Qes
- 0.36
- Qms
- 7.9
- Vas
- 31.9L
- Re
- 5.3Ω
- Le
- 0.83mH
Motor and cone
- BL
- 14.7T·m
- Sd
- 317cm²
- Mms
- 49g
- Xmax
- 5.8mm
- Vd †
- 182cm³
- Voice coil
- 51mm
- Flux density
- 1.30T
Power and response
- Sensitivity †
- 91.9dB
- Manufacturer sensitivity
- 100dB
- Power
- 200W
- Impedance
- 8Ω
- Min. impedance
- 6.0Ω
- Range
- 60–3000Hz
- EBP †
- 132 · Leans vented

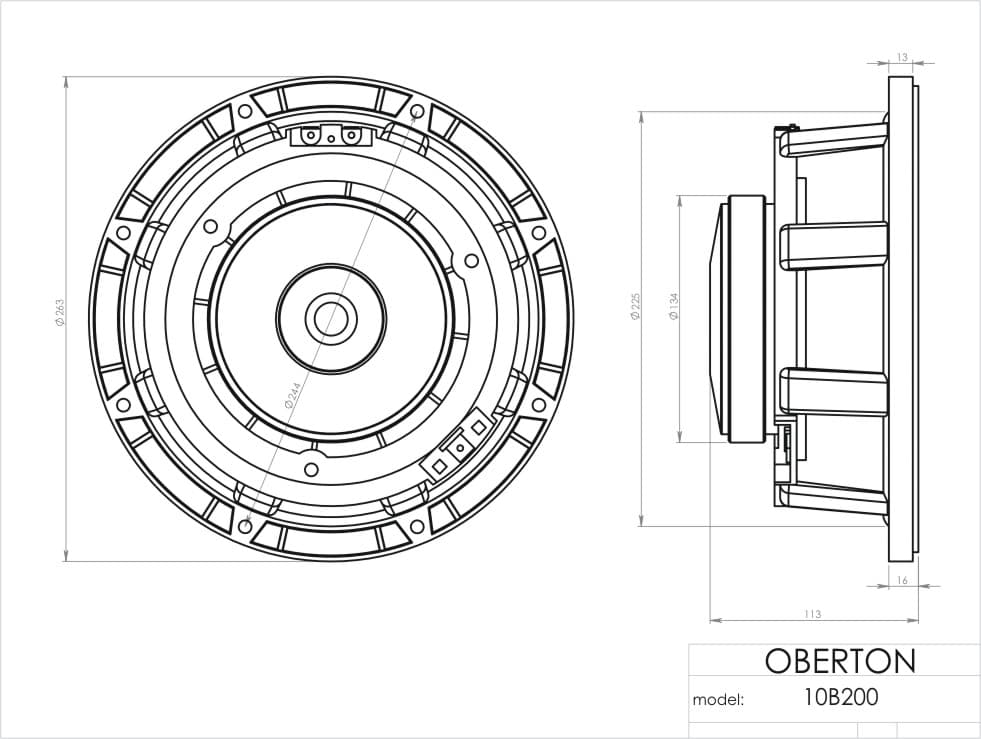

Size and mounting
- Diameter
- 263mm
- Cutout
- 225mm
- Bolt circle
- 244mm
- Depth
- 113mm
- Weight
- 3.6kg
Other published values
- Cms
- 0.22mm/N
- Power Program
- 400
Sensitivity shows 91.9 dB, calculated from the T/S values. Oberton publishes 100.0 dB, 8.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 10″
- BL
- 14.7T·m
- Fs
- 48Hz
- Le
- 0.83mH
- Re
- 5.3Ω
- Sd
- 317cm²
- Cms
- 0.22mm/N
- Mms
- 49g
- Qes
- 0.36
- Qms
- 7.9
- Qts
- 0.35
- SPL
- 91.9dB
- Vas
- 31.9L
- Xmax
- 5.8mm
- Power
- 200W
- Impedance
- 8Ω
- Flux density
- 1.30T
- Sensitivity
- 100dB
- Low limit
- 60Hz
- Power Program
- 400
- Calculated sensitivity †
- 91.9dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 100dB
- Min. impedance
- 6.0Ω
- Voice coil
- 51mm
- Weight
- 3.6kg
- Diameter
- 263mm
- Depth
- 113mm
- Cutout
- 225mm
- Bolt circle
- 244mm
02
Compare
Same-size drivers, compared with the 10B200. Clear differences are green when better and red when worse.
This driver10B200
Best price
–
Fs
48 Hz
Qts
0.35
Vas
31.9 L
BL
14.7 T·m
Xmax
5.8 mm
Sensitivity
91.9 dB
Power
200 W
SB AudienceBIANCO-10MW150
£50.73Fs65 Hz +35%, worse
Qts0.39 +12%, worse
Vas25.8 L −19%, better
BL15.1 T·m –
Xmax5.6 mm –
Sensitivity94.5 dB +2.6, better
CelestionTF1020
£72.50Fs69 Hz +44%, worse
Qts0.32 −7%
Vas28.8 L −10%
BL14.1 T·m −4%
Xmax4 mm −30%, worse
Sensitivity96.2 dB +4.3, better
Beyma10WRS300
£75.00Fs52 Hz +8%
Qts0.38 +9%
Vas42 L +31%, worse
BL13.9 T·m −5%
Xmax6 mm +4%
Sensitivity93.7 dB +1.8
LavoceWAN102.50
£82.61Fs78 Hz +62%, worse
Qts0.35 –
Vas22.4 L −30%, better
BL15.3 T·m +4%
Xmax5.1 mm −11%, worse
Sensitivity96.5 dB +4.6, better
B&C10CL51
£84.00Fs58 Hz +21%, worse
Qts0.38 +9%
Vas36 L +13%, worse
BL11.6 T·m −21%, worse
Xmax5.5 mm −4%
Sensitivity94.3 dB +2.4, better
Beyma10WR300
£102.61Fs52 Hz +8%
Qts0.35 –
Vas42 L +31%, worse
BL14.2 T·m −3%
Xmax6 mm +4%
Sensitivity93.8 dB +1.9
RCFMB10G251
£108.44Fs76 Hz +58%, worse
Qts0.34 –
Vas24 L −25%, better
BL14.9 T·m –
Xmax7 mm +22%, better
Sensitivity96.8 dB +4.9, better
CIAREHW251N
£108.85Fs30 Hz −38%, better
Qts0.35 –
Vas88 L +176%, worse
BL13.0 T·m −11%, worse
Xmax5.7 mm –
Sensitivity90 dB −1.9
FaitalPRO10PR310
£109.82Fs60 Hz +25%, worse
Qts0.34 –
Vas32.2 L –
BL14.4 T·m –
Xmax4.9 mm −14%, worse
Sensitivity94.9 dB +3, better
FaitalPRO10PR330
£112.27Fs60 Hz +25%, worse
Qts0.33 −5%
Vas32.5 L –
BL14.3 T·m –
Xmax7.4 mm +28%, better
Sensitivity94.9 dB +3, better
B&C10FL64
£117.37Fs63 Hz +31%, worse
Qts0.32 −8%
Vas23 L −28%, better
BL16 T·m +9%
Xmax5 mm −13%, worse
Sensitivity94.3 dB +2.4, better
CIAREPW257
£132.30Fs57 Hz +19%, worse
Qts0.30 −14%, better
Vas31 L –
BL15.9 T·m +8%
Xmax5.5 mm −4%
Sensitivity94.4 dB +2.5, better
CelestionCF1025BMB
£141.38Fs41 Hz −15%, better
Qts0.35 –
Vas46.1 L +44%, worse
BL15.3 T·m +4%
Xmax6.7 mm +16%, better
Sensitivity91.3 dB −0.6
B&C10PS26
£148.76Fs54 Hz +12%, worse
Qts0.29 −17%, better
Vas38 L +19%, worse
BL14.1 T·m −4%
Xmax5.5 mm −4%
Sensitivity94.6 dB +2.7, better
PRV Audio10MB1000FT
£178.31Fs75 Hz +56%, worse
Qts0.32 −8%
Vas32.3 L –
BL14.5 T·m –
Xmax5.9 mm –
Sensitivity98.2 dB +6.3, better
Eighteen Sound10CX650
£261.58Fs54 Hz +12%, worse
Qts0.35 –
Vas36.4 L +14%, worse
BL14 T·m −5%
Xmax6 mm +4%
Sensitivity93.7 dB +1.8
BMS10S302
No current priceFs60 Hz +25%, worse
Qts0.33 −5%
Vas30 L −6%
BL16.2 T·m +10%, better
Xmax5.5 mm −4%
Sensitivity94.7 dB +2.8, better
No current price
Fs55 Hz +14%, worse
Qts0.36 +3%
Vas45.3 L +42%, worse
BL14 T·m −5%
Xmax5.5 mm −4%
Sensitivity95 dB +3.1, better
No current price
Fs58 Hz +21%, worse
Qts0.32 −8%
Vas41 L +28%, worse
BL15.3 T·m +4%
Xmax5.5 mm −4%
Sensitivity95.7 dB +3.8, better
CelestionNTR10-2520E
No current priceFs56 Hz +16%, worse
Qts0.31 −11%, better
Vas30.1 L −6%
BL15.9 T·m +8%
Xmax5 mm −13%, worse
Sensitivity93.8 dB +1.9
No photo
REDCATT10NPM-2
No current priceFs58 Hz +21%, worse
Qts0.33 −5%
Vas29.3 L −8%
BL17.9 T·m +22%, better
Xmax6.3 mm +10%, better
Sensitivity94 dB +2.1, better
RCFMB10G253
No current priceFs76 Hz +58%, worse
Qts0.34 –
Vas24 L −25%, better
BL14.9 T·m –
Xmax7 mm +22%, better
Sensitivity96.8 dB +4.9, better
No photo
PHL Audio3001
No current priceFs57 Hz +19%, worse
Qts0.32 −8%
Vas31.5 L –
BL15.9 T·m +8%
Xmax4.5 mm −22%, worse
Sensitivity94.4 dB +2.5, better
Sica10 CX 3 PL P
No current priceFs59 Hz +23%, worse
Qts0.29 −17%, better
Vas36.1 L +13%, worse
BL15.3 T·m +4%
Xmax6 mm +4%
Sensitivity95.8 dB +3.9, better
RCFMB10G350
No current priceFs58 Hz +21%, worse
Qts0.31 −11%, better
Vas34 L +6%
BL14.7 T·m –
Xmax7 mm +22%, better
Sensitivity95.2 dB +3.3, better
Sica10 FE 3 CP
No current priceFs52 Hz +8%
Qts0.31 −11%, better
Vas38.6 L +21%, worse
BL15.3 T·m +4%
Xmax5 mm −13%, worse
Sensitivity94.3 dB +2.4, better
CelestionFTR10-2055D
No current priceFs58 Hz +20%, worse
Qts0.34 –
Vas36.9 L +16%, worse
BL13.8 T·m −6%
Xmax4 mm −30%, worse
Sensitivity94.6 dB +2.7, better
No current price
Fs47 Hz –
Qts0.33 −5%
Vas45.4 L +42%, worse
BL14.8 T·m –
Xmax4.8 mm −17%, worse
Sensitivity93.5 dB +1.6
No photo
PHL Audio3001NDU
No current priceFs57 Hz +19%, worse
Qts0.31 −11%, better
Vas31.5 L –
BL16.1 T·m +10%
Xmax4.5 mm −22%, worse
Sensitivity94.5 dB +2.6, better
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
No current price found. Pricing may appear after the next vendor refresh.
