10-inch LF driver · 76 mm voice coil · 200 W
REDCATT 10NPM-2 8Ω
8 Ω
No current price
- Fs
- 58Hz
- Xmax
- 6.3mm
- SPL
- 94dB
- Pe
- 200W
- BL
- 17.9T·m
- Vd
- 231cm³
- Qts
- 0.33
- Vas
- 29L
REDCATT 10NPM-2 is a 10-inch 8 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 58 Hz, Qts 0.33, Vas 29.3 L, Xmax 6.3 mm, sensitivity 94 dB, plus 231 cm³ Vd and 161 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 58Hz
- Qts
- 0.33
- Qes
- 0.36
- Qms
- 4.7
- Vas
- 29.3L
- Re
- 6.5Ω
- Le
- 0.79mH
Motor and cone
- BL
- 17.9T·m
- Sd
- 363cm²
- Mms
- 47g
- Xmax
- 6.3mm
- Vd †
- 231cm³
- Voice coil
- 76mm
Power and response
- Sensitivity †
- 94dB
- Manufacturer sensitivity
- 95.1dB
- Power
- 200W
- Impedance
- 8Ω
- EBP †
- 161 · Leans vented
Size and mounting
- Diameter
- 262mm
- Cutout
- 234mm
- Bolt circle
- 246mm
- Weight
- 3.5kg
Other published values
- Xmech
- 16.85
- Power Peak
- 800
Other dimensions
- Mounting Depth
- 107.8
Sensitivity shows 94.0 dB, calculated from the T/S values. REDCATT publishes 95.1 dB, 1.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 10″
- BL
- 17.9T·m
- Fs
- 58Hz
- Le
- 0.79mH
- Re
- 6.5Ω
- Sd
- 363cm²
- Mms
- 47g
- Qes
- 0.36
- Qms
- 4.7
- Qts
- 0.33
- SPL
- 94dB
- Vas
- 29.3L
- Xmax
- 6.3mm
- Xmech
- 16.85
- Power
- 200W
- Impedance
- 8Ω
- Power Peak
- 800
- Sensitivity
- 95.1dB
- Calculated sensitivity †
- 94dB
- Manufacturer sensitivity
- 95.1dB
- Voice coil
- 76mm
- Weight
- 3.5kg
- Diameter
- 262mm
- Mounting Depth
- 107.8
- Cutout
- 234mm
- Bolt circle
- 246mm
02
Compare
Same-size drivers, compared with the 10NPM-2. Clear differences are green when better and red when worse.
No photo
This driver10NPM-2
Best price
–
Fs
58 Hz
Qts
0.33
Vas
29.3 L
BL
17.9 T·m
Xmax
6.3 mm
Sensitivity
94 dB
Power
200 W
EminenceDELTA 10B
£93.69Fs65 Hz +12%, worse
Qts0.33 –
Vas36 L +23%, worse
BL19.5 T·m +9%
Xmax3.5 mm −45%, worse
Sensitivity96.5 dB +2.5, better
FaitalPRO10PR310
£109.82Fs60 Hz +3%
Qts0.34 +3%
Vas32.2 L +10%
BL14.4 T·m −20%, worse
Xmax4.9 mm −23%, worse
Sensitivity94.9 dB +0.9
B&C10CL64
£111.84Fs63 Hz +9%
Qts0.31 −6%
Vas22.2 L −24%, better
BL16.3 T·m −9%
Xmax5.2 mm −18%, worse
Sensitivity94.3 dB –
FaitalPRO10PR330
£112.27Fs60 Hz +3%
Qts0.33 –
Vas32.5 L +11%, worse
BL14.3 T·m −20%, worse
Xmax7.4 mm +16%, better
Sensitivity94.9 dB +0.9
Beyma10MCS500
£130.10Fs65 Hz +12%, worse
Qts0.31 −6%
Vas24 L −18%, better
BL17.6 T·m –
Xmax8 mm +26%, better
Sensitivity95 dB +1

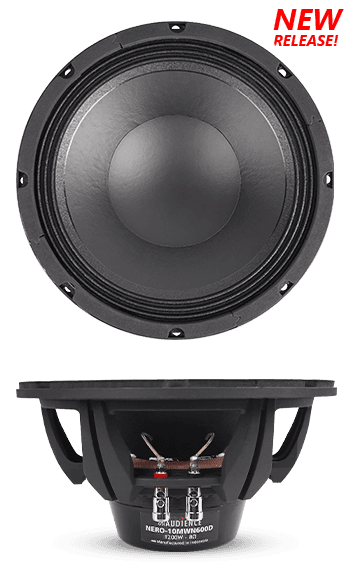

SB AudienceNERO-10MWN600D
