10-inch LF driver · 10CXN series · 76 mm voice coil · 300 W

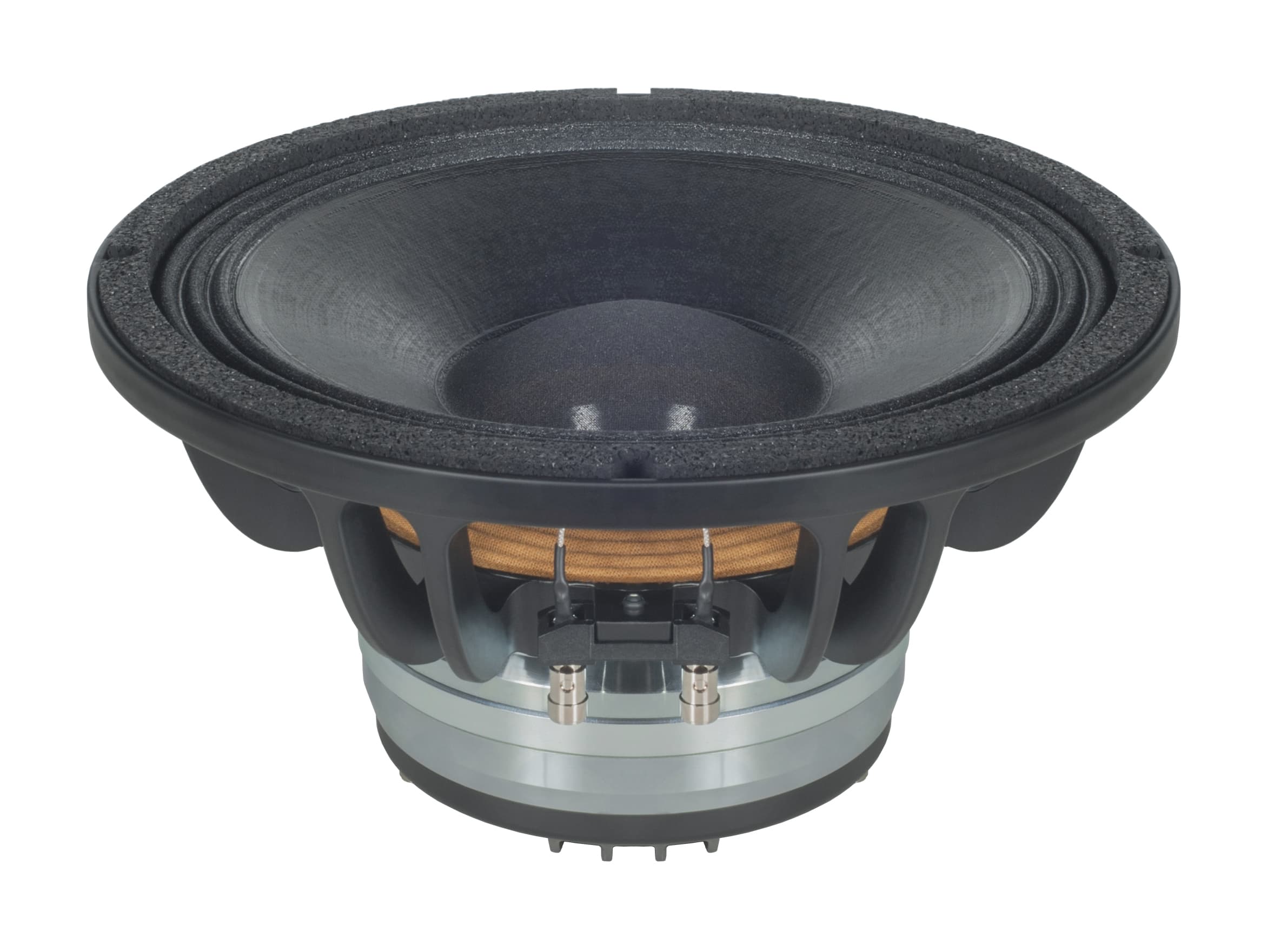

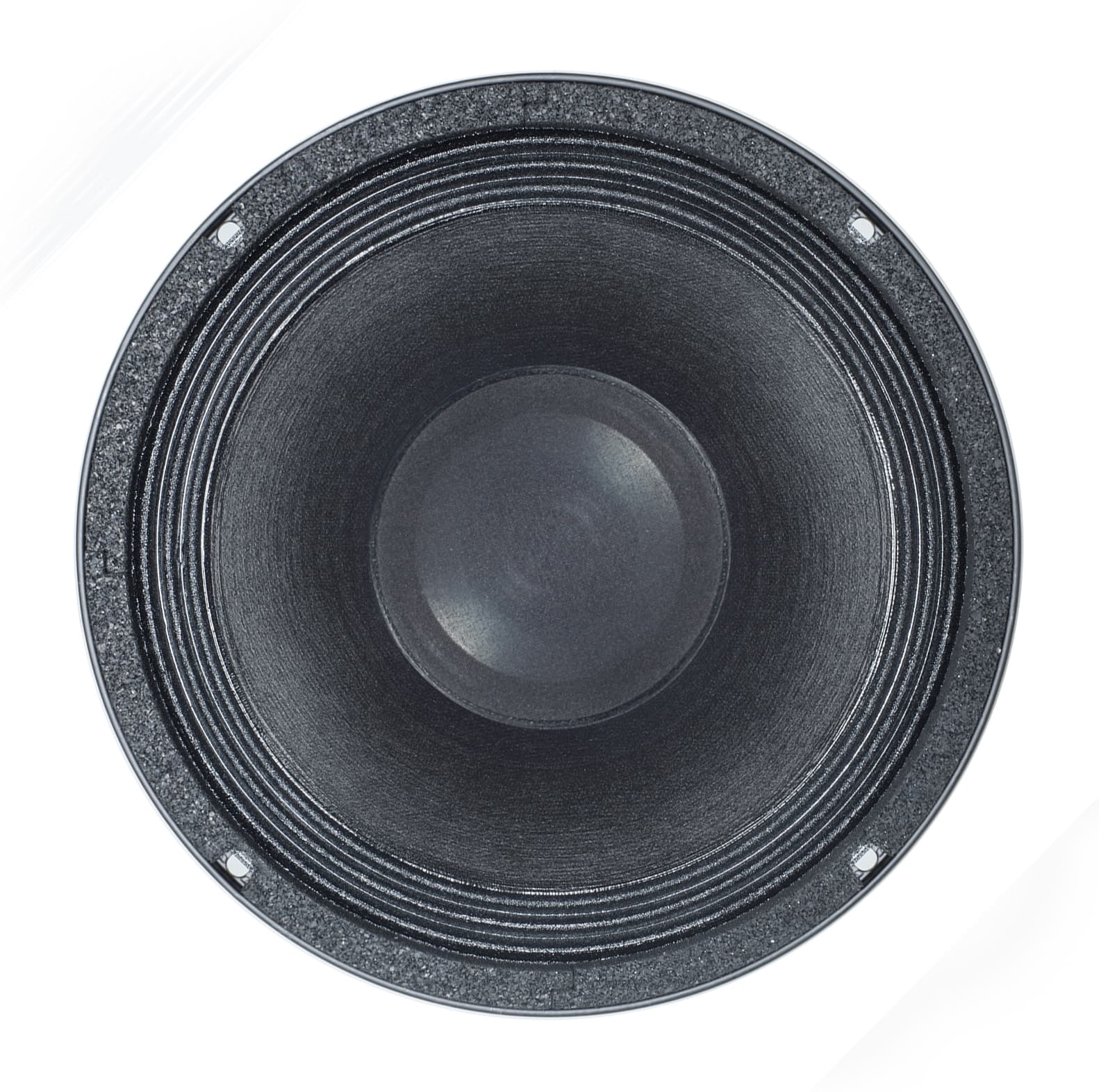

B&C 10CXN76 8Ω
8 Ω · 1000–18000 Hz
No current price
- Fs
- 58Hz
- Xmax
- 6mm
- SPL
- 93dB
- Pe
- 300W
- BL
- 18.9T·m
- Vd
- 192cm³
- Qts
- 0.30
- Vas
- 19L

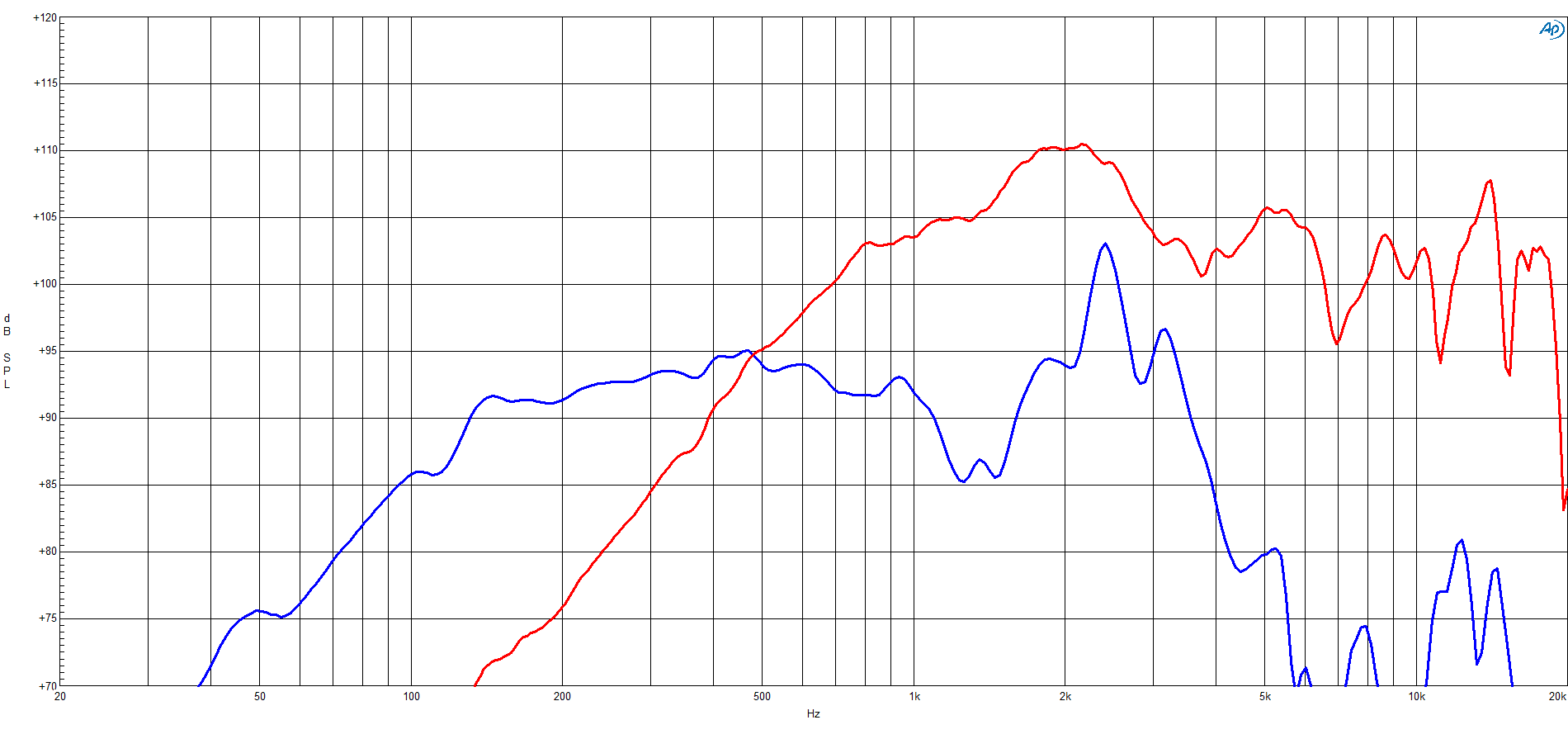

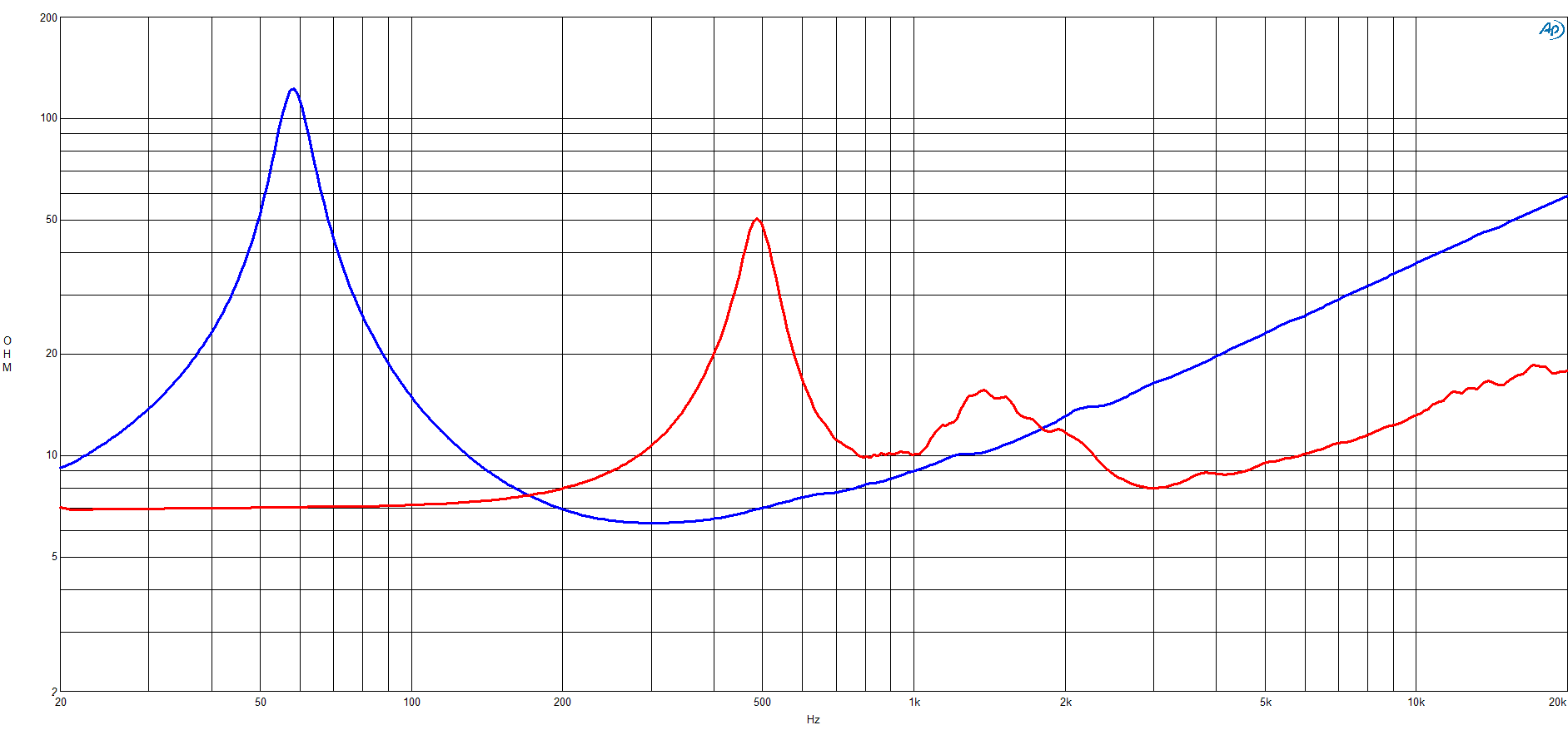

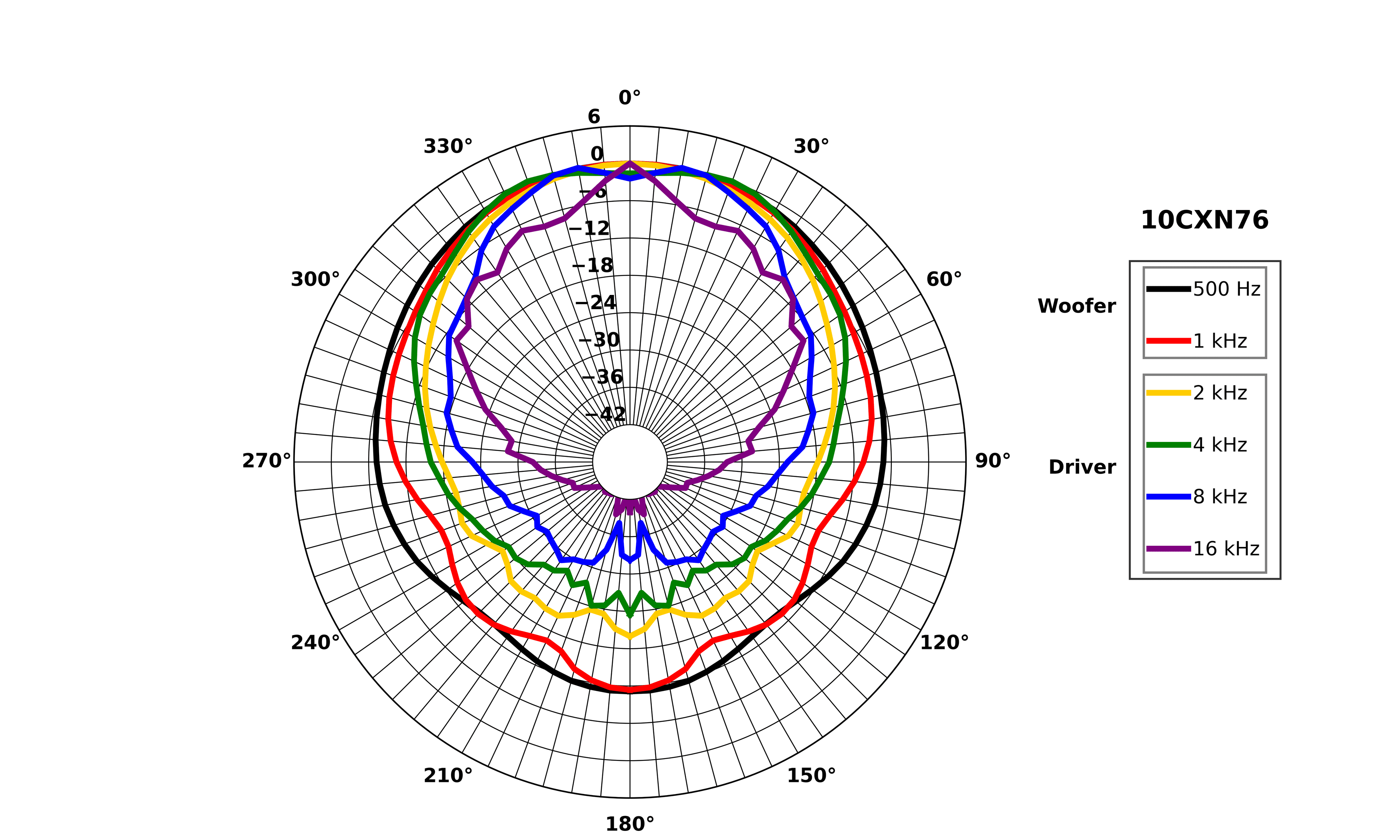

Published graphs
B&C 10CXN76 is a 10-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 58 Hz, Qts 0.30, Vas 19 L, Xmax 6 mm, sensitivity 92.8 dB, plus 192 cm³ Vd and 187 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 58Hz
- Qts
- 0.30
- Qes
- 0.31
- Qms
- 8.2
- Vas
- 19L
- Re
- 5.2Ω
- Le
- 0.70mH
Motor and cone
- BL
- 18.9T·m
- Sd
- 320cm²
- Mms
- 58g
- Xmax
- 6mm
- Vd †
- 192cm³
- Voice coil
- 76mm
- Flux density
- 1.15T
Power and response
- Sensitivity †
- 92.8dB
- Manufacturer sensitivity
- 96dB
- Power
- 300W
- Nominal power
- 300W
- Impedance
- 8Ω
- Min. impedance
- 6.3Ω
- Range
- 1000–18000Hz
- EBP †
- 187 · Leans vented
Sensitivity shows 92.8 dB, calculated from the T/S values. B&C publishes 96.0 dB, 3.2 dB apart.
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details

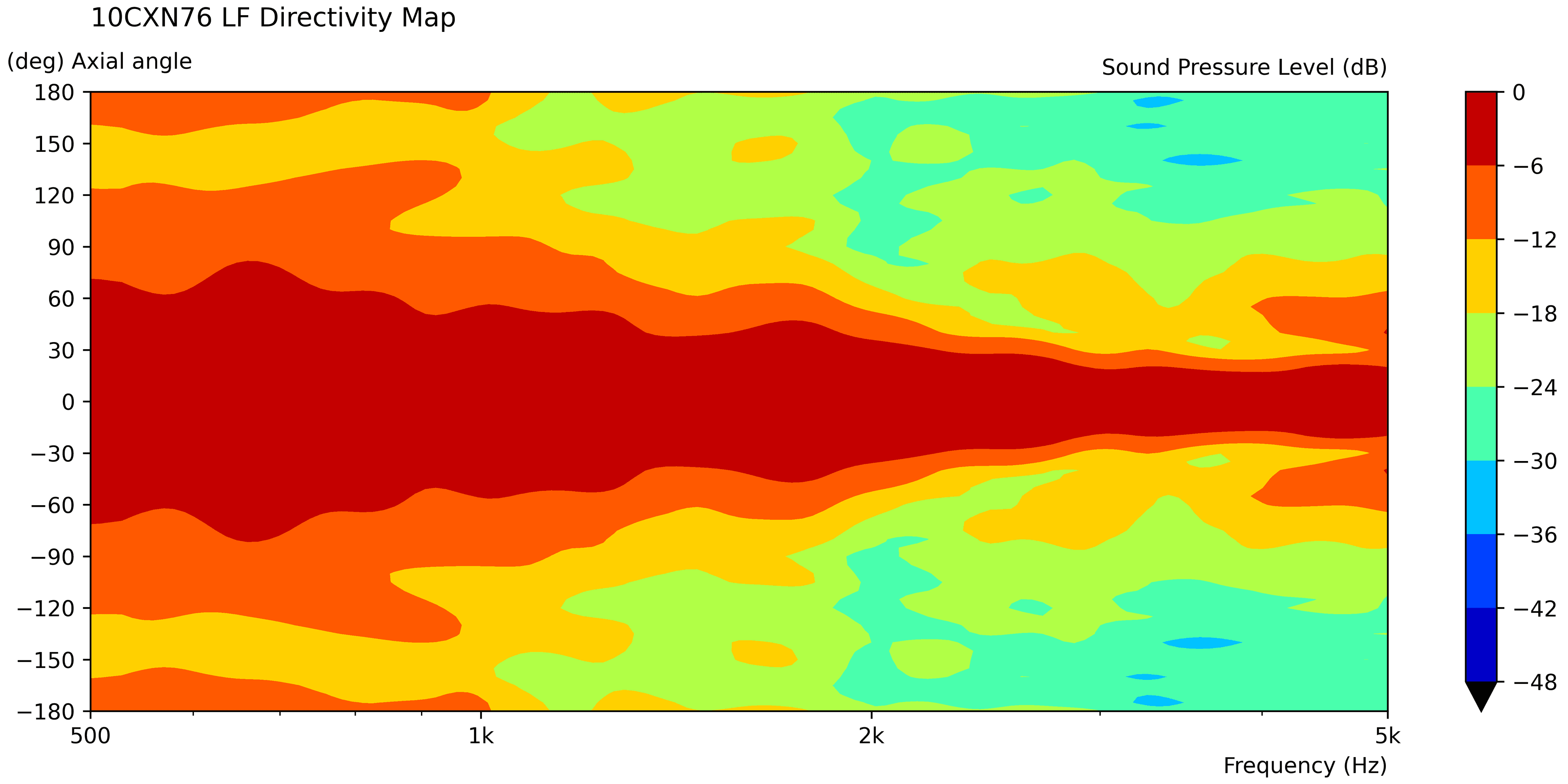

LF · Specifications LF unit
- BL
- 18.9T·m
- Fs
- 58Hz
- Le
- 0.70mH
- Re
- 5.2Ω
- Sd
- 320cm²
- Mms
- 58g
- Qes
- 0.31
- Qms
- 8.2
- Qts
- 0.30
- SPL
- 92.8dB
- Vas
- 19L
- Xmax
- 6mm
- Power
- 300W
- Impedance
- 8Ω
- Flux density
- 1.15T
- Sensitivity
- 96dB
- Nominal power
- 300W
- Calculated sensitivity †
- 92.8dB
- Manufacturer sensitivity
- 96dB
- Min. impedance
- 6.3Ω
- Voice coil
- 76mm
- Bl
- 18.9 Tm
- Fs
- 58 Hz
- Le
- 0.7 mH
- Re
- 5.2 Ω
- Sd
- 320 cm² (49.6 in²)
- Ebp
- 187 Hz
- Mms
- 58 g
- Qes
- 0.31
- Qms
- 8.2
- Qts
- 0.3
- Vas
- 19 dm³ (0.67 ft³)
- Η0
- 1.2 %
- Xmax
- 6 mm
- Xvar
- 5.4 mm
- Sensitivity
- 96 dB
- Flux density
- 1.15 T
- Winding depth
- 16 mm (0.63 in)
- Former material
- Kraft Paper
- Nominal diameter
- 250 mm (10 in)
- Winding material
- Copper
- Minimum impedance
- 6.3 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 8 mm (0.31 in)
- Voice coil diameter
- 76 mm (3 in)
- Nominal power handling
- 300 W
- Continuous power handling
- 600 W

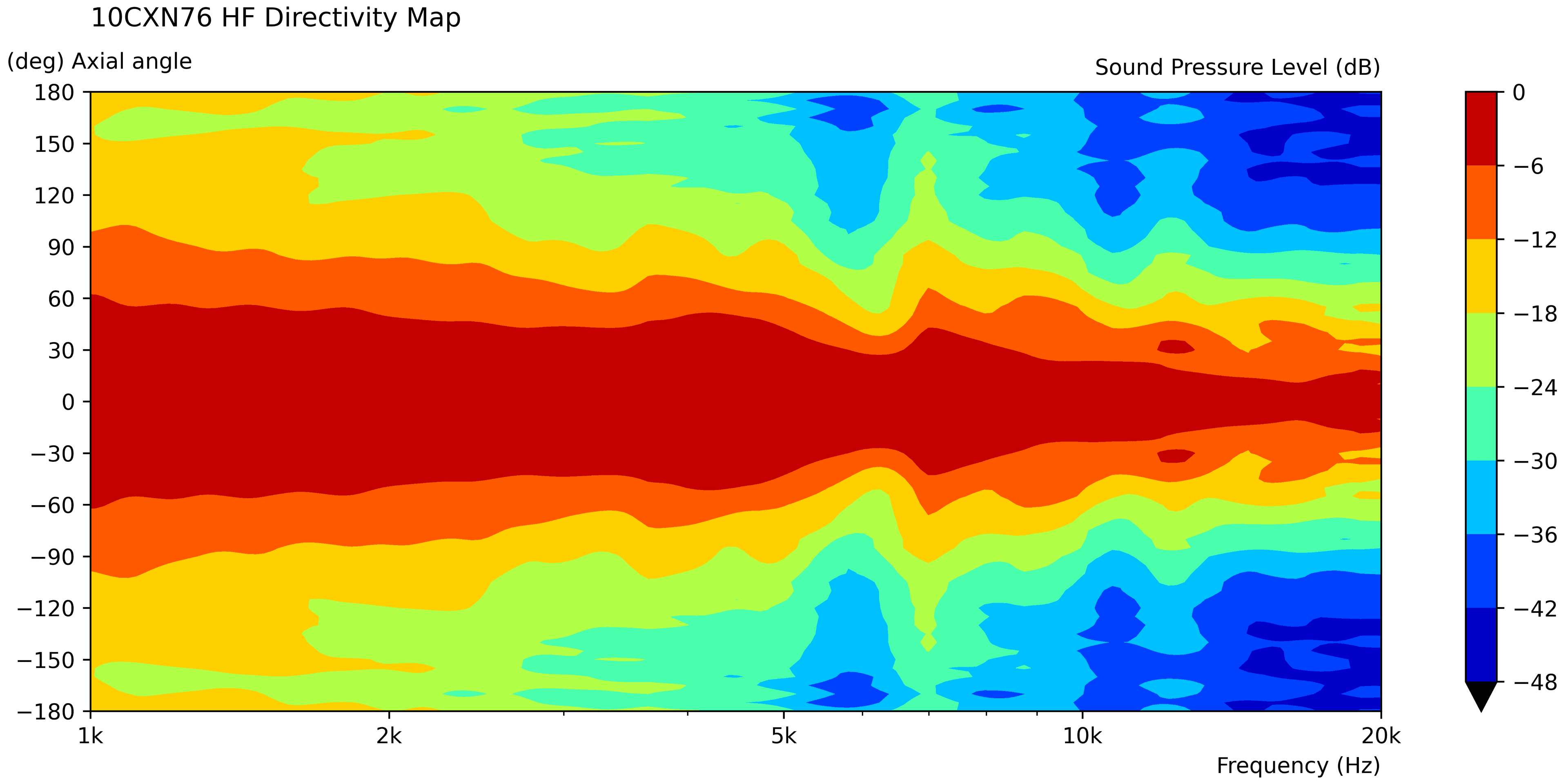

HF · Specifications HF unit
- Le
- 0.14mH
- SPL
- 106dB
- Power
- 80W
- Impedance
- 8Ω
- Flux density
- 1.85T
- Sensitivity
- 106dB
- Low limit
- 1000Hz
- Nominal power
- 80W
- High limit
- 18000Hz
- Manufacturer sensitivity
- 106dB
- Min. impedance
- 8Ω
- Voice coil
- 75mm
- Crossover
- 1200Hz
- Inductance
- 0.14 mH
- Sensitivity
- 106 dB
- Flux density
- 1.85 T
- Frequency range
- 1 kHz - 18 kHz
- Winding material
- Aluminium
- Minimum impedance
- 8 Ω
- Nominal impedance
- 8 Ω
- Diaphragm material
- Titanium
- Voice coil diameter
- 75 mm (3 in)
- Recommended crossover
- 1.2 kHz
- Nominal power handling
- 80 W
- Continuous power handling
- 160 W
02
Compare
Same-size drivers, compared with the 10CXN76. Clear differences are green when better and red when worse.
This driver10CXN76
Best price
–
Fs
58 Hz
Qts
0.30
Vas
19 L
BL
18.9 T·m
Xmax
6 mm
Sensitivity
92.8 dB
Power
300 W
B&C10NW64
£113.02Fs59 Hz –
Qts0.26 −13%, better
Vas22 L +16%, worse
BL18.3 T·m −3%
Xmax6 mm –
Sensitivity94.3 dB +1.5
B&C10CL64
£116.06Fs63 Hz +9%
Qts0.31 +3%
Vas22.2 L +17%, worse
BL16.3 T·m −14%, worse
Xmax5.2 mm −13%, worse
Sensitivity94.3 dB +1.5
B&C10FL64
£117.37Fs63 Hz +9%
Qts0.32 +7%
Vas23 L +21%, worse
BL16 T·m −15%, worse
Xmax5 mm −17%, worse
Sensitivity94.3 dB +1.5
Beyma10MCS500
£128.54Fs65 Hz +12%, worse
Qts0.31 +3%
Vas24 L +26%, worse
BL17.6 T·m −7%
Xmax8 mm +33%, better
Sensitivity95 dB +2.2, better
CIAREPW257
£132.30Fs57 Hz –
Qts0.30 –
Vas31 L +63%, worse
BL15.9 T·m −16%, worse
Xmax5.5 mm −8%
Sensitivity94.4 dB +1.6
Beyma10G40
£137.20Fs45 Hz −22%, better
Qts0.30 –
Vas49 L +158%, worse
BL17 T·m −10%, worse
Xmax7 mm +17%, better
Sensitivity93.5 dB +0.7
Beyma10MC500
£143.18Fs65 Hz +12%, worse
Qts0.29 −3%
Vas24 L +26%, worse
BL18.3 T·m −3%
Xmax8 mm +33%, better
Sensitivity95.4 dB +2.6, better
PRV Audio10MR1200X
£149.54Fs87 Hz +50%, worse
Qts0.29 −3%
Vas21.8 L +15%, worse
BL17.5 T·m −7%
Xmax2.5 mm −58%, worse
Sensitivity98.8 dB +6, better
B&C10CLA76
£151.02Fs71 Hz +22%, worse
Qts0.29 −3%
Vas16.4 L −14%, better
BL18.6 T·m –
Xmax6.5 mm +8%
Sensitivity94.9 dB +2.1, better
SB AudienceNERO-10MWN600D
£152.56Fs68 Hz +17%, worse
Qts0.34 +13%, worse
Vas18.8 L –
BL18.2 T·m −4%
Xmax7.3 mm +22%, better
Sensitivity94.2 dB +1.4
FaitalPRO10FH520
£165.49Fs60 Hz +3%
Qts0.29 −3%
Vas23.5 L +24%, worse
BL18 T·m −5%
Xmax7.3 mm +21%, better
Sensitivity94.3 dB +1.5
Beyma10MCB700
£171.06Fs75 Hz +29%, worse
Qts0.33 +10%, worse
Vas13.2 L −31%, better
BL20.1 T·m +6%
Xmax7 mm +17%, better
Sensitivity94 dB +1.2
Eighteen Sound10NTLW2500
£186.32Fs65 Hz +12%, worse
Qts0.33 +10%, worse
Vas21 L +11%, worse
BL17.4 T·m −8%
Xmax7.6 mm +27%, better
Sensitivity94.3 dB +1.5
B&C10NW76
£198.52Fs67 Hz +16%, worse
Qts0.26 −13%, better
Vas17.6 L −7%
BL20 T·m +6%
Xmax6.8 mm +13%, better
Sensitivity95 dB +2.2, better
Sica10 N 3 PL
£200.12Fs51 Hz −12%, better
Qts0.29 −3%
Vas40.5 L +113%, worse
BL15.9 T·m −16%, worse
Xmax5.5 mm −8%
Sensitivity94.6 dB +1.8
B&C10BG76
£218.90Fs48 Hz −17%, better
Qts0.28 −7%
Vas17.8 L −6%
BL22 T·m +16%, better
Xmax9.6 mm +60%, better
Sensitivity90.3 dB −2.5, worse
B&C10CXN64
£274.31Fs68 Hz +17%, worse
Qts0.31 +3%
Vas23 L +21%, worse
BL15.8 T·m −16%, worse
Xmax5 mm −17%, worse
Sensitivity95.4 dB +2.6, better
Sica10 K 4 PL
£317.34Fs63 Hz +8%
Qts0.31 +3%
Vas19.5 L –
BL20.4 T·m +8%
Xmax5 mm −17%, worse
Sensitivity93.8 dB +1
Oberton10NCX
No current priceFs79 Hz +37%, worse
Qts0.29 −4%
Vas20.6 L +8%
BL16.2 T·m −14%, worse
Xmax5.3 mm −13%, worse
Sensitivity97.4 dB +4.6, better
No photo
PHL Audio3481-14
No current priceFs55 Hz −5%
Qts0.26 −13%, better
Vas25.2 L +33%, worse
BL18.1 T·m −4%
Xmax6 mm –
Sensitivity93.9 dB +1.1
No photo
PHL Audio3450NDM
No current priceFs94 Hz +62%, worse
Qts0.29 −3%
Vas18.1 L −5%
BL17 T·m −10%, worse
Xmax2.5 mm −58%, worse
Sensitivity98.6 dB +5.8, better
Sica10 CX 3 PL P
No current priceFs59 Hz –
Qts0.29 −3%
Vas36.1 L +90%, worse
BL15.3 T·m −19%, worse
Xmax6 mm –
Sensitivity95.8 dB +3, better

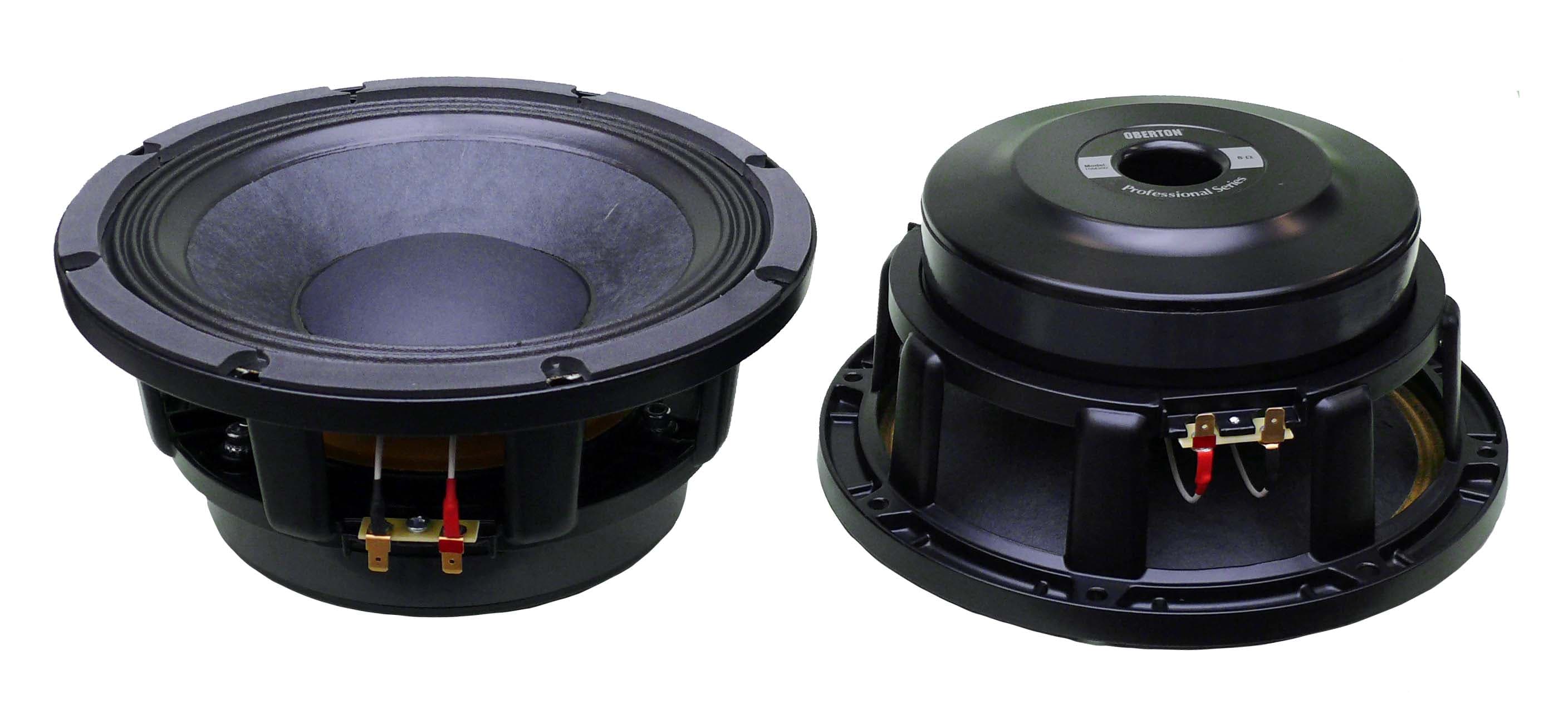

Oberton10M300
No current priceFs60 Hz +3%
Qts0.25 −17%, better
Vas19.4 L –
BL18.2 T·m −4%
Xmax5.3 mm −13%, worse
Sensitivity94.1 dB +1.3

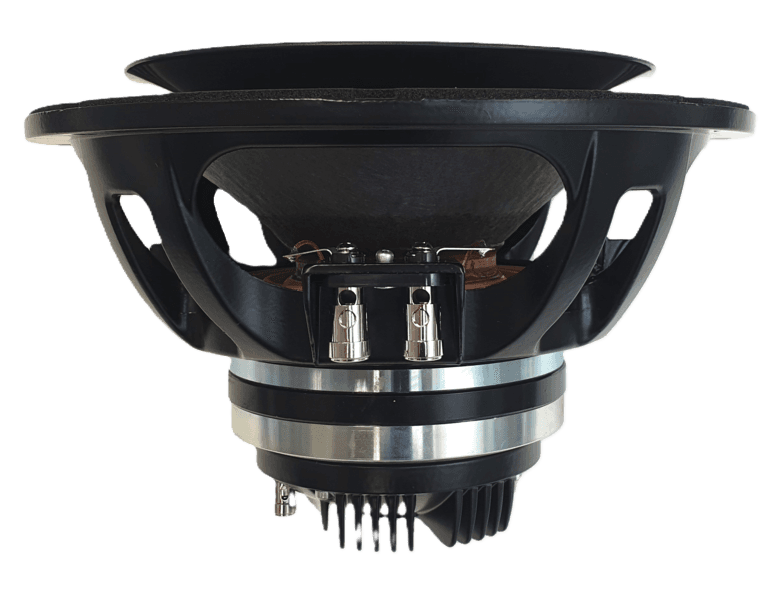

Eighteen Sound10NCX750H
