Overview
LF Driver
Eighteen Sound

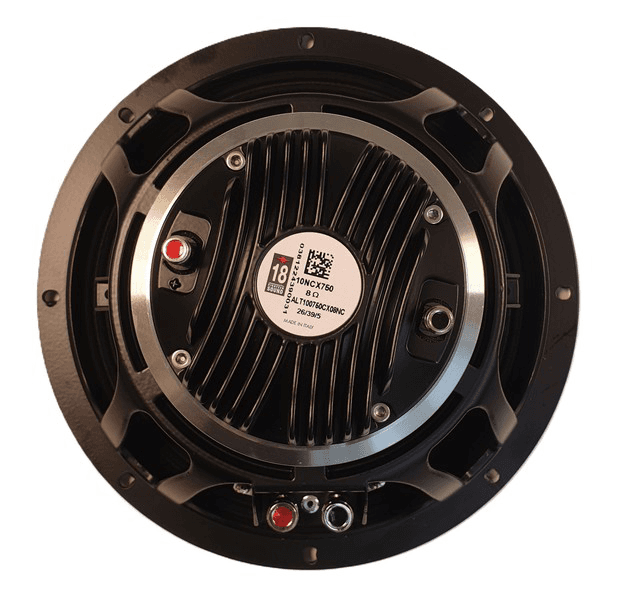

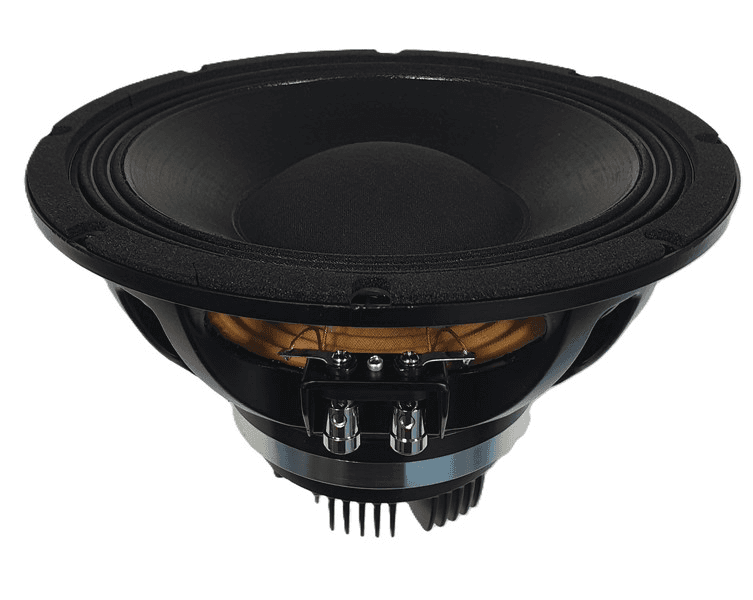

Eighteen Sound 10NCX750
Eighteen Sound 10NCX750 is a 10" 8 ohm LF driver. The validated T/S data includes Fs 64Hz, Qts 0.25, Vas 23L, Xmax 5.5mm, sensitivity 95.7dB, plus 190cm³ Vd and 246 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
Sensitivity
95.7dB
EBP
246
Vented alignment
Vd
190cm³

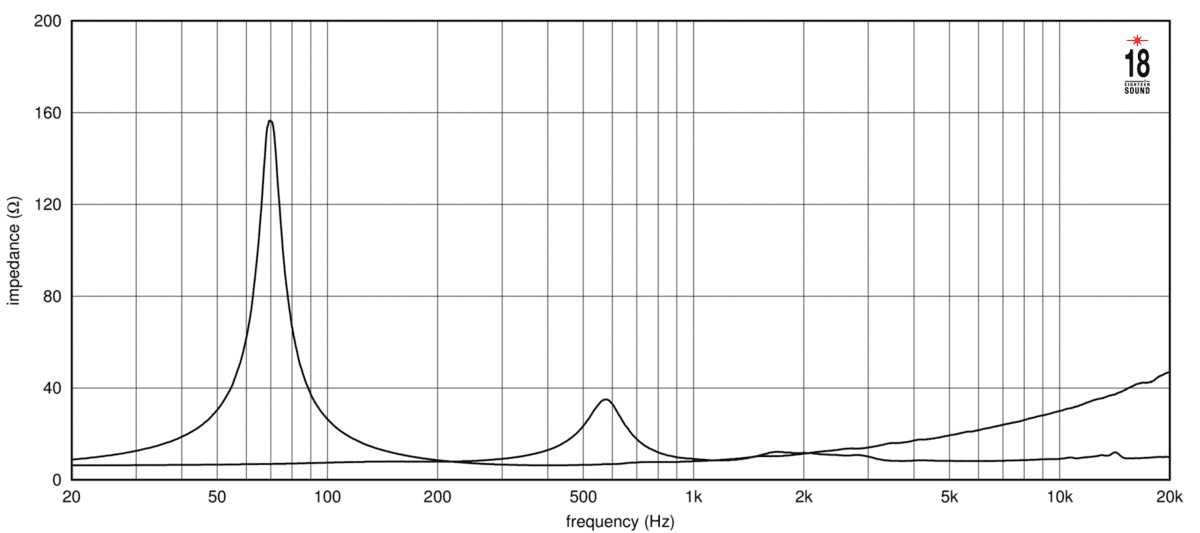

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

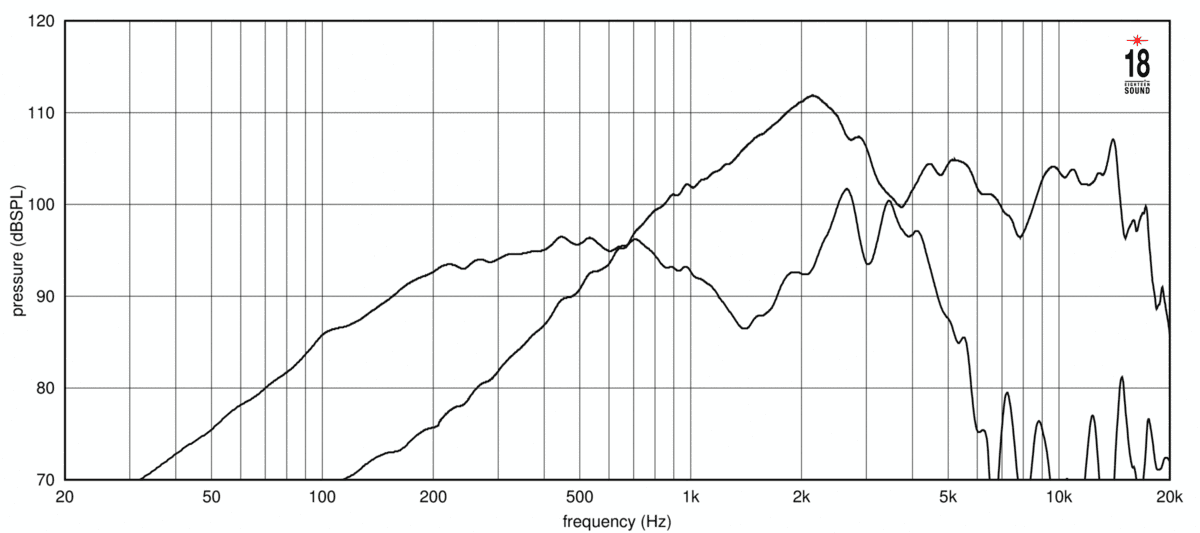

frequency response
Frequency response
240 plotted pointsMedium confidence1,570 selected pixels of 1,853
T/S Parameters
Valid
Fs64Hz
Qts0.25
Qes0.26
Qms7.9
Vas23.0L
Re5.3Ω
Le0.54mH
BL20.0Tm
Sd346cm²
Mms46g
Xmax5.5mm
SPL96dB
Impedance8Ω
F Low60Hz
F High1500Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.3kg
Diameter260.0mm
Overall Depth148.0mm
Cutout Diameter230.0mm
Bolt Circle Diameter243.0mm
