Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespEminence CANNABASS CB3010N-8 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverCANNABASS CB series
Eminence

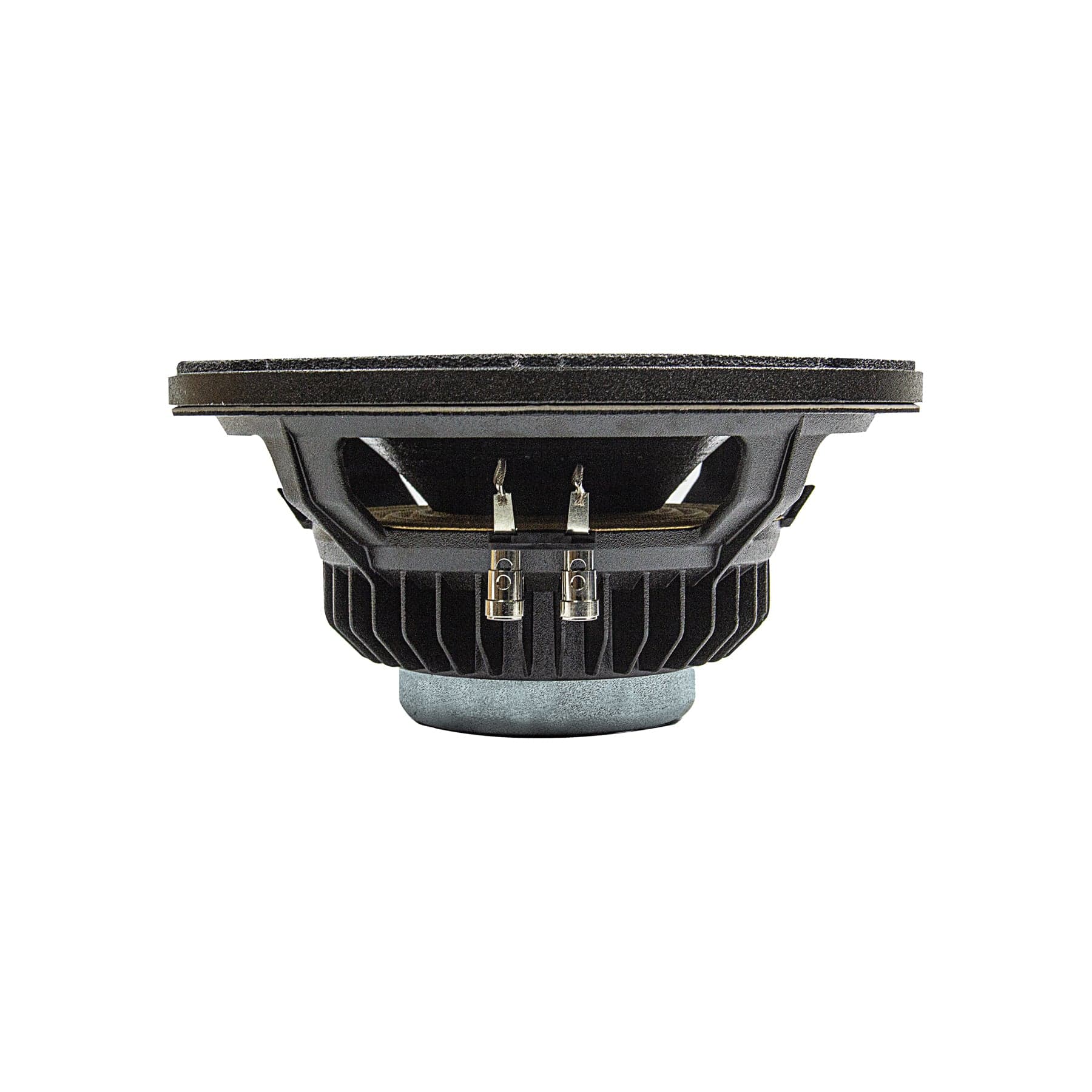

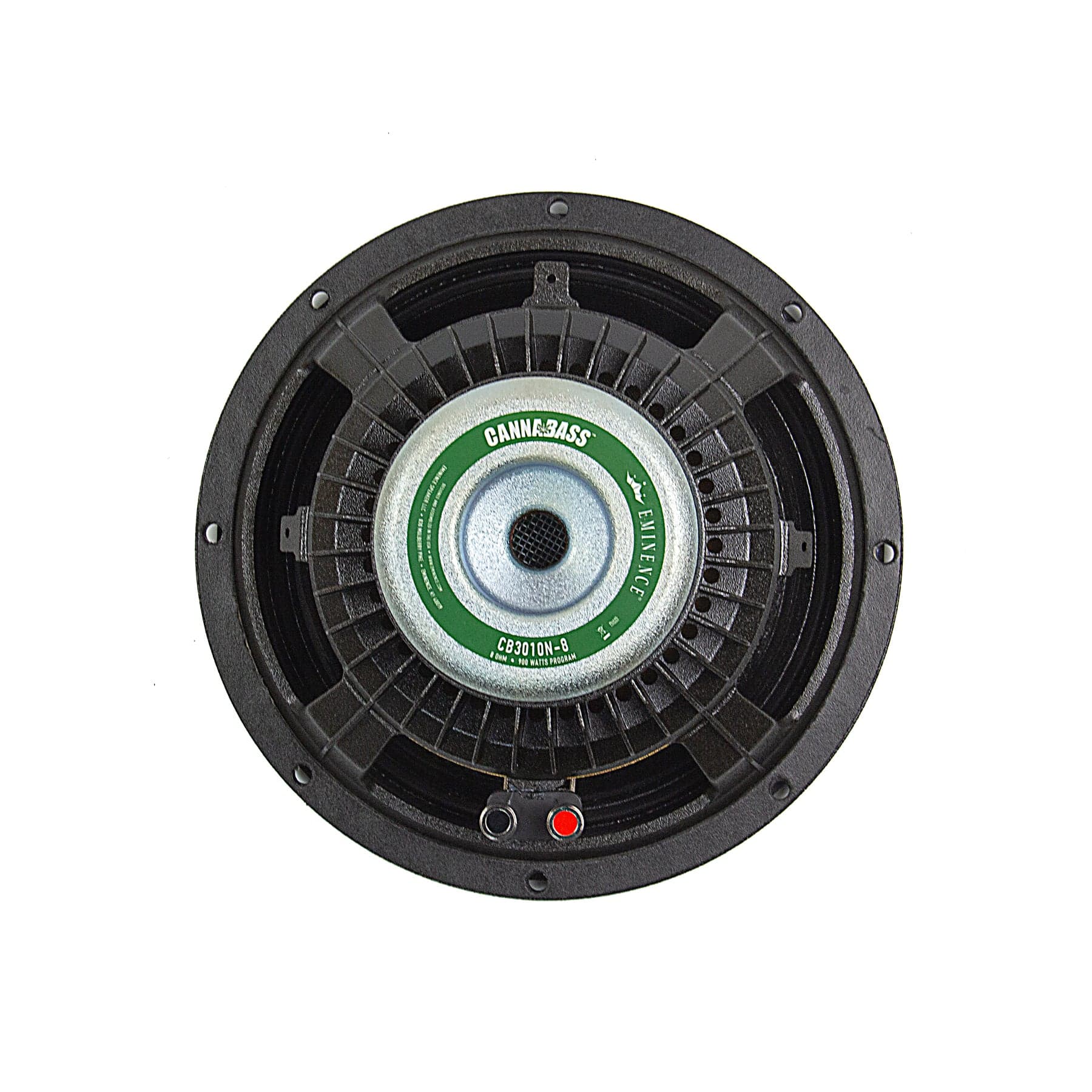

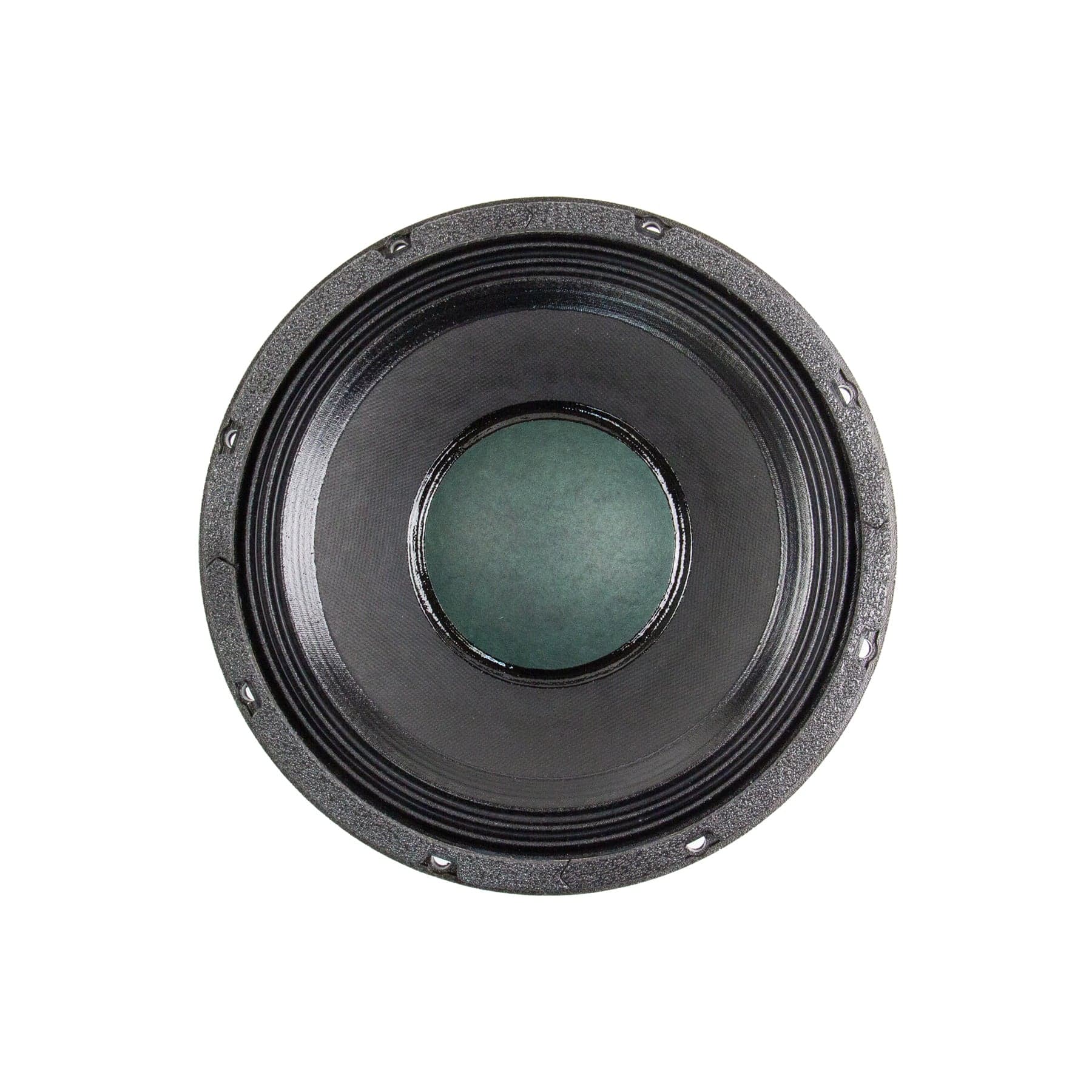

Eminence CANNABASS CB3010N-8
Eminence CANNABASS CB3010N-8 is a 10" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 42Hz, Qts 0.25, Vas 55.2L, Xmax 6.5mm, sensitivity 94dB, plus 244cm³ Vd and 166 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
450W
Sensitivity
94.0dB
EBP
166
Vented alignment
Vd
244cm³
T/S Parameters
Valid
Fs42Hz
Qts0.25
Qes0.25
Qms8.0
Vas55.2L
Re5.6Ω
Le0.62mH
BL17.2Tm
Sd377cm²
Mms51g
Xmax6.5mm
SPL94dB
Power450W
Impedance8Ω
F Low43Hz
F High3400Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.2kg
Diameter260.4mm
Overall Depth108.0mm
Cutout Diameter231.6mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
CANNABASS CB3010N-8
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
89%
Similarity
Acoustic Elegance
TD10M-8
10"
Xmax6mm-7%
Qts0.24-4%
BL17Tm-1%
Vas59.2L+7%
Qes0.26+4%
83%
Similarity
Sica
10 K 3 PL
10"
Xmax6.5mm0%
Qts0.26+4%
BL16.1Tm-7%
Vas40L-28%
Qes0.27+8%
77%
Similarity
Sica
10 PN 3
10"
Xmax7mm+8%
Qts0.26+4%
BL16.1Tm-7%
Vas40.1L-27%
Qes0.28+12%
76%
Similarity
£157.64
Eighteen Sound
10NTLS2000
10"
Xmax7.4mm+14%
Qts0.26+4%
BL16.7Tm-3%
Vas38L-31%
Qes0.27+8%
75%
Similarity
Acoustic Elegance
TD10M-4
10"
Xmax6mm-7%
Qts0.24-4%
BL11.8Tm-31%
Vas59.2L+7%
Qes0.26+4%
73%
Similarity
£169.77
Eighteen Sound
10MB600
10"
Xmax6.5mm0%
Qts0.22-12%
BL18.6Tm+8%
Vas33.4L-40%
Qes0.23-8%
73%
Similarity
Eighteen Sound
10MB777
10"
Xmax6.5mm0%
Qts0.22-12%
BL18.6Tm+8%
Vas33.4L-40%
Qes0.23-8%
73%
Similarity
CIARE
PW252
10"
Xmax7mm+8%
Qts0.26+4%
BL15.2Tm-12%
Vas43.4L-21%
Qes0.3+20%
Image unavailable
72%
Similarity
PHL Audio
3481-14
10"
Xmax6mm-7%
Qts0.26+4%
BL18.1Tm+5%
Vas25.2L-54%
Qes0.27+8%
72%
Similarity
£144.97
B&C
10NDL64
10"
Xmax6mm-7%
Qts0.26+4%
BL16.2Tm-6%
Vas31L-44%
Qes0.29+16%
71%
Similarity
£151.38
FaitalPRO
10FH500
10"
Xmax7.3mm+12%
Qts0.250%
BL15.5Tm-10%
Vas24.2L-56%
Qes0.26+4%
71%
Similarity
Dayton Audio
APOLLO 10N
10"
Xmax5.8mm-11%
Qts0.22-12%
BL19.2Tm+11%
Vas43.5L-21%
Qes0.23-8%
