Overview
LF Driver
Eighteen Sound
Eighteen Sound 10NW650
Eighteen Sound 10NW650 is a 10" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 51Hz, Qts 0.28, Vas 48L, Xmax 7mm, sensitivity 95.4dB, plus 242cm³ Vd and 176 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £163.27.
Size
10"
Impedance
8Ω
RMS Power
300W
Sensitivity
95.4dB
EBP
176
Vented alignment
Vd
242cm³

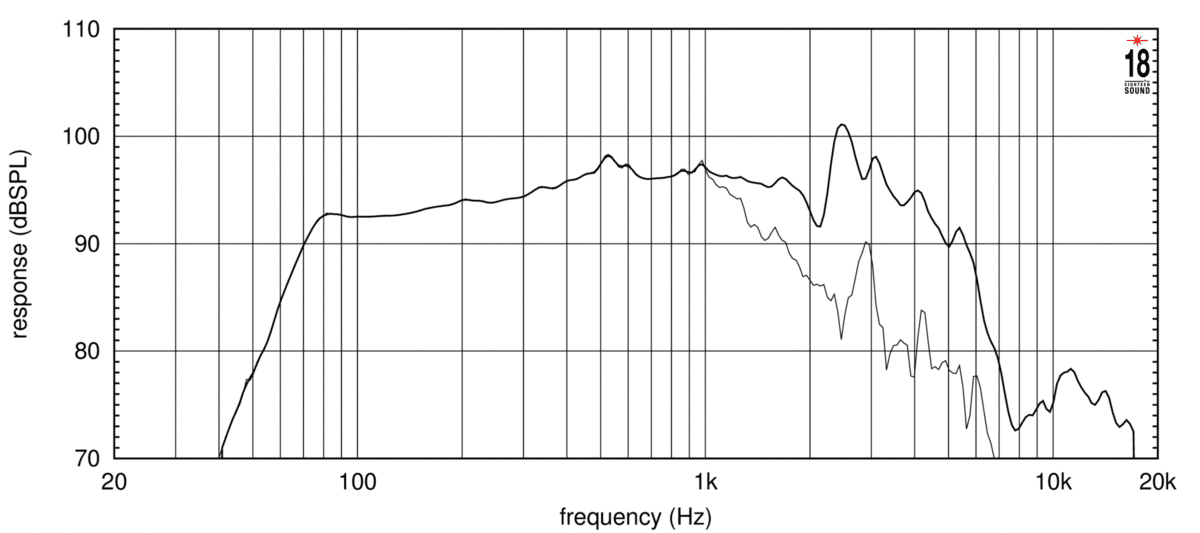

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,510 selected pixels of 1,968
T/S Parameters
Valid
Fs51Hz
Qts0.28
Qes0.29
Qms8.0
Vas48.0L
Re5.0Ω
Le0.70mH
BL14.0Tm
Sd346cm²
Mms34g
Xmax7.0mm
SPL95dB
Power300W
Power Nominal300W
Impedance8Ω
F Low60Hz
F High6000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£163.27
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.7kg
Diameter260.0mm
Overall Depth131.0mm
Cutout Diameter230.0mm
Bolt Circle Diameter243.0mm
