PRV Audio 10MB500-4 4Ω
4 Ω · 65–5500 Hz
No current price
- Fs
- 56Hz
- Xmax
- 4.5mm
- SPL
- 96dB
- Pe
- –
- BL
- 12.3T·m
- Vd
- 171cm³
- Qts
- 0.29
- Vas
- 48L
PRV Audio 10MB500-4 is a 10-inch 4 ohm LF driver. The validated T/S data includes Fs 56 Hz, Qts 0.29, Vas 47.6 L, Xmax 4.5 mm, sensitivity 96.4 dB, plus 171 cm³ Vd and 185 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 56Hz
- Qts
- 0.29
- Qes
- 0.30
- Qms
- 12.1
- Vas
- 47.6L
- Re
- 3.7Ω
- Le
- 0.54mH
Motor and cone
- BL
- 12.3T·m
- Sd
- 380cm²
- Mms
- 35g
- Xmax
- 4.5mm
- Vd †
- 171cm³
- Voice coil
- 51mm
Power and response
- Sensitivity †
- 96.4dB
- Manufacturer sensitivity
- 97dB
- Impedance
- 4Ω
- Range
- 65–5500Hz
- EBP †
- 185 · Leans vented
Size and mounting
- Diameter
- 257mm
- Cutout
- 232mm
- Depth
- 117mm
- Weight
- 4.3kg
Other published values
- Cms
- 0.24mm/N
Other dimensions
- Mounting Depth
- 108
† Calculated by bits from the published values
What this validation status means
Everything else PRV Audio lists
LF · Primary · 10″
- BL
- 12.3T·m
- Fs
- 56Hz
- Le
- 0.54mH
- Re
- 3.7Ω
- Sd
- 380cm²
- Cms
- 0.24mm/N
- Mms
- 35g
- Qes
- 0.30
- Qms
- 12.1
- Qts
- 0.29
- SPL
- 96.4dB
- Vas
- 47.6L
- Xmax
- 4.5mm
- Impedance
- 4Ω
- Sensitivity
- 97dB
- Low limit
- 65Hz
- Calculated sensitivity †
- 96.4dB
- High limit
- 5500Hz
- Manufacturer sensitivity
- 97dB
- Voice coil
- 51mm
- Weight
- 4.3kg
- Diameter
- 257mm
- Depth
- 117mm
- Mounting Depth
- 108
- Cutout
- 232mm
02
Compare
Same-size drivers, compared with the 10MB500-4. Clear differences are green when better and red when worse.
This driver10MB500-4
Best price
–
Fs
56 Hz
Qts
0.29
Vas
47.6 L
BL
12.3 T·m
Xmax
4.5 mm
Sensitivity
96.4 dB
Power
–
B&C10HPL64
£115.00Fs61 Hz +10%
Qts0.31 +7%
Vas32 L −33%, better
BL15 T·m +22%, better
Xmax4 mm −11%, worse
Sensitivity95.5 dB −0.9
Eighteen Sound10W500
£119.37Fs53 Hz −5%
Qts0.29 –
Vas45.2 L −5%
BL14.6 T·m +19%, better
Xmax5.5 mm +22%, better
Sensitivity95.4 dB −1
FaitalPRO10RS350
£119.58Fs40 Hz −28%, better
Qts0.31 +7%
Vas40.6 L −15%, better
BL12.5 T·m –
Xmax7.2 mm +59%, better
Sensitivity91 dB −5.4, worse
FaitalPRO10PR310
£120.79Fs55 Hz –
Qts0.31 +7%
Vas40.3 L −15%, better
BL11.5 T·m −6%
Xmax4.9 mm +9%
Sensitivity95.2 dB −1.2
FaitalPRO10PR300
£132.30Fs50 Hz −10%, better
Qts0.24 −17%, better
Vas49.8 L +5%
BL11.8 T·m −4%
Xmax4.9 mm +9%
Sensitivity96 dB –

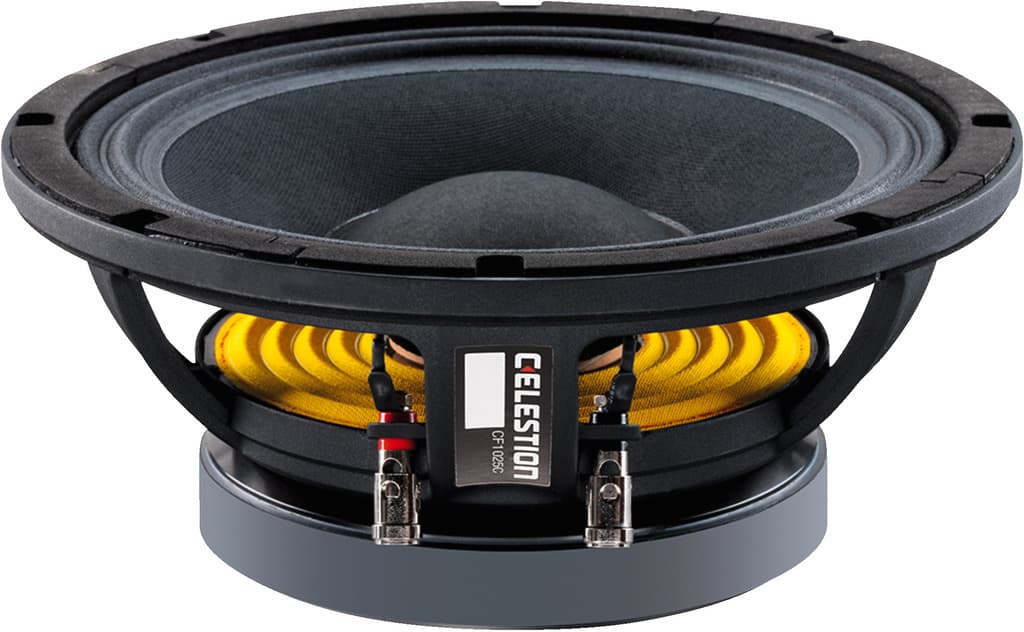

CelestionCF1025C
£135.00Fs55 Hz –
Qts0.27 −9%
Vas38.6 L −19%, better
BL14.8 T·m +21%, better
Xmax4.3 mm −6%
Sensitivity95.3 dB −1.1
FaitalPRO10PR320
£135.67Fs48 Hz −14%, better
Qts0.29 –
Vas52.7 L +11%, worse
BL13.5 T·m +10%, better
Xmax7.4 mm +64%, better
Sensitivity94.8 dB −1.6
Sica10 C 2 CP
£138.11Fs50 Hz −10%, better
Qts0.31 +7%
Vas63.2 L +33%, worse
BL12.7 T·m +4%
Xmax4 mm −11%, worse
Sensitivity95.8 dB −0.6
B&C10NDL64
£144.97Fs58 Hz +4%
Qts0.30 +3%
Vas34.5 L −28%, better
BL19.1 T·m +56%, better
Xmax4.5 mm –
Sensitivity95.1 dB −1.3
B&C10PS26
£148.76Fs54 Hz –
Qts0.29 –
Vas38 L −20%, better
BL14.1 T·m +15%, better
Xmax5.5 mm +22%, better
Sensitivity94.6 dB −1.8
ETON11-612/C8/50 RP
£150.67Fs24 Hz −57%, better
Qts0.29 –
Vas152 L +219%, worse
BL11.4 T·m −7%
Xmax5 mm +11%, better
Sensitivity90.5 dB −5.9, worse
Eighteen Sound10NW650
£159.93Fs51 Hz −8%
Qts0.28 −3%
Vas48 L –
BL14 T·m +14%, better
Xmax7 mm +56%, better
Sensitivity95.4 dB −1
Eighteen Sound10NMB420
£182.53Fs56 Hz –
Qts0.25 −14%, better
Vas40 L −16%, better
BL14.5 T·m +18%, better
Xmax4 mm −11%, worse
Sensitivity96.3 dB –
PRV Audio10W1000-NDY-4
£186.95Fs50 Hz −10%
Qts0.27 −7%
Vas46.4 L –
BL12.0 T·m –
Xmax6.5 mm +44%, better
Sensitivity95.2 dB −1.2
Sica10 N 3 PL
£200.12Fs51 Hz −8%
Qts0.29 –
Vas40.5 L −15%, better
BL15.9 T·m +30%, better
Xmax5.5 mm +22%, better
Sensitivity94.6 dB −1.8
WavecorWF259PA01
No current priceFs54 Hz –
Qts0.29 –
Vas31 L −35%, better
BL14.1 T·m +15%, better
Xmax4.5 mm –
Sensitivity94.3 dB −2.1, worse
PRV AudioMT10W1200-NDY-4
No current priceFs47 Hz −16%, better
Qts0.30 +3%
Vas41.2 L −13%, better
BL12.3 T·m –
Xmax6.5 mm +44%, better
Sensitivity93.4 dB −3, worse
Oberton10NMB200
No current priceFs59 Hz +6%
Qts0.32 +9%
Vas34.9 L −27%, better
BL14.1 T·m +15%, better
Xmax4.3 mm −6%
Sensitivity95.4 dB −1
No photo
PHL Audio3430
No current priceFs56 Hz –
Qts0.30 +3%
Vas36 L −24%, better
BL16 T·m +31%, better
Xmax4.5 mm –
Sensitivity94.9 dB −1.5

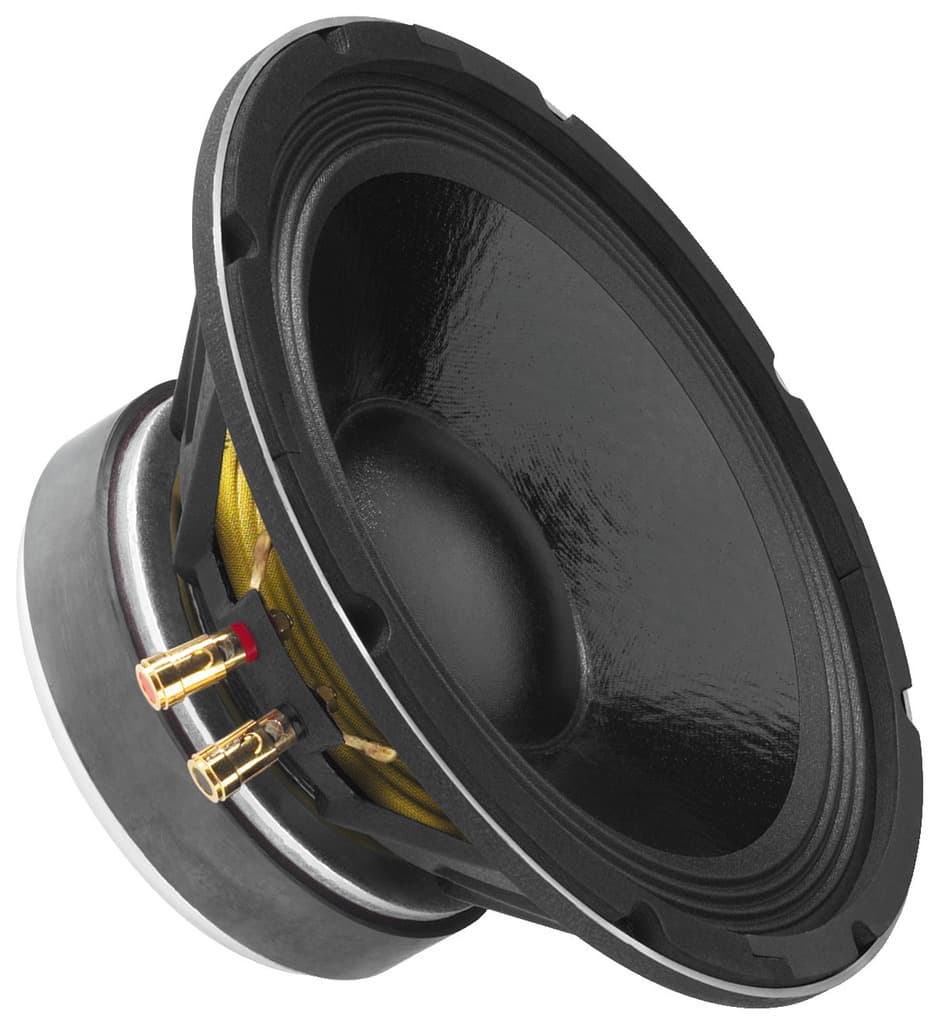

MonacorSP-10A/302PA
No current priceFs55 Hz –
Qts0.30 +3%
Vas40 L −16%, better
BL15.8 T·m +29%, better
Xmax4 mm −11%, worse
Sensitivity95.3 dB −1.1
RCFMB10N251
No current priceFs55 Hz –
Qts0.27 −7%
Vas39 L −18%, better
BL15.2 T·m +24%, better
Xmax5 mm +11%, better
Sensitivity95.5 dB −0.9
No current price
Fs47 Hz −15%, better
Qts0.33 +14%, worse
Vas45.4 L −5%
BL14.8 T·m +21%, better
Xmax4.8 mm +6%
Sensitivity93.5 dB −2.9, worse
WavecorWF259PA02
No current priceFs52 Hz −6%
Qts0.28 −3%
Vas33 L −31%, better
BL16.8 T·m +37%, better
Xmax4.5 mm –
Sensitivity94.2 dB −2.2, worse
Sica10 FE 3 CP
No current priceFs52 Hz −6%
Qts0.31 +7%
Vas38.6 L −19%, better
BL15.3 T·m +25%, better
Xmax5 mm +11%, better
Sensitivity94.3 dB −2.1, worse
CelestionNTR10-2520D
No current priceFs57 Hz –
Qts0.29 –
Vas34.7 L −27%, better
BL15.8 T·m +29%, better
Xmax4 mm −11%, worse
Sensitivity95.1 dB −1.3
No photo
PHL Audio3001NDU
No current priceFs57 Hz –
Qts0.31 +7%
Vas31.5 L −34%, better
BL16.1 T·m +31%, better
Xmax4.5 mm –
Sensitivity94.5 dB −1.9
REDCATT103FIND
No current priceFs56 Hz –
Qts0.29 –
Vas32.8 L −31%, better
BL18.2 T·m +48%, better
Xmax4.0 mm −10%, worse
Sensitivity94.6 dB −1.8
Sica10 N 2.5 PL
No current priceFs57 Hz –
Qts0.36 +24%, worse
Vas40.9 L −14%, better
BL12.8 T·m +4%
Xmax4.5 mm –
Sensitivity94.9 dB −1.5
No photo
PHL Audio3001
No current priceFs57 Hz –
Qts0.32 +10%, worse
Vas31.5 L −34%, better
BL15.9 T·m +30%, better
Xmax4.5 mm –
Sensitivity94.4 dB −2, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
