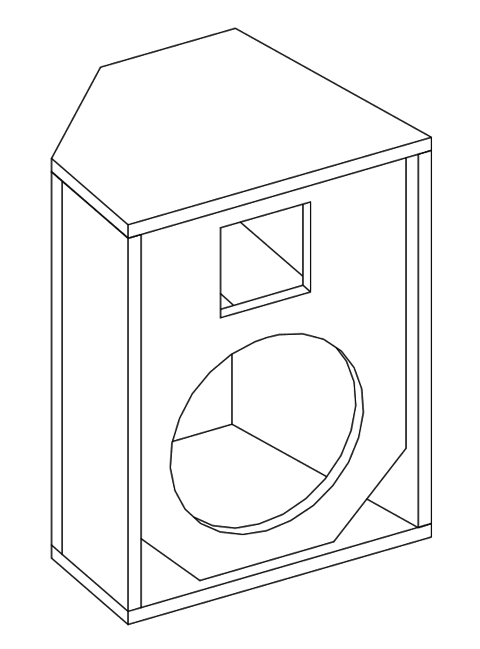

F101AN
Full Range Enclosure - 10” Neodymium Woofer – 10HPL64 8 ohm
- Drivers
- 10HPL64, 8 Ω
10-inch LF driver · 10HPL series · 64 mm voice coil · 200 W

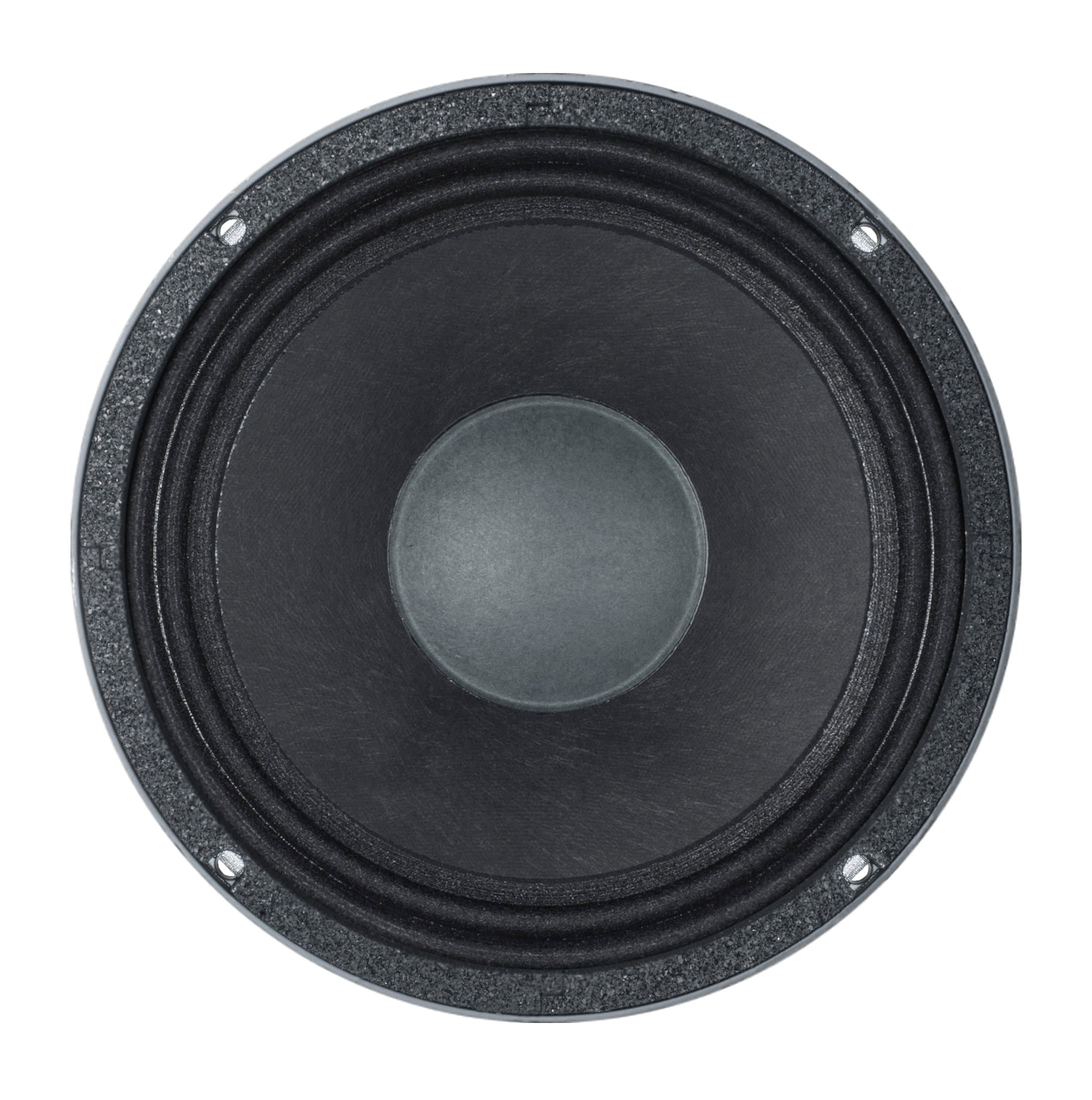

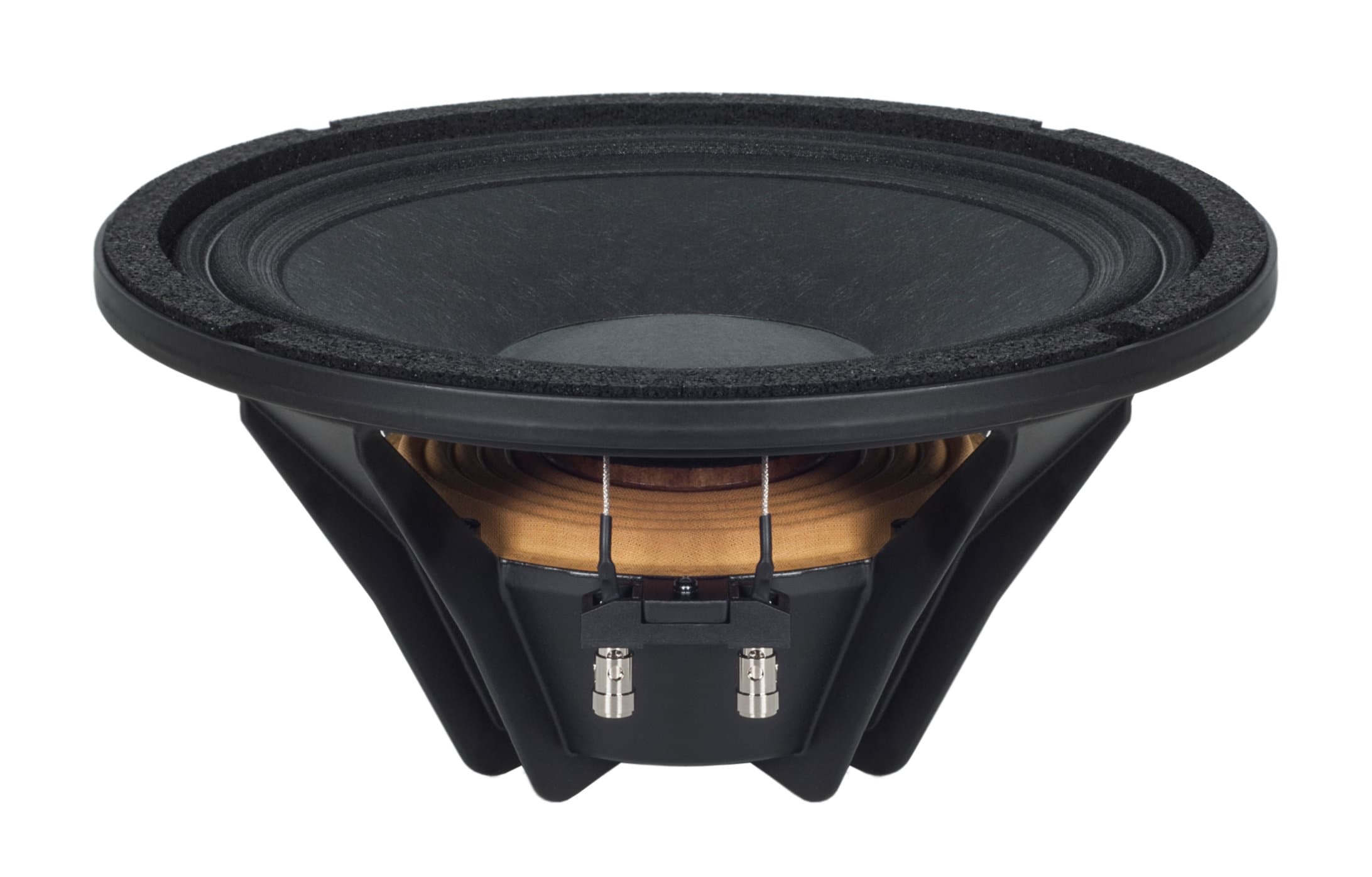

B&C 10HPL64 8Ω
8 Ω · 60–4000 Hz
£115.00
SteadyBlue Aran · 4 in stock · All 10 offers
- Fs
- 61Hz
- Xmax
- 4mm
- SPL
- 96dB
- Pe
- 200W
- BL
- 15T·m
- Vd
- 128cm³
- Qts
- 0.31
- Vas
- 32L

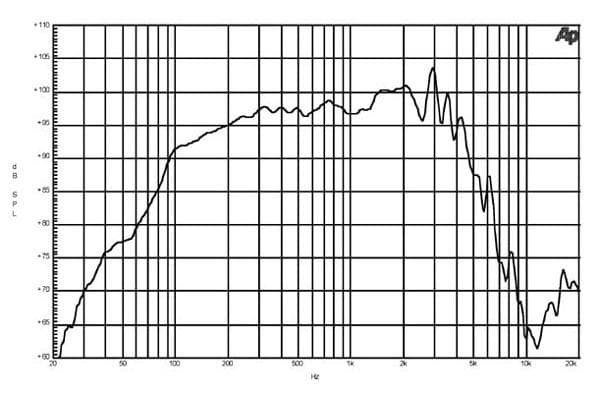

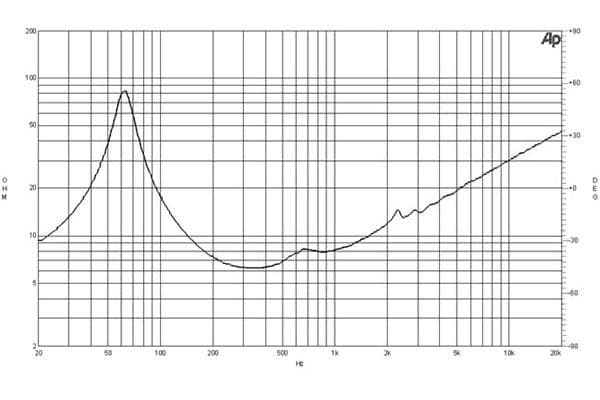

Published graphs
B&C 10HPL64 is a 10-inch 8 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 61 Hz, Qts 0.31, Vas 32 L, Xmax 4 mm, sensitivity 95.5 dB, plus 128 cm³ Vd and 185 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £113.21.
The published T/S values agree with each other
Thiele/Small
- Fs
- 61Hz
- Qts
- 0.31
- Qes
- 0.33
- Qms
- 4.5
- Vas
- 32L
- Re
- 5.4Ω
- Le
- 0.50mH
Motor and cone
- BL
- 15T·m
- Sd
- 320cm²
- Mms
- 29g
- Xmax
- 4mm
- Vd †
- 128cm³
- Voice coil
- 64mm
- Flux density
- 1.25T
Power and response
- Sensitivity †
- 95.5dB
- Manufacturer sensitivity
- 98.5dB
- Power
- 200W
- Nominal power
- 200W
- Impedance
- 8Ω
- Min. impedance
- 6.2Ω
- Range
- 60–4000Hz
- EBP †
- 185 · Leans vented
Size and mounting
- Diameter
- 261mm
- Cutout
- 230mm
- Bolt circle
- 245mm
- Depth
- 122mm
- Weight
- 1.9kg
Sensitivity shows 95.5 dB, calculated from the T/S values. B&C publishes 98.5 dB, 3.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 15T·m
- Fs
- 61Hz
- Le
- 0.50mH
- Re
- 5.4Ω
- Sd
- 320cm²
- Mms
- 29g
- Qes
- 0.33
- Qms
- 4.5
- Qts
- 0.31
- SPL
- 95.5dB
- Vas
- 32L
- Xmax
- 4mm
- Power
- 200W
- Impedance
- 8Ω
- Flux density
- 1.25T
- Sensitivity
- 98.5dB
- Low limit
- 60Hz
- Nominal power
- 200W
- Calculated sensitivity †
- 95.5dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 98.5dB
- Min. impedance
- 6.2Ω
- Voice coil
- 64mm
- Weight
- 1.9kg
- Diameter
- 261mm
- Depth
- 122mm
- Cutout
- 230mm
- Bolt circle
- 245mm
- Bl
- 15 Tm
- Fs
- 61 Hz
- Le
- 0.5 mH
- Re
- 5.4 Ω
- Sd
- 320 cm² (50 in²)
- Ebp
- 185 Hz
- Mms
- 29 g
- Qes
- 0.33
- Qms
- 4.5
- Qts
- 0.31
- Vas
- 32 dm³ (1.1 ft³)
- Η0
- 2.5 %
- Cone
- RCK010HPL648
- Xmax
- 4 mm
- Xvar
- 5.5 mm
- Depth
- 122 mm (4.8 in)
- Spider
- Single
- Cone shape
- Exponential
- Net weight
- 1.95 kg (4.3 lb)
- Pole design
- Straight Pole
- Sensitivity
- 98.5 dB
- Flux density
- 1.25 T
- Shipping box
- 295x314x175 mm (11.61x12.36x6.89 in)
- Winding depth
- 12 mm (0.47 in)
- Shipping units
- 1 pcs
- Surround shape
- Double Roll
- Former material
- Glass Fibre
- Frequency range
- 60 Hz - 4000 Hz
- Magnet material
- Neodymium Inside Slug
- Shipping weight
- 2.55 kg (5.62 lb)
- Nominal diameter
- 250 mm (10 in)
- Overall diameter
- 261 mm (10.3 in)
- Winding material
- Aluminium
- Minimum impedance
- 6.2 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 8 mm (0.31 in)
- Recommended tuning
- 67 Hz
- Voice coil diameter
- 64 mm (2.5 in)
- Bolt circle diameter
- 245 mm (9.6 in)
- Recommended enclosure
- 26 dm³ (0.92 ft³)
- Woofer cone treatment
- None
- Baffle cutout diameter
- 230 mm (9.1 in)
- Nominal power handling
- 200 W
- Continuous power handling
- 400 W
- Flange and gasket thickness
- 13 mm (0.5 in)
- Air volume occupied by driver
- 1.5 dm³ (0.05 ft³)
02
Designs
Cabinets for the 10HPL64: a design and a suggested box from B&C.
All 10HPL64 designsHow we find designsB&C’s design
From the maker, with plans to download

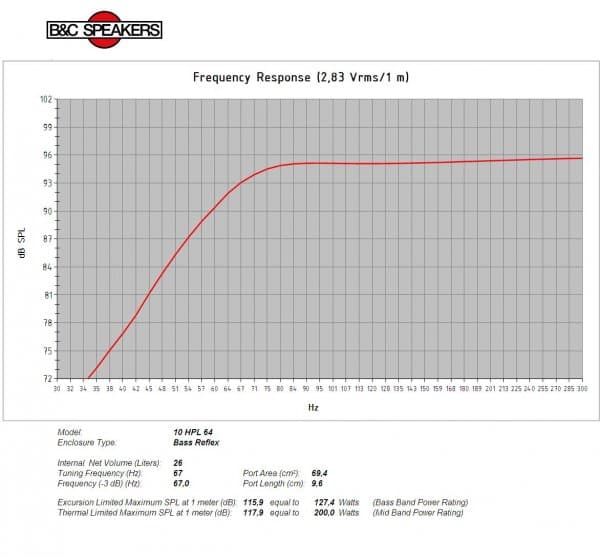

B&C’s suggested box
From B&C’s 10HPL64 page
- Net volume
- 26L
- Tuning
- 67Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
