LF DriverBASSLITE S series
Eminence

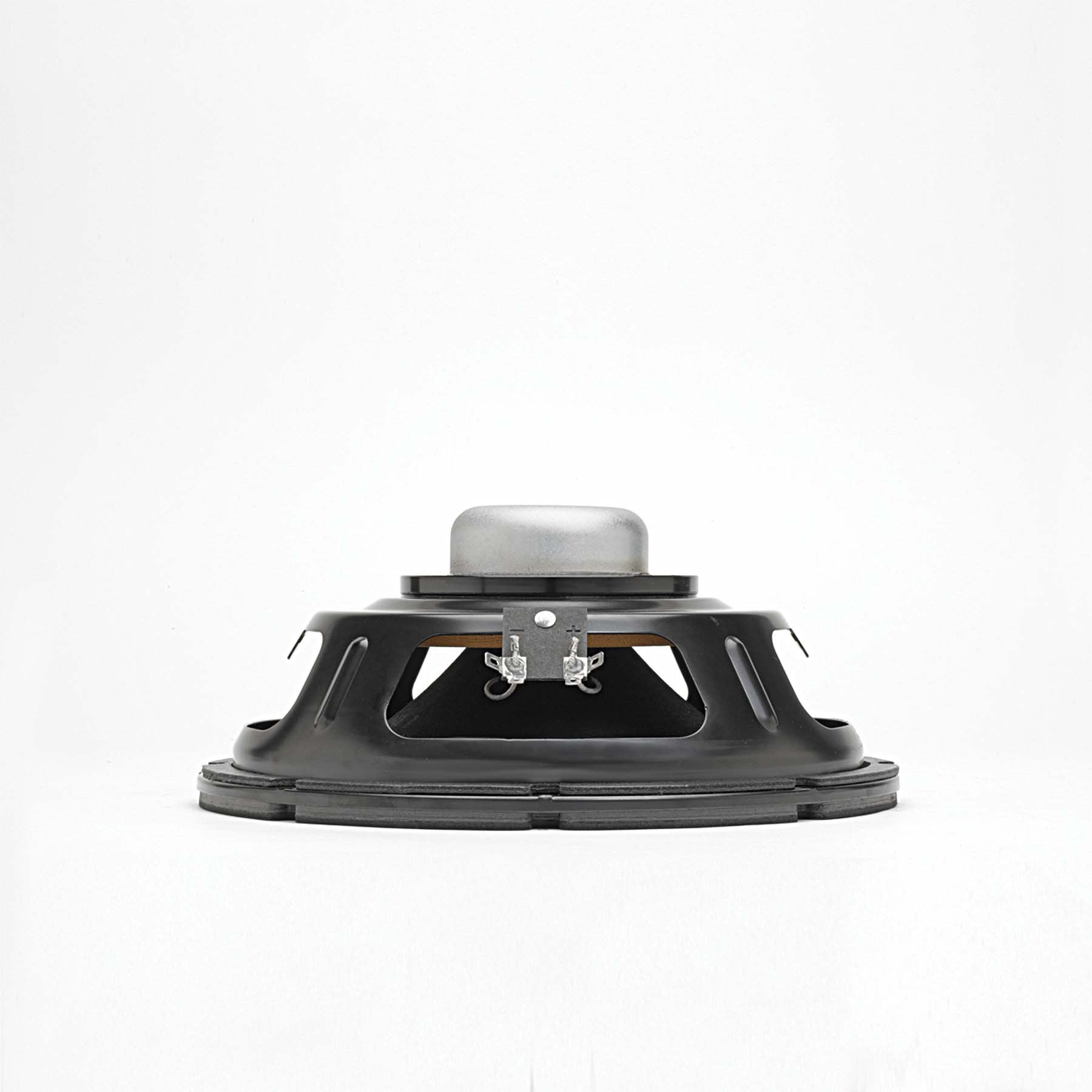

Eminence BASSLITE S2010
Eminence BASSLITE S2010 is a 10" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 46Hz, Qts 0.31, Vas 63.4L, Xmax 4mm, sensitivity 94.6dB, plus 140cm³ Vd and 135 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £115.00.
Size
10"
Impedance
8Ω
RMS Power
150W
Sensitivity
94.6dB
96.2dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
135
Vented alignment
Vd
140cm³
T/S Parameters
Valid
Fs46Hz
Qts0.31
Qes0.34
Qms4.2
Vas63.4L
Re5.0Ω
Le0.47mH
BL11.9Tm
Sd350cm²
Mms33g
Xmax4.0mm
SPL95dB
Power150W
Impedance8Ω
F Low54Hz
F High3000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£115.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
Diameter256.0mm
Overall Depth108.0mm
Cutout Diameter233.2mm
Bolt Circle Diameter245.4mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
BASSLITE S2010
10"
Best current price
£115.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
67%
Similarity
54% cheaper£52.41
Dayton Audio
MB1025-8
10"
Lower price
Xmax3mm-25%
Qts0.34+10%
BL13.2Tm+11%
Vas50.7L-20%
Qes0.36+6%
70%
Similarity
45% cheaper£63.00
Celestion
TF1020
10"
Lower price
Xmax4mm0%
Qts0.32+4%
BL14.1Tm+18%
Vas28.8L-55%
Qes0.37+9%
54%
Similarity
31% cheaper£79.75
CIARE
FXI10
10"
Lower price
Xmax4.5mm+13%
Qts0.38+23%
BL13.3Tm+12%
Vas38.5L-39%
Qes0.41+21%
58%
Similarity
28% cheaper£82.50
Eminence
BETA 10CX
10"
Lower price
Xmax5mm+25%
Qts0.38+23%
BL10.9Tm-9%
Vas61.1L-4%
Qes0.41+21%
68%
Similarity
15% cheaper£97.30
PRV Audio
10MB800FT
10"
Lower price
Xmax3.5mm-12%
Qts0.32+3%
BL14.4Tm+21%
Vas36.7L-42%
Qes0.33-3%
55%
Similarity
5% cheaper£109.82
FaitalPRO
10PR310
10"
Lower price
Xmax4.9mm+23%
Qts0.34+10%
BL14.4Tm+21%
Vas32.2L-49%
Qes0.36+6%
48%
Similarity
8% more£124.67
RCF
MB10N251
10"
Higher price
Xmax5mm+25%
Qts0.27-13%
BL15.2Tm+28%
Vas39L-38%
Qes0.29-15%
57%
Similarity
13% more£130.28
FaitalPRO
10PR300
10"
Higher price
Xmax4.9mm+23%
Qts0.28-10%
BL14.1Tm+18%
Vas42.2L-33%
Qes0.29-15%
60%
Similarity
17% more£135.00
Celestion
CF1025C
10"
Higher price
Xmax4.3mm+6%
Qts0.27-15%
BL14.8Tm+25%
Vas38.6L-39%
Qes0.3-12%
57%
Similarity
63% more£187.96
Eighteen Sound
10NMB420
10"
Higher price
Xmax4mm0%
Qts0.25-19%
BL14.5Tm+22%
Vas40L-37%
Qes0.26-24%
76%
Similarity
PRV Audio
10MB500-4
10"
Xmax4.5mm+13%
Qts0.29-6%
BL12.3Tm+3%
Vas47.6L-25%
Qes0.3-12%
73%
Similarity
Oberton
10NMB200
10"
Xmax4.3mm+6%
Qts0.32+2%
BL14.1Tm+18%
Vas34.9L-45%
Qes0.33-4%
