Overview
LF Driver
Eighteen Sound
Eighteen Sound 10NMB420
Eighteen Sound 10NMB420 is a 10" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 56Hz, Qts 0.25, Vas 40L, Xmax 4mm, sensitivity 96.3dB, plus 138cm³ Vd and 215 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £187.96.
Size
10"
Impedance
8Ω
RMS Power
350W
Sensitivity
96.3dB
99.0dBmanufacturer; using T/S-derived value (2.7dB delta).
EBP
215
Vented alignment
Vd
138cm³

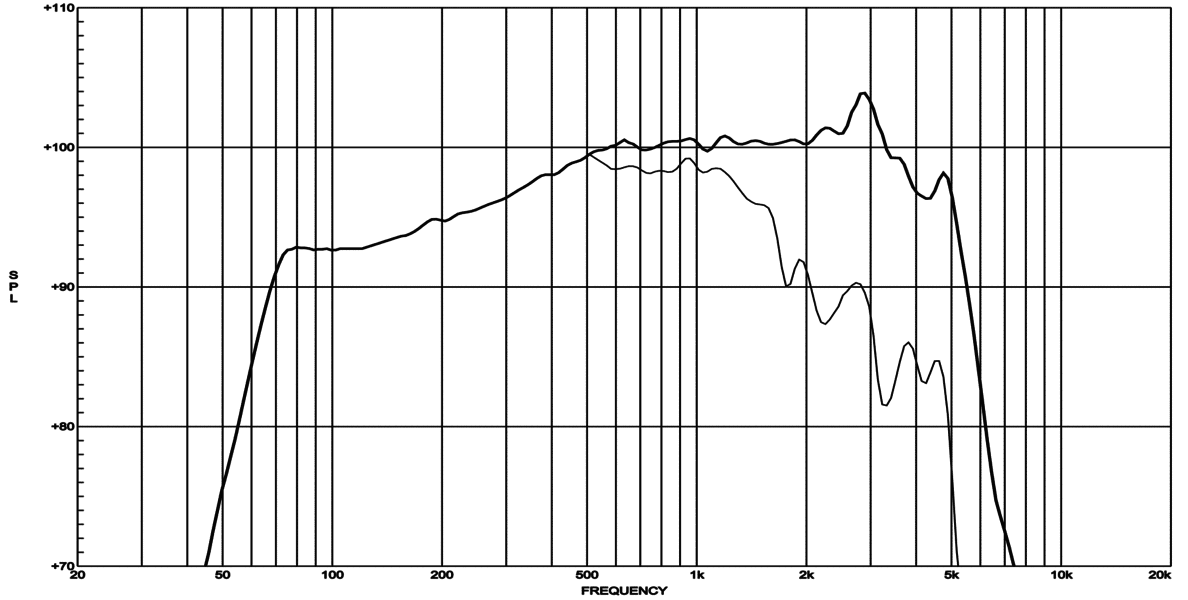

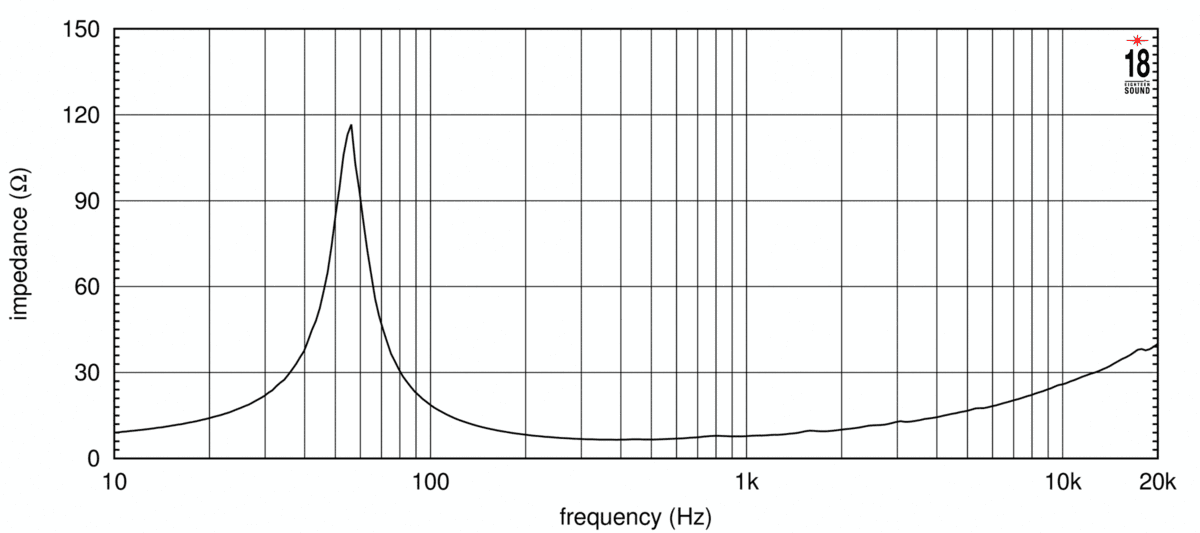

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,481 selected pixels of 1,731
T/S Parameters
Valid
Fs56Hz
Qts0.25
Qes0.26
Qms5.0
Vas40.0L
Re5.0Ω
Le0.37mH
BL14.5Tm
Sd346cm²
Mms30g
Xmax4.0mm
SPL96dB
Power350W
Power Nominal350W
Impedance8Ω
F Low65Hz
F High5000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£187.96
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.0kg
Diameter260.0mm
Overall Depth122.0mm
Cutout Diameter232.0mm
Bolt Circle Diameter244.0mm
