Eighteen Sound design
10" 2-WAY point source
- Drivers
- 1 × 10NTLW2000, 8 Ω
10-inch LF driver · 350 W
Eighteen Sound 10NTLW2000 8Ω
60–5000 Hz
£157.68
SteadyLean Audio · 2 in stock · All 2 offers
- Fs
- 57Hz
- Xmax
- 4.4mm
- SPL
- 96dB
- Pe
- 350W
- BL
- 17.9T·m
- Vd
- 152cm³
- Qts
- 0.22
- Vas
- 31L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response

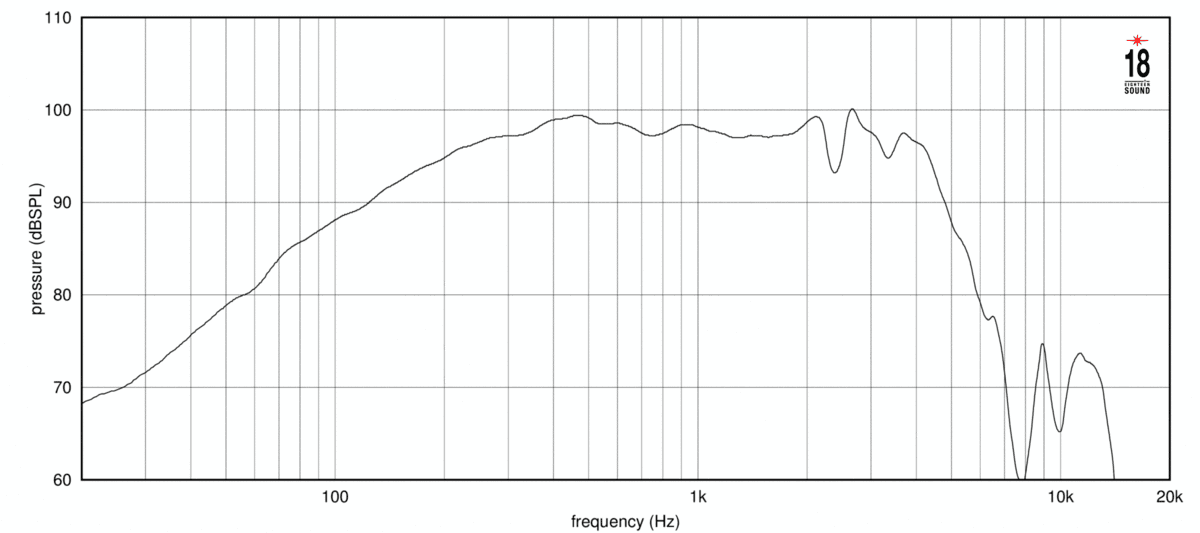

Frequency response
173 plotted pointsMedium confidence2,118 selected pixels of 2,790 - Trace datasheet-response-trace-poc/v1
impedance

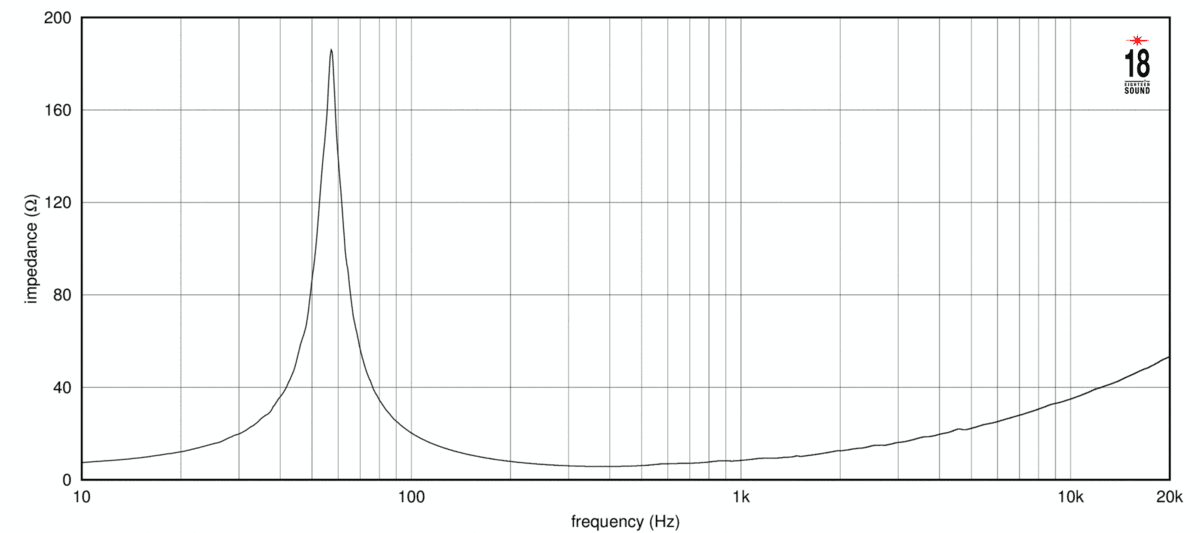

Impedance response
240 plotted pointsMedium confidence633 selected pixels of 865
Published graphs
Eighteen Sound 10NTLW2000 is a 10-inch 8 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 57 Hz, Qts 0.22, Vas 31 L, Xmax 4.4 mm, sensitivity 96.2 dB, plus 152 cm³ Vd and 259 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £157.68.
The published T/S values agree with each other
Thiele/Small
- Fs
- 57Hz
- Qts
- 0.22
- Qes
- 0.22
- Qms
- 7.6
- Vas
- 31L
- Re
- 5.2Ω
- Le
- 0.63mH
Motor and cone
- BL
- 17.9T·m
- Sd
- 346cm²
- Mms
- 38g
- Xmax
- 4.4mm
- Vd †
- 152cm³
Power and response
- Sensitivity †
- 96.2dB
- Manufacturer sensitivity
- 98.5dB
- Power
- 350W
- Nominal power
- 350W
- Impedance
- 8Ω
- Range
- 60–5000Hz
- EBP †
- 259 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 233mm
- Bolt circle
- 245mm
- Depth
- 141mm
- Weight
- 1.9kg
Other published values
- Power Program
- 700
Sensitivity shows 96.2 dB, calculated from the T/S values. Eighteen Sound publishes 98.5 dB, 2.3 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 10″
- BL
- 17.9T·m
- Fs
- 57Hz
- Le
- 0.63mH
- Re
- 5.2Ω
- Sd
- 346cm²
- Mms
- 38g
- Qes
- 0.22
- Qms
- 7.6
- Qts
- 0.22
- SPL
- 96.2dB
- Vas
- 31L
- Xmax
- 4.4mm
- Power
- 350W
- Impedance
- 8Ω
- Sensitivity
- 98.5dB
- Low limit
- 60Hz
- Nominal power
- 350W
- Power Program
- 700
- Calculated sensitivity †
- 96.2dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 98.5dB
- Weight
- 1.9kg
- Diameter
- 260mm
- Depth
- 141mm
- Cutout
- 233mm
- Bolt circle
- 245mm
02
Designs
Cabinets for the 10NTLW2000: a design and a suggested box from Eighteen Sound.
All 10NTLW2000 designsHow we find designsEighteen Sound’s design
From the maker, with plans to download
Eighteen Sound’s suggested box
From Eighteen Sound’s 10NTLW2000 page
- Net volume
- 14L
- Tuning
- 70Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
