Eighteen Sound design
10" 2-WAY point source
- Drivers
- 1 × 10NTLW2000, 8 Ω
Designed with the 8 Ω version.
10-inch LF driver · 350 W

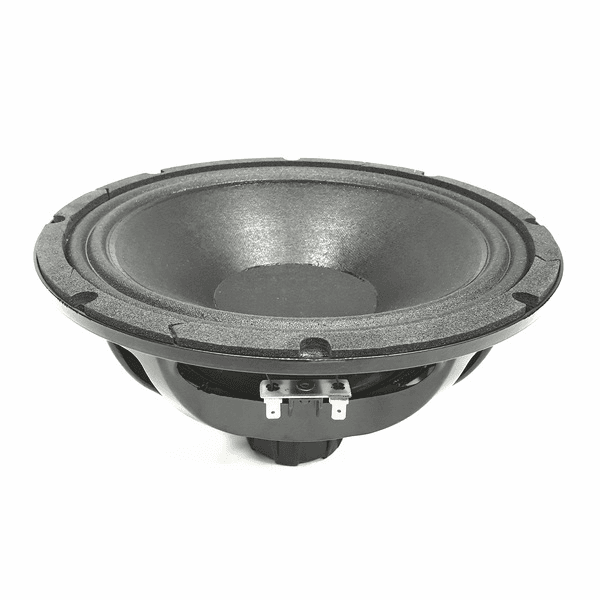

Eighteen Sound 10NTLW2000 16Ω
60–5000 Hz
No price for delivery to the UK
- Fs
- 58Hz
- Xmax
- 4.4mm
- SPL
- 96dB
- Pe
- 350W
- BL
- 22.5T·m
- Vd
- 152cm³
- Qts
- 0.27
- Vas
- 35L
Published graphs
Eighteen Sound 10NTLW2000 is a 10-inch 16 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 58 Hz, Qts 0.27, Vas 35.4 L, Xmax 4.4 mm, sensitivity 96 dB, plus 152 cm³ Vd and 207 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 58Hz
- Qts
- 0.27
- Qes
- 0.28
- Qms
- 8
- Vas
- 35.4L
- Re
- 10.7Ω
- Le
- 0.97mH
Motor and cone
- BL
- 22.5T·m
- Sd
- 346cm²
- Mms
- 37g
- Xmax
- 4.4mm
- Vd †
- 152cm³
Power and response
- Sensitivity †
- 96dB
- Manufacturer sensitivity
- 95dB
- Power
- 350W
- Nominal power
- 350W
- Impedance
- 16Ω
- Range
- 60–5000Hz
- EBP †
- 207 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 233mm
- Bolt circle
- 245mm
- Depth
- 141mm
- Weight
- 1.9kg
Other published values
- Power Program
- 700
Sensitivity shows 96.0 dB, calculated from the T/S values. Eighteen Sound publishes 95.0 dB, 1.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 10″
- BL
- 22.5T·m
- Fs
- 58Hz
- Le
- 0.97mH
- Re
- 10.7Ω
- Sd
- 346cm²
- Mms
- 37g
- Qes
- 0.28
- Qms
- 8
- Qts
- 0.27
- SPL
- 96dB
- Vas
- 35.4L
- Xmax
- 4.4mm
- Power
- 350W
- Impedance
- 16Ω
- Sensitivity
- 95dB
- Low limit
- 60Hz
- Nominal power
- 350W
- Power Program
- 700
- Calculated sensitivity †
- 96dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 95dB
- Weight
- 1.9kg
- Diameter
- 260mm
- Depth
- 141mm
- Cutout
- 233mm
- Bolt circle
- 245mm
02
Designs
Cabinets for the 10NTLW2000: a design and a suggested box from Eighteen Sound.
All 10NTLW2000 designsHow we find designsEighteen Sound’s design
From the maker, with plans to download
Eighteen Sound’s suggested box
From Eighteen Sound’s 10NTLW2000 page
- Net volume
- 14L
- Tuning
- 70Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 10NTLW2000. Clear differences are green when better and red when worse.
This driver10NTLW2000
Best price
–
Fs
58 Hz
Qts
0.27
Vas
35.4 L
BL
22.5 T·m
Xmax
4.4 mm
Sensitivity
96 dB
Power
350 W
CelestionCF1025C
£135.00Fs55 Hz −6%
Qts0.27 –
Vas38.6 L +9%
BL14.8 T·m −34%, worse
Xmax4.3 mm −3%
Sensitivity95.3 dB −0.7
B&C10NDL64
£144.97Fs58 Hz –
Qts0.30 +11%, worse
Vas34.5 L –
BL19.1 T·m −15%, worse
Xmax4.5 mm –
Sensitivity95.1 dB −0.9
Eighteen Sound10NW650
£150.32Fs51 Hz −12%, better
Qts0.27 –
Vas50 L +41%, worse
BL21 T·m −7%
Xmax7 mm +59%, better
Sensitivity95.8 dB –
B&C10MBX64
£157.30Fs65 Hz +12%, worse
Qts0.30 +11%, worse
Vas30 L −15%, better
BL20.5 T·m −9%
Xmax4 mm −9%
Sensitivity96.1 dB –
Eighteen Sound10NTLS2000
£157.64Fs50 Hz −14%, better
Qts0.26 −4%
Vas38 L +7%
BL16.7 T·m −26%, worse
Xmax7.4 mm +68%, better
Sensitivity94.5 dB −1.5
Eighteen Sound10M600
£175.83Fs70 Hz +21%, worse
Qts0.23 −15%, better
Vas25.6 L −28%, better
BL17.6 T·m −22%, worse
Xmax4 mm −9%
Sensitivity97.5 dB +1.5
RCFMB10N305
£186.20Fs60 Hz +3%
Qts0.23 −15%, better
Vas31 L −12%, better
BL18.5 T·m −18%, worse
Xmax5 mm +14%, better
Sensitivity96.5 dB +0.5
B&C10BG76
£218.90Fs48 Hz −17%, better
Qts0.28 +4%
Vas17.8 L −50%, better
BL22 T·m –
Xmax9.6 mm +118%, better
Sensitivity90.3 dB −5.7, worse
SB AcousticsSW26DAC76-8
£250.69Fs20 Hz −66%, better
Qts0.28 +4%
Vas54 L +53%, worse
BL21.4 T·m −5%
Xmax12 mm +173%, better
Sensitivity83.4 dB −12.6, worse
WavecorWF259PA02
No current priceFs52 Hz −10%, better
Qts0.28 +4%
Vas33 L −7%
BL16.8 T·m −25%, worse
Xmax4.5 mm –
Sensitivity94.2 dB −1.8
REDCATT103FIND
No current priceFs56 Hz −3%
Qts0.29 +7%
Vas32.8 L −7%
BL18.2 T·m −19%, worse
Xmax4.0 mm −8%
Sensitivity94.6 dB −1.4
No photo
REDCATT10NPM-1
No current priceFs64 Hz +10%, worse
Qts0.28 +4%
Vas23 L −35%, better
BL18.3 T·m −19%, worse
Xmax4.0 mm −8%
Sensitivity95.2 dB −0.8
RCFMB10N251
No current priceFs55 Hz −5%
Qts0.27 –
Vas39 L +10%, worse
BL15.2 T·m −32%, worse
Xmax5 mm +14%, better
Sensitivity95.5 dB −0.5
WavecorWF259PA01
No current priceFs54 Hz −7%
Qts0.29 +7%
Vas31 L −12%, better
BL14.1 T·m −37%, worse
Xmax4.5 mm –
Sensitivity94.3 dB −1.7
No photo
PHL Audio3430
No current priceFs56 Hz −3%
Qts0.30 +11%, worse
Vas36 L –
BL16 T·m −29%, worse
Xmax4.5 mm –
Sensitivity94.9 dB −1.1
CelestionNTR10-2520D
No current priceFs57 Hz –
Qts0.29 +7%
Vas34.7 L –
BL15.8 T·m −30%, worse
Xmax4 mm −9%
Sensitivity95.1 dB −0.9
No photo
PHL Audio3840NDU
No current priceFs62 Hz +7%
Qts0.22 −19%, better
Vas26.3 L −26%, better
BL20.8 T·m −8%
Xmax4.5 mm –
Sensitivity96.4 dB –
PeerlessNCP-1030R00-08
No current priceFs67 Hz +16%, worse
Qts0.23 −15%, better
Vas27 L −24%, better
BL19.1 T·m −15%, worse
Xmax3.9 mm −11%, worse
Sensitivity96.9 dB +0.9
Sica10 S 3 PL
No current priceFs43 Hz −26%, better
Qts0.27 –
Vas39.9 L +13%, worse
BL16.9 T·m −25%, worse
Xmax7 mm +59%, better
Sensitivity92.6 dB −3.4, worse
No photo
PHL Audio3840
No current priceFs62 Hz +7%
Qts0.22 −19%, better
Vas26.3 L −26%, better
BL20.9 T·m −7%
Xmax4.5 mm –
Sensitivity96.6 dB +0.6
PRV Audio10MR1000
No current priceFs73 Hz +26%, worse
Qts0.27 –
Vas26.1 L −26%, better
BL17.9 T·m −20%, worse
Xmax2.6 mm −41%, worse
Sensitivity97.7 dB +1.7
No photo
PHL Audio3400
No current priceFs53 Hz −9%
Qts0.28 +4%
Vas30.6 L −14%, better
BL18.1 T·m −20%, worse
Xmax6.5 mm +48%, better
Sensitivity94 dB −2, worse
Oberton10NHCX
No current priceFs72 Hz +23%, worse
Qts0.24 −12%, better
Vas24.5 L −31%, better
BL17.4 T·m −22%, worse
Xmax4.3 mm −3%
Sensitivity97.7 dB +1.7
MonacorSP-10A/302PA
No current priceFs55 Hz −5%
Qts0.30 +11%, worse
Vas40 L +13%, worse
BL15.8 T·m −30%, worse
Xmax4 mm −9%
Sensitivity95.3 dB −0.7
No photo
PHL Audio3001NDU
No current priceFs57 Hz –
Qts0.31 +15%, worse
Vas31.5 L −11%, better
BL16.1 T·m −28%, worse
Xmax4.5 mm –
Sensitivity94.5 dB −1.5
PRV Audio10MB500-4
No current priceFs56 Hz −4%
Qts0.29 +7%
Vas47.6 L +34%, worse
BL12.3 T·m −46%, worse
Xmax4.5 mm –
Sensitivity96.4 dB –
Sica10 PN 3
No current priceFs48 Hz −17%, better
Qts0.26 −4%
Vas40.1 L +13%, worse
BL16.1 T·m −29%, worse
Xmax7 mm +59%, better
Sensitivity94.1 dB −1.9
No photo
PHL Audio3411NDU
No current priceFs47 Hz −19%, better
Qts0.29 +7%
Vas33.3 L −6%
BL18.2 T·m −19%, worse
Xmax8 mm +82%, better
Sensitivity92.5 dB −3.5, worse
Eighteen Sound10NCX750
No current priceFs64 Hz +10%, worse
Qts0.25 −7%
Vas23 L −35%, better
BL20 T·m −11%, worse
Xmax5.5 mm +25%, better
Sensitivity95.7 dB –
Oberton10NMB200
No current priceFs59 Hz –
Qts0.32 +17%, worse
Vas34.9 L –
BL14.1 T·m −37%, worse
Xmax4.3 mm −3%
Sensitivity95.4 dB −0.6
