- Net volume
- 26L
- Tuning
- 65Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.

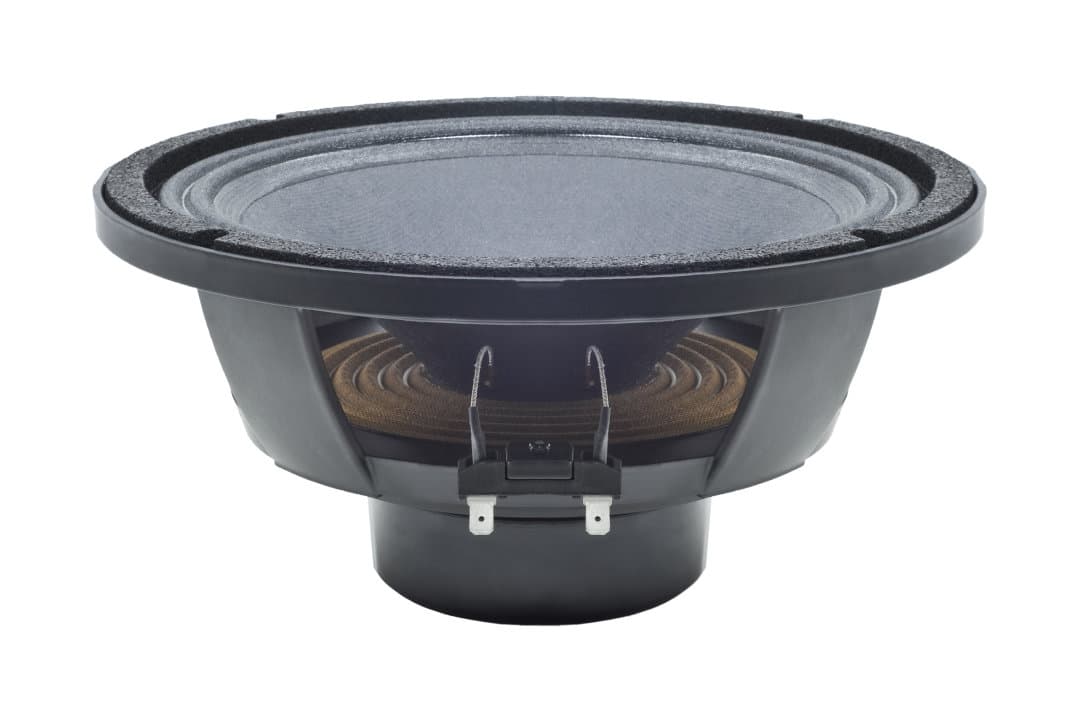

10-inch LF driver · 10MBX series · 64 mm voice coil · 350 W
B&C 10MBX64 16Ω
65–6000 Hz
£157.30
SteadyJP Leisure · In stock · All 9 offers
- Fs
- 65Hz
- Xmax
- 4mm
- SPL
- 96dB
- Pe
- 350W
- BL
- 20.5T·m
- Vd
- 138cm³
- Qts
- 0.30
- Vas
- 30L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2

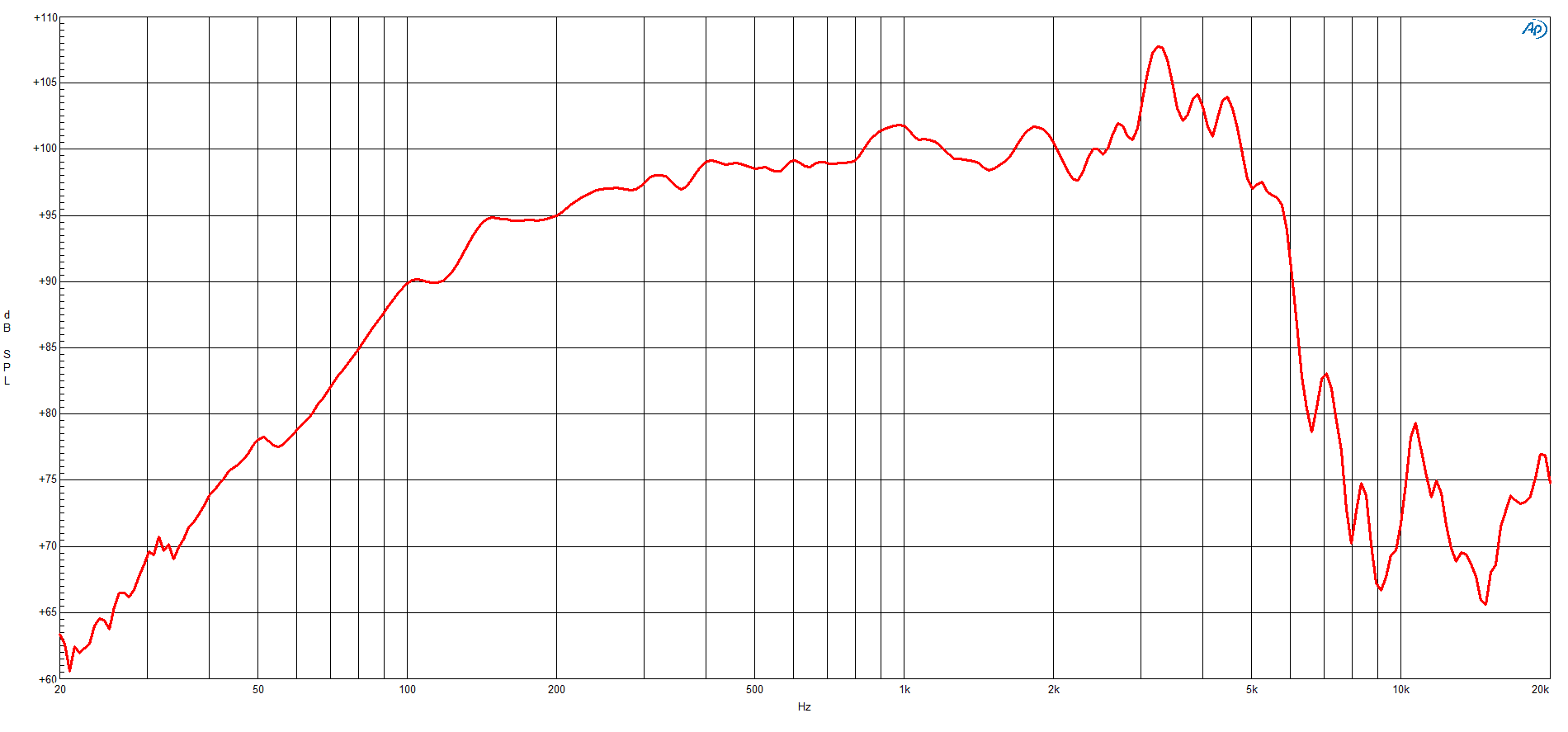

free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 f12daf831abf…Medium confidence4,710 selected pixels of 4,710 - Trace datasheet-response-trace-poc/v2

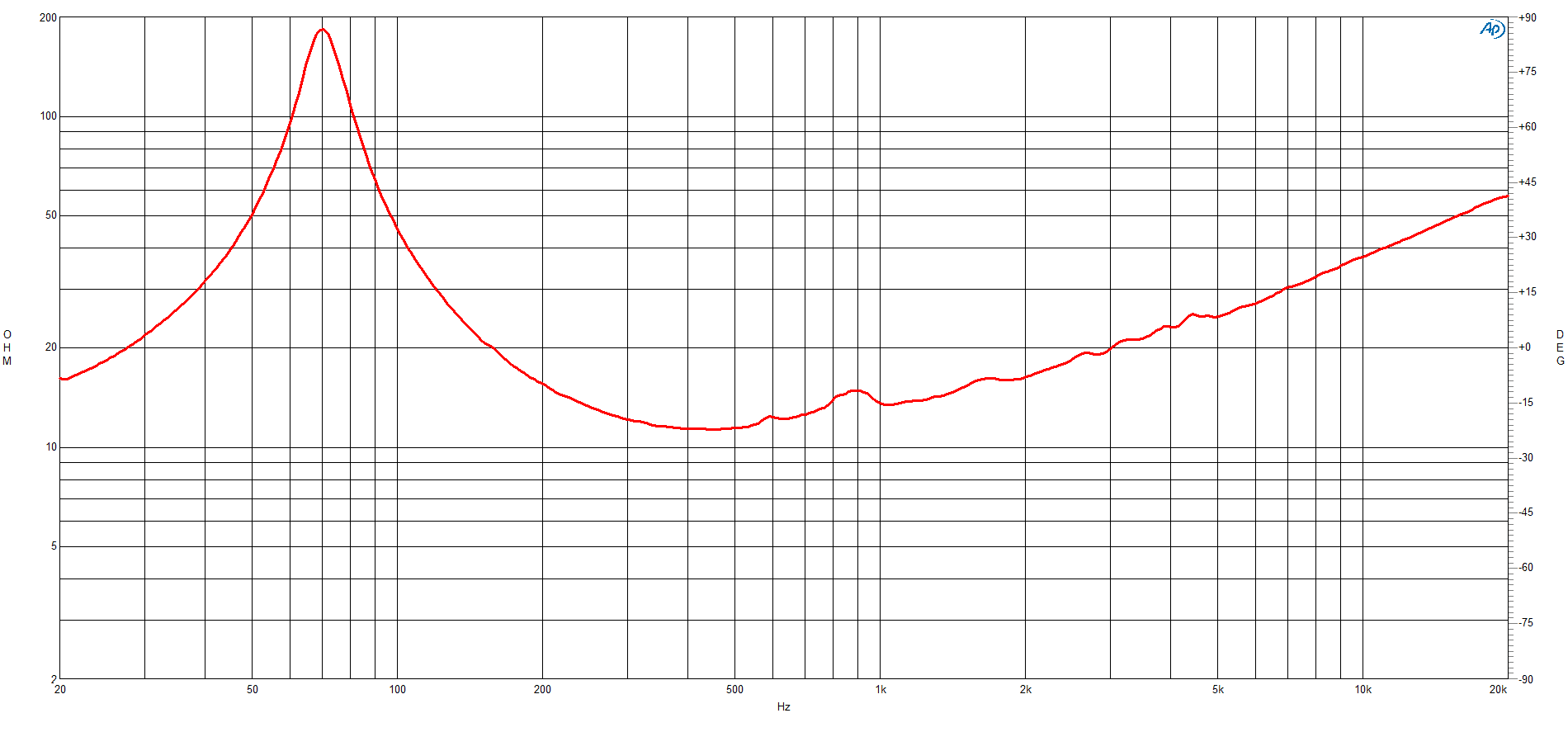

free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 f12daf831abf…Medium confidence2,865 selected pixels of 2,865
Published graphs
B&C 10MBX64 is a 10-inch 16 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 65 Hz, Qts 0.30, Vas 30 L, Xmax 4 mm, sensitivity 96.1 dB, plus 138 cm³ Vd and 203 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £155.84.
The published T/S values agree with each other
Thiele/Small
- Fs
- 65Hz
- Qts
- 0.30
- Qes
- 0.32
- Qms
- 5.8
- Vas
- 30L
- Re
- 10.2Ω
- Le
- 0.57mH
Motor and cone
- BL
- 20.5T·m
- Sd
- 346cm²
- Mms
- 30g
- Xmax
- 4mm
- Vd †
- 138cm³
- Voice coil
- 64mm
- Flux density
- 1.25T
Power and response
- Sensitivity †
- 96.1dB
- Manufacturer sensitivity
- 100dB
- Power
- 350W
- Nominal power
- 350W
- Impedance
- 16Ω
- Min. impedance
- 11.3Ω
- Range
- 65–6000Hz
- EBP †
- 203 · Leans vented
Size and mounting
- Diameter
- 261mm
- Cutout
- 230mm
- Bolt circle
- 245mm
- Depth
- 125mm
- Weight
- 3.3kg
Sensitivity shows 96.1 dB, calculated from the T/S values. B&C publishes 100.0 dB, 3.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 20.5T·m
- Fs
- 65Hz
- Le
- 0.57mH
- Re
- 10.2Ω
- Sd
- 346cm²
- Mms
- 30g
- Qes
- 0.32
- Qms
- 5.8
- Qts
- 0.30
- SPL
- 96.1dB
- Vas
- 30L
- Xmax
- 4mm
- Power
- 350W
- Impedance
- 16Ω
- Flux density
- 1.25T
- Sensitivity
- 100dB
- Low limit
- 65Hz
- Nominal power
- 350W
- Calculated sensitivity †
- 96.1dB
- High limit
- 6000Hz
- Manufacturer sensitivity
- 100dB
- Min. impedance
- 11.3Ω
- Voice coil
- 64mm
- Weight
- 3.3kg
- Diameter
- 261mm
- Depth
- 125mm
- Cutout
- 230mm
- Bolt circle
- 245mm
- Bl
- 20.5 Tm
- Fs
- 65 Hz
- Le
- 0.57 mH
- Re
- 10.2 Ω
- Sd
- 346 cm² (53.63 in²)
- Ebp
- 203 Hz
- Mms
- 30 g
- Qes
- 0.32
- Qms
- 5.8
- Qts
- 0.3
- Vas
- 30 dm³ (1.06 ft³)
- Η0
- 3 %
- Cone
- RCK10MBX6416
- Xmax
- 4 mm
- Xvar
- 5.5 mm
- Depth
- 125 mm (4.92 in)
- Spider
- Single
- Cone shape
- Radial
- Net weight
- 3.25 kg (7.17 lb)
- Pole design
- T-Pole
- Sensitivity
- 100 dB
- Flux density
- 1.25 T
- Shipping box
- 295x314x175 mm (11.61x12.36x6.89 in)
- Winding depth
- 12 mm (0.47 in)
- Shipping units
- 1 pcs
- Surround shape
- Double Roll
- Former material
- Glass Fibre
- Frequency range
- 65 Hz - 6000 Hz
- Magnet material
- Neodymium Inside Slug
- Shipping weight
- 3.85 kg (8.49 lb)
- Nominal diameter
- 250 mm (10 in)
- Overall diameter
- 261 mm (10.28 in)
- Winding material
- Aluminium
- Minimum impedance
- 11.3 Ω
- Nominal impedance
- 16 Ω
- Magnetic gap depth
- 8 mm (0.31 in)
- Recommended tuning
- 65 Hz
- Voice coil diameter
- 64 mm (2.5 in)
- Bolt circle diameter
- 245 mm (9.65 in)
- Recommended enclosure
- 26 dm³ (0.92 ft³)
- Woofer cone treatment
- Waterproof Impregnated Cone
- Baffle cutout diameter
- 230 mm (9.06 in)
- Nominal power handling
- 350 W
- Continuous power handling
- 700 W
- Flange and gasket thickness
- 14 mm (0.55 in)
- Air volume occupied by driver
- 1.5 dm³ (0.05 ft³)

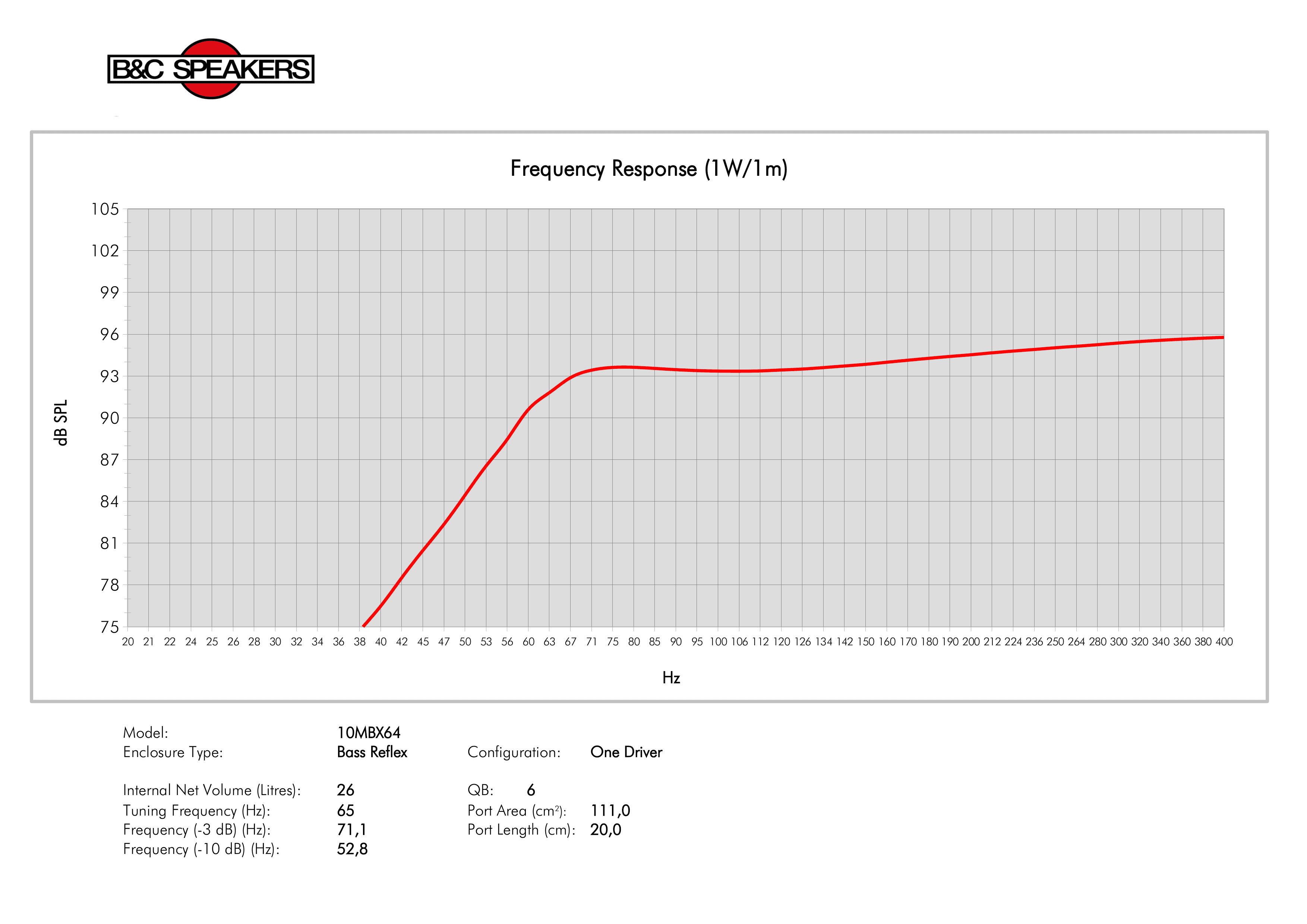

B&C’s suggested box
