10-inch LF driver · 10NMB series · 64 mm voice coil · 200 W
Oberton 10NMB200 8Ω
8 Ω · 70–4000 Hz
No current price
- Fs
- 59Hz
- Xmax
- 4.3mm
- SPL
- 95dB
- Pe
- 200W
- BL
- 14.1T·m
- Vd
- 135cm³
- Qts
- 0.32
- Vas
- 35L

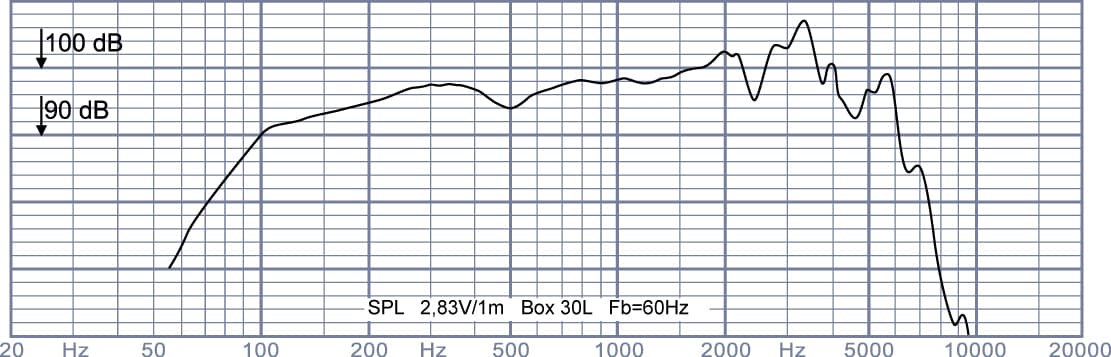

Published graphs
Oberton 10NMB200 is a 10-inch 8 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 59 Hz, Qts 0.32, Vas 34.9 L, Xmax 4.3 mm, sensitivity 95.4 dB, plus 135 cm³ Vd and 179 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 59Hz
- Qts
- 0.32
- Qes
- 0.33
- Qms
- 8.9
- Vas
- 34.9L
- Re
- 5.8Ω
- Le
- 0.53mH
Motor and cone
- BL
- 14.1T·m
- Sd
- 317cm²
- Mms
- 30g
- Xmax
- 4.3mm
- Vd †
- 135cm³
- Voice coil
- 64mm
- Flux density
- 1.15T
Power and response
- Sensitivity †
- 95.4dB
- Manufacturer sensitivity
- 200dB
- Power
- 200W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- Range
- 70–4000Hz
- EBP †
- 179 · Leans vented

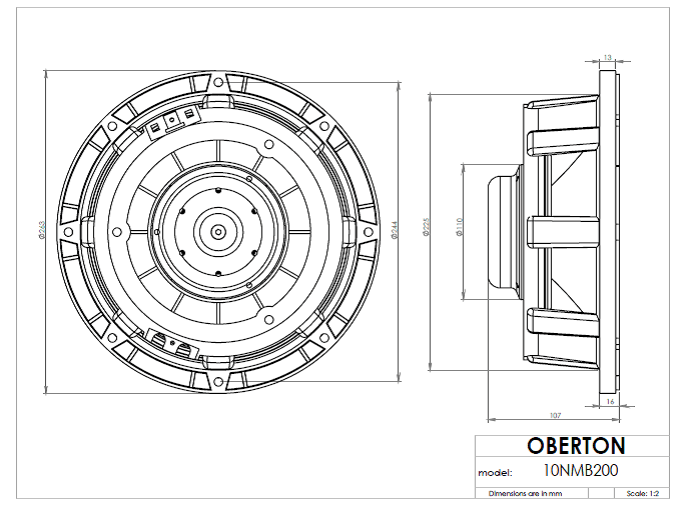

Size and mounting
- Diameter
- 263mm
- Cutout
- 225mm
- Bolt circle
- 244mm
- Depth
- 107mm
- Weight
- 2.4kg
Other published values
- Cms
- 0.24mm/N
- Power Program
- 400
Sensitivity shows 95.4 dB, calculated from the T/S values. Oberton publishes 200.0 dB, 104.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 10″
- BL
- 14.1T·m
- Fs
- 59Hz
- Le
- 0.53mH
- Re
- 5.8Ω
- Sd
- 317cm²
- Cms
- 0.24mm/N
- Mms
- 30g
- Qes
- 0.33
- Qms
- 8.9
- Qts
- 0.32
- SPL
- 95.4dB
- Vas
- 34.9L
- Xmax
- 4.3mm
- Power
- 200W
- Impedance
- 8Ω
- Flux density
- 1.15T
- Sensitivity
- 200dB
- Low limit
- 70Hz
- Power Program
- 400
- Calculated sensitivity †
- 95.4dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 200dB
- Min. impedance
- 6.5Ω
- Voice coil
- 64mm
- Weight
- 2.4kg
- Diameter
- 263mm
- Depth
- 107mm
- Cutout
- 225mm
- Bolt circle
- 244mm
