Dayton AudioMB1025-8
£52.35 · 17% less, betterFs45 Hz −13%, better
Qts0.34 +3%
Vas50.7 L +15%, worse
BL13.2 T·m −16%, worse
Xmax3 mm −14%, worse
Sensitivity93.1 dB −1.5
10-inch LF driver · PAW series · 65 mm voice coil · 300 W
Visaton PAW 25 8Ω
8 Ω
£116.34
SteadyImpact Audio · In stock · All 4 offers
- Fs
- 52Hz
- Xmax
- 3.5mm
- SPL
- 95dB
- Pe
- 300W
- BL
- 15.6T·m
- Vd
- 124cm³
- Qts
- 0.33
- Vas
- 44L

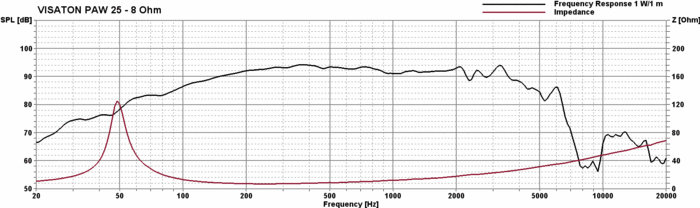

Published graphs
Visaton PAW 25 is a 10-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 52 Hz, Qts 0.33, Vas 44 L, Xmax 3.5 mm, sensitivity 94.6 dB, plus 124 cm³ Vd and 153 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £63.20.
The published T/S values agree with each other
Thiele/Small
- Fs
- 52Hz
- Qts
- 0.33
- Qes
- 0.34
- Qms
- 9.6
- Vas
- 44L
- Re
- 6.5Ω
- Le
- 0.90mH
Motor and cone
- BL
- 15.6T·m
- Sd
- 353cm²
- Mms
- 38g
- Xmax
- 3.5mm
- Vd †
- 124cm³
- Voice coil
- 65mm
Power and response
- Sensitivity †
- 94.6dB
- Manufacturer sensitivity
- 92dB
- Power
- 300W
- Impedance
- 8Ω
- High limit
- 4200Hz
- EBP †
- 153 · Leans vented
Size and mounting
- Diameter
- 250mm
- Cutout
- 230mm
- Weight
- 3.6kg
Other published values
- Xmech
- 8
- Power Peak
- 450
Sensitivity shows 94.6 dB, calculated from the T/S values. Visaton publishes 92.0 dB, 2.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Visaton lists
LF · Primary · 10″
- BL
- 15.6T·m
- Fs
- 52Hz
- Le
- 0.90mH
- Re
- 6.5Ω
- Sd
- 353cm²
- Mms
- 38g
- Qes
- 0.34
- Qms
- 9.6
- Qts
- 0.33
- SPL
- 94.6dB
- Vas
- 44L
- Xmax
- 3.5mm
- Xmech
- 8
- Power
- 300W
- Impedance
- 8Ω
- Power Peak
- 450
- Sensitivity
- 92dB
- Calculated sensitivity †
- 94.6dB
- High limit
- 4200Hz
- Manufacturer sensitivity
- 92dB
- Voice coil
- 65mm
- Weight
- 3.6kg
- Diameter
- 250mm
- Cutout
- 230mm
02
Compare
Same-size drivers, compared with the PAW 25. Clear differences are green when better and red when worse.
This driverPAW 25
Best price
£63.20
Fs
52 Hz
Qts
0.33
Vas
44 L
BL
15.6 T·m
Xmax
3.5 mm
Sensitivity
94.6 dB
Power
300 W
CelestionTF1020
£72.50 · 15% more, worseFs69 Hz +33%, worse
Qts0.32 –
Vas28.8 L −35%, better
BL14.1 T·m −10%
Xmax4 mm +14%, better
Sensitivity96.2 dB +1.6
SB AcousticsSW26SFC38-8
£80.81 · 28% more, worseFs29 Hz −45%, better
Qts0.35 +6%
Vas80 L +82%, worse
BL13.5 T·m −13%, worse
Xmax3.5 mm –
Sensitivity88.9 dB −5.7, worse
EminenceDELTA 10B
£92.75 · 47% more, worseFs65 Hz +25%, worse
Qts0.33 –
Vas36 L −18%, better
BL19.5 T·m +25%, better
Xmax3.5 mm –
Sensitivity96.5 dB +1.9
PRV Audio10MB800FT
£97.18 · 54% more, worseFs65 Hz +24%, worse
Qts0.32 −3%
Vas36.7 L −17%, better
BL14.4 T·m −8%
Xmax3.5 mm –
Sensitivity96.8 dB +2.2, better
FaitalPRO10PR330
£112.27 · 78% more, worseFs60 Hz +15%, worse
Qts0.33 –
Vas32.5 L −26%, better
BL14.3 T·m −8%
Xmax7.4 mm +111%, better
Sensitivity94.9 dB –
B&C10HPL64
£115.00 · 82% more, worseFs61 Hz +17%, worse
Qts0.31 −6%
Vas32 L −27%, better
BL15 T·m −4%
Xmax4 mm +14%, better
Sensitivity95.5 dB +0.9
CelestionCF1025BMB
£141.38 · 124% more, worseFs41 Hz −21%, better
Qts0.35 +8%
Vas46.1 L +5%
BL15.3 T·m –
Xmax6.7 mm +90%, better
Sensitivity91.3 dB −3.3, worse
Sica10 S 3 CP
£166.62 · 164% more, worseFs42 Hz −19%, better
Qts0.30 −9%
Vas42.8 L –
BL15.6 T·m –
Xmax7 mm +100%, better
Sensitivity92.1 dB −2.5, worse
PRV Audio10MB1000FT
£178.31 · 182% more, worseFs75 Hz +44%, worse
Qts0.32 −3%
Vas32.3 L −27%, better
BL14.5 T·m −7%
Xmax5.9 mm +68%, better
Sensitivity98.2 dB +3.6, better
Eighteen Sound10NW750
£211.47 · 235% more, worseFs53 Hz –
Qts0.31 −6%
Vas34 L −23%, better
BL16.4 T·m +5%
Xmax7.5 mm +114%, better
Sensitivity94 dB −0.6
Eighteen Sound10NMB520
No current priceFs64 Hz +23%, worse
Qts0.33 –
Vas43 L –
BL17.5 T·m +12%, better
Xmax4 mm +14%, better
Sensitivity97 dB +2.4, better
No current price
Fs47 Hz −10%
Qts0.33 –
Vas45.4 L +3%
BL14.8 T·m −5%
Xmax4.8 mm +36%, better
Sensitivity93.5 dB −1.1
MonacorSP-10A/302PA
No current priceFs55 Hz +6%
Qts0.30 −9%
Vas40 L −9%
BL15.8 T·m –
Xmax4 mm +14%, better
Sensitivity95.3 dB +0.7
No current price
Fs58 Hz +12%, worse
Qts0.32 −3%
Vas41 L −7%
BL15.3 T·m –
Xmax5.5 mm +57%, better
Sensitivity95.7 dB +1.1
CelestionNTR10-2520D
No current priceFs57 Hz +10%, worse
Qts0.29 −12%, better
Vas34.7 L −21%, better
BL15.8 T·m –
Xmax4 mm +14%, better
Sensitivity95.1 dB +0.5
JensenBP10150-8
No current priceFs55 Hz +6%
Qts0.33 –
Vas42.6 L −3%
BL13.5 T·m −14%, worse
Xmax2.4 mm −31%, worse
Sensitivity95.1 dB +0.5
No photo
PHL Audio3001
No current priceFs57 Hz +10%
Qts0.32 −3%
Vas31.5 L −28%, better
BL15.9 T·m –
Xmax4.5 mm +29%, better
Sensitivity94.4 dB –
Oberton10NMB200
No current priceFs59 Hz +13%, worse
Qts0.32 −4%
Vas34.9 L −21%, better
BL14.1 T·m −10%
Xmax4.3 mm +21%, better
Sensitivity95.4 dB +0.8
CelestionFTR10-2055D
No current priceFs58 Hz +11%, worse
Qts0.34 +4%
Vas36.9 L −16%, better
BL13.8 T·m −11%, worse
Xmax4 mm +14%, better
Sensitivity94.6 dB –
Sica10 FE 3 CP
No current priceFs52 Hz –
Qts0.31 −6%
Vas38.6 L −12%, better
BL15.3 T·m –
Xmax5 mm +43%, better
Sensitivity94.3 dB –
MonacorSP-10/250PRO
No current priceFs47 Hz −10%
Qts0.33 –
Vas40.7 L −7%
BL18.3 T·m +17%, better
Xmax7 mm +100%, better
Sensitivity92.8 dB −1.8
PRV Audio10MR650A-NDY
No current priceFs62 Hz +20%, worse
Qts0.38 +15%, worse
Vas40.7 L −7%
BL12.7 T·m −18%, worse
Xmax3.5 mm –
Sensitivity96 dB +1.4
BMS10S302
No current priceFs60 Hz +15%, worse
Qts0.33 –
Vas30 L −32%, better
BL16.2 T·m +4%
Xmax5.5 mm +57%, better
Sensitivity94.7 dB –
P.Audio10NX-65MB
No current priceFs70 Hz +35%, worse
Qts0.34 +3%
Vas21.6 L −51%, better
BL18.1 T·m +16%, better
Xmax3.8 mm +7%
Sensitivity95.3 dB +0.7
MonacorSP-310CX
No current priceFs60 Hz +15%, worse
Qts0.32 −3%
Vas41 L −7%
BL13.3 T·m −15%, worse
Xmax2.5 mm −29%, worse
Sensitivity95.9 dB +1.3
No photo
PHL Audio3430
No current priceFs56 Hz +8%
Qts0.30 −9%
Vas36 L −18%, better
BL16 T·m –
Xmax4.5 mm +29%, better
Sensitivity94.9 dB –
No photo
PHL Audio3001NDU
No current priceFs57 Hz +10%
Qts0.31 −6%
Vas31.5 L −28%, better
BL16.1 T·m +3%
Xmax4.5 mm +29%, better
Sensitivity94.5 dB –
CelestionNTR10-2520E
No current priceFs56 Hz +7%
Qts0.31 −5%
Vas30.1 L −32%, better
BL15.9 T·m –
Xmax5 mm +43%, better
Sensitivity93.8 dB −0.8
EminenceKAPPALITE KL3010LF-8
No current priceFs45 Hz −13%, better
Qts0.31 −6%
Vas47.3 L +8%
BL18.0 T·m +15%, better
Xmax8.5 mm +143%, better
Sensitivity93.2 dB −1.4
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Impact Audio | £116.34, the lowest price | In stock | Visit shop at Impact Audio | |
Parts Express Import VAT and duty may apply | £63.20 | 1 in stock | Visit shop at Parts Express | |
SoundImports Import VAT and duty may apply | £102.95 | Back order | Visit shop at SoundImports |
Best price over time
Tracked since 29 Jul
