Monacor SP-310CX 2Ω
2 Ω · 3–3000 Hz
No price for delivery to the UK
- Fs
- 60Hz
- Xmax
- 2.5mm
- SPL
- 96dB
- Pe
- 200W
- BL
- 13.3T·m
- Vd
- 87cm³
- Qts
- 0.32
- Vas
- 41L
Monacor SP-310CX is a 10-inch 2 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 60 Hz, Qts 0.32, Vas 41 L, Xmax 2.5 mm, sensitivity 95.9 dB, plus 87 cm³ Vd and 167 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 60Hz
- Qts
- 0.32
- Qes
- 0.36
- Qms
- 3.2
- Vas
- 41L
- Re
- 5.6Ω
- Le
- 0.65mH
Motor and cone
- BL
- 13.3T·m
- Sd
- 346cm²
- Mms
- 32g
- Xmax
- 2.5mm
- Vd †
- 87cm³
- Voice coil
- 64mm
Power and response
- Sensitivity †
- 95.9dB
- Manufacturer sensitivity
- 96dB
- Power
- 200W
- Impedance
- 2Ω
- Range
- 3–3000Hz
- EBP †
- 167 · Leans vented

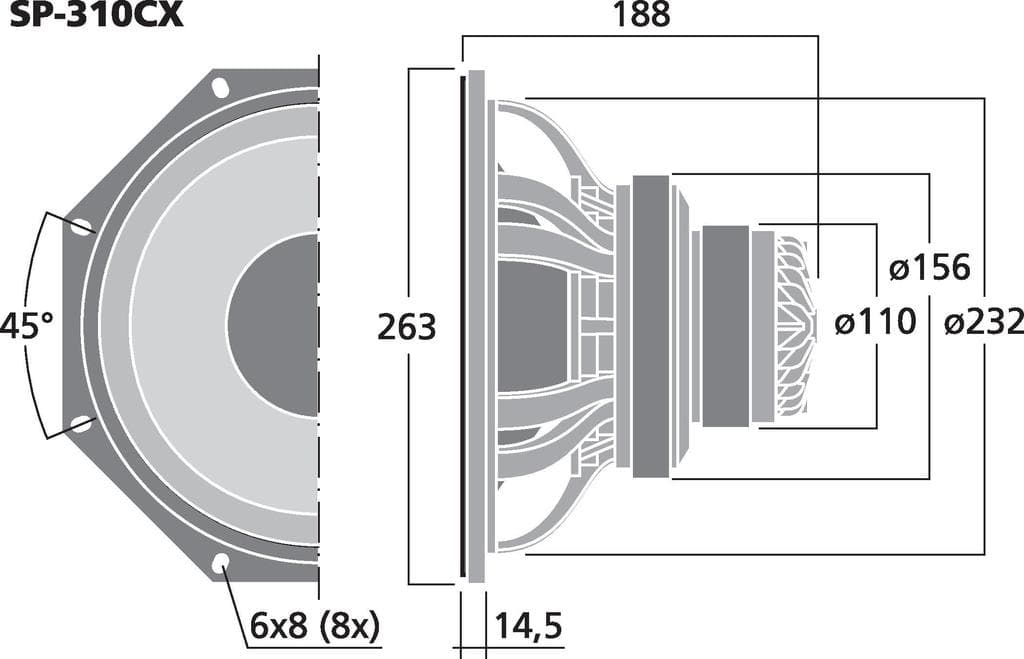

Size and mounting
- Diameter
- 263mm
- Cutout
- 232mm
- Depth
- 188mm
- Weight
- 6.2kg
Other published values
- Cms
- 0.24mm/N
- Power Peak
- 400
Other dimensions
- Mounting Depth
- 173.5
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Primary · 10″
- BL
- 13.3T·m
- Fs
- 60Hz
- Le
- 0.65mH
- Re
- 5.6Ω
- Sd
- 346cm²
- Cms
- 0.24mm/N
- Mms
- 32g
- Qes
- 0.36
- Qms
- 3.2
- Qts
- 0.32
- SPL
- 95.9dB
- Vas
- 41L
- Xmax
- 2.5mm
- Power
- 200W
- Impedance
- 2Ω
- Power Peak
- 400
- Sensitivity
- 96dB
- Low limit
- 3Hz
- Calculated sensitivity †
- 95.9dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 96dB
- Voice coil
- 64mm
- Weight
- 6.2kg
- Diameter
- 263mm
- Depth
- 188mm
- Mounting Depth
- 173.5
- Cutout
- 232mm
02
Compare
Same-size drivers, compared with the SP-310CX. Clear differences are green when better and red when worse.
This driverSP-310CX
Best price
–
Fs
60 Hz
Qts
0.32
Vas
41 L
BL
13.3 T·m
Xmax
2.5 mm
Sensitivity
95.9 dB
Power
200 W
SB AudienceBIANCO-10MW200
£50.47Fs56 Hz −7%
Qts0.36 +12%, worse
Vas41 L –
BL13 T·m –
Xmax6.7 mm +168%, better
Sensitivity94.3 dB −1.6
Dayton AudioMB1025-8
£52.35Fs45 Hz −25%, better
Qts0.34 +6%
Vas50.7 L +24%, worse
BL13.2 T·m –
Xmax3 mm +20%, better
Sensitivity93.1 dB −2.8, worse
VisatonPAW 25
£63.20Fs52 Hz −13%, better
Qts0.33 +3%
Vas44 L +7%
BL15.6 T·m +17%, better
Xmax3.5 mm +40%, better
Sensitivity94.6 dB −1.3
CelestionTF1020
£72.50Fs69 Hz +16%, worse
Qts0.32 –
Vas28.8 L −30%, better
BL14.1 T·m +6%
Xmax4 mm +60%, better
Sensitivity96.2 dB –
PRV Audio10MB800FT
£97.18Fs65 Hz +8%
Qts0.32 –
Vas36.7 L −10%, better
BL14.4 T·m +8%
Xmax3.5 mm +40%, better
Sensitivity96.8 dB +0.9
Beyma10WR300
£102.61Fs52 Hz −13%, better
Qts0.35 +9%
Vas42 L –
BL14.2 T·m +7%
Xmax6 mm +140%, better
Sensitivity93.8 dB −2.1, worse
FaitalPRO10PR330
£112.27Fs60 Hz –
Qts0.33 +3%
Vas32.5 L −21%, better
BL14.3 T·m +8%
Xmax7.4 mm +195%, better
Sensitivity94.9 dB −1
B&C10HPL64
£115.00Fs61 Hz –
Qts0.31 −3%
Vas32 L −22%, better
BL15 T·m +13%, better
Xmax4 mm +60%, better
Sensitivity95.5 dB –
FaitalPRO10RS350
£119.58Fs40 Hz −33%, better
Qts0.31 −3%
Vas40.6 L –
BL12.5 T·m −6%
Xmax7.2 mm +187%, better
Sensitivity91 dB −4.9, worse
FaitalPRO10PR310
£120.79Fs55 Hz −8%
Qts0.31 −3%
Vas40.3 L –
BL11.5 T·m −14%, worse
Xmax4.9 mm +97%, better
Sensitivity95.2 dB −0.7
B&C10PS26
£148.76Fs54 Hz −10%, better
Qts0.29 −9%
Vas38 L −7%
BL14.1 T·m +6%
Xmax5.5 mm +120%, better
Sensitivity94.6 dB −1.3
Sica10 FE 2.5 CP
£163.23Fs57 Hz −5%
Qts0.37 +16%, worse
Vas39.7 L −3%
BL12.8 T·m −4%
Xmax4 mm +60%, better
Sensitivity94.7 dB −1.2
PRV Audio10MB1000FT
£178.31Fs75 Hz +25%, worse
Qts0.32 –
Vas32.3 L −21%, better
BL14.5 T·m +9%
Xmax5.9 mm +135%, better
Sensitivity98.2 dB +2.3, better
Eighteen Sound10CX650
£261.58Fs54 Hz −10%, better
Qts0.35 +9%
Vas36.4 L −11%, better
BL14 T·m +5%
Xmax6 mm +140%, better
Sensitivity93.7 dB −2.2, worse
JensenBP10150-8
No current priceFs55 Hz −8%
Qts0.33 +3%
Vas42.6 L +4%
BL13.5 T·m –
Xmax2.4 mm −4%
Sensitivity95.1 dB −0.8
Eighteen Sound10MB400
No current priceFs70 Hz +17%, worse
Qts0.33 +3%
Vas41 L –
BL12 T·m −10%
Xmax2.5 mm –
Sensitivity97.8 dB +1.9
No current price
Fs58 Hz −3%
Qts0.32 –
Vas41 L –
BL15.3 T·m +15%, better
Xmax5.5 mm +120%, better
Sensitivity95.7 dB –
Oberton10NMB200
No current priceFs59 Hz –
Qts0.32 –
Vas34.9 L −15%, better
BL14.1 T·m +6%
Xmax4.3 mm +70%, better
Sensitivity95.4 dB −0.5
No current price
Fs47 Hz −22%, better
Qts0.33 +3%
Vas45.4 L +11%, worse
BL14.8 T·m +11%, better
Xmax4.8 mm +90%, better
Sensitivity93.5 dB −2.4, worse
CelestionFTR10-2055D
No current priceFs58 Hz −4%
Qts0.34 +7%
Vas36.9 L −10%
BL13.8 T·m +4%
Xmax4 mm +60%, better
Sensitivity94.6 dB −1.3
Sica10 N 2.5 PL
No current priceFs57 Hz −5%
Qts0.36 +12%, worse
Vas40.9 L –
BL12.8 T·m −4%
Xmax4.5 mm +80%, better
Sensitivity94.9 dB −1
PRV AudioMT10W1200-NDY-4
No current priceFs47 Hz −22%, better
Qts0.30 −6%
Vas41.2 L –
BL12.3 T·m −8%
Xmax6.5 mm +160%, better
Sensitivity93.4 dB −2.5, worse
No photo
PHL Audio3450
No current priceFs94 Hz +57%, worse
Qts0.34 +6%
Vas18.1 L −56%, better
BL15.7 T·m +18%, better
Xmax2.5 mm –
Sensitivity98 dB +2.1, better
Sica10 FE 3 CP
No current priceFs52 Hz −13%, better
Qts0.31 −3%
Vas38.6 L −6%
BL15.3 T·m +15%, better
Xmax5 mm +100%, better
Sensitivity94.3 dB −1.6
No current price
Fs55 Hz −8%
Qts0.36 +12%, worse
Vas45.3 L +10%, worse
BL14 T·m +5%
Xmax5.5 mm +120%, better
Sensitivity95 dB −0.9
RCFMB10G350
No current priceFs58 Hz −3%
Qts0.31 −3%
Vas34 L −17%, better
BL14.7 T·m +11%, better
Xmax7 mm +180%, better
Sensitivity95.2 dB −0.7
Oberton10B200
No current priceFs48 Hz −20%, better
Qts0.35 +9%
Vas31.9 L −22%, better
BL14.7 T·m +10%, better
Xmax5.8 mm +130%, better
Sensitivity91.9 dB −4, worse
No photo
PHL Audio3001
No current priceFs57 Hz −5%
Qts0.32 –
Vas31.5 L −23%, better
BL15.9 T·m +20%, better
Xmax4.5 mm +80%, better
Sensitivity94.4 dB −1.5
Eighteen Sound10NMB520
No current priceFs64 Hz +7%
Qts0.33 +3%
Vas43 L +5%
BL17.5 T·m +32%, better
Xmax4 mm +60%, better
Sensitivity97 dB +1.1
