LF Driver
Sica

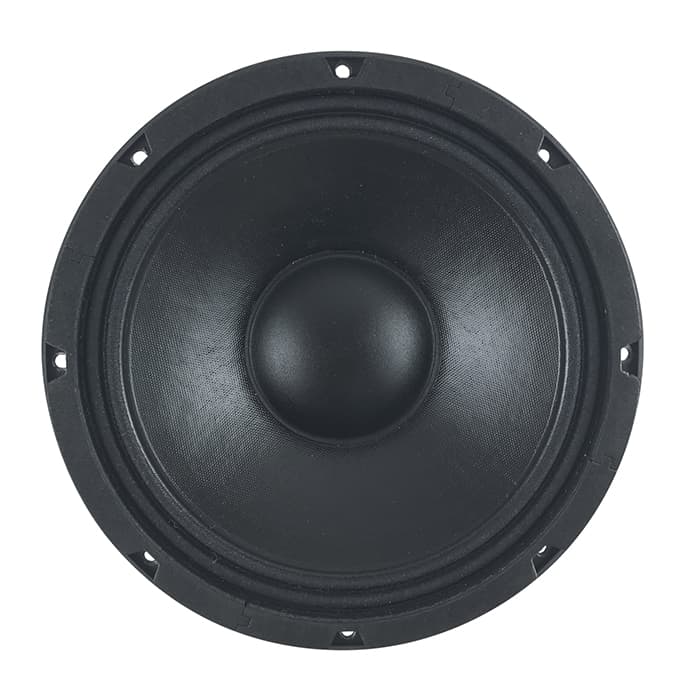

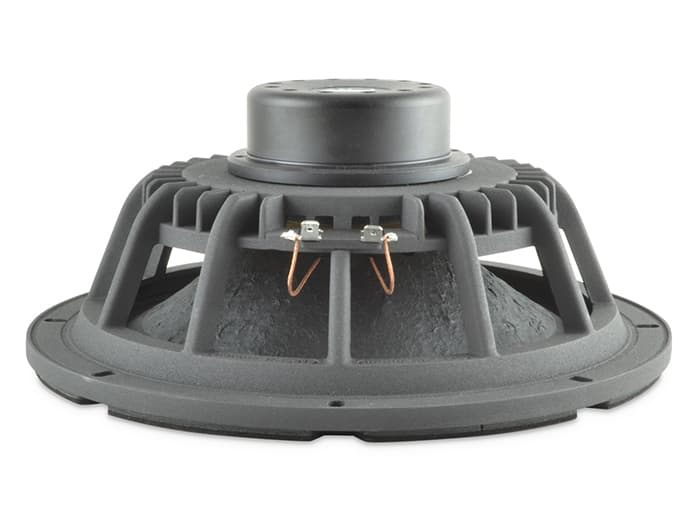

Sica 10 N 2.5 PL
Sica 10 N 2.5 PL is a 10" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 57Hz, Qts 0.36, Vas 40.9L, Xmax 4.5mm, sensitivity 94.9dB, plus 156cm³ Vd and 146 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
300W
Sensitivity
94.9dB
96.6dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
146
Vented alignment
Vd
156cm³
T/S Parameters
Valid
Fs57Hz
Qts0.36
Qes0.39
Qms4.3
Vas40.9L
Re5.5Ω
Le0.50mH
BL12.8Tm
Sd346cm²
Mms33g
Xmax4.5mm
SPL95dB
Power300W
Impedance8Ω
Voice Coil65mm
Flux Density1.22T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.2kg
Diameter268.0mm
Overall Depth111.5mm
Cutout Diameter232.0mm
Bolt Circle Diameter247.0mm
