Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF DriverRS series
FaitalPRO

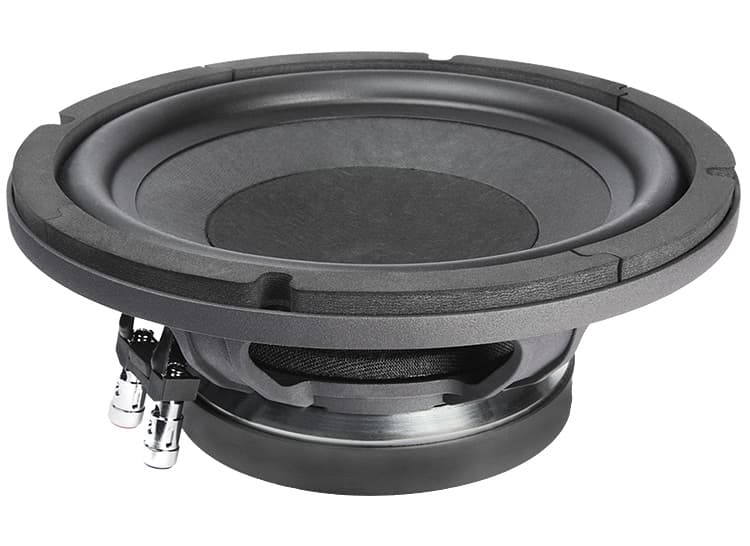

FaitalPRO 10RS350
FaitalPRO 10RS350 is a 10" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 40Hz, Qts 0.37, Vas 44.3L, Xmax 7.4mm, sensitivity 90.5dB, plus 254cm³ Vd and 100 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £119.58.
Size
10"
Impedance
8Ω
RMS Power
300W
Sensitivity
90.5dB
EBP
100
Either alignment
Vd
254cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees144 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
144 plotted pointsMedium confidence417 selected pixels of 807 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,168 selected pixels of 1,168 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,453 selected pixels of 1,453
T/S Parameters
Valid
Fs40Hz
Qts0.37
Qes0.40
Qms5.2
Vas44.3L
Re5.3Ω
Le0.95mH
BL14.0Tm
Sd344cm²
Mms59g
Xmax7.4mm
SPL91dB
Power300W
Impedance8Ω
F Low40Hz
F High2500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£119.58
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.2kg
Diameter261.0mm
Overall Depth116.5mm
Cutout Diameter230.0mm
Bolt Circle Diameter246.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
10RS350
10"
Best current price
£119.58
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
84%
Similarity
58% cheaper£50.47
SB Audience
BIANCO-10MW200
10"
Lower price
Xmax6.7mm-9%
Qts0.36-3%
BL13Tm-7%
Vas41L-7%
Qes0.43+7%
68%
Similarity
58% cheaper£50.73
SB Audience
BIANCO-10MW150
10"
Lower price
Xmax5.6mm-24%
Qts0.39+5%
BL15.1Tm+8%
Vas25.8L-42%
Qes0.40%
46%
Similarity
54% cheaper£55.54
Lavoce
WSF102.00
10"
Lower price
Xmax5.2mm-29%
Qts0.45+22%
BL11.6Tm-17%
Vas34L-23%
Qes0.48+20%
56%
Similarity
30% cheaper£83.47
Lavoce
WAF102.51
10"
Lower price
Xmax6mm-19%
Qts0.42+14%
BL15.6Tm+11%
Vas21.4L-52%
Qes0.44+10%
68%
Similarity
28% cheaper£85.99
B&C
10CL51
10"
Lower price
Xmax5.5mm-25%
Qts0.38+3%
BL11.6Tm-17%
Vas36L-19%
Qes0.42+5%
Image unavailable
56%
Similarity
12% cheaper£104.85
Eminence
DELTA-10A-2
10"
Lower price
Xmax6.4mm-13%
Qts0.44+19%
BL12.2Tm-13%
Vas29.7L-33%
Qes0.48+20%
80%
Similarity
6% cheaper£112.27
FaitalPRO
10PR330
10"
Lower price
Xmax7.4mm0%
Qts0.33-11%
BL14.3Tm+2%
Vas32.5L-27%
Qes0.36-10%
71%
Similarity
4% cheaper£114.82
RCF
MB10G251
10"
Lower price
Xmax7mm-5%
Qts0.34-8%
BL14.9Tm+6%
Vas24L-46%
Qes0.35-13%
43%
Similarity
3% cheaper£116.06
B&C
10CL64
10"
Lower price
Xmax5.2mm-29%
Qts0.31-16%
BL16.3Tm+16%
Vas22.2L-50%
Qes0.33-17%
59%
Similarity
£119.37
Eighteen Sound
10W500
10"
Xmax5.5mm-25%
Qts0.29-22%
BL14.6Tm+4%
Vas45.2L+2%
Qes0.31-23%
58%
Similarity
5% more£125.45
Eminence
KAPPALITE KL3010LF-8
10"
Higher price
Xmax8.5mm+16%
Qts0.31-16%
BL18Tm+28%
Vas47.3L+7%
Qes0.33-17%
69%
Similarity
13% more£135.67
FaitalPRO
10PR320
10"
Higher price
Xmax7.4mm0%
Qts0.29-22%
BL13.5Tm-4%
Vas52.7L+19%
Qes0.31-23%
