LF Driver10CL series
B&C

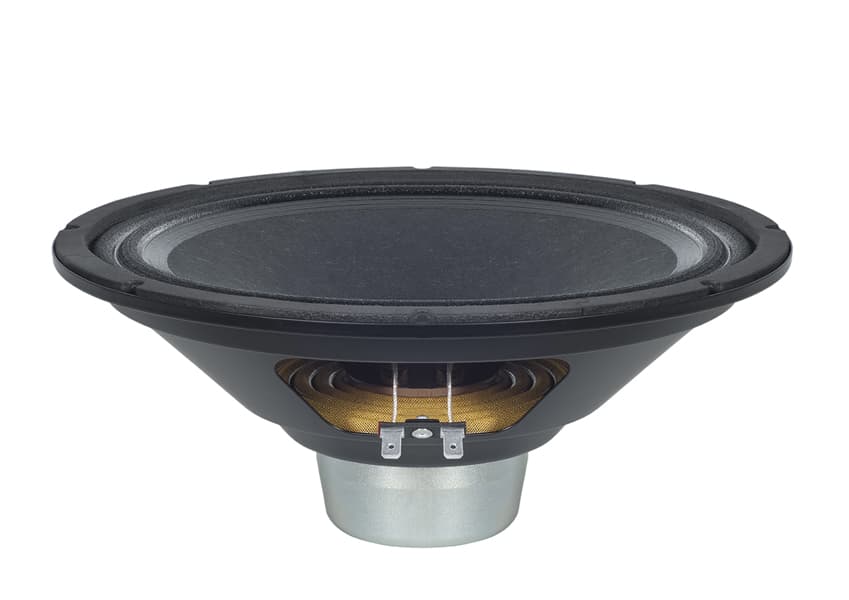

B&C 10CL51
B&C 10CL51 is a 10" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 58Hz, Qts 0.38, Vas 36L, Xmax 5.5mm, sensitivity 94.3dB, plus 176cm³ Vd and 138 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £85.99.
Size
10"
Impedance
8Ω
RMS Power
150W
Sensitivity
94.3dB
96.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
138
Vented alignment
Vd
176cm³

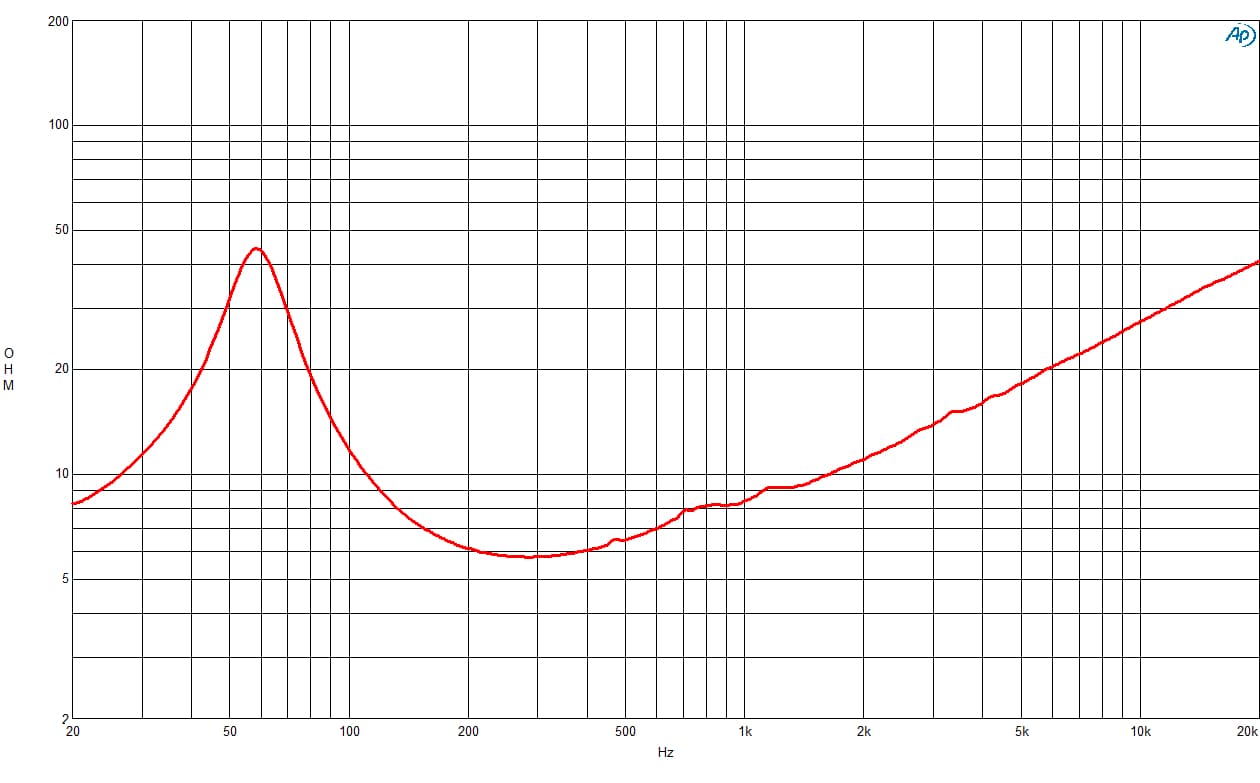

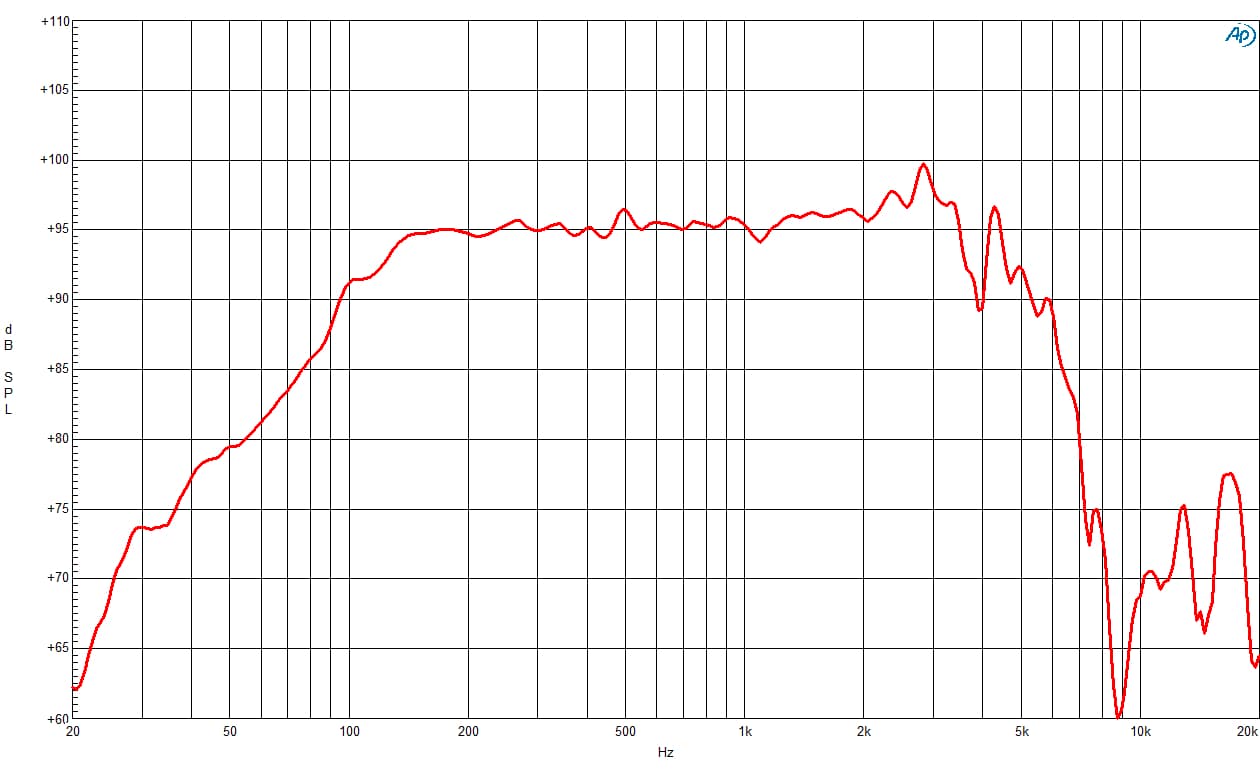

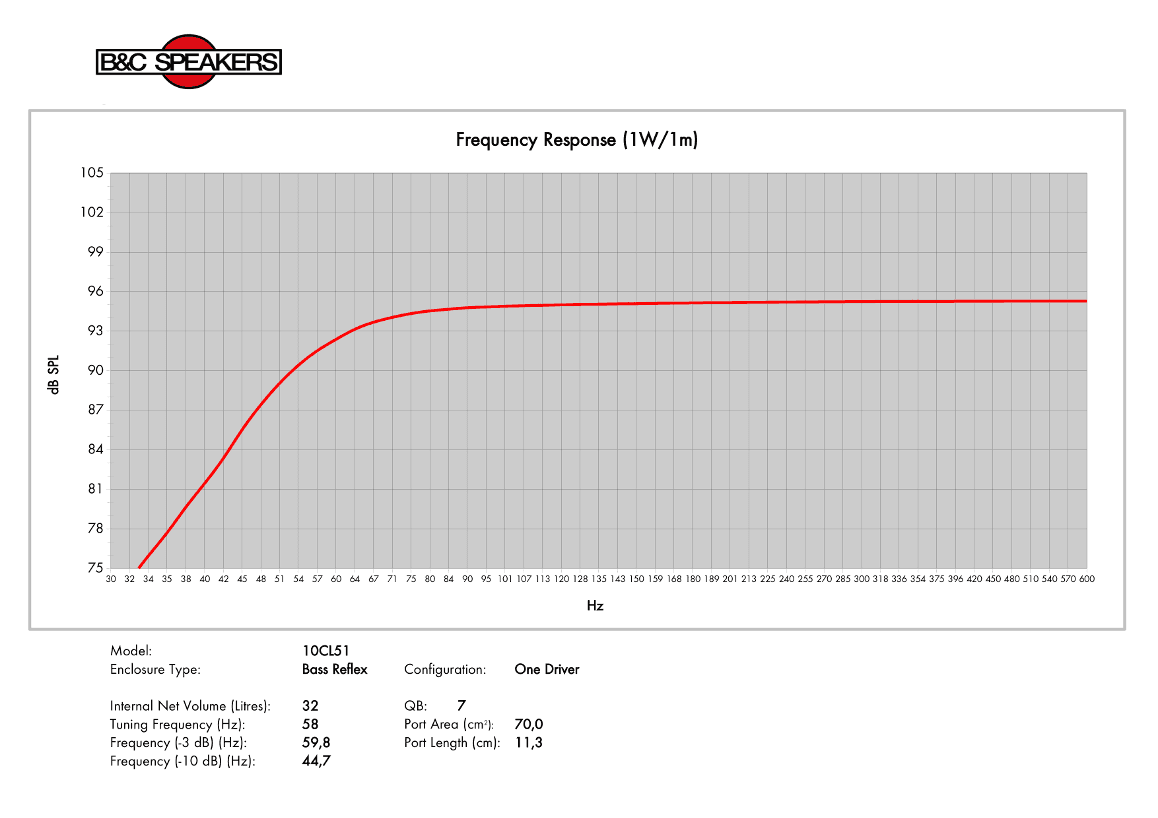

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs58Hz
Qts0.38
Qes0.42
Qms3.5
Vas36.0L
Re5.2Ω
Le0.80mH
BL11.6Tm
Sd320cm²
Mms31g
Xmax5.5mm
SPL94dB
Power150W
Power Nominal150W
Impedance8Ω
Min Impedance5.8Ω
F Low60Hz
F High4000Hz
Voice Coil51mm
Flux Density1.05T
Pricing & availability
Price definitionsPrice movement
Best current price
£85.99
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.3kg
Diameter257.0mm
Overall Depth108.0mm
Cutout Diameter232.0mm
Bolt Circle Diameter246.0mm
Additional Manufacturer Specs
Bl11.6 Tm
Fs58 Hz
Le0.8 mH
Re5.2 Ω
Sd320 cm² (49.6 in²)
Ebp138 Hz
Mms30.5 g
Qes0.42
Qms3.5
Qts0.38
Vas36 dm³ (1.27 ft³)
η01.57 %
ConeRCK10CL518
Xmax5.5 mm
Xvar5.5 mm
SpiderSingle
Cone ShapeExponential
Pole DesignStraight Pole
Winding Depth15 mm (0.59 in)
Surround ShapeDouble Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter250 mm (10 in)
Winding MaterialAluminium
Magnetic Gap Depth8 mm (0.31 in)
Recommended Tuning58 Hz
Bolt Circle Diameter246 mm (9.7 in)
Recommended Enclosure32 dm³ (1.13 ft³)
Woofer Cone TreatmentNone
Baffle Cutout Diameter232 mm (9.1 in)
Flange And Gasket Thickness7 mm (0.28 in)
Air Volume Occupied By Driver1 dm³ (0.03 ft³)
