Overview
LF DriverFE series
FaitalPRO
FaitalPRO 10FE400
FaitalPRO 10FE400 is a 10" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 60Hz, Qts 0.47, Vas 35.3L, Xmax 5.4mm, sensitivity 93.7dB, plus 196cm³ Vd and 115 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £55.28.
Size
10"
Impedance
8Ω
RMS Power
200W
Sensitivity
93.7dB
96.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
115
Vented alignment
Vd
196cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees204 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
204 plotted pointsMedium confidence838 selected pixels of 1,121 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,343 selected pixels of 1,343 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,341 selected pixels of 1,341
T/S Parameters
Valid
Fs60Hz
Qts0.47
Qes0.52
Qms5.2
Vas35.3L
Re5.0Ω
Le0.68mH
BL11.5Tm
Sd362cm²
Mms37g
Xmax5.4mm
SPL94dB
Power200W
Impedance8Ω
F Low60Hz
F High4500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£55.28
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.0kg
Diameter260.0mm
Overall Depth111.0mm
Cutout Diameter233.0mm
Bolt Circle Diameter246.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
10FE400
10"
Best current price
£55.28
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
53%
Similarity
9% cheaper£50.47
SB Audience
BIANCO-10MW200
10"
Lower price
Xmax6.7mm+24%
Qts0.36-23%
BL13Tm+13%
Vas41L+16%
Qes0.43-17%
55%
Similarity
8% cheaper£50.73
SB Audience
BIANCO-10MW150
10"
Lower price
Xmax5.6mm+4%
Qts0.39-17%
BL15.1Tm+31%
Vas25.8L-27%
Qes0.4-23%
90%
Similarity
£55.54

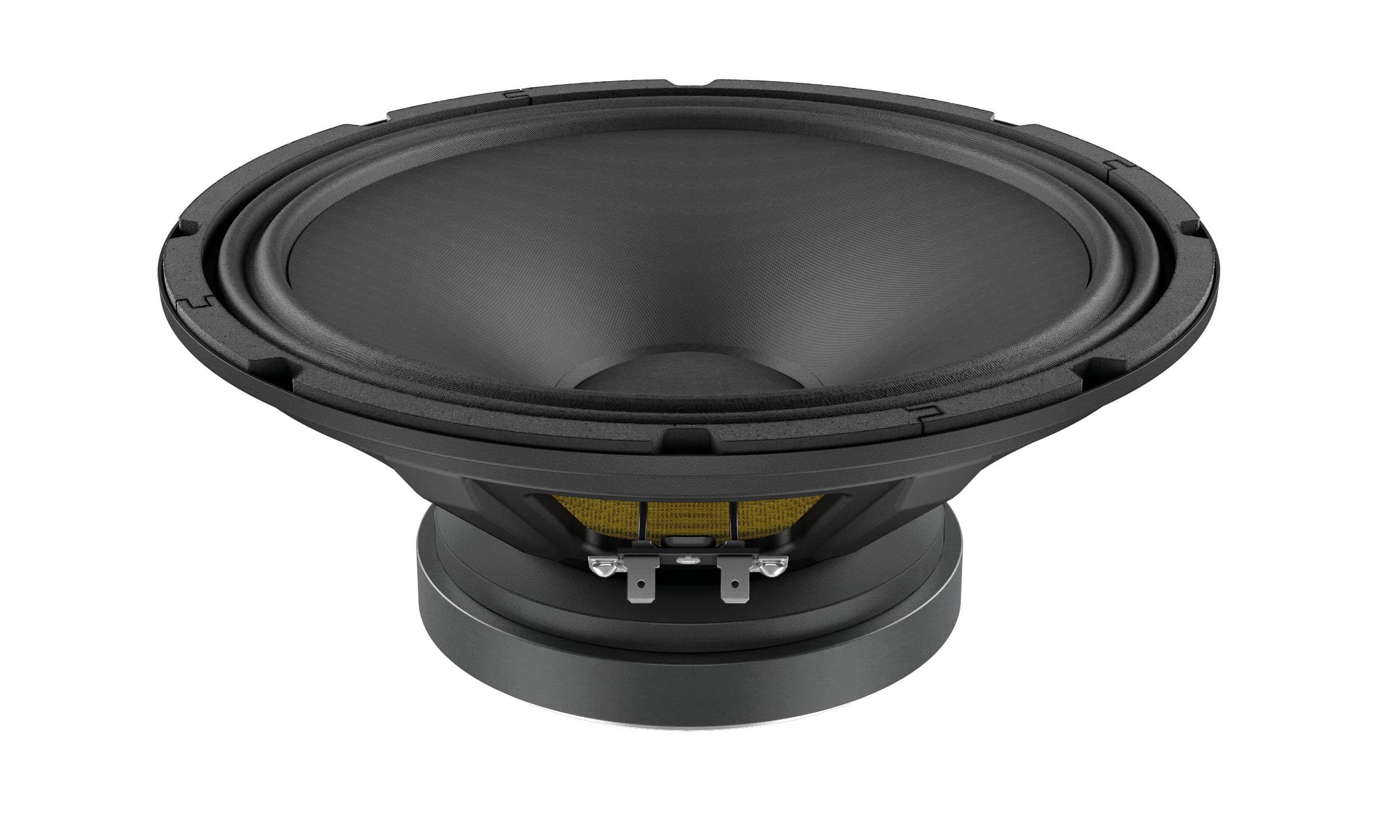

Lavoce
WSF102.00
10"
Xmax5.2mm-4%
Qts0.45-4%
BL11.6Tm+1%
Vas34L-4%
Qes0.48-8%
73%
Similarity
6% more£58.35
PRV Audio
10W650A
10"
Higher price
Xmax4.5mm-17%
Qts0.46-2%
BL14.1Tm+23%
Vas34L-4%
Qes0.47-10%
85%
Similarity
16% more£64.34
PRV Audio
10MR650A
10"
Higher price
Xmax5.7mm+6%
Qts0.470%
BL12.3Tm+7%
Vas41.9L+19%
Qes0.48-8%
54%
Similarity
18% more£65.00
Lavoce
WAF102.50
10"
Higher price
Xmax5.1mm-6%
Qts0.38-19%
BL14.6Tm+27%
Vas23.7L-33%
Qes0.42-19%
78%
Similarity
21% more£67.00
FaitalPRO
10FE300
10"
Higher price
Xmax5.5mm+2%
Qts0.52+11%
BL11.3Tm-2%
Vas50.5L+43%
Qes0.54+4%
59%
Similarity
44% more£79.75
CIARE
FXI10
10"
Higher price
Xmax4.5mm-17%
Qts0.38-19%
BL13.3Tm+16%
Vas38.5L+9%
Qes0.41-21%
78%
Similarity
56% more£85.99
B&C
10CL51
10"
Higher price
Xmax5.5mm+1%
Qts0.38-19%
BL11.6Tm+1%
Vas36L+2%
Qes0.42-19%
Image unavailable
75%
Similarity
90% more£104.85
Eminence
DELTA-10A-2
10"
Higher price
Xmax6.4mm+18%
Qts0.44-6%
BL12.2Tm+6%
Vas29.7L-16%
Qes0.48-8%
57%
Similarity
115% more£119.08
B&C
10CLA64
10"
Higher price
Xmax5mm-8%
Qts0.42-11%
BL14.5Tm+26%
Vas18.5L-48%
Qes0.45-13%
75%
Similarity
157% more£141.89
Lavoce
CSF102.50K
10"
Higher price
Xmax6.3mm+15%
Qts0.45-4%
BL12.9Tm+12%
Vas29.9L-15%
Qes0.48-8%
