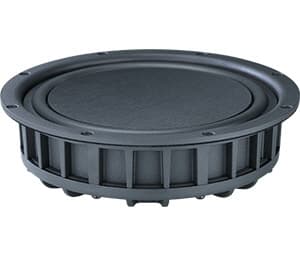

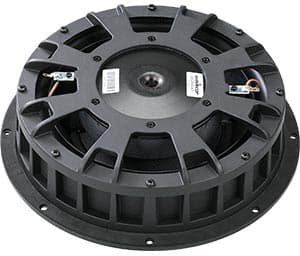

10-inch LF driver · SW280WA series · 39 mm voice coil

Wavecor SW280WA02 8Ω

Name: Wavecor SW280WA02 8 Ohm
Brand: Wavecor
SKU: SW280WA02

8 Ω

No price for delivery to the UK

All 1 offer

Open in 00 Simulator

Fs: 27Hz
Xmax: 6mm
SPL: 84dB
Pe: –
BL: 16.6T·m
Vd: 201cm³
Qts: 0.48
Vas: 41L

See all 18 specs

Curve provenanceInspect 2 traces

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

FR040WA02 on-axis
Frequency response
Trace datasheet-response-trace-poc/v1
240 plotted pointsMedium confidence633 selected pixels of 633
Manufacturer datasheet, page 2
FR040WA02 impedance
Impedance response
Trace datasheet-response-trace-poc/v1
240 plotted pointsMedium confidence644 selected pixels of 644
Manufacturer datasheet, page 2

Specifications

Published by Wavecor

Manufacturer page

Datasheet PDF

Wavecor SW280WA02 is a 10-inch 8 ohm LF driver. The validated T/S data includes Fs 27 Hz, Qts 0.48, Vas 41.4 L, Xmax 6 mm, sensitivity 83.9 dB, plus 201 cm³ Vd and 52 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 27Hz
Qts: 0.48
Qes: 0.52
Qms: 6.1
Vas: 41.4L
Re: 6.3Ω

Motor and cone

BL: 16.6T·m
Sd: 335cm²
Mms: 134g
Xmax: 6mm
Vd †: 201cm³
Voice coil: 39mm

Power and response

Sensitivity †: 83.9dB
Impedance: 8Ω
EBP †: 52 · Sealed or vented

Size and mounting

Diameter: 279.4mm

Other published values

Cms: 0.26mm/N
Rms: 3.70kg/s

† Calculated by bits from the published values

What this validation status means

Everything else Wavecor lists

LF · Primary · 10″

BL: 16.6T·m
Fs: 27Hz
Re: 6.3Ω
Sd: 335cm²
Cms: 0.26mm/N
Mms: 134g
Qes: 0.52
Qms: 6.1
Qts: 0.48
Rms: 3.70kg/s
SPL: 83.9dB
Vas: 41.4L
Xmax: 6mm
Impedance: 8Ω
Calculated sensitivity †: 83.9dB
Voice coil: 39mm
Diameter: 279.4mm

Compare

Same-size drivers, compared with the SW280WA02. Clear differences are green when better and red when worse.

This driverSW280WA02

Best price

–

27 Hz

Qts

0.48

Vas

41.4 L

16.6 T·m

Xmax

6 mm

Sensitivity

83.9 dB

Power

–

GRS10PT-8

£32.16

Fs47 Hz +75%

Qts0.48 –

Vas46.2 L +11%

BL13.4 T·m −19%

Xmax7.8 mm +30%

Sensitivity91.8 dB +7.9

LavoceWSF101.70G

£47.14

Fs78 Hz +190%

Qts0.50 +4%

Vas36 L −13%

BL11.9 T·m −28%

Xmax2.7 mm −55%

Sensitivity97.1 dB +13.2

Beyma10CMV2

£52.32

Fs52 Hz +93%

Qts0.42 −13%

Vas44 L +6%

BL13.4 T·m −19%

Xmax6.5 mm +8%

Sensitivity93.2 dB +9.3

LavoceWSF102.00

£55.54

Fs65 Hz +142%

Qts0.45 −6%

Vas34.0 L −18%

BL11.6 T·m −30%

Xmax5.2 mm −13%

Sensitivity94.9 dB +11

PRV Audio10MR650A

£63.52

Fs65 Hz +141%

Qts0.47 –

Vas41.9 L –

BL12.3 T·m −26%

Xmax5.7 mm −5%

Sensitivity95.8 dB +11.9

FaitalPRO10FE400

£66.15

Fs60 Hz +123%

Qts0.47 –

Vas35.3 L −15%

BL11.5 T·m −31%

Xmax5.4 mm −10%

Sensitivity93.7 dB +9.8

FaitalPRO10FE300

£67.00

Fs50 Hz +86%

Qts0.52 +8%

Vas50.5 L +22%

BL11.3 T·m −32%

Xmax5.5 mm −8%

Sensitivity92.7 dB +8.8

Beyma10WRS300

£75.00

Fs52 Hz +93%

Qts0.38 −21%

Vas42 L –

BL13.9 T·m −16%

Xmax6 mm –

Sensitivity93.7 dB +9.8

CIAREPWA10.50

£82.89

Fs57 Hz +112%

Qts0.40 −17%

Vas39.9 L −4%

BL11.4 T·m −31%

Xmax5.8 mm −3%

Sensitivity94.2 dB +10.3

Beyma10WR300

£102.61

Fs52 Hz +93%

Qts0.35 −27%

Vas42 L –

BL14.2 T·m −14%

Xmax6 mm –

Sensitivity93.8 dB +9.9

PeerlessSDF-250F75PR01-06

£117.82

Fs34 Hz +26%

Qts0.46 −4%

Vas32.9 L −21%

BL14.6 T·m −12%

Xmax15.3 mm +155%

Sensitivity86.3 dB +2.4

FaitalPRO10PR300

£133.13

Fs65 Hz +142%

Qts0.48 –

Vas30.6 L −26%

BL18 T·m +8%

Xmax4.9 mm −18%

Sensitivity94.1 dB +10.2

FaitalPRO10PR310

£135.64

Fs65 Hz +142%

Qts0.47 –

Vas29 L −30%

BL18.7 T·m +13%

Xmax4.9 mm −18%

Sensitivity93.9 dB +10

LavoceCSF102.50K

£141.89

Fs65 Hz +142%

Qts0.45 −6%

Vas29.9 L −28%

BL12.9 T·m −22%

Xmax6.3 mm +4%

Sensitivity94.4 dB +10.5

Eighteen Sound10W650

£143.18

Fs67 Hz +149%

Qts0.48 –

Vas26 L −37%

BL12.4 T·m −25%

Xmax5.7 mm −5%

Sensitivity93.9 dB +10

CelestionFTX1025

£165.00

Fs72 Hz +166%

Qts0.44 −8%

Vas25.9 L −38%

BL12.3 T·m −26%

Xmax5 mm −17%

Sensitivity94.6 dB +10.7

Dayton AudioRSS265HF-8

£213.77

Fs25 Hz −7%

Qts0.49 –

Vas52.5 L +27%

BL15 T·m −10%

Xmax14.3 mm +138%

Sensitivity83.4 dB −0.5

Dayton AudioMX10-22

£216.40

Fs33 Hz +21%

Qts0.46 −4%

Vas23.8 L −43%

BL18.2 T·m +10%

Xmax11.6 mm +93%

Sensitivity83.9 dB –

B&C10FCX64

£237.42

Fs63 Hz +134%

Qts0.42 −13%

Vas25 L −40%

BL13.4 T·m −19%

Xmax6 mm –

Sensitivity93.6 dB +9.7

WavecorSW280WA04

£241.98

Fs34 Hz +26%

Qts0.45 −6%

Vas30.5 L −26%

BL15.5 T·m −7%

Xmax6 mm –

Sensitivity86.1 dB +2.2

WavecorSW280WA03

£241.98

Fs35 Hz +28%

Qts0.46 −4%

Vas29.7 L −28%

BL12.5 T·m −25%

Xmax6 mm –

Sensitivity86.1 dB +2.2

Beyma10NMFS

£324.84

Fs35 Hz +30%

Qts0.42 −13%

Vas45 L +9%

BL16 T·m −4%

Xmax14.5 mm +142%

Sensitivity88.4 dB +4.5

WavecorSW259WA02

£376.79

Fs24 Hz −11%

Qts0.43 −10%

Vas40 L −3%

BL18.6 T·m +12%

Xmax11.5 mm +92%

Sensitivity83 dB −0.9

WavecorSW280WA01

£408.94

Fs27 Hz –

Qts0.41 −15%

Vas41.4 L –

BL13.4 T·m −19%

Xmax6 mm –

Sensitivity84.5 dB +0.6

EminenceFS10.20A8

No current price

Fs56 Hz +108%

Qts0.48 –

Vas45 L +9%

BL10.4 T·m −37%

Xmax5.5 mm −8%

Sensitivity93.7 dB +9.8

PeerlessFSL-1025R03-06

No current price

Fs66 Hz +145%

Qts0.46 −4%

Vas18.1 L −56%

BL14.3 T·m −14%

Xmax6.3 mm +4%

Sensitivity92.1 dB +8.2

PRV Audio10W650A

No current price

Fs72 Hz +169%

Qts0.46 −4%

Vas34.0 L −18%

BL14.1 T·m −15%

Xmax4.5 mm −25%

Sensitivity96.4 dB +12.5

CelestionTF1020RE

No current price

Fs53 Hz +96%

Qts0.39 −20%

Vas44.5 L +8%

BL12.0 T·m −27%

Xmax5.9 mm –

Sensitivity93.6 dB +9.7

CIARENDI10

No current price

Fs57 Hz +112%

Qts0.45 −6%

Vas35 L −15%

BL12.6 T·m −24%

Xmax4.5 mm −25%

Sensitivity93.2 dB +9.3

PRV Audio10W1000-NDY

No current price

Fs62 Hz +131%

Qts0.40 −17%

Vas39 L −6%

BL12.7 T·m −23%

Xmax6.5 mm +8%

Sensitivity95.5 dB +11.6

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax

Where to buy

Prices for delivery to the UK, including VAT. How prices work

Watch price

Shop	Price	Against the lowest	Stock	Link
Lautsprechershop Checked 25 Oct 2026 · Ships from Germany · 8 Ω · Source: inc VAT · 19% Import VAT and duty may apply	£415.39		Special order	Visit shop at Lautsprechershop
